Oki 59375102 Bedienungsanleitung

Hard Disk Drive (HDD)

Installation Instructions

59375102

reserved.

Every effort has been made to ensure that the

information in this document is complete,

accurate, and up-to-date. The manufacturer

assumes no responsibility for the results of errors

beyond its control. The manufacturer also cannot

guarantee that changes in software and

equipment made by other manufacturers and

referred to in this guide will not affect the

applicability of the information in it. Mention of

software products manufactured by other

companies does not necessarily constitute

endorsement by the manufacturer.

For the latest product information, printer drivers,

manuals, special offers, etc., go to

http://my.okidata.com

Trademark Information

OKI is a registered trademark of Oki Electric Industry

Company, Ltd.

Macintosh is a trademark of Apple Computer, Inc., registered

in the U.S. and other countries.

Windows and Windows NT are either registered trademarks

or trademarks of Microsoft Corporation in the United States

and other countries.

Other product names and brand names are registered

trademarks or trademarks of their proprietors.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

Mt. Laurel, NJ 08054-4620

www.okiprintingsolutions.com

Prepare the Printer

1. Turn off the printer.

2. Detach the power cord from the back of the

printer.

3. Detach the interface cable from the back of

the printer.

4. Remove and save the thumbscrews at the

top and bottom which hold the control

board cover in place.

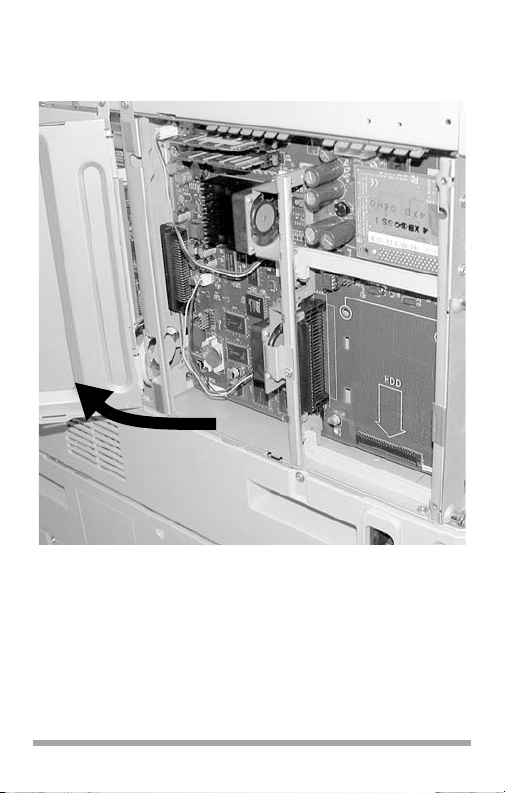

5. Open the control board cover by pulling out

and to the left.

Install the Hard Disk

Drive (HDD)

1. Locate the drive connector (1) on the

control board:

2. Remove the hard disk drive from its

shipping package.

Caution!

Observe antistatic precautions when

installing the hard disk drive.

3. Lift the handle on the HDD and insert the

connector firmly into the socket on the

control board.

4. Press down on the handle to lock it in place.

Complete the

Installation

1. Close the control board cover and reinstall

the screws at the top and bottom.

2. Reattach the interface cable, then the

power cord.

3. Turn on the printer.

Verify the Installation

Print the Configuration Report

1. Press Enter to access the printer menu.

2. Press Enter to select Configuration.

3. Press the ∇key.

4. Press Enter to select Print Information.

5. Press Enter to select Execute.

The Configuration report prints.

6. In the listing under Configuration, System,

“HDD: installed” should appear.

If you see “HDD: uninstalled”, repeat the

installation steps—checking to be sure that

the Hard Disk Drive is firmly seated in the

printer connector—until it does.

Activate the HDD in the

Driver

Windows®

Postscript Emulation Driver

1. First

Windows Vista

a. Click Start →Settings →Hardware and

Sound →Printer.

The Printer dialog box opens.

Windows XP, Server 2003

a. Click Start →Settings →Printers and

Faxes.

The Printers and Faxes dialog box opens.

Windows 2000

a. Click Start →Settings →Printers.

The Printers dialog box opens.

2. Right click the appropriate printer icon.

Click Properties.

3. Click the Device Settings tab.

4. Scroll down to Installable Options. Click

Printer Hard Disk.
