Oki 42158411 Bedienungsanleitung

Memory DIMM

Installation Instructions


For DIMM Part Numbers

64 MB: 70043001

128 MB: 70043101

256 MB: 70043201

59382901, Am Eng

Copyright Information

© 2005 by Oki Data Americas, Inc. All rights reserved.

Document Information

Memory DIMM Installation Instructions

P/N 59382901

October, 2005

Disclaimer

Every effort has been made to ensure that the information in this document is

complete, accurate, and up-to-date. The manufacturer assumes no responsibility for

the results of errors beyond its control. The manufacturer also cannot guarantee that

changes in software and equipment made by other manufacturers and referred to in

this guide will not affect the applicability of the information in it. Mention of software

products manufactured by other companies does not necessarily constitute

endorsement by the manufacturer .

For the latest product information, printer drivers, manuals, special offers, etc., go to

www.okiprintingsolutions.com

Trademark Information

OKI is a registered trademark of Oki Electric Industry Company, Ltd.

Macintosh is a trademark of Apple Computer, Inc., registered in the U.S. and other

countries.

Windows and Windows NT are either registered trademarks or trademarks of Microsoft

Corporation in the United States and other countries.

Other product names and brand names are registered trademarks or trademarks of

their proprietors.

3

Installation

Caution!

To avoid damage by static electricity and rough handling. Keep the

board in its packaging until you're ready to install it

1. Turn off the printer (1).

2. Unplug the power cord (2).

3. Detach the interface cable from the back of the printer (3).


4

4. Open the top cover.


5. Loosen the thumbscrew holding the printer side cover in place.


5

6. Open the front cover.


7. Lift up on the ends. Remove the side panel from the printer.


6

8. Locate the DIMM socket.

c51_06_sidenopanel.jpg and c53_107_dimmsocket.jpg

9. Push out the lock tabs at either end of the DIMM socket.

c51_04a_dimmtabs.jpg and c53_107a_dimmsocket.jpg

7

Caution!

To avoid damage, ground yourself (touch metal) before handling

DIMMs.

10. Remove the DIMM from its shipping package.

11. Position the DIMM as shown.


8

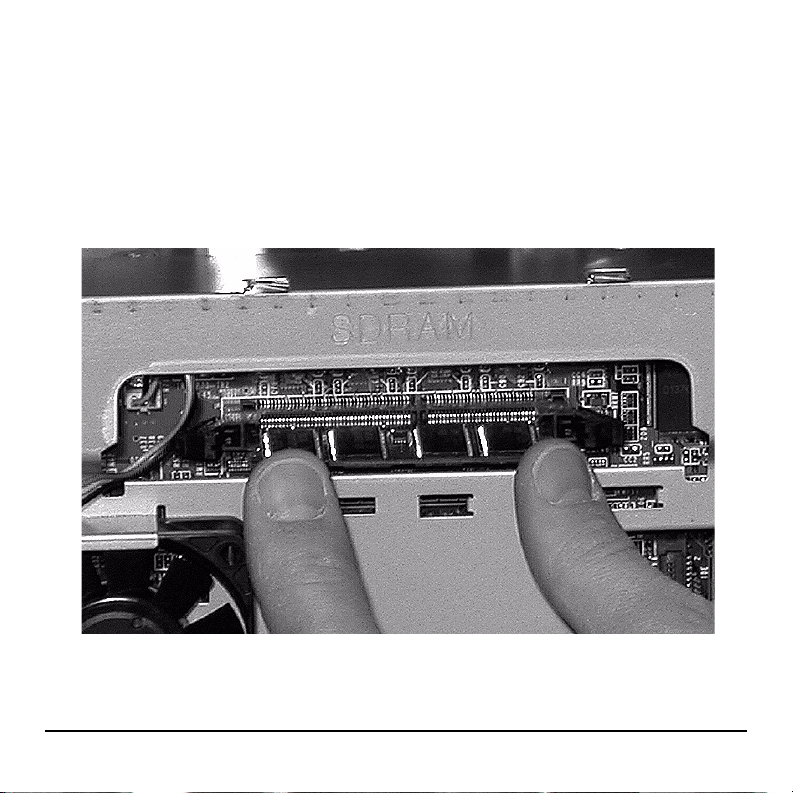

12. Insert the DIMM in the socket.

Press the DIMM in firmly, until you feel the tabs snap to lock it in

place.

Note: You may need to push the tabs in manually to secure the

DIMM.


9

13. Place the side panel on the printer. Use the thumbscrew to

secure the panel.


14. Close the front cover.


10

15. Close the top cover.


16. Attach the interface cable.

17. Plug in the power cord.

18. Turn on the printer.
