Oki ES3640eMFP Bedienungsanleitung

Hole Punch Kit (P/N 42872902)

Technician’s Installation Guide

1. Unpack the Hole Punch Kit and check the

contents:

[

] Hole Punch Unit

[

]SafetyLabels

[

] Screw (for securing hole punch unit to finisher:

see step 14)

[

]OrangeCable(4leads)

[

] Purple Cable (5 leads)

2. Remove the packing tape, blue spacers and

any other packing materials from the Hole

Punch Unit.

3. Turn off the printer.

4. On the back of the finisher/inverter unit,

unplug the inverter power cord (

) and the

connecting cord (

) to the finisher.

5. Push in on the finisher release lever and slide

the finisher away from the inverter.

6. Open the finisher front cover.

7. Squeeze the white locking tabs on the blue

knob and pull it out of the finisher.

8. Remove the internal cover:

a. Remove the two screws behind the cover.

b. Remove the two screws holding the side of

the cover in place.

c. Pull off the internal cover.

9. Remove the screws securing the rear cover

(two on the left side [

] and one on the right

side [

]), then remove the rear cover.

10. Remove the two screws at either end of the

hole punch blank.

11. Swing up the finisher top cover (

) and lift

out the punch blank unit (

12. Remove the top of the blank unit: you need

this to install the hole punch unit. Store the

bottom of the blank in case you ever remove

the hole punch from the finisher.

13. Align the pins at either end of the hole punch

unit with the holes in the finisher housing,

then slide the hole punch unit into place.

14. Secure the hole punch unit in place: use two

of the screws (

) you removed earlier, plus

the screw (

) supplied with the hole punch

accessory.

15. Open the finisher top cover and snap the top

of the blank into place on the hole punch

unit.

16. Close the top cover and secure the hole

punch unit in place with two screws at either

end.

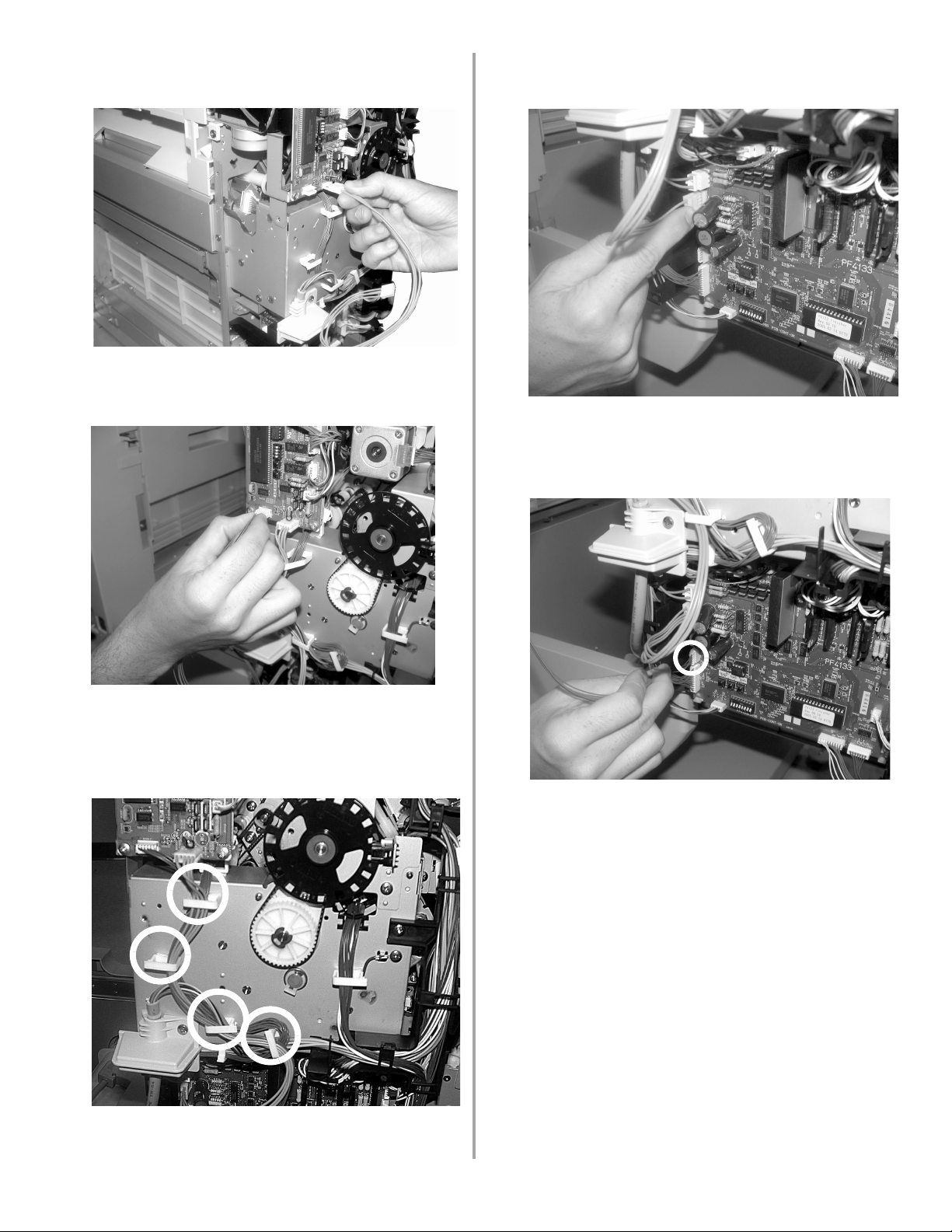

17. Insert the orange cable (4 leads) into the

connector on the hole punch unit board.

18. Insert the purple cable (5 leads) into the

connector on the hole punch unit board.

19. Snap open the four cable harnesses, then

thread the two cables through the harnesses

and snap each one shut.

20. Plug the orange cable into the connector on

the main board.

21. Plug the purple cable into the connector on

the main board.

22. Reinstall the back cover and secure it in

place: two screws on the left side

) and

one screw on the right side (

23. Reinstall the internal front cover and secure

it with four screws.

24. Push the blue knob back into place.

25. Close the finisher front cover.

26. Apply the appropriate language safety label:

27. Slide the finisher back into the inverter. Make

sure it locks in place.

28. Reattach the cable between the finisher and

inverter and the finisher power cable.

29. Turn on the printer.

30. Test the operation of the hole punch unit:

a. With a suitable document open in a

software application, select

[File]

→

[Print].

b. Select the appropriate Oki printer, then

click [Properties].

c. Click the [Job Options] tab.

d. Under [Finisher], [Output Bin], select

[Finisher(Face-up)] or

[Finisher(Face-down)] from the drop-down

list.

e. Under [Finisher], [Staple], select

[Punch(Long-Edge)] or

[Punch(Short-Edge)], then click [OK].

f. Print the document.

31. Demonstrate how to empty the punch

collection box:

a. Push in on the finisher release lever and

slide the finisher away from the inverter.

b. Remove the punch collection box from the

finisher.

c. Empty it, then put it back into the finisher.

d. Slide the finisher back into the inverter.

Make sure it locks in place.
