Submittal Package
CUDO®CUBES
1 - Features & BeneFits
2 - accessories
3 - Product sPeciFications
4 - installation Manual
5 - oPerations & Maintenance
table of contentS
Features & BeneFits
Section 1
Call us today (800) 579-8819 or visit our website for detailed product information, drawings and
design tools at www.oldcastlestormwater.com
CUDO®CUBES
DETENTION / RETENTION
Reshaping the Future of Stormwater Management
A new approach to underground
stormwater storage, infiltration,
treatment, harvesting or other
stormwater management needs.
Potential LEED®credits for Sustainable Sites (6.1, 6.2),
Materials & Resources (4, 5 in CA, AZ, NV, OR, UT) and
Water Efficiency (1, 3)
(800) 579-8819
oldcastlestormwater.com © 2017 Oldcastle Precast, Inc.
OSS_CUDOInsert_032017_v4

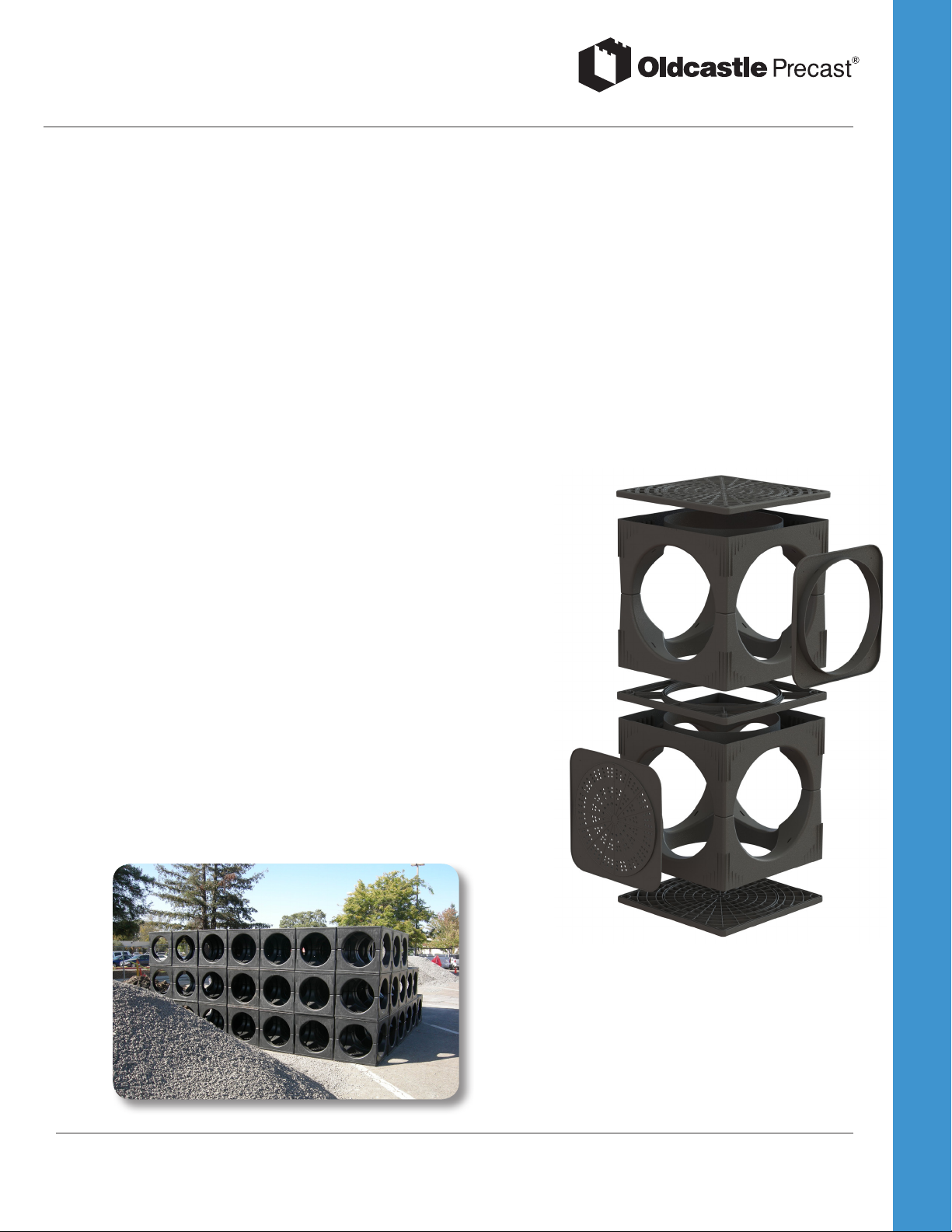

CUDO stacks ready for installation in San Rosa, California
CUDO components snap together, forming a single
or multiple stack. Assembled stacks are installed
to form the desired system size and shape, with a
maximum amount of footprint flexibility.
CUDO®Water Storage System
A modular plastic cube for underground water storage
Cubes incorporate an arched design that adds structural integrity, increased water storage
and enhanced access for inspection and maintenance. Made in the USA of injection molded
polypropylene plastic, a single CUDO assembly requires just two modules and two end caps.
Per application, either a filter fabric or plastic liner is wrapped around the CUDO modules,
encasing the entire system. Geo-grid or other structural enhancement may be incorporated
into the CUDO installation, depending on the loading requirements.
FEATURES AND BENEFITS
• Large interior openings offer ease of access for
inspection and maintenance
• High water storage capacity (95%)
• CUDO size (24” x 24” x 24”) offers ease of handling
and installation
• Unique shape offers superior strength, rated for
traffic loading under parking lots or driveways
• Minimal number of components required for
assembly
• May be integrated into bioretention systems (rain
gardens)
accessories
Section 2
Product Specification - Structural Geogrid BX1200
The structural geogrid shall be an integrally formed grid structure manufactured of a stress resistant polypropylene material with molecular weight
and molecular characteristics which impart: (a) high resistance to loss of load capacity or structural integrity when the geogrid is subjected to
mechanical stress in installation; (b) high resistance to deformation when the geogrid is subjected to applied force in use; and (c) high resistance to
loss of load capacity or structural integrity when the geogrid is subjected to long-term environmental stress.
The structural geogrid shall accept applied force in use by positive mechanical interlock (i.e. by direct mechanical keying) with: (a) compacted soil or
construction fill materials; (b) contiguous sections of itself when overlapped and embedded in compacted soil or construction fill materials; and (c)
rigid mechanical connectors such as bodkins, pins or hooks. The structural geogrid shall possess sufficient cross sectional profile to present a
substantial abutment interface to compacted soil or particulate construction fill materials and to resist movement relative to such materials when
subject to applied force. The structural geogrid shall possess sufficient true initial modulus to cause applied force to be transferred to the geogrid at
low strain levels without material deformation of the reinforced structure. The structural geogrid shall possess complete continuity of all properties
throughout its structure and shall be suitable for reinforcement of compacted soil or particulate construction fill materials to improve their long
term stability in structural load bearing applications such as earth retention systems. The structural geogrid shall have the following characteristics:
Integrally Formed Structural Geogrid
Positive Mechanical Interlock
Product Type:
Load Transfer Mechanism:
Product Properties Index
Properties Units MD Values1XMD Values1
mm (in) 25 (1.0) 33 (1.3)
Aperture Dimensions2
Minimum Rib Thickness2 mm (in) 1.27 (0.05) 1.27 (0.05)
Load Capacity
kN/m(lb/ft) 400 (27,420) 650 (44,550)
kN/m(lb/ft) 6.0 (410) 9.0 (620)
True Initial Modulus in Use3
True Tensile Strength @ 2% Strain3
True Tensile Strength @ 5% Strain3kN/m(lb/ft) 11.8 (810) 19.6 (1,340)
Structural Integrity
%93
mg-cm 750,000
Junction Efficiency4
Flexural Stiffness5
Aperture Stability6 kg-cm/deg 6.5
Durability
95 / 93 / 90
Resistance to Installation Damage7
Resistance to Long Term Degradation8
%SC / %SW / %GP
%100
Dimensions and Delivery
The structural geogrid shall be delivered to the jobsite in roll form with each roll individually identified and nominally measuring 3.0 meters (9.8 feet) or 4.0
meters (13.1 feet) in width and 50.0 meters (164 feet) in length. A typical truckload quantity is 165 to 220 rolls. On special request, the structural geogrid
may also be custom cut to specific lengths or widths to suit site specific engineering designs.
Notes
1. Unless indicated otherwise, values shown are minimum average roll values determined in accordance with ASTM D-4759. Brief descriptions of test
procedures are given in the following notes. Complete descriptions of test procedures are available on request from Tensar Earth Technologies, Inc.
2. Nominal dimensions.
3. True resistance to elongation when initially subjected to a load measured via ASTM D6637 without deforming test materials under load before measuring
such resistance or employing "secant" or "offset" tangent methods of measurement so as to overstate tensile properties.
4. Load transfer capability measured via GRI-GG2-87. Expressed as a percentage of ultimate tensile strength.
5. Resistance to bending force measured via ASTM D-5732-95, using specimens of width two ribs wide, with transverse ribs cut flush with exterior edges of
longitudinal ribs (as a "ladder"), and of length sufficiently long to enable measurement of the overhang dimension. The overall Flexural Stiffness is
calculated as the square root of the product of machine-and cross-machine-direction Flexural Stiffness values.
6. Resistance to in-plane rotational movement measured by applying a 20 kg-cm moment to the central junction of a 9 inch x 9 inch specimen restrained at its
perimeter (U.S. Army Corps of Engineers Methodology for measurement of Torsional Rigidity).
7. Resistance to loss of load capacity or structural integrity when subjected to mechanical installation stress in clayey sand (SC), well graded sand (SW), and
crushed stone classified as poorly graded gravel (GP). The geogrid shall be sampled in accordance with ASTM D5818 and load capacity shall be measured in
accordance with ASTM D6637.
8. Resistance to loss of load capacity or structural integrity when subjected to chemically aggressive environments measured via EPA 9090 immersion testing.
Tensar Earth Technologies, Inc. reserves the right to change its product specifications at any time. It is the responsibility of the specifier and purchaser to ensure that
product specifications used for design and procurement purposes are current and consistent with the products used in each instance.
Please contact Tensar Earth Technologies at 800-836-7271 for assistance.
Mirafi® 140NC
Mirafi® 140NC is a non-woven geotextile composed of polypropylene fibers, which are
formed into a stable network such that the fibers retain their relative position. Mirafi
140NC is inert to biological degradation and resists naturally encountered chemicals,
alkalis, and acids.
Minimum Average
Roll Value
Mechanical Properties Test Method Unit
MD CD
Grab Tensile Strength ASTM D 4632 kN (lbs) 0.45 (100) 0.45 (100)
Grab Tensile Elongation ASTM D 4632 % 60 60
Toughness
Grab Tensile
Strength x
Elongation
lbs 6000
Trapezoid Tear Strength ASTM D 4533 kN (lbs) 0.20 (45) 0.20 (45)
Mullen Burst Strength ASTM D 3786 kPa (psi) 1447 (210)
Puncture Strength1 ASTM D 4833 kN (lbs) 0.29 (65)
CBR Puncture Strength ASTM D 6241 kN (lbs) 1.12 (250)
Apparent Opening Size (AOS) ASTM D 4751 mm
(U.S. sieve)
0.212
(70)
Permittivity ASTM D 4491 sec-1 1.8
Flow Rate ASTM D 4491 l/min/m2
(gal/min/ft2)
5704
(140)
Mass / Unit Area ASTM D 5261 g/m2 (oz/yd2)(4.0)136
UV Resistance (at 500 Hours) ASTM D 4355 % strength
retained 70
1 ASTM D 4833 has been replaced with ASTM D 6241.
Physical Properties Test Method Unit Typical Value
Thickness ASTM D 5199 mm (mils) 0.99 (39)
Roll Dimensions
(width x length) -- m
(ft)
3.8 x 110
(12.5 x 360)
4.5 x 110
(15 x 360)
Roll Area -- m2 (yd2) 418 (500) 502 (600)
Estimated Roll Weight -- kg (lb) 69 (152) 83 (182)
Disclaimer: TenCate assumes no liability for the accuracy or completeness of this information or for the ultimate use by the
purchaser. TenCate disclaims any and all express, implied, or statutory standards, warranties or guarantees, including
without limitation any implied warranty as to merchantability or fitness for a particular purpose or arising from a course of
dealing or usage of trade as to any equipment, materials, or information furnished herewith. This document should not be
construed as engineering advice.

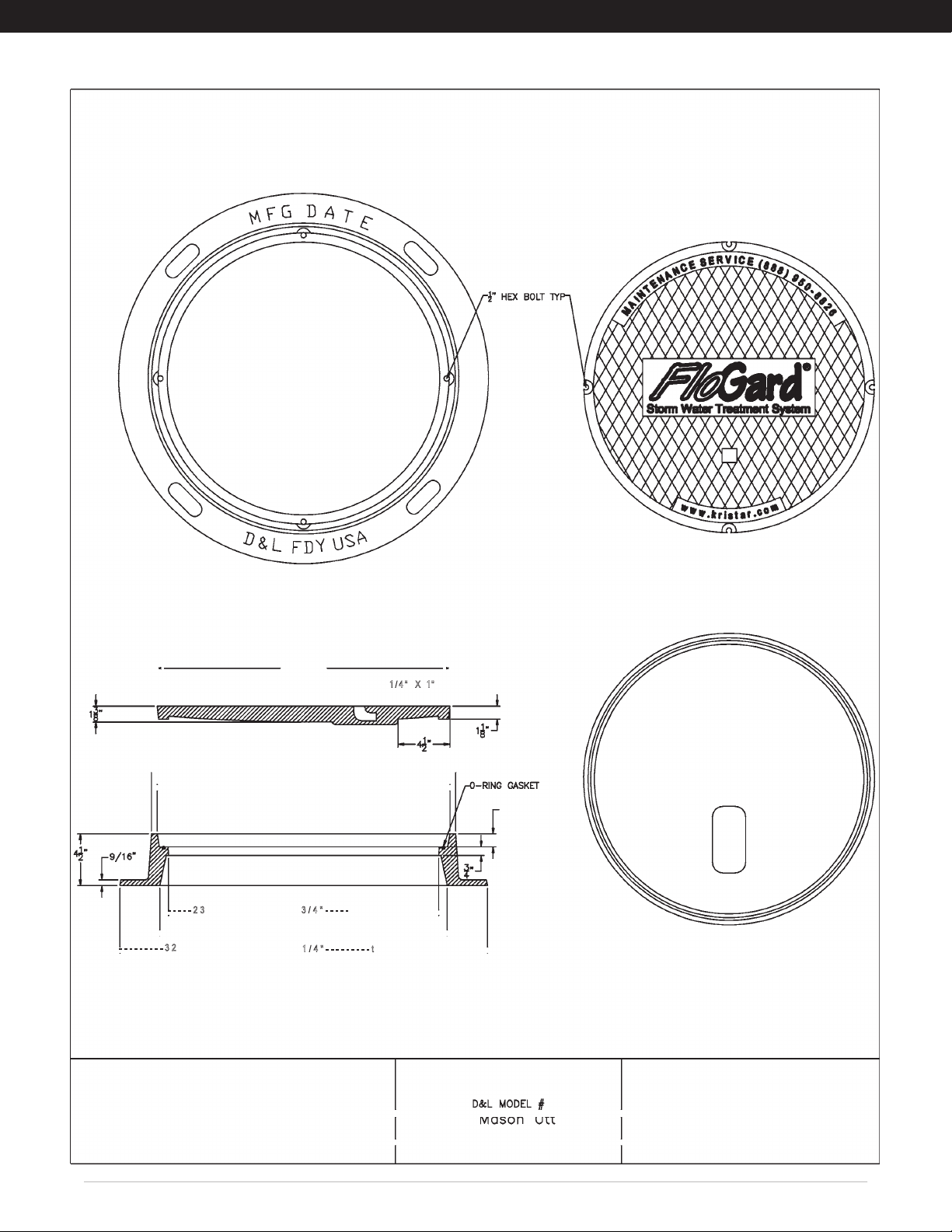

I .
25 5/18"
• 1
1 1,
1 / 4 " X 1"
i--------28 3/B"---------1
-------25 3/8"------
- - - - - 2 3 3 / 4 " - - - - -
-------25"-------
---------32 1/4"---------t
, -
CAST IRON
TO CONFORM TO
ASTM A-48, CLASS 35B
CALIFORNIA SALES: (800) 422-0848
WASHINGTON SALES: (888) 765-0054
UTAH SALES: (800) 453-9802
A-1024
D&L
FOUNDRY&SUPPLY
Product sPeciFications
Section 3
