Omega FLOWMETER FL-1500A Bedienungsanleitung
MADE IN
Shop online at
User’s Guide
Servicing North America:
U.S.A.: One Omega Drive, P.O. Box 4047
ISO 9001 Certified Stamford, CT 06907-0047
TEL: (203) 359-1660 FAX: (203) 359-7700
e-mail: [email protected]
Canada: 976 Bergar
Laval (Quebec) H7L 5A1, Canada
TEL: (514) 856-6928 FAX: (514) 856-6886
e-mail: [email protected]
For immediate technical or application assistance:
U.S.A. and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA®
Customer Service: 1-800-622-2378 / 1-800-622-BEST®
Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN®
Mexico: En Espan˜ol: (001) 203-359-7803 e-mail: [email protected]
Servicing Europe:
Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands
TEL: +31 (0)20 3472121 FAX: +31 (0)20 6434643
Toll Free in Benelux: 0800 0993344
e-mail: [email protected]
Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic
TEL: +420 (0)59 6311899 FAX: +420 (0)59 6311114
France: 11, rue Jacques Cartier, 78280 Guyancourt, France
TEL: +33 (0)1 61 37 2900 FAX: +33 (0)1 30 57 5427
Toll Free in France: 0800 466 342
e-mail: [email protected]
Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
TEL: +49 (0)7056 9398-0 FAX: +49 (0)7056 9398-29
Toll Free in Germany: 0800 639 7678
e-mail: [email protected]
United Kingdom: One Omega Drive, River Bend Technology Centre
ISO 9002 Certified Northbank, Irlam, Manchester
M44 5BD United Kingdom
TEL: +44 (0)161 777 6611 FAX: +44 (0)161 777 6622
Toll Free in United Kingdom: 0800-488-488
e-mail: [email protected]
OMEGAnet®Online Service Internet e-mail
omega.com [email protected]
It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.

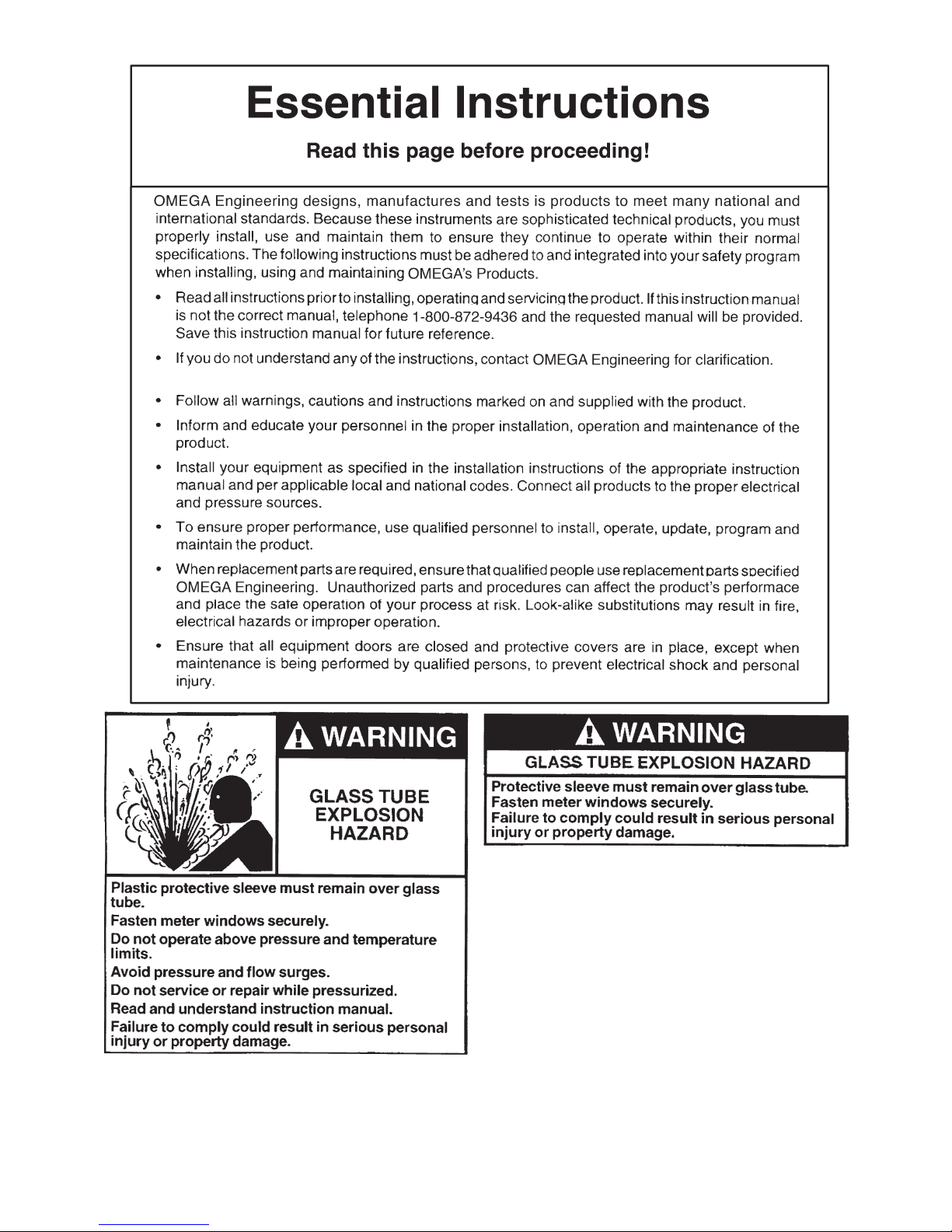

WARNING: These products are not designed for use in, and should not be used for, human applications.
Section 1
Introduction
Section 2
Installation
Section 3
Operation
Section 4
Maintenance
Figures
Tables
i
Contents
Page
Description . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Design Features . . . . . . . . . . . . . . . . . . . . .1-1
Specifications . . . . . . . . . . . . . . . . . . . . . . . .1-1
Discription of Equipment . . . . . . . . . . . . . . .1-2
Receipt of Equipment . . . . . . . . . . . . . . . . .2-1
Recommended Storage Practice . . . . . . . . .2-1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Operating Instructions . . . . . . . . . . . . . . . . .3-1
General . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
1-1 Float Type . . . . . . . . . . . . . . . . . . . .1-4
1-2 Dimensions . . . . . . . . . . . . . . . . . .1-4
2-1 Typical Bypass Installation . . . . . . .2-2
2-2 Panel Cutouts . . . . . . . . . . . . . . . . .2-3
3-1 Reading Edge of Float . . . . . . . . . .3-2
3-2 Typical Bypass Installation . . . . . . .3-2
1-1 Capacities . . . . . . . . . . . . . . . . . . .1-3
1-2 Pressure Ratings . . . . . . . . . . . . . .1-3
1-1

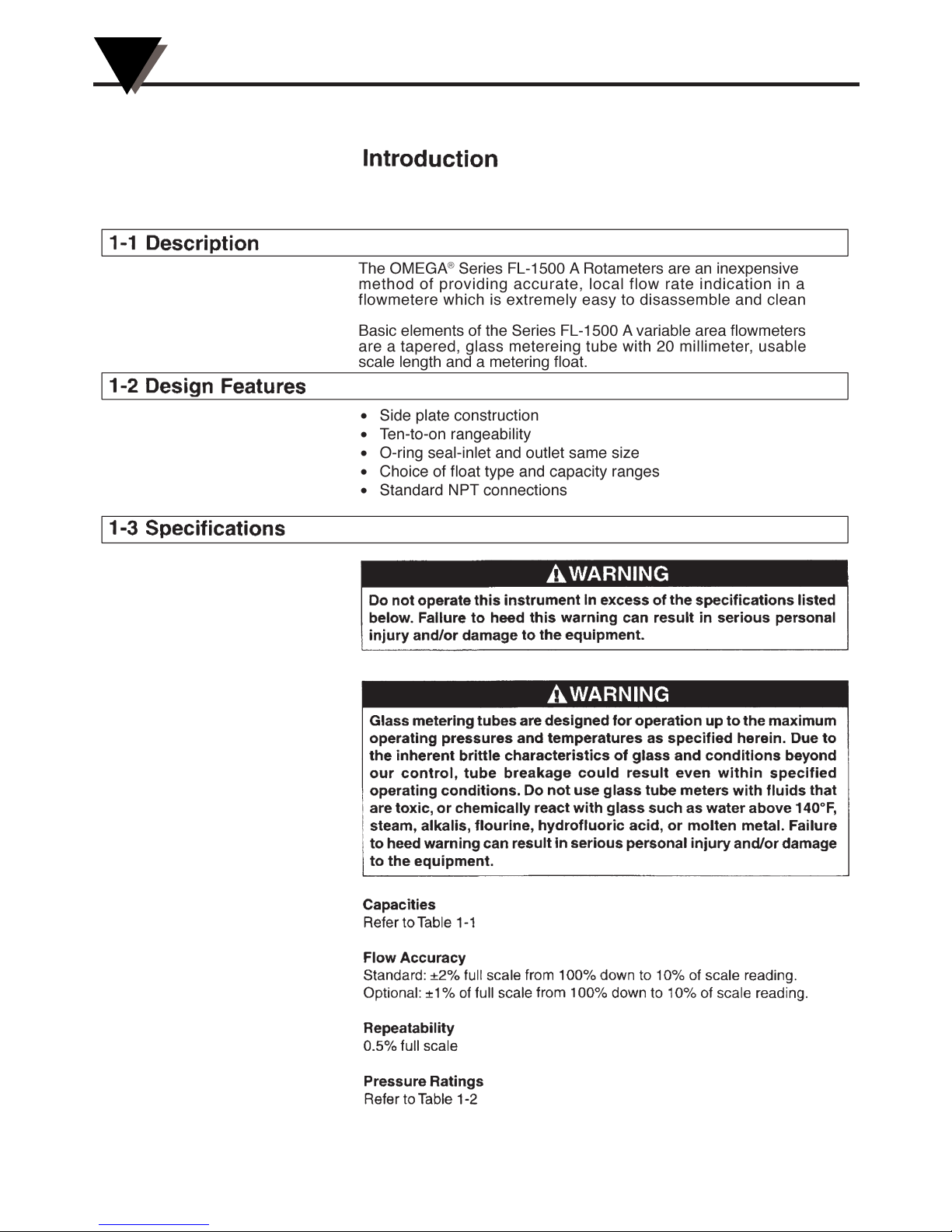

Introduction
1
1
1-2
Introduction 1
1-3

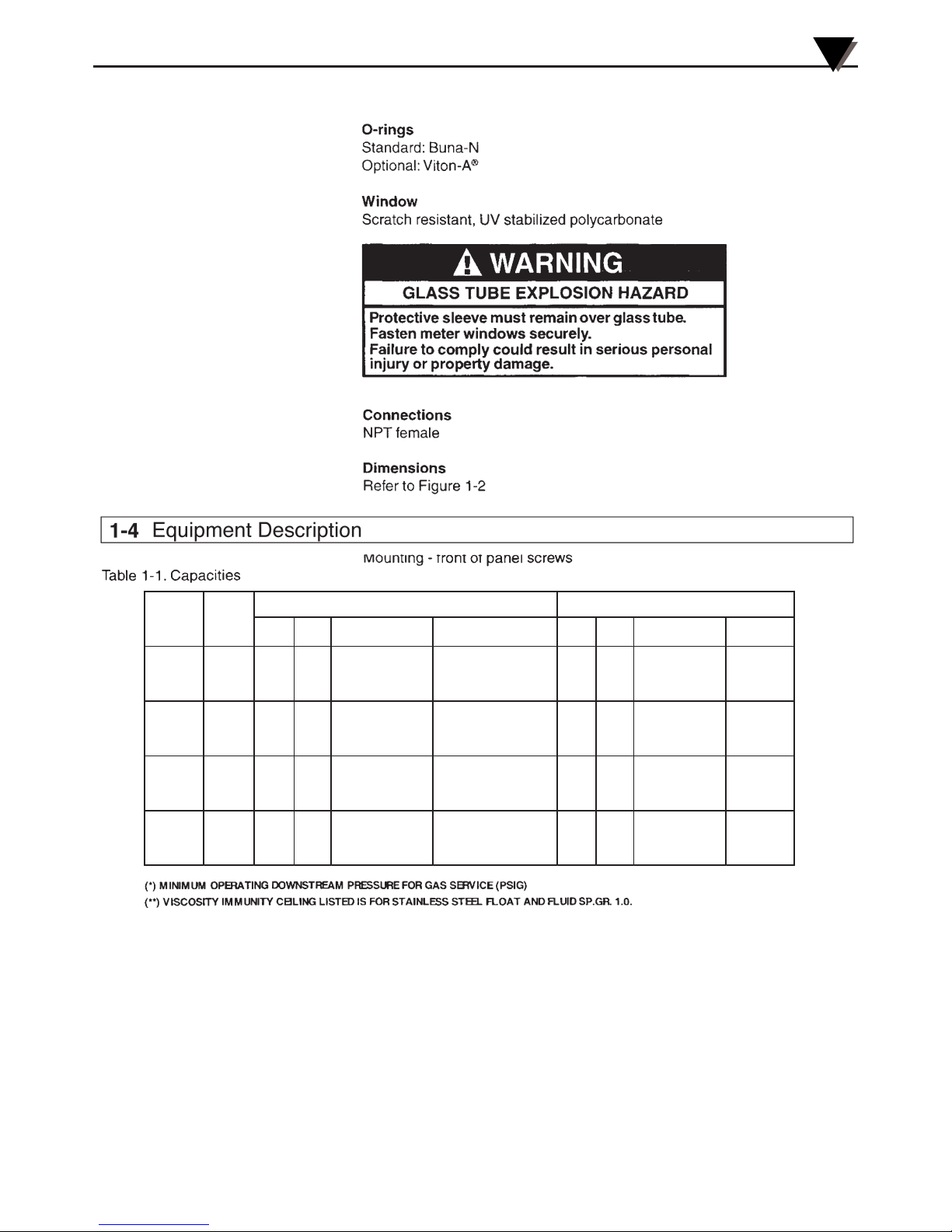

MODEL
NUMBER FLOAT GPM LPM
PRESSURE DROP
INCHES W.C.
VISCOSITY IMMUNITY
CEILING, CS(**)
SCFM SLPM
PRESURE DROP
INCHES W.C.
PSI
CRITICAL (*)
FL-1501A 8-RV-3 0.78 2.95 4.0 2.0 3.17 89.80 4.0 0
FL-1502A 8-RV-14 1.45 5.49 12.0 5.4 5.88 165.5 14.0 0
FL-1503A 9-RV-33 2.53 9.58 6.0 11.0 10.45 295.9 7.0 0
FL-1504A 10-RV-64 6.28 23.77 11.0 15.0 25.76 729.5 13.0 0
WATER AIR @ 14.7 PSIA and 21°C (70°F)
1
1-4
Model Maximum Working Max
Number Pressure (psig) Temp.
Gas
Service
FL-1501A, FL-1502A 300
FL-1503A 175
FL-1504A 100
121°C
(250°F)
Introduction 1
1-5
2-1

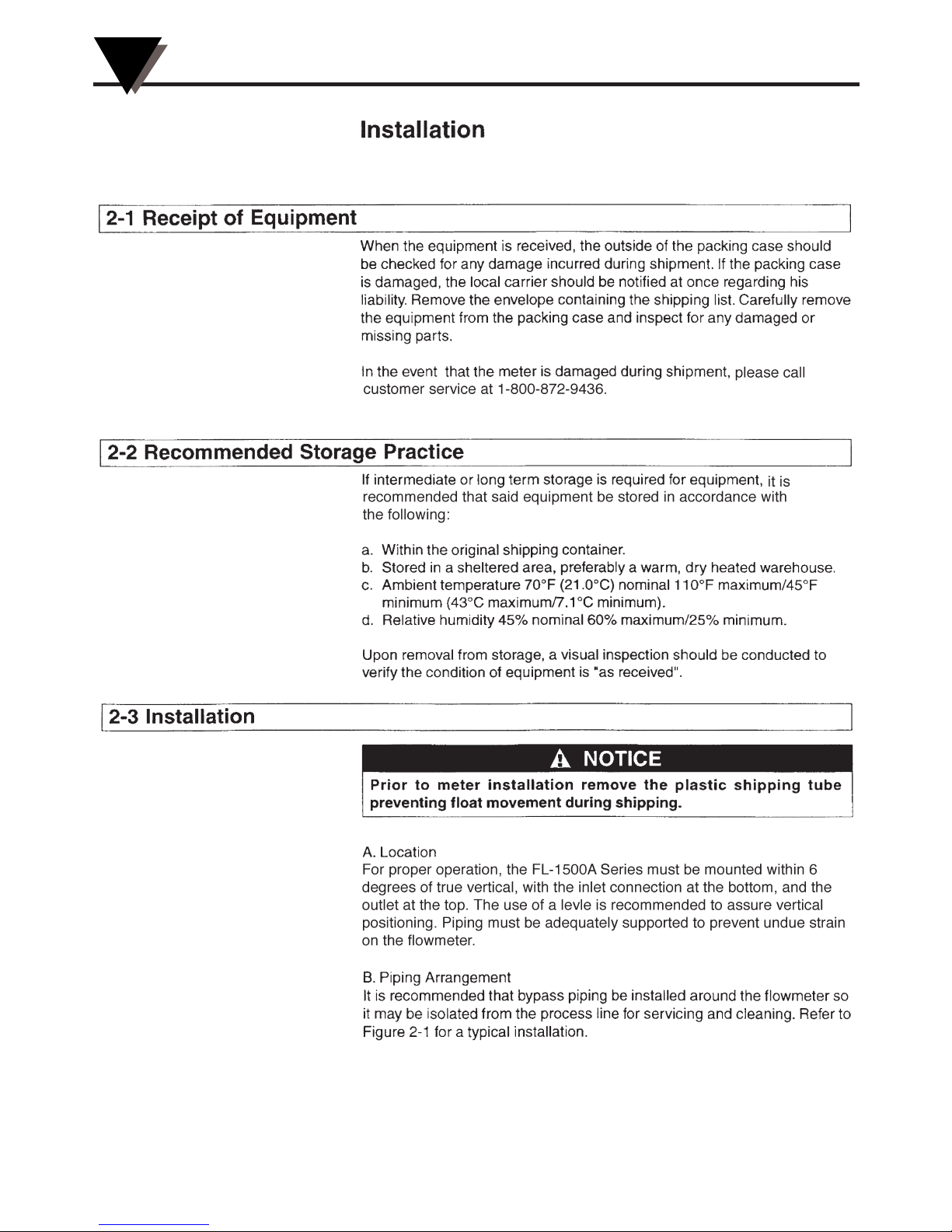

Installation
2
