Onkyo TX-8260 Bedienungsanleitung

TX-8260

NETWORK STEREO RECEIVER

Instruction Manual

Mode d’emploi

Manual de instrucciones

SN29403233_TX-8260_En.book 1 ページ２０１７年７月１３日　木曜日　午後７時５１分

Before Start

Table of Contents

Before Start

What's in the box .....................................................3

Part Names

Part Names ............................................................. 4

Install

Step1: Connect the Speakers .................................8

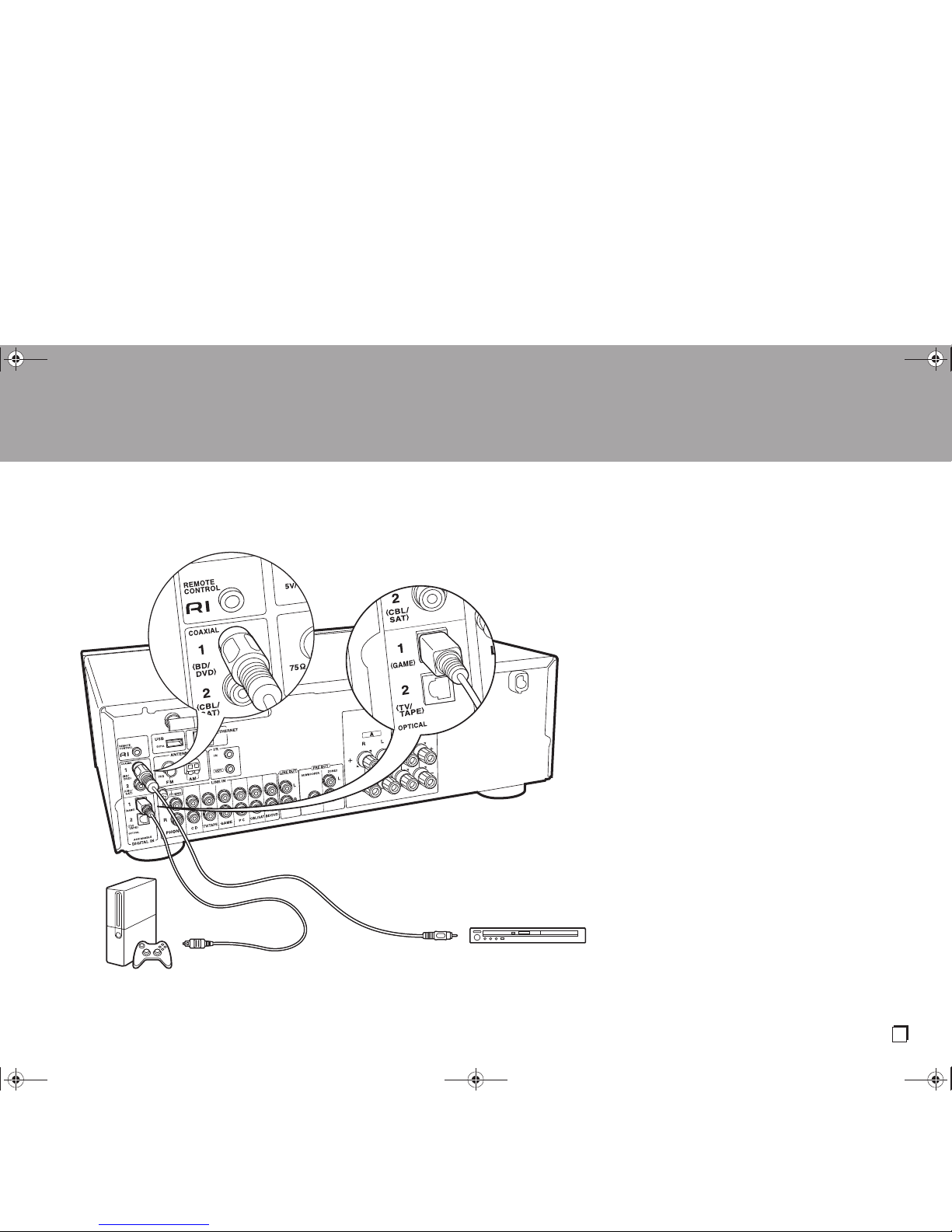

Step2: Connect an external device .........................9

Step3: Multi-zone Connection ............................... 11

Step4: Connect Other Cables ............................... 12

Initial Setup

Initial Setup with Auto Start-up Wizard ..................13

Entering text .......................................................... 15

Playback

Playing audio from a connected device ................16

BLUETOOTH

Playback ......................................16

Internet Radio ....................................................... 17

Spotify ................................................................... 18

AirPlay

.................................................................19

USB Storage Device .............................................20

Listening to the AM/FM Radio ...............................22

Registering a station .............................................24

Music Server ......................................................... 25

Multi-zone ............................................................. 27

AUDIO Menu ......................................................... 29

Supplementary information

Supplementary information for player functions .... 30

Advanced Setup

Setup Menu ........................................................... 31

Web Setup ............................................................ 36

Firmware Update ..................................................37

Others

Troubleshooting .................................................... 39

General Specifications ..........................................43

> Before Start > Part Names > Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

SN29403233_TX-8260_En.book 2 ページ２０１７年７月１３日　木曜日　午後７時５１分

What's in the box

1. Main unit (1)

2. Remote controller (RC-903S) (1), batteries (AAA/R03)

(2)

3. FM indoor antenna (1)

4. AM indoor antenna (1)

≥Instruction Manual (This document)

0Connect speakers with 4 ≠ to 16 ≠ impedance. Note that

when connecting to both SPEAKERS A and B terminals,

connect speakers with 8 ≠ to 16 ≠ impedance to both A

and B.

0The power cord must be connected only after all other

cable connections are completed.

0We will not accept responsibility for damage arising from

the connection of equipment manufactured by other

companies.

0Functionality may be introduced by firmware updates

and service providers may cease services, meaning that

some network services and content may become

unavailable in the future. Furthermore, available services

may vary depending on your area of residence.

0Details on the firmware update will be posted on our

website, etc.

0Specifications and appearance are subject to change

without prior notice.

> Before Start > Part Names > Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

SN29403233_TX-8260_En.book 3 ページ２０１７年７月１３日　木曜日　午後７時５１分

Par t Name s

Part Names

Front Panel

1. ÍON/STANDBY button

2. MENU button: Used to display the menu.

MEMORY button: Used to register AM/FM radio stations.

3. Play (1)/Pause (;) button,TUNING MODE button:

0Used for play operations when playing Music Server or USB.

0Switches tuning to an AM/FM station between automatic tuning and manual tuning

4. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features

such as NET Stby are enabled that continue to work when this unit is in standby.

5. Remote control sensor: Receives signals from the remote controller.

0The signal range of the remote controller is within about 16y/5 m, at an angle of 20° on

the perpendicular axis and 30° to either side.

6. ZONE 2 button: Controls the multi-zone function (P27).

7. OFF button: Switches the multi-zone function off (P27).

8. Display (P5)

9. SETUP button: You can show advanced setting items on the display to provide you with

an even better experience (P31).

10.

Cursors (D / C / B / A), ENTER button: Select the item with the cursors and press

ENTER to confirm. Use them to tune to stations when using TUNER.

11.

RETURN button: Returns the display to the previous state during setting.

12.

VOLUME

13.

PHONES jack: Connect stereo headphones with a standard plug (Ø1/4"/6.3 mm

diameter).

14.

DIMMER button: You can adjust the brightness of the display in three steps. It cannot be

turned off completely.

15.

SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/B.

16.

INPUT dial: Switches the input to be played. Turn the control to switch the source in the

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

      



 

  

SN29403233_TX-8260_En.book 4 ページ２０１７年７月１３日　木曜日　午後７時５１分

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

following order;

BD/DVD#CBL/SAT#PC#GAME#

TVTAPE#CD#PHONO#AM#FM#NET#

BLUETOOTH

17.

BASS dial: Adjusts the bass.

18.

TREBLE dial: Adjusts the treble.

19.

BALANCE dial: Adjusts the balance of the sounds

output from the left and right speakers.

20.

BGM 1/2/3/4 buttons: Preset your favorite AM/FM radio

stations (P24).

21.

USB jack: A USB storage device is connected so that

music files stored in it can be played. You can also

supply power (maximum 5 V/0.5 A) to USB devices

with a USB cable.

0When connecting a HDD that requires more than 5

V/0.5 A, connect to the USB port (maximum 5 V/1 A)

on the rear of the unit.

Display

1. The currently selected speaker system lights.

2. Lights in the following conditions.

Ë: When headphones are connected

Z2: ZONE 2 is on.

: When connected via BLUETOOTH

: When connected by Wi-Fi

NET: When "NET" is selected with the input selector and the unit is

connected to the network. It will flash if the connection to the network is

not correct.

USB: When "NET" is selected with the input selector and the unit is

connected by USB and the USB device is selected. Flashes if the USB

is not properly connected.

DIGITAL: Digital signals are input and the digital input selector is

selected.

3. Lights according to the type of input digital audio signals.

4. Lights in the following conditions.

TUNED: Receiving AM/FM radio

FM ST: Receiving FM stereo.

SLEEP: Sleep timer has been set.

AUTO STBY: Auto Stby (P32) has been set.

5. Flashes when muting is on.

6. Speaker/Channel display: Displays the output channel of the speakers.

7. This may light when performing operations with the "NET" input

selector.

8. Displays various information of the input signals.







SN29403233_TX-8260_En.book 5 ページ２０１７年７月１３日　木曜日　午後７時５１分

Rear Panel

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input digital audio signals from an external device

with a digital optical cable or digital coaxial cable.

2. REMOTE CONTROL jack: An Onkyo product with RI jack can be connected and

synchronized with this unit (P10).

3. USB jack: A USB storage device is connected so that music files stored in it can be

played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.

4. ETHERNET jack: Connect to the network with an Ethernet cable.

5. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH wireless

technology enabled device. Adjust their angles according to the connection status.

6. IR IN/OUT terminals: Connected to the multi-room remote control kit. Special devices or

cables are necessary. For more information about preparation, contact the specialized

stores.

7. Power cord

8. GND jack: The ground wire of the turntable is connected.

9. FM 75≠/AM ANTENNA jacks: Connect the supplied FM indoor antenna and AM indoor

antenna.

10.

LINE IN jacks: Input audio signals from an external device with an analog audio cable.

11.

LINE OUT jacks: Connect a recording device, such as a cassette tape deck. Connect to

the LINE IN jacks on the recording device using analog audio cable.

12.

SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.

13.

ZONE 2 PRE OUT jacks: Output audio signals with an analog audio cable to a pre-main

amplifier or power amplifier in a separate room (ZONE 2) (P27).

14.

SPEAKERS jacks: Connect speakers with speaker cables. You can connect a set of left

and right speakers to each of the A/B terminals. (This unit is banana plug ready)

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

180°

90°





  













SN29403233_TX-8260_En.book 6 ページ２０１７年７月１３日　木曜日　午後７時５１分

Remote Controller

1. ÍON/STANDBY button

2. INPUT SELECTOR buttons: Switches the input to be played.

3. Play buttons: Used to control play of a Music Server or device connected via USB, or of

RI connected devices.

0The , , and buttons can only be used when playing RI connected devices.

4. REPEAT button: Used for repeat play operations when playing Music Server or USB.

Each time you press the button, the mode switches from (1-track repeat) to

(folder repeat).

5. SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/B.

6. Cursors (Up / Down / Left / Right), ENTER button: Select the item with the cursors and

press ENTER to confirm.

7. SETUP button: You can show advanced setting items on the display to provide you with

an even better experience (P31).

8. CH (i/j) buttons: Used to select AM/FM radio stations.

9. Numbered buttons

10.

DISPLAY button: Switches the information on the display. You can display information

such as the input source, volume, and input format when pressed repeatedly during play.

11.

DIMMER button: You can adjust the brightness of the display in three steps. It cannot be

turned off completely.

12.

REMOTE MODE MAIN/ZONE 2 buttons: Controls the multi-zone function (P27).

13.

RANDOM button: Used for random play operations when playing Music Server or USB.

Random turns on or off each time you press the button .

14.

MENU button: Used to display the menu.

15.

RETURN button: Returns the display to the previous state during setting.

16.

AUDIO button: Use for setting "Bass", "Treble", etc. (P29).

17.

VOLUME

18.

MUTING button: Temporarily mutes audio. Press again to cancel muting.

19.

CLR button: Deletes all characters you have entered when entering text. (P15)

20.

SLEEP button: Set the sleep timer. Press the button repeatedly to select the time. When

the time set (30, 60, or 90 minutes) has elapsed, the unit switches to standby. If SLEEP

button is pressed after setting, the time remaining until sleep is displayed.

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others









































* When the remote controller isn't working:

The remote controller may have switched to the

mode for controlling ZONE 2. Press REMOTE

MODE MAIN to switch to the mode to control the

main room.

Tips

SN29403233_TX-8260_En.book 7 ページ２０１７年７月１３日　木曜日　午後７時５１分

Insta ll

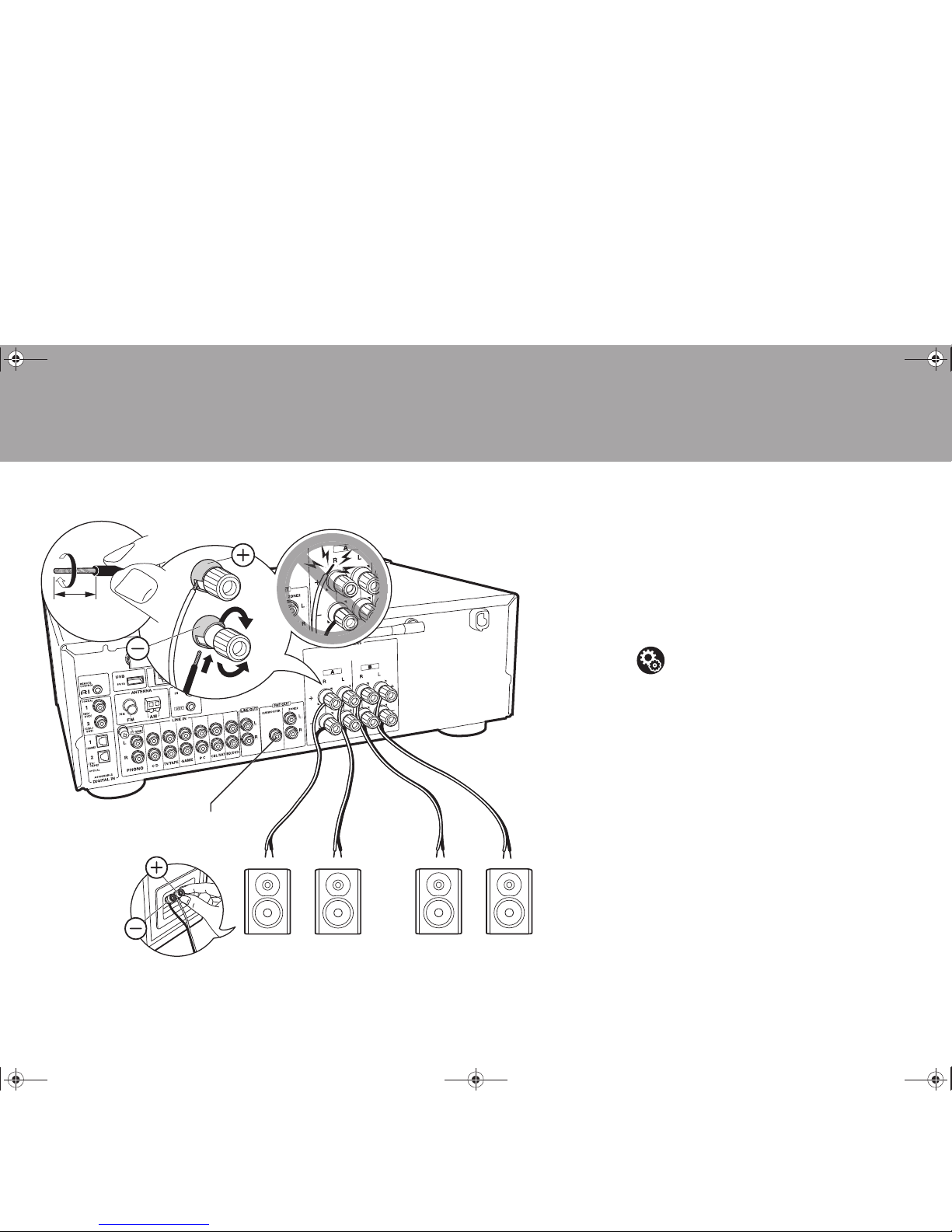

Step1: Connect the Speakers

You can connect two systems, Speaker A and Speaker B,

as the Speaker System. When connecting only one set,

connect to the SPEAKERS A terminals. With one set, use

speakers with 4 ≠ to 16 ≠ impedance. Note that when

connecting to both SPEAKERS A and B terminals, connect

speakers with 8 ≠ to 16 ≠ impedance to both A and B.

Connect the speaker cable so the wires do not protrude

from the speaker jacks. If the exposed wires of the

speakers touch the rear panel or the + and - wires touch

each other, the protection circuit will be activated.

(*)You can also connect a subwoofer with a built-in

amplifier to the SUBWOOFER PRE OUT jack to boost

bass playback even more. Use a subwoofer cable for

connection. When only Speaker B is outputting audio,

there will be no audio output from the powered

subwoofer.

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

Speaker B

Speaker A

1/2˝

(12 mm)

Left

Right Left

Right

a Speaker Cable

Setup

0When connected as a Speaker B System, you

can output the same audio as Speaker A System

by switching with A/B/A+B. Press SPEAKER A/B

on the remote control to switch. The selection

changes in the order SPEAKER A, SPEAKER B,

SPEAKER A+B with each press.

0If any of the connected speakers have an

impedance of 4 ≠ or more to less than 6 ≠, or

when speaker systems are connected to both of

the SPEAKERS A/B terminal, after completing

Initial Setup, you need to make some settings in

the Setup menu. Press SETUP on the remote

controller, and set "3. Hardware" - "SpImpedance"

to "4≠". (P32)

SN29403233_TX-8260_En.book 8 ページ２０１７年７月１３日　木曜日　午後７時５１分

Step2: Connect an external device

1. DIGITAL IN connection

Connect an external device with a digital optical cable or

digital coaxial cable. Note that this unit is equipped with an

"Opt1Wkup feature" so that when play starts on an external

device connected to the OPTICAL 1 (GAME) terminal, this

unit comes on and the INPUT SELECTOR automatically

changes. (P33)

0The default setting for "Opt1Wkup feature" is "Off". To

enable this function, please press SETUP on the remote

controller, and set "3. Hardware" - "Opt1Wkup". (P33)

0The Opt1Wkup feature does not work when the unit is in

the mode for controlling ZONE 2 (P27).

0Only PCM audio is supported for input through the

DIGITAL IN OPTICAL/COAXIAL jacks. Set the audio

output on the external device to output PCM.

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

GAME

BD/DVD

a Digital Optical Cable, b Digital Coaxial Cable

SN29403233_TX-8260_En.book 9 ページ２０１７年７月１３日　木曜日　午後７時５１分

2. LINE IN connection

Connect an external device with an analog audio cable. You

can connect a turntable that has an MM-type cartridge to

the PHONO jack.

0If the turntable has a built-in audio equalizer, connect it to

an LINE IN jack other than the PHONO jack. Also, if the

turntable uses an MC type cartridge, install an audio

equalizer compatible with the MC type cartridge between

the unit and the turntable, then connect to any LINE IN

jack other than the PHONO jack.

If the turntable has a ground wire,

connect it to the GND terminal.

By connecting an Onkyo component with RI jack to the unit

by using an RI cable and an analog audio cable, you can

link the unit’s power and input selection and enable

operation with this unit’s remote controller. For details, refer

to the instruction manual of the component with the RI jack.

0Part of the function may not operate even if it is

connected via RI depending on the equipment.

0The RI linking features may not work when the unit is

in the mode for controlling ZONE 2.

0When connecting an RI dock, you must rename the

input selectors on the unit to make the system link

work. Select the GAME input selector to display

"GAME" on the main unit display. Then press and hold

RETURN on the main unit for 3 seconds to switch the

display to "DOCK".

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

Turntable

a Analog Audio Cable

SN29403233_TX-8260_En.book 10 ページ２０１７年７月１３日　木曜日　午後７時５１分

Andere Handbücher für TX-8260

Inhaltsverzeichnis

Sprachen:

Andere Onkyo Stereo-Receiver Handbücher

Onkyo

Onkyo HT-R940 Bedienungsanleitung

Onkyo

Onkyo TX-NR595 Handbuch

Onkyo

Onkyo TX-8211 Bedienungsanleitung

Onkyo

Onkyo TX-8020 Bedienungsanleitung

Onkyo

Onkyo TX-NR801 - AV Receiver Bedienungsanleitung

Onkyo

Onkyo 889951000747 Installationsanleitung

Onkyo

Onkyo 8555 - TX AV Receiver Bedienungsanleitung

Onkyo

Onkyo TX-8211 Bedienungsanleitung

Onkyo

Onkyo TX-8555 Bedienungsanleitung

Onkyo

Onkyo TX-NR929 Einrichtungshandbuch

Onkyo

Onkyo TX-8270 Bedienungsanleitung

Onkyo

Onkyo TX-8030 Bedienungsanleitung

Onkyo

Onkyo HT-R380 Bedienungsanleitung

Onkyo

Onkyo TX-SR308 Bedienungsanleitung

Onkyo

Onkyo TX-NR838 Installationsanleitung

Onkyo

Onkyo TX-5000 Bedienungsanleitung

Onkyo

Onkyo TX-8222 Bedienungsanleitung

Onkyo

Onkyo TX-2100 Bedienungsanleitung

Onkyo

Onkyo TX-SR803 Bedienungsanleitung

Onkyo

Onkyo TX-8050 Bedienungsanleitung

Onkyo

Onkyo TX-SR500 Bedienungsanleitung

Onkyo

Onkyo TX-SR876 - AV Receiver Technisches Datenblatt

Onkyo

Onkyo TX-NR787 Bedienungsanleitung

Onkyo

Onkyo TX-NR3007B Bedienungsanleitung

Beliebte Stereo-Receiver Handbücher anderer Marken

Marantz

Marantz CINEMA 70S Bedienungsanleitung

Kenwood

Kenwood KMDX92 Bedienungsanleitung

Yamaha

Yamaha RX-830 Bedienungsanleitung

Pioneer

Pioneer AVH-Z7250BT Bedienungsanleitung

Yamaha

Yamaha RX-750 Bedienungsanleitung

Denon

Denon AVR-1311 Bedienungsanleitung

Denon

Denon AVR-S760H Bedienungsanleitung

Denon

Denon AVR-X7200W Bedienungsanleitung

Pioneer

Pioneer SC-LX904 Handbuch

Sony

Sony XAV-1500 Bedienungsanleitung

Radio Shack

Radio Shack DX-399 Bedienungsanleitung

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Pioneer

Pioneer SX-1000TA Bedienungsanleitung

Yamaha

Yamaha MusicCast TSR-5B3D Bedienungsanleitung

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DG500 - Multi Channel Av Receiver Bedienungsanleitung

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Bedienungsanleitung

Pioneer

Pioneer SX-838 Bedienungsanleitung
