Free To Air / Multi CAS Embedded Digital Satellite Receiver

DigiTECH 5000F

User Manual

1. SAFETY INFORMATION

2. FEATURES

3. CONNECTING YOUR RECEIVER

4. CONTROLS AND FUNCTIONS

4.1 REMOTE CONTROL UNIT

4.2 FRONT PANEL

4.2 REAR PANEL

5. MENU GUIDE

5.1 INSTALLATION

5.2 SYSTEM CONFIGURATION

5.3 CHANNEL ORGANIZATION

5.4 PARENTAL LOCK

5.5 RECEIVER INFORMATION

5.6 OTHER FUNCTION

5.7 COMMON INTERFACE

6. TROUBLE SHOOTING

7. TECHNICAL SPECIFICATIONS

Contents

Be sure to read this User’s Manual before starting the operation of the receiver.

Do not open the cover. It is dangerous to touch the inside of the receiver due to

possible electric hazard.

MAINS SUPPLY : 95�240V AC 50/60Hz

LOCATION : Locate the receiver indoor.

Locate receiver away from potential hazards such as houseplants, lighting, raining and direct sunlight.

OVERLOADING : Do not overload wall outlets, extension cords or adapters as this

can result in fire or electrical shock.

LIQUIDS : Keep liquids away from the receiver.

CLEANING : Before cleaning, disconnect the receiver from the wall socket.

Use a cloth lightly dampened with water (no solvents) to clean the exterior.

VENTILATION : Do not block the receiver ventilation holes. Ensure that free airflow is

maintained around the receiver.

Never set the receiver on soft furnishings or carpets. Do not use or store the receiver

where it is exposed to direct sunlight, or near heater.

Never stack other electronic equipment on top of the receiver.

Place the receiver at least 30mm from the wall.

ATTACHMENTS : Do not use any attachment that is not recommended by the manufacturer,

as it may cause a hazard or damage the equipment.

CONNECTION TO THE SATELLITE DISH LNB : The LNB connector cable has a

voltage in its center core. It is therefore recommended that the receiver is disconnected from

the mains power before connecting or disconnecting this cable.

FAILURE TO DO SO COULD DAMAGE THE LNB.

SERVICING : Do not attempt to service this product yourself. Any attempt to do so will

make the warranty invalid.Refer all servicing to a qualified service agent.

LIGHTNING : If the receiver is installed in an area subject to intense lighting activity,

protection devices for the receiver mains connector and modem telephone line are essential.

The individual manufacturer’s instruction for safeguarding other equipment, such as TV set,

Hi-Fi, etc., connected to the receiver, must also be followed during lighting storms.

GROUNDING : The ground of the LNB cable must be directly connected to the system

ground for the satellite dish. The grounding system must comply with local regulations.

1. SAFETY INFORMATION 2. FEATURES

MPEG-2 & Full DVB Compliant

MPEG-2 Video (MP@ML), MPEG-1 Audio La er1,La er2

PLL RF-Modulator UHF 21~69 with PAL B/G,I, D/K

LNB Controlling Logic (0/22KHz Tone, 13/18V)

SCPC/ MCPC Receivable from C/Ku-Band Satellite

Digital Tuner with Loop-through

Wide S mbol Rate 1~45Mbps & Frequenc Input 950~2150MHz

DiSEqC1.2 Supported

2 SCART for TV, VCR

User friendl OSD Menu with Full Function

256 Colors Graphic User Interface

Multi-language Menu

4-digit 7-segment LED Displa

Variable Aspect Ratio (4:3, 16:9) with Pan Vector or Letter Box

EPG(Electronic Program Guide) On-screen Channel Information

Small Screen Picture on EPG

Teletext and Subtitle Supported (VBI&OSD)

Installation b Eas Setup Guide

Fast Booting & Auto Scan

Quick Channel Changing

Max. 4000 Channels(TV & Radio) Programmable

Radio Channel Background Displa

Favorite Channel List Programmable

Master PIN Code Function & Parental Lock Function

Automatic Detection of Forward Error Correction

Automatic NTSC / PAL Detection and Simple Video Converter

S/W Download Program Supported b RS232 Serial Port

Set to Set Download

3 RCA Output for Video, Audio L/R

Games (SOKOBAN & SLOT machine)

Digital Audio Output : S/PDIF(Option)

2 CONNECTING THE RECEIVER WITH DISH SYSTEM

After installing your dish system, connect the coaxial cable from LNB of your dish antenna to

“LNB IN”terminal marked at the rear of the receiver.

All cable connectors should be finger tightened ; do not use any kind of wrench

on the cable over connectors.

The cable should be 75Ϊimpedence coaxial twisted at the end with a“F”type connector.

3 CONNECT RECEIVER TO A TV SAT

Connect your receiver to a TV sat with SCART, if your TV set is equipped for it.

Alternatively you can use A/V or TV out(UHF).

4 CONNECT RECEIVER TO A VCR

Connect the SCART jack from the VCR to the back of your receiver.

Alternatively you can use A/V or TV out(UHF).

5 CONNECT RECEIVER TO A Hi-Fi SYSTEM

Connect a RCA stereo cable from the AUDIO L/R jacks, S/PDIF on your receiver to the LINE,

AUX, SPARE or EXTRA input jacks on your Hi-Fi System.

6 CONNECT RECEIVER TO A DIGITAL AUDIO SYSTEM

If you have DAC with S/PDIF optical cable input, you can connect the STB with it to enjoy

higher quality sound. Connect S/PDIF optical cable to a digital amplifier.

7 LOOP THROUGH

If you have another analogue or digital receiver and you wish to use the same LNB then you can

connect it via the loop through. Connect one of end the coaxial cable to the “IF OUT” on the

receiver and connect the other end to the “LNB IN” on your second receiver.

Now by keeping the receiver in standby,

you will be able to tune and view the channels from the receiver.

1 LOCATION OF THE RECEIVER

Your receiver should be placed under proper ventilation.

Don’t put in completely enclosed cabinet that will restrict the flow of air, Resulting overheating.

The location should be safeguarded from direct sunlight, excess moisture,

rough handling or household pets.

Avoid stacking other electronic components on the top of the receiver.

The location should be safely accessible by the cable from your antenna system.

3. CONNECTING YOUR RECEIVER

There are several ways of connecting the receiver to your TV, VCR and / or Hi-Fi

SYSTEM. Consult your local supplier for assistance in setting-up your system that is

best suited to your requirements.

SATELLITE

ANTENNA

VCR

Hi-Fi Stereo Audio

ANTENNA

4. CONTROLS AND FUNCTIONS

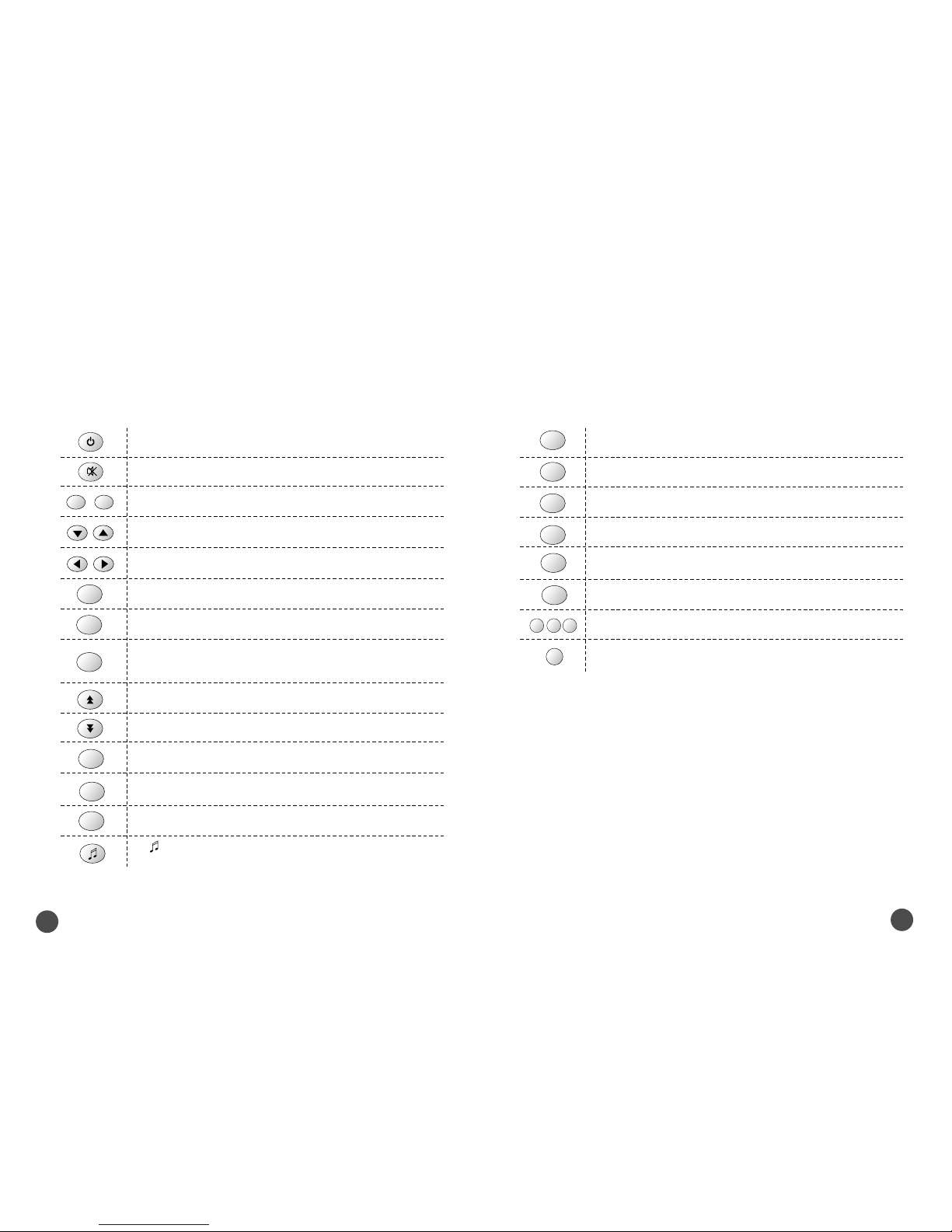

4. 1. REMOTE CONTROL UNIT

1 POWER : This is used to switch the receiver to ON/STANDBY mode.

2 MUTE : This key is used to toggle between normal and muted audio.

3 0-9 NUMERIC KEYS : These keys are used to enter numeric values and

to select the channel directly by entering its number.

4 CH▲▲∙∙CH▼▼: These keys are used to change channels and to browse

the menu.

5 VOL▶▶∙∙VOL◀◀:These keys are used to control the volume level and to

change the cursor options in the menu.

6 MENU : This key is used to open up the menu.

7 EXIT : This key is used to exit from any menus.

8 OK : This key is used to enter or confirm any data in the menu

systems.The Channel list can be accessed directly by pressing this Key in

the normal view mode.

9 Page Up : This key is used to page up the menu.

10 Page Down : This key is used to page down the menu.

11 FAV : This key is used to switch between favorite lists.

12 GUIDE : This key is used to open up the Electronic Program Guide.

13 i : This key is used to view the channel information.

14 : This key is used to toggle between the TV channel and the radio

channel.

15 LAST : This key is used to return to the previous channel.

16 AUDIO : This key is used to select the soundtrack list for the current

service and also used to select audio mode.

17 PAUSE : This key is used to pause the screen.

18 NTSC/PAL : This key is used to convert video mode.

19 SAT : This key is used to select the satellite.

21 . F1, F2 and F3 : Function Keys.

22 . F4 : Zoom and Function Key.

20 TEXT : This key is for Teletext.

0~9

EXIT

FAV

GUIDE

LAST

AUDIO

PAUSE

NTSC

/ PAL

SAT

TV/

SAT

F1 F2 F3

1 LNB IN : This is to Connect the coaxial cable from LNB of your Dish.

2 IF OUT : This is to enable the connection of an other receiver, The receiver is provided with this port.

Connect this port to LNB IN port of the other receiver via RF Cable.

3 ANT IN : This is used to connect your local RF channels to your TV through Loop

4 TV OUT : This is used to connect your TV through RF cable.

5 SERIAL PORT : This is used to connect your receiver with computer through a serial cable.

This port can be used for upgrading software.

6 VIDEO, AUDIO R/L : These RCA connectors are used to connect any external video and audio.

7 TV SCART : This is used to connect your TV through SCART.

8 VCR SCART : This is used to connect your VCR.

9 S/PDIF (DIGITAL OUTPUT : This port is for the connection to the exterual Hifi system which has a

optical S/PDIF input interface. (Option

10 POWER INPUT : This is to plug in the AC main power cord.

The input AC volts range is 95V to 240V, 50Hz/60Hz supply.

4. 3. REAR PANEL

4.2. FRONT PANEL

1 POWER : Push the receiver on and off (stand by).

2 CH : Changes the channels and moves the cursor up / down in

menu mode.

3 VOL : Increases and decreases the volume level manually and

changes setting in menu mode.

5 7 SEGMENT DISPLAY : This SEGMENT display will show the

current channel number.While the receiver is in stand by mode,

the display will show the current time.

4 INFRARED SENSOR : This is to receive the IR commands from

the RCU. Do not block the view of the sensor.

6 SMART CARD INTERFACE SLOTS : To watch scrambled

channels you should insert a smart card into Smart Card Interface

issued the service provider whom you subscribes to. Therefore

you can watch only a specific range of channels with entitlements

in smart card. The smart card includes information to decipher

parameters necessary for descrambling the program. Please note

that the gold chip on the smart card should face download and

inward when you insert when you insert it into Smart Card

Interface. (Option for CAS model only

①

②④⑤ ⑧ ⑩

③⑥⑦

Main Menu

Press the “MENU” key in the RCU. You will see

the “Main Menu” on the screen.

1) You can move into the desired submenu using

“UP” key or “DOWN” key.

2) Press “OK” key to confirm your selection.

3) Press the “MENU” key or “EXIT” key to return

to previous menu.

5.1. Installation

This is to install Antenna Setup, Channel Search,

Factory Default and Code.

5.1.1 Antenna Setup

In this menu you can see satellite information and

antenna (dish) setup.

Select theSatellite, LNB Power, LNB Type, LNB

High, LNB Low, 22KHz, DiSEqC Type or DiSEqC

1.2 motor.

Press “OK” key to move to Channel Search menu after storing your selection in Antenna

Setup.

a. Satellite : You can select the desired satellite using the volume “UP/DOWN” (◀∙▶)

keys.

b. LNB Power : You can select the LNB Power ON or OFF. Using the volume

“UP/DOWN” (◀∙▶)keys.

c. LNB Type : You can select the Universal LNB or Standard LNB. Using the volume

“UP/DOWN” (◀∙▶)keys.

d. LNB High : You can select the LNB Frequency. Using the volume “UP/DOWN”(◀∙▶)

keys or numeric keys.

e. LNB Low : If you can use the Universal LNB, you can select the LNB low frequency.

Using the volume “UP/DOWN” (◀∙▶)keys or numeric keys.

f. 22KHz : If you have 22KHz tone box, you can supply either 22KHz by setting “ON” or

not by setting “OFF”. Using the volume “UP/DOWN” (◀∙▶)keys or numeric keys.

g. DiSEqC Type : If you have DiSEqC box, you can select and use appropriate port for

your DiSEqC box. Using the volume “UP/DOWN”(◀∙▶) keys.

h . DiSEqC 1.2 motor : If you have DiSEqC 1.2 motor, please select “ On.

5.1.2 Channel Search

The menu shows all transponders in satellite and

edit satellite, edit transponder to scan the

satellite.

a. Satellite : You can select the desired satellite

using the volume “UP/DOWN”(◀∙▶) keys. If you

want Multi Search, press “OK” key and then

select other satellites.

b. Network : You can select the Network search

using the volume “UP/DOWN”(◀∙▶) keys.

c. Add Satellite : You can add a new satellite

using the “OK” key.

d. Delete Satellite : You can delete USER satellite using the “OK” key.

e. Add TP : You can add a new transponder using the “OK” key.

f. Delete TP : You can delete transponder using the “OK” key.

g. Search mode : You can select the FTA(free to air)+SCM(scrambled) or FTA, SCM

using the volume ‘UP/DOWN”(◀∙▶) keys.

h. Transponder Search : Press “OK” key to start transponder search for selected

transponder.

i. Satellite Search : Press “OK” key to start satellite search for selected satellite.

5. MENU GUIDE

The main menu is classified into five menus which will carry out the various

operation individually.

5.1.3 Factory Default

To reset the receiver, select “Factory Default” in

“Installation” and press “Yes” icon on the screen.

The receiver will be reset automatically.

5.2. System Configuration

This menu helps you to set up Screen Format,

Video Output mode, UHF mode, language, time

mode.

a. Screen Format : You can select the screen format (4:3, 16:9, Letter Box) using the

volume “UP/DOWN”(◀∙▶) keys.

b. Video Output : You can select the video output mode (CVBS, RGB) using the volume

“UP/DOWN”(◀∙▶) keys.

c. UHF Mode : You can select the UHF mode (PAL B/G, I, D/K) using the volume

“UP/DOWN”(◀∙▶) keys.

d. UHF Channel : You can select the UHF channel (21 ~ 69) using the volume

“UP/DOWN”(◀∙▶) keys.

e. OSD Language : You can select the OSD language (Menu language) using the

volume “UP/DOWN”(◀∙▶) keys.

f. Audio Language : You can select the audio language using the volume

“UP/DOWN”(◀∙▶) keys.

g. Time Mode : You can select the Time mode (Auto, Manual) using the volume

“UP/DOWN”(◀∙▶) keys.

h. Current time : You can input the time using the numeric keys in case of selecting

“Manual” in Time Mode.

i. Time Adjustment : You can adjust the time using the volume “UP/DOWN”(◀∙▶)keys

in case of selecting “Auto” in Time Mode.

5. 3. Channel Organization

5.3.1 Edit Channel List

This menu helps you to select the channel that you want to watch easily.

a. Channel lock : Press “F1” to lock the channel in the channel list.

b. Delete channel : Press “F2” to delete the channel in the the channel list..

c. Move channel : Press “F3” to move the channel in the the channel list.

d. Edit channel name : Press “F4” to rename the channel in the the channel list.

5.3.2 Edit Favorite List

This menu helps you to select the channel that you want to watch easily.

a. Add to fav. channel : Press “F1” key to add the channel into favorite channel list.

b. Delete fav. Channel : Press “F2” key to delete the channel in the favorite channel

list.

c. Move fav. Channel : Press “F3” key to move the channel in the favorite channel

list.

d. Rename fav. Group : Press “F4” to rename channel in the favorite channel list.

5. 4. Parental Lock

This menu prevents children or unauthorized persons from watching programs.

Also you can change password.

a. Receiver Lock: Select “On” to have Receiver

Lock.

b. Maturity Rate: Select “ Number” to prevent

children from watching..

c. Change Password: Put the new password if

you want to change new password number.

5.5. Receiver Information

It displays receiver information on H/W, S/W

version and Loader version.

5.6 Other Function

5.6.1. EPG (Electronic Program Guide

This is to see channel guide information to get current and next channel program

schedules.

Press Guide Key.

GUIDE

5.6.2. Teletext

This is to get channel date through the stream.

Please press text. Key.

5.6.3. Zoom Function

This is to see a part of the screen in detail.

Press F4 Key and choose a part of screen using

the Volume “UP/Down” and CH. “UP/Down” keys.

And press “OK” key. The part of the screen is

extened.

6. Common Interface (Option function

This receiver is equipped with two slots of

Common Interface.

When a common interface CAM is inserted inside

the PCMCIA slot, the receiver detects the type of

the CAM automatically and display in the menu.

6. TROUBLE SHOOTING

There may be various reasons for the abnormal operation of the receiver.

Check the receiver according to the procedures shown below .

If you can’t solve the problem even after referring this trouble shooting, please

contact the dealer. Don’t open the receiver cover. It may cause a dangerous

situation.

Symptom Cause Result

The front panel doesn’t

display any message

No picture or sound.

No picture.

The power cord is not

plugged in

Wrong connection in the

Audio / Video output of the

receiver to TV.

Wrong connection of the

satellite antenna.

No or Bad signal message

appears.

Audio muting.

TV power off.

The receiver can’t receive

the signal.

Incorrect values of some

tuner parameters.

Check other device connected

between LNB and the receiver,

or adjust the antenna position.

press the MUTE button.

Turn TV on

Check the antenna cable,

replace the cable, or connect

the cable to the receiver tightly.

set the values of tuner

parameters correctly in the

Installation Menu.

Check that the power cable is

plugged in to the wall outlet.

Connect the Audio / Video

output of the receiver to TV

correctly.

Connect the antenna cable

correctly.

TEXT

Inhaltsverzeichnis

Andere Open Sky Empfänger Handbücher

Open Sky

Open Sky Receiver Kit Bedienungsanleitung

Beliebte Empfänger Handbücher anderer Marken

Garmin

Garmin GA 23 Bedienungsanleitung

Aiphone

Aiphone PS-12F Bedienungsanleitung

IMES

IMES TCS-01CA-PMI Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE SR Handbuch

AMIMON

AMIMON AMN12310 WHDI Bedienungsanleitung

Dual

Dual DMCPA79BT Betriebsanleitung

Sound Associates

Sound Associates SA652P Bedienungsanleitung

Sherwood

Sherwood NewCastle R-772 Bedienungsanleitung

Audio

Audio A10-RX Series Bedienungsanleitung

AllSee

AllSee PushShare PSRV1.1 Bedienungsanleitung

DEMAG

DEMAG DRC-DR D2 Bedienungsanleitung

Teleco

Teleco TVRCL868A02 Bedienungsanleitung

Bosch

Bosch RF3222E Bedienungsanleitung

Kramer

Kramer 631R Bedienungsanleitung

Xpress

Xpress xmc10 Bedienungsanleitung

JVC

JVC KD-MR1BTS Bedienungsanleitung

Omega Engineering

Omega Engineering UWTC-REC3 Bedienungsanleitung

e-survey

e-survey E300 Pro Bedienungsanleitung
