Assembly and Operating Instructions for
Phoenix 4 Burner Black and Phoenix 4
Burner SS Gas Barbecues
EN (Europe)
WARNING
• For outdoor use only. Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children and pets away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
• Retain these instructions for future reference.
• Leak test annually, and whenever the gas bottle is removed or replaced.Check
that the hose connections are tight and leak test each time you reconnect the gas
bottle
• For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359
Photographs are not to scale.
Specifications subject to
change without prior notice.
2
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
1. Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
CODE PART QTY Phoenix 4 Burner
Black Phoenix 4 Burner
Stainless Steel
HOOD
A1 Hood (Pre-Assembled to Body) 1
A2 Hood Handle 1
A3 Heat Indicator and Nuts 1
A4 Warming Rack 1
BODY
B1 Barbecue Body 1
B2 Burner 4
B3 Control Panel 1
B4 Knob 4
B5 Hose (if supplied)
B6 Flame Tamer 4
B7 Cooking Grill 3
B8 Drip Tray Left Bracket 1
B9 Drip Tray Right Bracket 1
B10 Drip Tray Handle 1
B11 Drip Tray 1
B12 Ignition Button 1
TROLLEY
C1 Side Burner Shelf 1
C2 Side Burner Grid 1
C3 Right Side Shelf 1
C4 Left Front Leg 1
C5 Left Rear Leg 1
C6 Right Front Leg 1
C7 Right Rear Leg 1
C8 Upper Body Support 1
C9 Cabinet Side Panel 3
C11 Left Door 1
C12 Right Door 1
C13 Door Handle 2
C14 Basket 1
C15 Cabinet Back Panel 1
C16 Cabinet Bottom Panel 1
C17 Gas Bottle Support 1
C18 Caster 2
C19 Lockable Caster 2
C20 Electronic Ignition Assembly 1
C21 Heat Shield 1
HARDWARE
D1 ST4.0x10 Screw 35
D2 M4x10 Bolt 4
D3 M6x15 Bolt 16
D4 M6x40 Bolt 16
D5 M6 Nut 12
C10 Cabinet Side Panel (with hole) 1
3

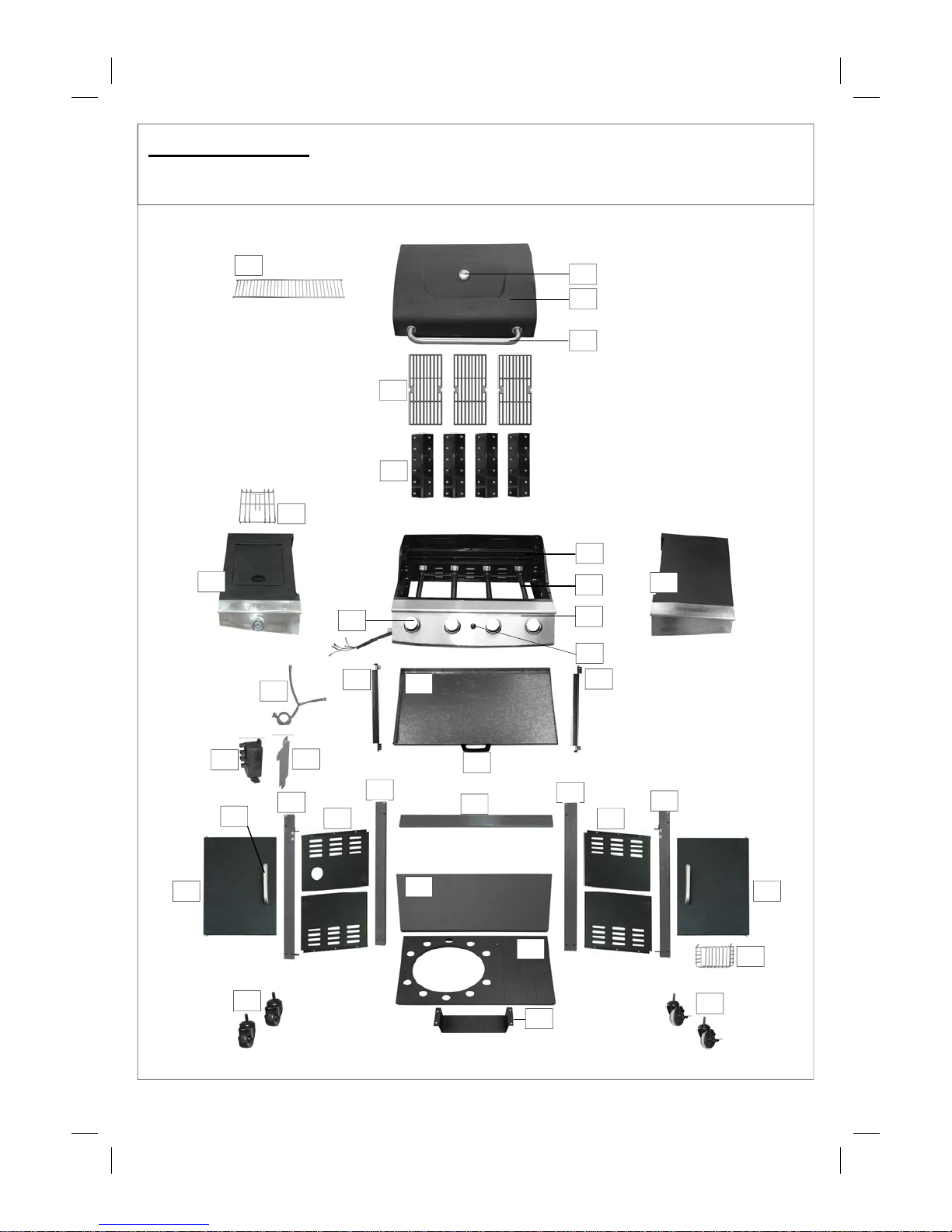

2. Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
A4
B6
C3
C2
B12
C4
C12
C19
A1
A2
B3
B1
C1
B5
C5
C17
C21
C20
C18
B2
B7
A3
B4
C6
C7
B11
C8
C10
C15
C16 C14
B8 B9
C11
B10
C13 C9
4
3. Hardware Reference Diagram
Specifications subject to change without prior notice. CODE PART ILLUSTRATION QTY
D4 M6x40
Bolt 16
D5 M6 Nut
12
CODE PART ILLUSTRATION QTY
D1 ST4.0x10
Screw 35
D2 M4x10
Bolt 4
D3 M6x15
Bolt
16
5
4. Assembly
IMPORTANT!
• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set
• The assembly of this barbecue requires 2 people.
• Carefully unpack the trolley and body boxes and remove all internal packaging before commencing
assembly. All loose items including the flame tamer and warming rack must be removed from the body.
• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
• Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2
Attach the Legs (C4,C5,C6,C7) to the Cabinet Side Panels (C9,C10) using ST4.0x10 Screws (D1)
as shown.
Attach the left / right cabinet panel assembly to the Cabinet Bottom Panel (C16) using
ST4.0x10 Screws (D1), M6x40 Bolts (D4) and M6 Nuts (D5) as shown.
Left Cabinet Panel Assembly Right Cabinet Panel Assembly
ST4.0x10 Screw
M6x40 Bolt and M6 Nut
6
4
3
Attach the Cabinet Back Panel (C15) to the assembled portion of the cabinet using the ST4.0x10
Screws (D1).
NOTE: These screw holes have weld nuts, so no nuts are required for these screws.
Attach the Upper Body Support (C8) to the
front legs using M6x15 Bolts (D3). Attach the Gas Bottle Support (C17) to the
cabinet bottom panel using the M6x15 Bolts
(D3) and M6 Nuts (D5).
7
Screw the Casters (C18) into the left legs and the Lockable Casters (C19) into the right legs.
Carefully turn the completed cabinet over, right side up.
Carefully place the Barbecue Body (B1) onto the cabinet structure and fix using M6x40 Bolts (D4) as
shown.
WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN
PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or
becomes damaged when it is set on the ground.
6
5
8
Attach the Side Burner Shelf (C1) and Right Side Shelf (C3) to the barbecue body using M6x15
Bolts (D3), making sure that the side burner shelf is fixed onto the left side of the body.
8
7
Connect the gas hose to the barbecue.
Ensure the mating faces of the connection are clean and not damaged. Do not use any
sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of
a spanner. Do not use force which may damage the assembly.
9
10
9
Insert M4x10 Bolts (D2) through the side burner shelf and side of the Control
Panel (B3) and tighten. Repeat this process for the right side shelf.
Fix the Electronic Ignition Assembly (C20) and Heat Shield (C21) to the front left leg by
inserting two ST4.0x10 Screws (D1) through the electronic ignition assembly and heat
shield and screw into the front left leg.
10
12
11

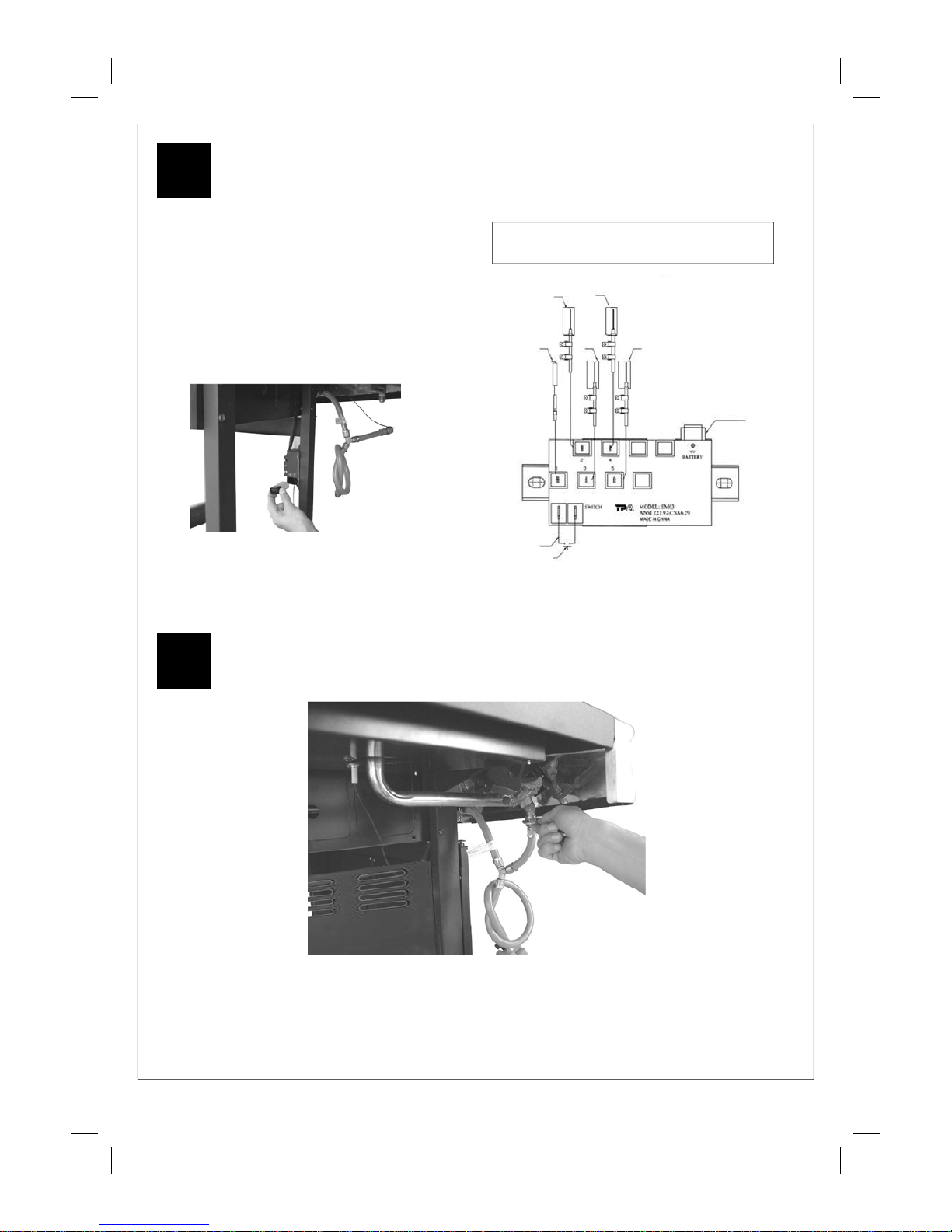

Phoenix 4 Burner Black / Stainless Steel
Electronic Ignition Assembly Diagram
Connect the wires to the electronic ignition
assembly as shown in the diagram to the
right.
Insert the electronic ignition battery (not sup-
plied) into the battery compartment, ensuring
the battery is correctly installed according to
the (+) (-) markings.
Connect the gas hose to the Side Burner Shelf (C1) as shown.
Ensure the mating faces of the connection are clean and not damaged. Do not use any
sealing tape, paste, or liquid on the connection. The nut must be tightened with the use
of a spanner. Do not use force which may damage the assembly.
Black
9V Battery
(not included)
Black Wires
(With Large Leads)
Wire
Switch
Black
Black
Black Black
