Outback Meteor 4S Bedienungsanleitung

MS4464H MS5664H

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and contact

your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

 For outdoor use only.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check

the hose connections are tight and leak test each time you reconnect the gas

bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

Assembly and Operating Instructions for Outback®

Meteor 4S Gas Barbecue and Meteor 6S Gas Barbecue

2575 0359

 Pre-Assembled Component

 Quantity varies according to model purchased

Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.

CODE PART QTY Outback® Meteor 4S

Gas Barbecue Outback® Meteor 6S

Gas Barbecue

HOOD

A1 Hood (Pre-Assembled to Body)1

A2 Hood Handle 1

A3 Warming Rack 1

A4 Heat Indicator 1

BODY

B1 Barbecue Body 1

B2 Burner 4 6

B3 Control Panel 1

B4 Knob 4 6

B5 Side Burner Valve, Hose and Regulator Assembly 1

B6 Flame Tamer 4 6

B7 Cooking Grill 2

B8 Drip Tray Left Bracket 1 

B9 Drip Tray Right Bracket 1 

B10 Drip Tray 1

B11 Drip Tray Handle 1 

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Shelf Panel 1 

C3 Side Burner Grid 1 

C4 Knob Bezel 1 

C5 Side Burner Knob 1 

C6 Side Burner 1 

C7 Side Shelf 1 

C8 Side Shelf Panel 1 

C9 Left Cabinet Panel Assembly 1 

C10 Right Cabinet Panel Assembly 1 

C11 Upper Support 1 

C12 Door Handle 2

C13 Left Door 1 

C14 Right Door 1 

C15 Bottom Panel 1 

C16 Balance Weight 1 

C17 Caster 2 

C18 Lockable Caster 2 

C19 Rear Panel 1 

HARDWARE

D1 M6x35 Bolt 8 

D2 M6x15 Bolt 20  

D3 ST4.0x10 Screw 21  

D4 M6 Nut 12  

D5 M4x10 Bolt 3 

Parts Diagram: Meteor 4S

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.

C18

C17

C13 C14

B8 B9

B10

B11

C11

C12

C9 C10

C15

C19

Parts Diagram: Meteor 6S

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.

C18

C17

C13 C14

C11

C12

C9 C10

C15

C19

C16

B8 B9

B10

B11

Hardware Reference Diagram

Specifications subject to change without prior notice.

D3 D4

M6X35 BOLT 8PCS

M6X15 BOLT 20PCS

ST4.0X10 SCREW 21PCS

M6 NUT 12PCS

M4X10 BOLT 3PCS

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal component or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

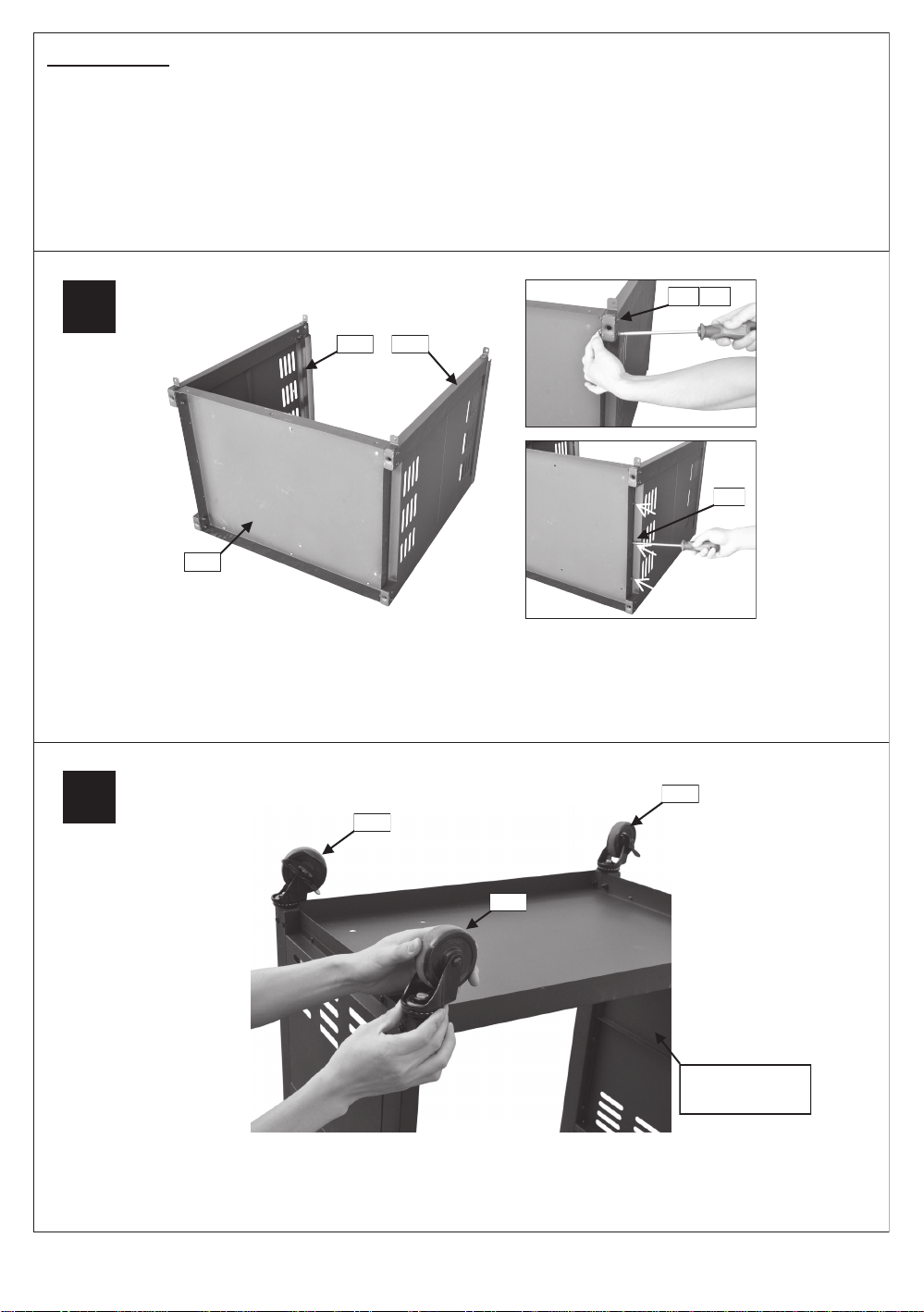

Carefully turn the cabinet upside-down.

Attach the Casters (C17x2pcs) and Lockable Casters (C18x2pcs) onto the left/right

cabinet panels as shown. Ensure the lockable casters are installed on the rear side.

C17

C18

Attach the Left Cabinet Panel Assembly (C9) and Right Cabinet Panel Assembly (C10)

to the Bottom Panel (C15) using ST4.0x10 Screw (D3x6pcs), M6x35 Bolts (D1x8pcs)

and M6 Nuts (D4x8pcs) as shown.

C15

C9 C10

D1 D4

Left cabinet panel

assembly

C18

Unscrew retaining bolts and retaining nuts from the Balance Weight (C16), then attach the

balance weight to the bottom panel using the bolts and nuts as shown.

C16

 Meteor 4S users skip this step and proceed directly to Step 4.

Attach the Rear Panel (C19) to the cabinet assembly using ST4.0x10 Screws (D3x7pcs)

as shown.

C19

Attach the Upper Support (C11) to the front legs using M6x15 Bolts (D2x4pcs).

Carefully turn the assembled cabinet right side up.

Attach the Drip Tray Left Bracket (B8) to the Left legs using ST4.0x10 Screws (D3x2pcs) as

shown. Repeat above process for the Drip Tray Right Bracket (B9).

B9 D3

C11 D2

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

Unscrew the retaining bolts from one Door Handle (C12), then attach the door handle onto the

Left Door (C13) using the retaining bolts as shown. Repeat above process to install the other

door handle onto the Right Door (C14).

C12

C13

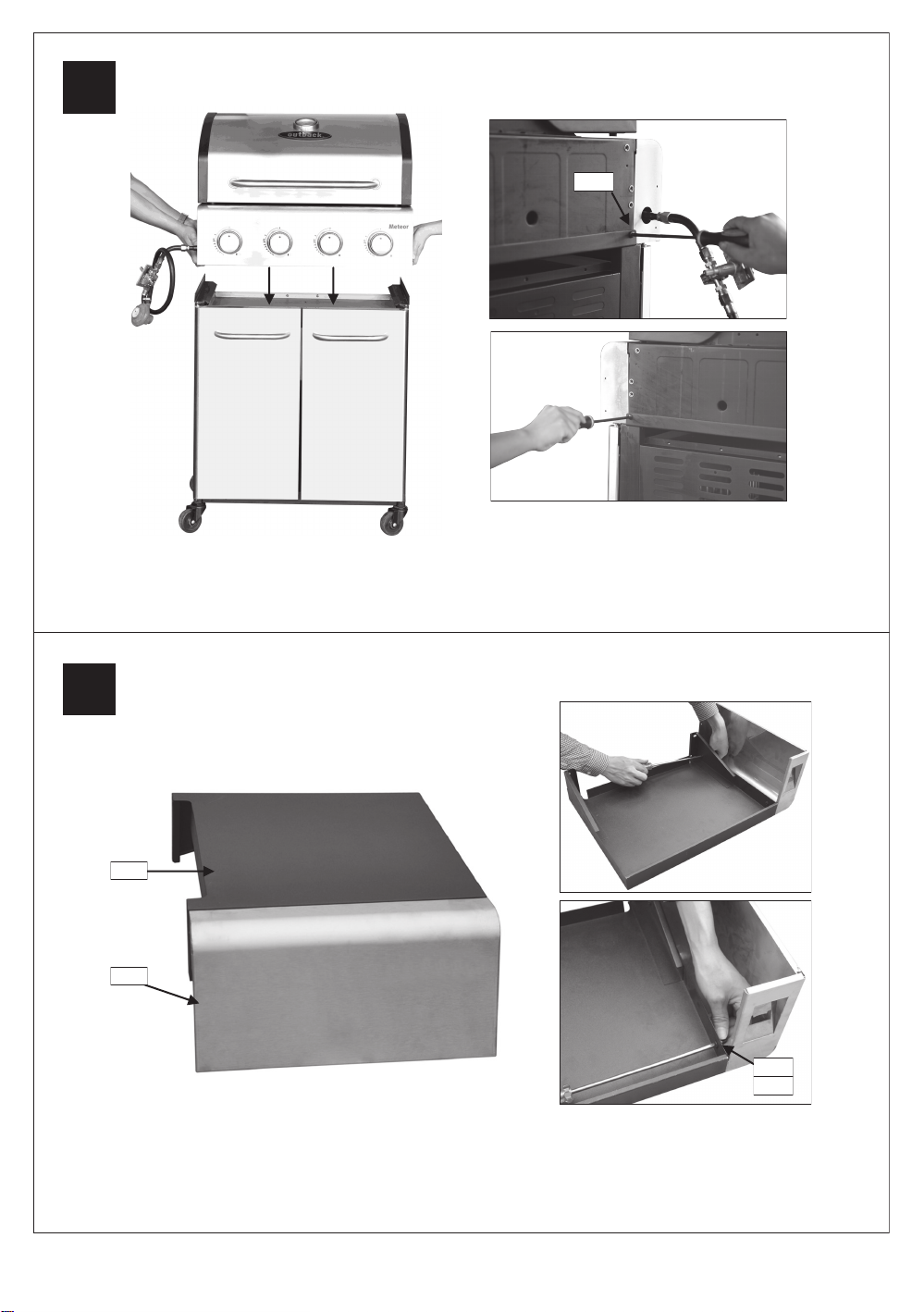

Carefully place the Barbecue Body (B1) onto the the cabinet structure and fix it using M6x15

Bolts (D2x4pcs) as shown.

Attach Side Shelf Panel (C8) onto Side Shelf (C7) using M6x15 Bolts (D2x2pcs) and M6 Nut

(D4x2pcs) as shown.
