Panasonic ER217-E2 Bedienungsanleitung
1 SCHEMATIC DIAGRAM 2
2 WIRING CONNECTION DIAGRAM 2
3 DISASSEMBLY INSTRUCTIONS 3
4 ASSEMBLY INSTRUCTIONS 5
©2006 Matsushita Electric Works, Ltd. All rights
reserved. Unauthorized copying and distribution is a
violation of law.
ER217-E2
5 TROUBLESHOOTING GUIDE 7
6 EXPLODED VIEW 8
7 REPLACEMENT PARTS LIST 9

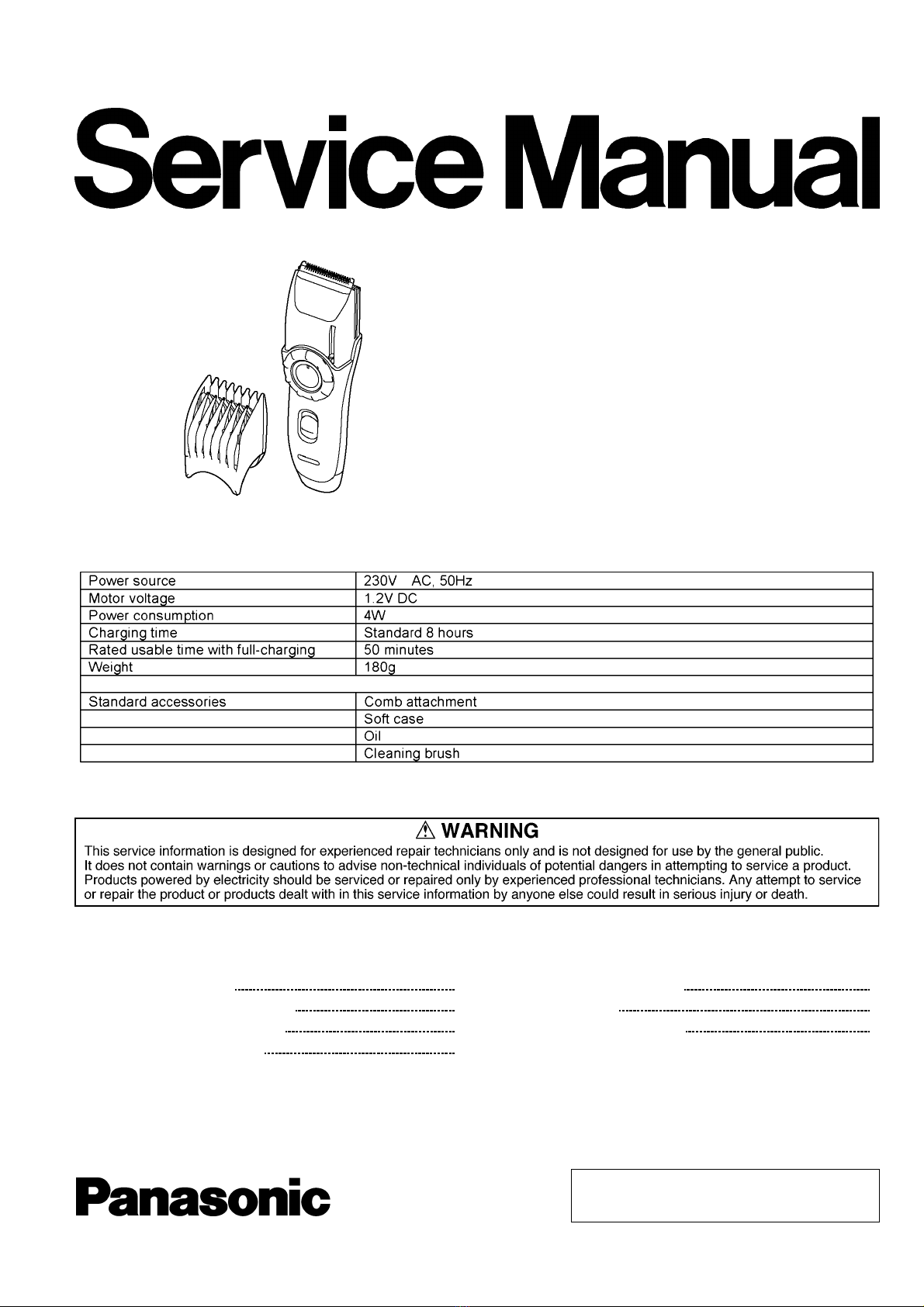

AC/Rechargeable Beard/Hair Trimmer
SPECIFICATIONS
CONTENTS
Page Page
ORDER NO. SD0604E33CE

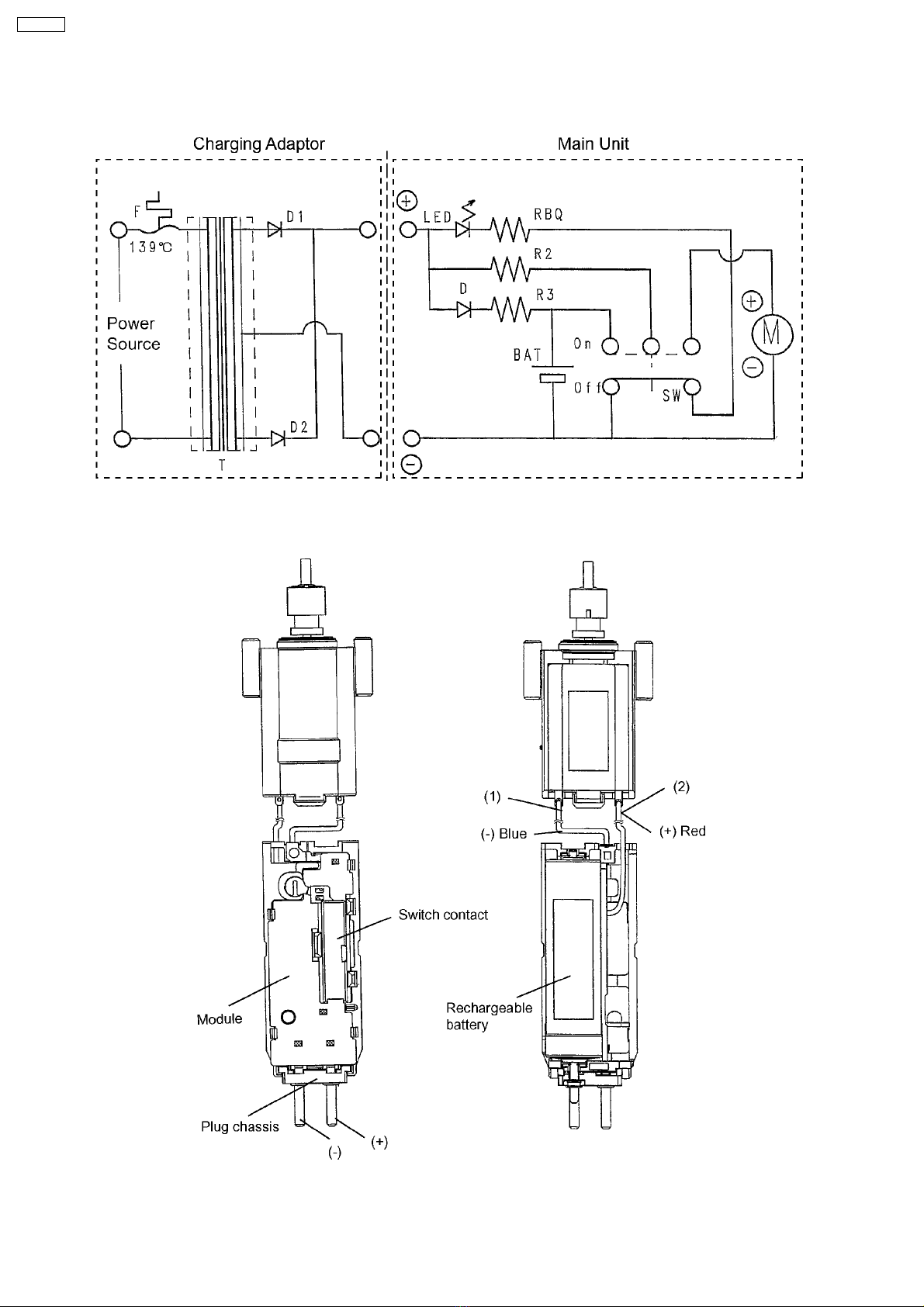

1 SCHEMATIC DIAGRAM
2 WIRING CONNECTION DIAGRAM
2
ER217-E2
1. Remove the attachment and blade.
2. Loosen a screw and remove the bottom cover.
3. Insert a slotted-head screw driver (less than 2.4mm width
on top) into the slit of dial cover and raise it with the driver.
NOTE: Make sure there is NO scratch or damage on the
parts.
4. Loosen a screw and take out the dial mounting base, the
trimming length indicator ring with the dial.
5. Loosen two screws tightening the blade spring.
3 DISASSEMBLY INSTRUCTIONS
Follow the procedure below to disassemble the main body.
3
ER217-E2
6. To separate the housing C and B, insert a slotted-head
screw driver into the slit of housing.
Raise the housing C with the driver slightly and open the
housings with hand slowly.
NOTE: In case of the housings can not be opened,
insert the driver further (depth to the lamp cover).
7. Loosen two screws on both top and bottom of housing A.
And remove the housing A after loosing six screws.
8. Take out the motor, module and battery assembly from
housing A.
9. Take out the rechargeable battery from the battery holder
and the motor from the motor holder.
4
ER217-E2

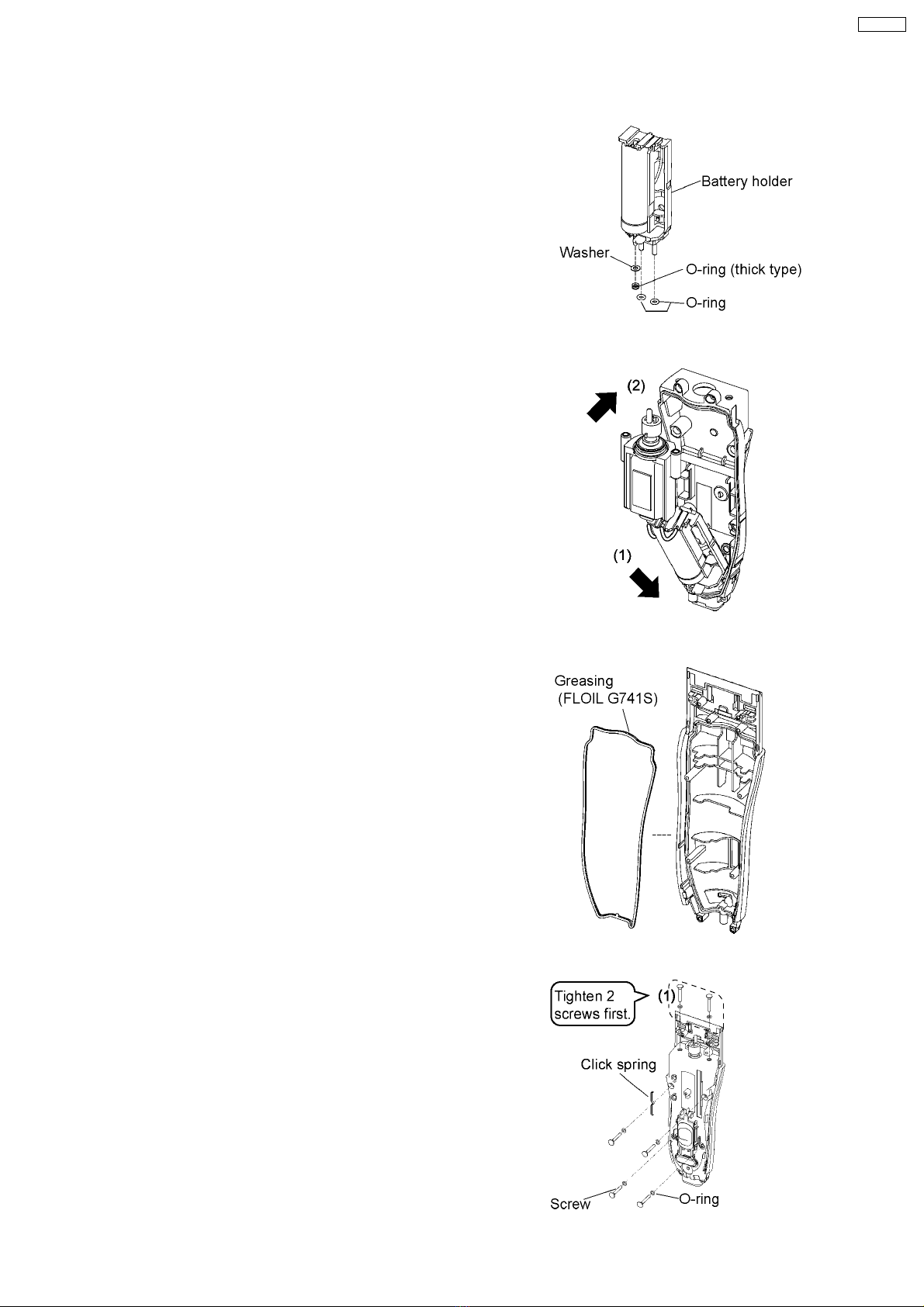

1. Insert the rechargeable battery into the battery holder.
NOTE: Make sure to attach the washer and O-ring to the
battery terminal. The O-ring for the battery terminal is
the thickest. Confirm if the O-ring is attached properly.
·
battery terminal: washer X 1 and o-ring X 1
·
terminal pins: o-ring X 1
2. Set motor, module and battery assembly to the housing A.
Insert from the battery terminal side first and then place the
motor holder.
NOTE: Make sure that two motor lead wires are set
within the space between the battery holder and the
motor holder to prevent pinching.
NOTE: Make sure to attach the switch cam with the
lowest position.
3. Attach the housing O-ring to the housing B.
4. Set the housing A onto the housing B with tightening ten
screws starting from the upper face of housing A first.
NOTE: Make sure that six O-rings are set.
5. Set the click spring on the housing A.
NOTE: It is available to measure the waterproof tester.
4 ASSEMBLY INSTRUCTIONS
5
ER217-E2
6. Attach the wire spring and the blade springs with the
housing C.
NOTE: Make sure to set the wire spring properly.
7. Attach the lack to the housing C with the lowest position.
8. Set the housing C firmly and tighten two screws.
9. Place the dial with setting the triangle mark on top.
10. Place the trimming length indicator ring with inserting the
projection into the groove of the dial.
11. Set the dial mounting base aligning the projection with the
triangle mark on dial and tighten a screw.
12. Place the dial cover.
13. Attach the bottom cover with a screw.
6
ER217-E2
Fig. 1 Fig. 2
5 TROUBLESHOOTING GUIDE
(Refer to WIRING CONNECTION DIAGRAM)
7
ER217-E2

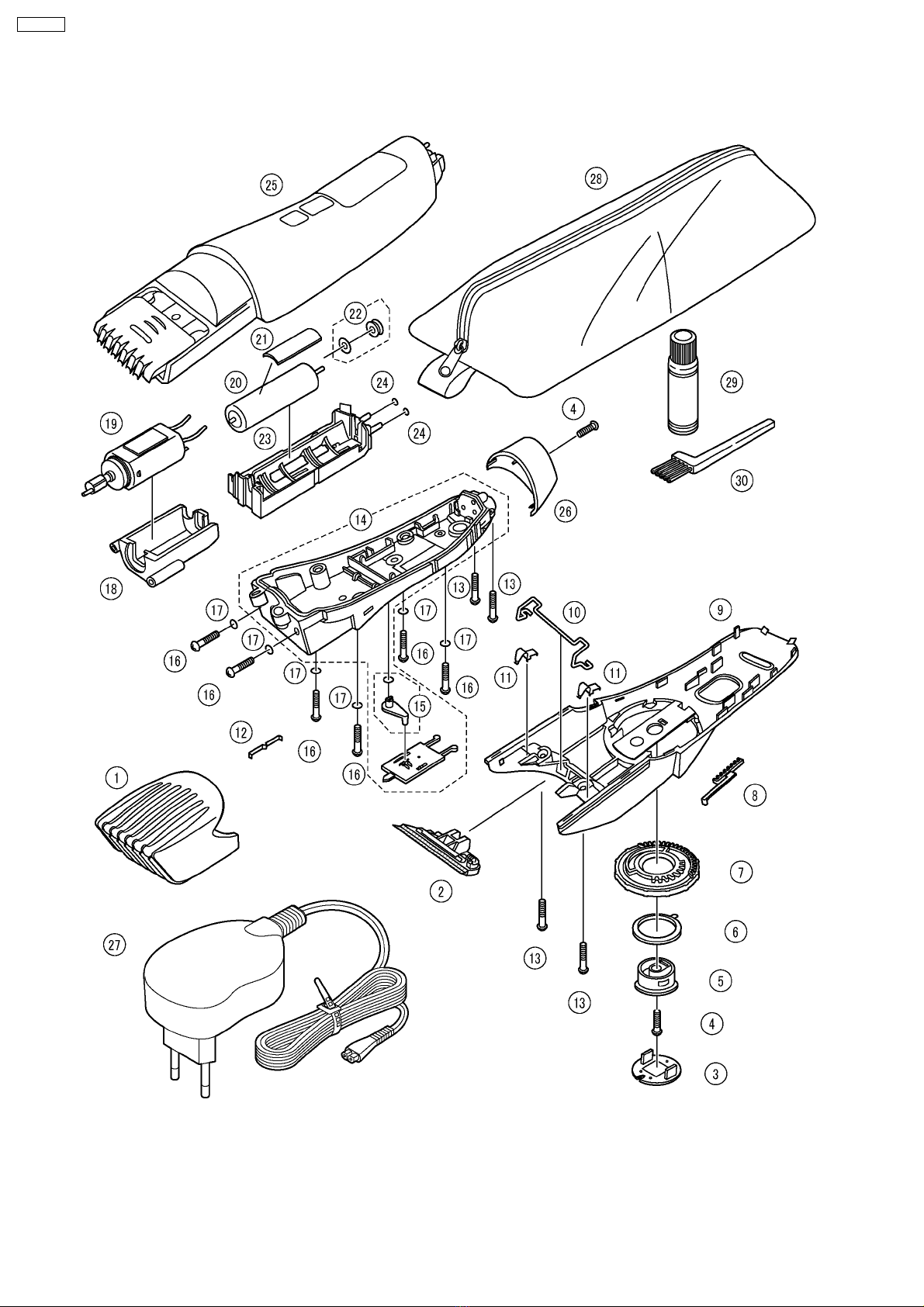

6 EXPLODED VIEW
8
ER217-E2
7 REPLACEMENT PARTS LIST
NOTE :
*A=available as an optional accessory
*B=only available as set
*C=available individually
Ref.No. Part No. Part Name & Descriptions Remarks Per Unit
1WER217K7457 COMB ATTACHMENT (BG) 1
2WER9602Y BLADE BLOCK 1
3WER217S3107 DIAL COVER (BG) 1
4WES7023L9008 TAPPING SCREW *C M2-6 (BG) 2
5WER217D1477 DIAL MOUNTING BASE (BG) 1
6WER217K3338 TRIMMING LENGTH INDICATOR RING (BG) 1
7WER217H3288 DIAL (BG) 1
8WER223L0287 RACK (BG) 1
9WER217S3028 HOUSING C (BG) 1
10 WER217L0207 WIRE SPRING (BG) 1
11 WER504L0167 SPRING FOR CUTTER *B (2PCS/PK) (BG) 2
12 WER221L1578 CLICK SPRING (BG) 1
13 WES631W6057 TAPPING SCREW *C K2-8 (BG) 6
14 WER217H3058 HOUSING A (BG) 1
15 WER217L1678 SWITCH CAM (BG) 1
16 WES7025L9707 SCREW *C (BG) 6
17 WER217L0967 O-RING *B (6PCS/PK) (BG) 6
18 WER217L3577 MOTOR HOLDER (BG) 1
19 WER217L1008 MOTOR (BG) 1
20 WER217L2508 RECHARGEABLE BATTERY NI-MH TYPE (BG) 1
21 WER217L0318 CUSHION *B (2PCS/PK) (BG) 1
22 WES7025L0977 O-RING AND WASHER *B (2PCS/PK) (BG) 1
23 WER217L2109 MODULE ASSEMBLY (BG) 1
24 WER217L0977 O-RING *B (2PCS/PK) (BG) 2
25 WER217H3069 HOUSING B (BG) 1
26 WER217H3849 BOTTOM COVER (BG) 1
27 WER217K7664 ADAPTOR C-2 PLUG (BG) 1
28 WER217K7007 SOFT CASE (BG) 1
29 WER203X7918 OIL 1
30 WES76806761 CLEANING BRUSH 1
-WER217S8009 INDIVIDUAL BOX (BG) 1
-WER217S8109 OPERATING INSTRUCTIONS (BG) 1
9
ER217-E2
