Panasonic ES-LA92 Bedienungsanleitung

© Panasonic Electric Works Co., Ltd. 2009.

All rights reserved. Unauthorized copying and distri-

bution is a violation of law.

Order Number SD0906A65CE

Rechargeable Shaver

Model No. ES-LA92

ES-LA62

Asia

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 7

5 Schematic Diagram ---------------------------------------------12

6 Exploded View and Replacement Parts List -----------13

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

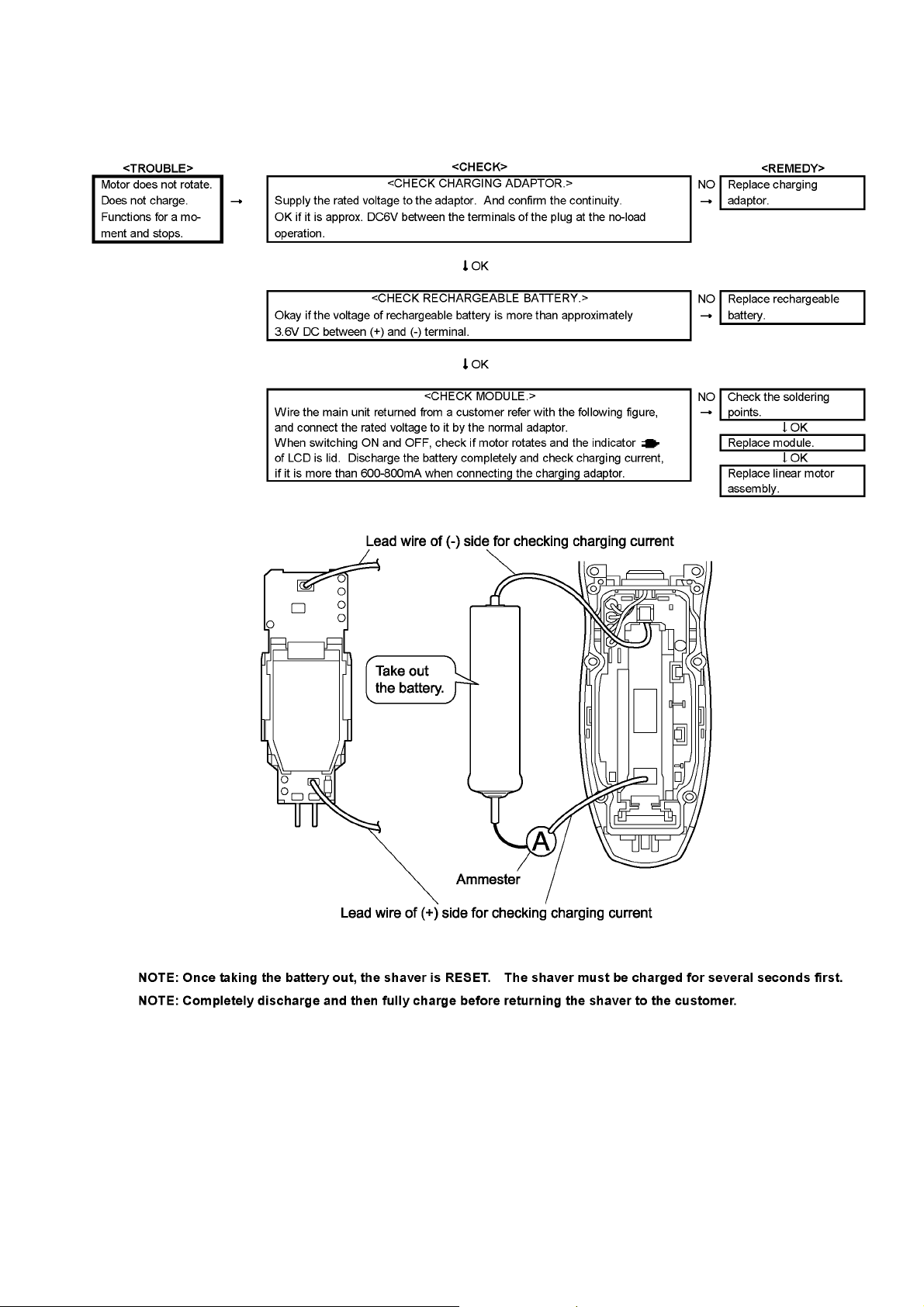

3 Troubleshooting Guide

3.1. Main unit and charging adaptor

4

5

3.2. Self-cleaning recharger (ES-LA92 only)

6

3.3. Operation of Self-cleaning Recharger (ES-LA92 only)

7

4 Disassembly and Assembly Instructions

4.1. Disassembly Instructions

Follow the procedure below to disassemble the main unit.

1. Remove the cap, the outer foil with outer foil frame and

the inner blades.

2. How to disassemble the housing A and B.

a. Loosen a screw.

b. Remove the bottom cover.

c. Remove the rear panel.

d. Loosen 6 screws.

e. Remove the housing B.

f. Remove the front panel.

g. Loosen two screws.

3. To remove the trimmer driving bar or the slit blade driving

bar, press bars outward.

4. Pull up the battery and chassis block from the linear

motor side first. Then, slide it upward and take it out from

the housing A.

NOTE:

Do not pull the battery and chassis block forcefully

due to connecting the linear motor by the lead wires.

8

5. Take out the battery from the chassis.

6. Unsolder the lead wires from the module.

7. Move gently the linear motor assembly down and unhook

it and remove the float springs from housing A.

9

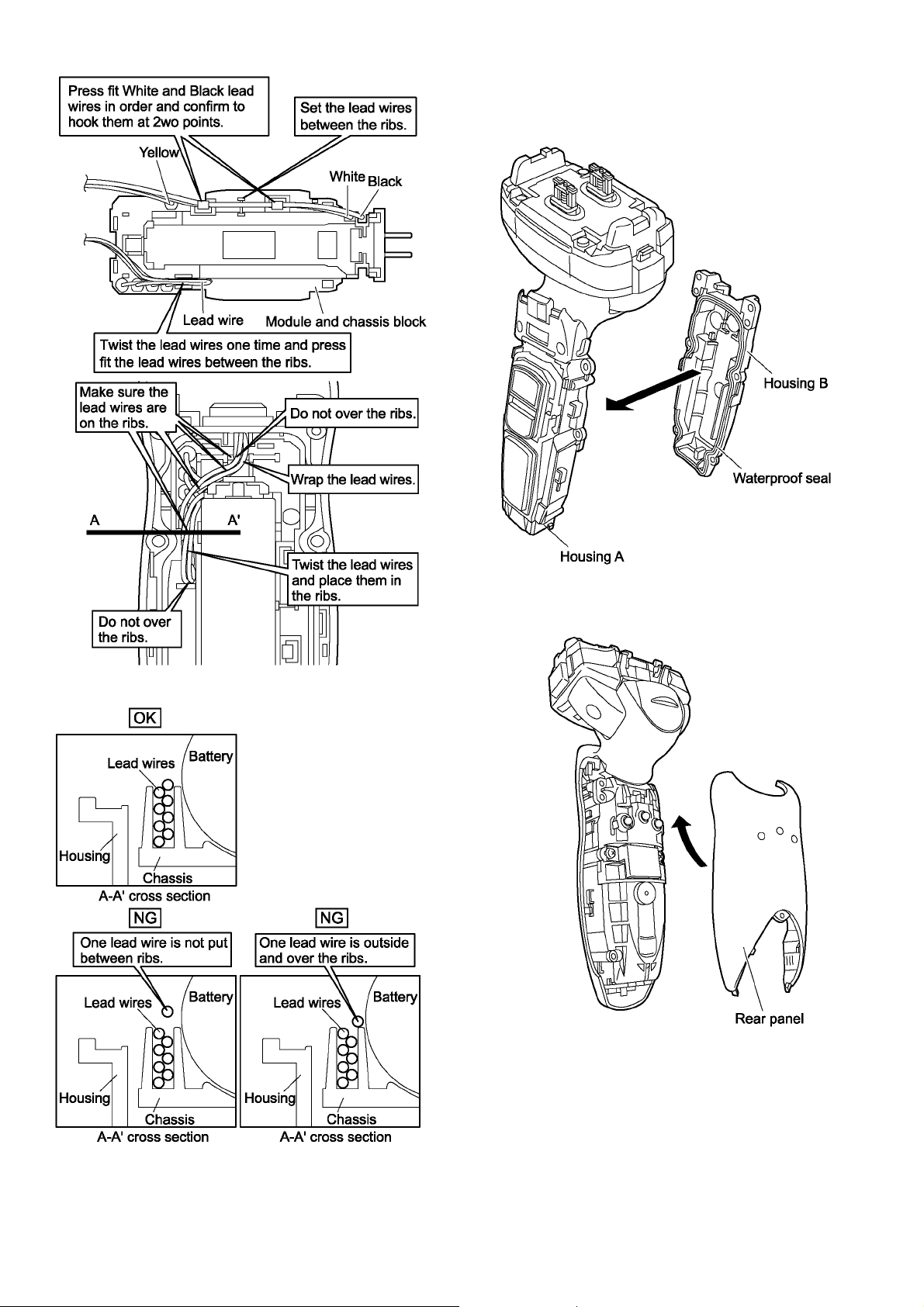

4.2. Caution in Assembly

NOTE:

When reassembling, replace the new waterproof seal. Make sure whether there is NO foreign substance sticking around a part

covered with waterproof seal.

1. Solder the lead wires with the module.

NOTE:

Make sure of the color of lead wires.

2. Attach the tube holder. Tighten two screws between the

linear motor assembly and the housing A.

3. When inserting the module and chassis block into the

housing A, confirm if the module does not get any dam-

age or deformation.

NOTE:

Comfrm the position of waterproof rubber.

4. Make sure that the lead wires set in position to avoid

abnormal noise. Install (+) terminal of battery into the ter-

minal plate at the bottom cover side and firmly set the bat-

tery sliding the direction of arrow. Attach (-) terminal of

battery.

NOTE:

Once taking the battery out, the shaver is RESET.

The shaver must be charged for about 10 seconds

first.

NOTE:

Completely discharge and then fully charge before

returning the shaver to the customer.

10

5. When putting the housing A and the housing B together,

make sure if the waterproof seal must be fitted properly

and no foreign substance sticking around.

6. Attach the rear panel firmly.
