Panasonic ES4033-A3 Bedienungsanleitung

1 SCHEMATIC DIAGRAM 2

2 WIRING CONNECTION DIAGRAM 2

3 DISASSEMBLY INSTRUCTIONS 3

4 CAUTION IN ASSEMBLY 6

reserved. Unauthorized copying and distribution is a

violation of law.

ES4033-A3

ES4035-A3

5 TROUBLESHOOTING GUIDE 9

6 EXPLODED VIEW 10

7 REPLACEMENT PARTS LIST 11

AC/Rechargeable Shaver

SPECIFICATIONS

Power source

C 220V, 50-60Hz (Automatic voltage conversion)

Motor voltage 1.2V DC

Charging time 1 Hour for ES4035, 8 Hours for ES4033

Shaves per charge 7 times (3 minutes shave)

Measurement (H)14.6 x (W)5.7 x (D)4.9 cm

Weight 155g

Supplied accessories Soft case

Cleaning brush

CONTENTS

Page Page

ORDER NO. SD0406A47C3

1 SCHEMATIC DIAGRAM

2 WIRING CONNECTION DIAGRAM

ES4033-A3 / ES4035-A3

1. Remove the cap, the outer foil with foil frame and the inner

blade.

2. Slide the trimmer handle up to open the trimmer and

unhook the trimmer handle by inserting something like a

plastic spatula into a slit.

NOTE: Make sure not to scratch or damage on the

housing.

3. Remove trimmer and trimmer handle.

3 DISASSEMBLY INSTRUCTIONS

Follow the procedure below to disassemble the main unit.

ES4033-A3 / ES4035-A3

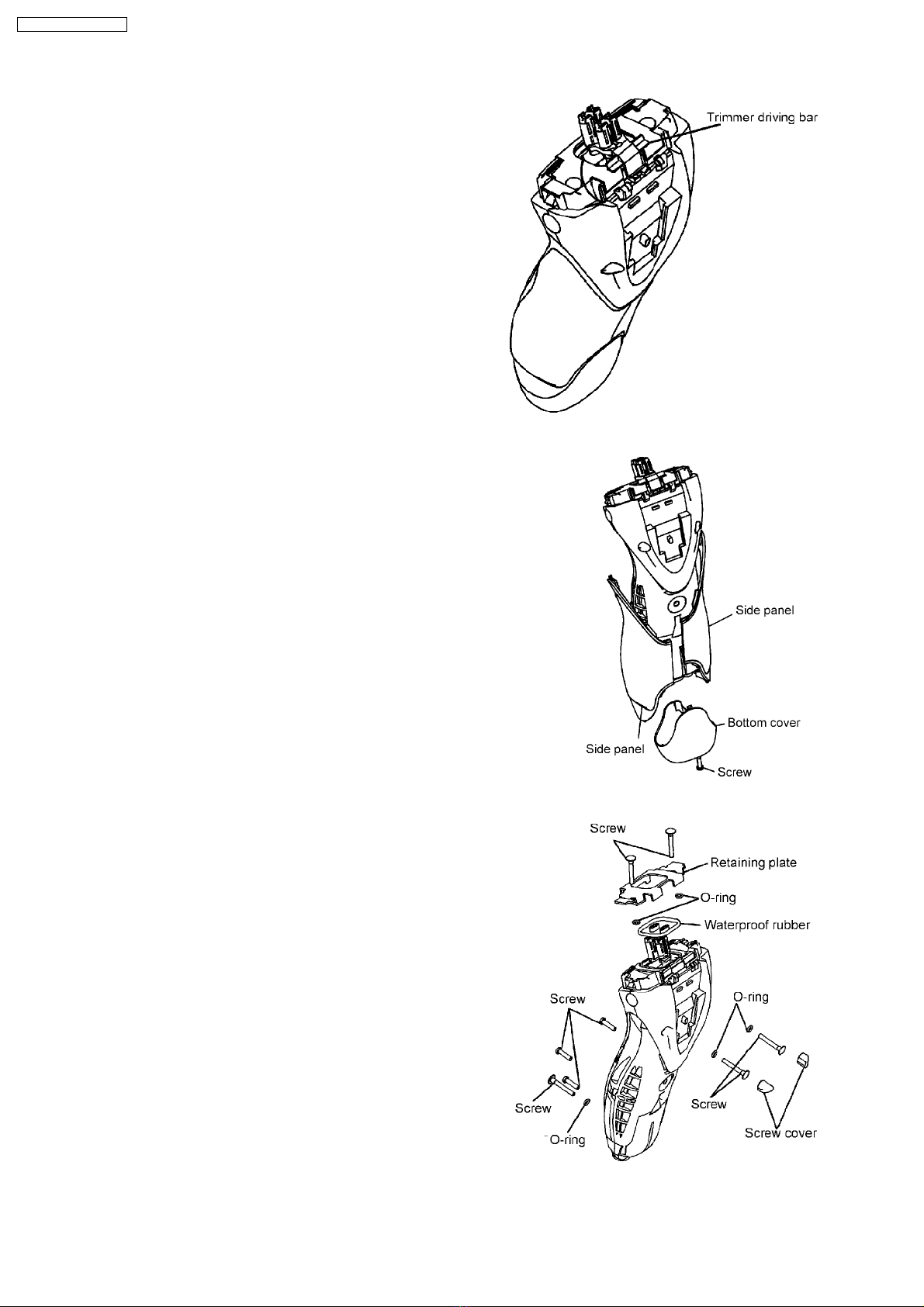

4. To remove the trimmer driving bar, press it outward.

5. Loosen a screw and remove the bottom cover.

6. Peel off the side panels on both sides.

7. Loosen two screws and the retaining plate. Remove the

waterproof rubber.

8. Remove the two screw covers using something like a

toothpick and six screws.

ES4033-A3 / ES4035-A3

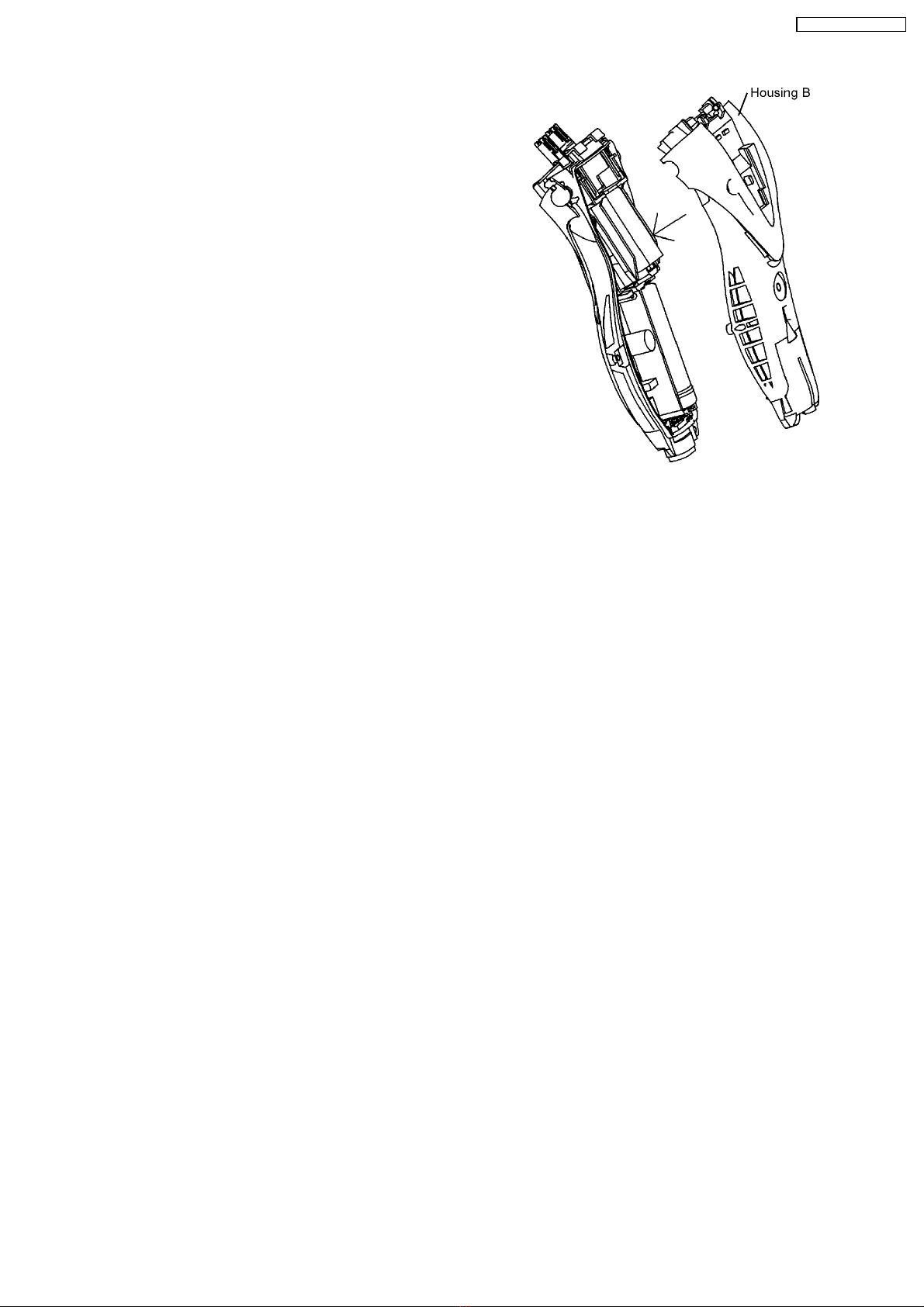

9. Take out the housing B.

10. Remove the motor assembly first. And take out the module

assembly from housing A.

11. Remove the battery o-ring and washer from battery

terminal. Take out the rechargeable battery from the

chassis.

ES4033-A3 / ES4035-A3

NOTE: When reassembling, replace the new waterproof

rubber.

Make sure whether there is NO foreign substance sticking

around a part covered with water seal.

4.1. Driving heads

Install the driving head A in motor and assemble the driving

head B.

4.2. Rechargeable battery

Insert the rechargeable battery into chassis. Attach the battery

o-ring and washer to the battery.

4.3. Motor and Module assembly

Put the motor and module assembly from the battery terminal

side into housing A, and insert the driving heads side into

housing A.

NOTE: Make sure that the red lead wire is not over the

chassis rib.

Press fit the red lead wire neatly under the rib of motor

holder and the blue lead wire in between batteries certainly

in order to protect pinching.

4 CAUTION IN ASSEMBLY

ES4033-A3 / ES4035-A3

4.4. Housing

Set the both sides of foil frame release buttons with springs.

Put the housing B on the housing A.

Tighten the screws with care of pinching screw o-rings.

4.5. Waterproof rubber

The waterproof rubber must be fitted the right way around.

Install as shown in figure by inserting firmly to the proper

position.

4.6. Driving bar

Set the trimmer driving bar.

ES4033-A3 / ES4035-A3

4.7. Side panel

Set the side panel on the body and press fit until clicking the

hook of panel at three locations. Fit the hook on top first, then

front side and rear side.

NOTE: Make sure that the left and right side panels are

firmly fitted on both rear and front side.

4.8. Trimmer

1. Make sure if the bosses of handle arm insert into the holes

of trimmer.

2. Align the bosses of housing with the holes of trimmer, and

hook the trimmer handle.

3. Confirm its operation or smooth movement of trimmer.

ES4033-A3 / ES4035-A3

5 TROUBLESHOOTING GUIDE

(Refer to)

Motor does not rotate. <CHECK POWER CORD UNIT.> NO Replace power cord unit.

Does not charge. →

→→

→Connect the rated voltage to the normal main unit of empty charge capacity →

→→

→

Functions for a mo- by the power cord unit. Check if the charge status lamp of main unit is lit.

ment and stops. Confirm if the motor rotates more than one minutes by AC power source

Does not operate by when turning ON the switch.

AC power source. Confirm if the output voltage is about DC2.7V with no load operation when

connecting the rated voltage.

↓

↓↓

↓OK

<CHECK RECHARGEABLE BATTERY.> NO Replace both recharge-

Okay if the voltage of rechargeable battery is more than approximately →

→→

→able battery.

1.2V DC between (+) and (-) terminals.

↓

↓↓

↓OK

<CHECK MODULE.> NO Check the

Wire the main unit returned from a customer refer with the following figure, →

→→

→soldering points.

and connect the rated voltage to it by the power cord unit. ↓

↓↓

↓OK

Take out the battery. Connect the chassis and (-) terminal of battery with Replace module.

the lead wire. Check charging current with the wire between chassis and

(+) terminal of battery.

Check charging current, if it is approx. 1100mA.

↓

↓↓

↓OK

<CHECK MOTOR.> NO Replace motor.

Okay if motor rotates when DC1.2V is applied to (+) and (-) terminals. →

→→

→

Noise is too loud. Check if there any deformation with the outer foil. NO Replace the outer foil or

Amplitude is too →

→→

→oiling a drop for the foil.

small. ↓

↓↓

↓OK

<CHECK DRIVING BAR.> NO Replace or repair the

Check if there is any deformation with trimmer driving bar. →

→→

→trimmer driving bar.

↓

↓↓

↓OK

<CHECK MOTOR.> NO Tighten the screws.

Confirm to tighten the screws firmly. →

→→

→

ES4033-A3 / ES4035-A3

6 EXPLODED VIEW

ES4033-A3 / ES4035-A3
