Panasonic ES8046-A3 Bedienungsanleitung

1 SCHEMATIC DIAGRAM 2

2 DISASSEMBLY INSTRUCTIONS 3

3 ASSEMBLY INSTRUCTIONS 5

reserved. Unauthorized copying and distribution is a

violation of law.

ES8046-A3

ES8047-A3

4 TROUBLESHOOTING GUIDE 7

5 EXPLODED VIEW & REPLACEMENT PARTS LIST 9

AC/Rechargeable Shaver

SPECIFICATIONS

Power source

C 100-240V, 50-60Hz (Automatic voltage conversion)

Power consumption

pprox. 7W ( at AC drive)

Motor voltage 3.6V DC

Charging time 1 Hour

Shaves per charge 14 times (3 minutes shave)

Measurement (H)15.3 x (W)6.2 x (D)4.6 cm

Weight 180g

Supplied accessories Soft case

Cleaning brush

Charging stand

CONTENTS

Page Page

ORDER NO. SD0506A39C3

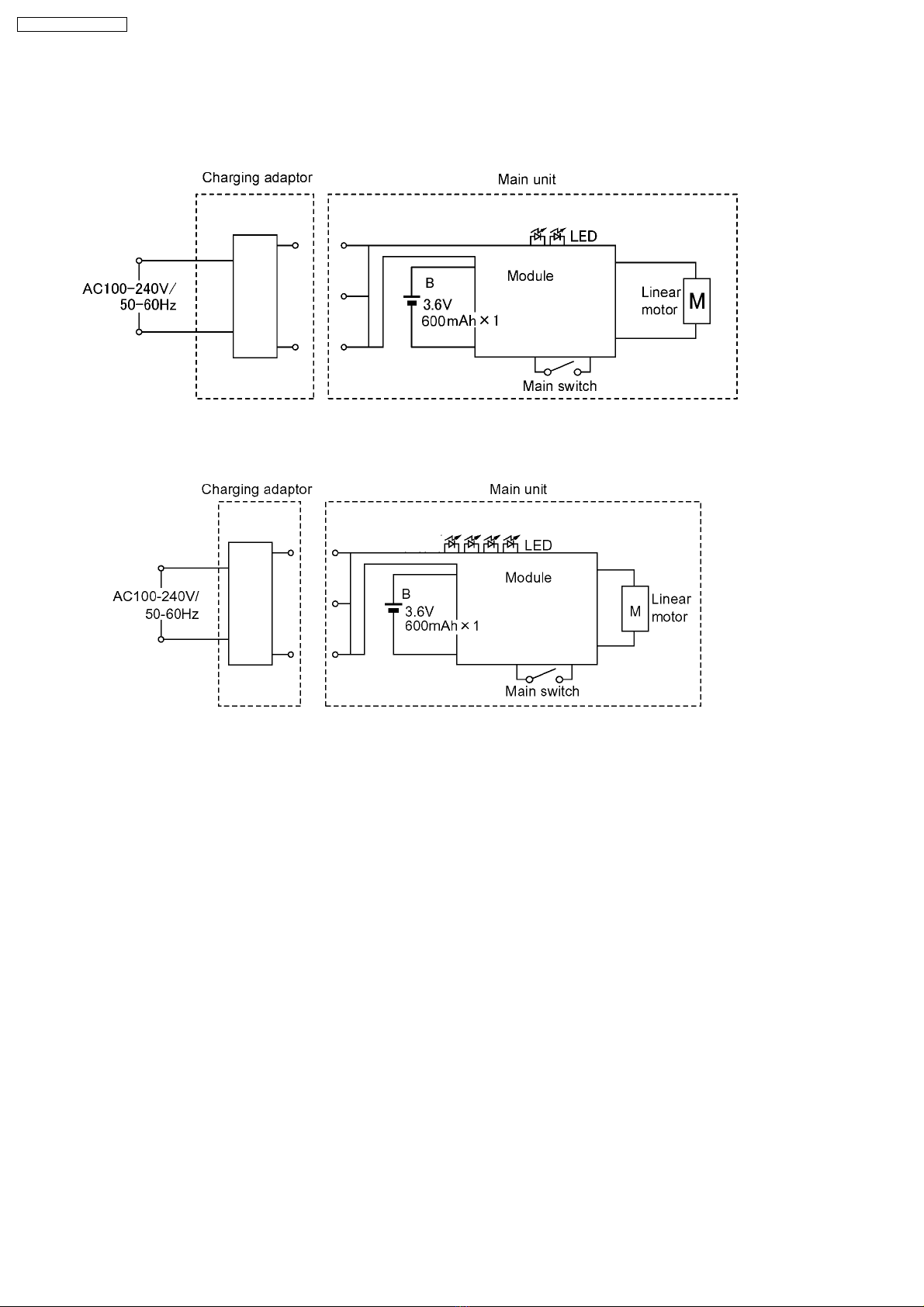

1 SCHEMATIC DIAGRAM

1.1. ES8046

1.2. ES8047

ES8046-A3 / ES8047-A3

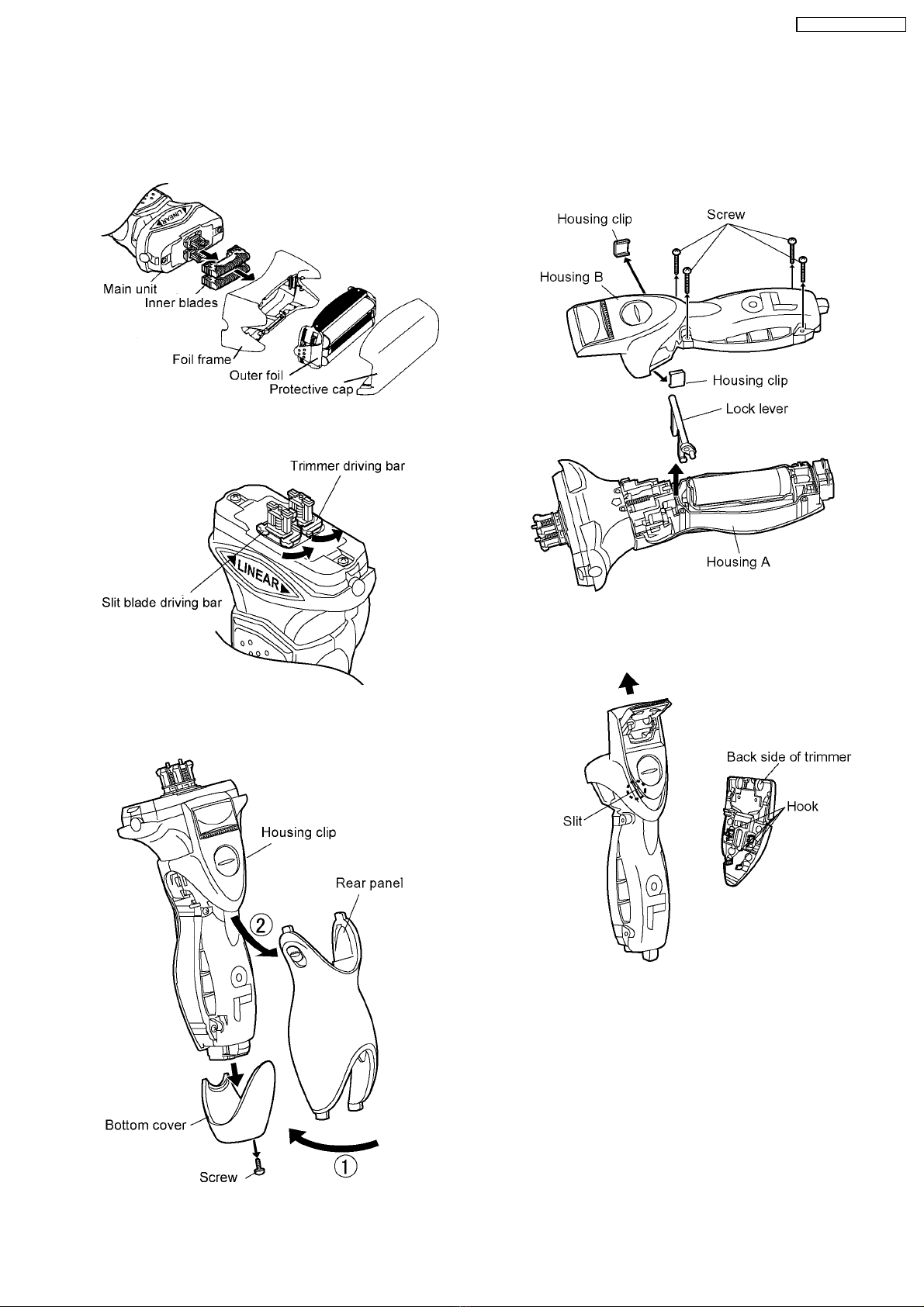

Follow the procedure below to disassemble the main unit.

1. Remove the cap, the outer foil with foil frame and the

inner blade.

2. To remove the trimmer driving bar or the slit blade

driving bar, press bars outward.

3. Loosen a screw and remove the bottom cover. Set the

pivot action selector to "LOCK". Slide the rear panel and

remove it with care of pivot action selector.

4. Remove the both side of housing clips.

Loosen four screws and remove housing B.

Take out the lock lever shaft.

5. Slide the trimmer handle up to open the trimmer and

unhook 2 locations on both side by inserting the slit with

something like a slotted-head screw driver.

2 DISASSEMBLY INSTRUCTIONS

ES8046-A3 / ES8047-A3

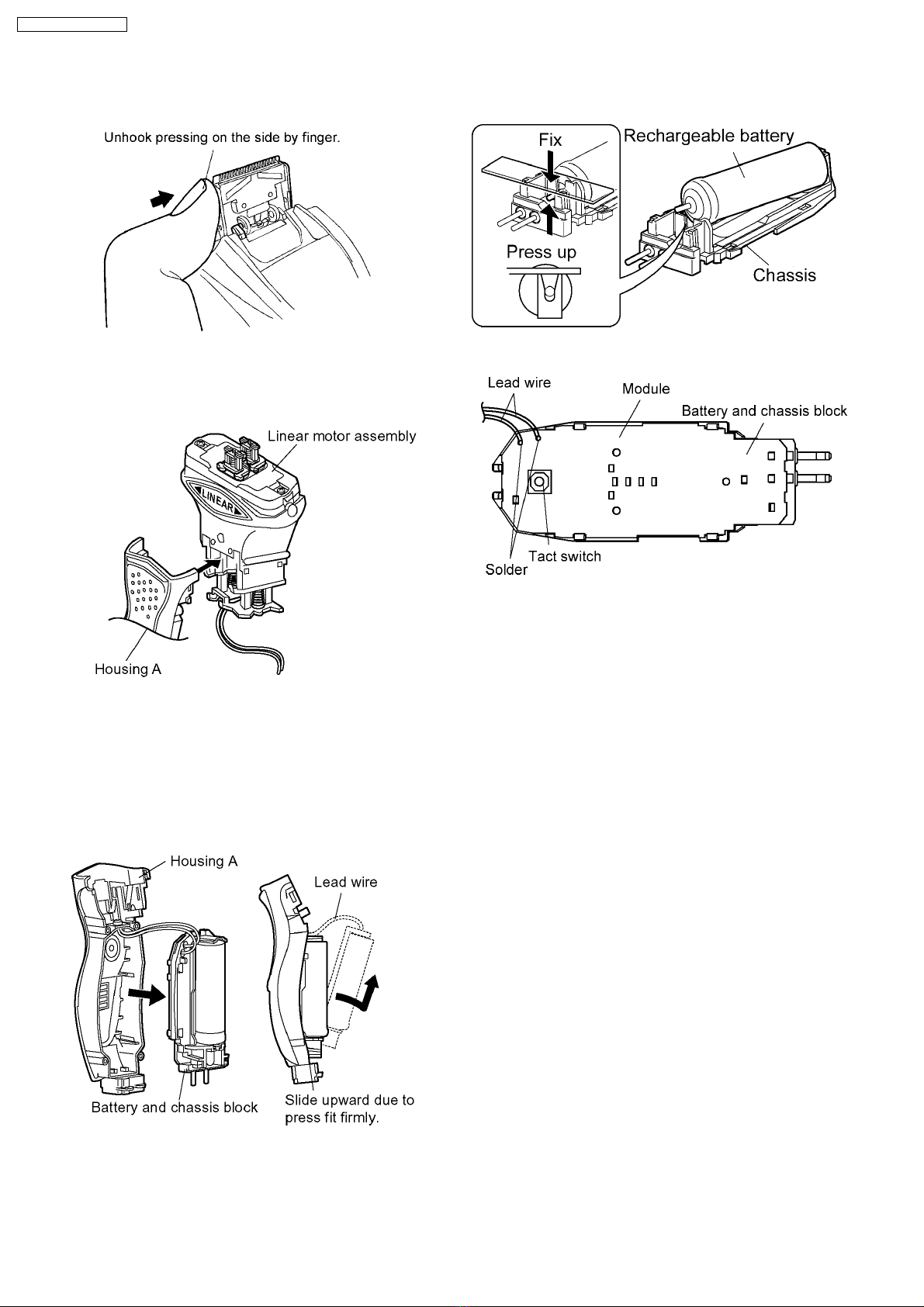

6. Remove trimmer and trimmer handle.

7. Move gently the linear motor assembly down and

unhook it and remove the float springs from housing A.

8. Pull up the battery and chassis block from the linear

motor side first. Then, slide it upward and take it out

from the housing A.

NOTE:

Do not pull the battery and chassis block forcefully

due to connecting the linear motor by the lead wires.

9. Take out the battery from the chassis.

10. Unsolder the lead wires from the module.

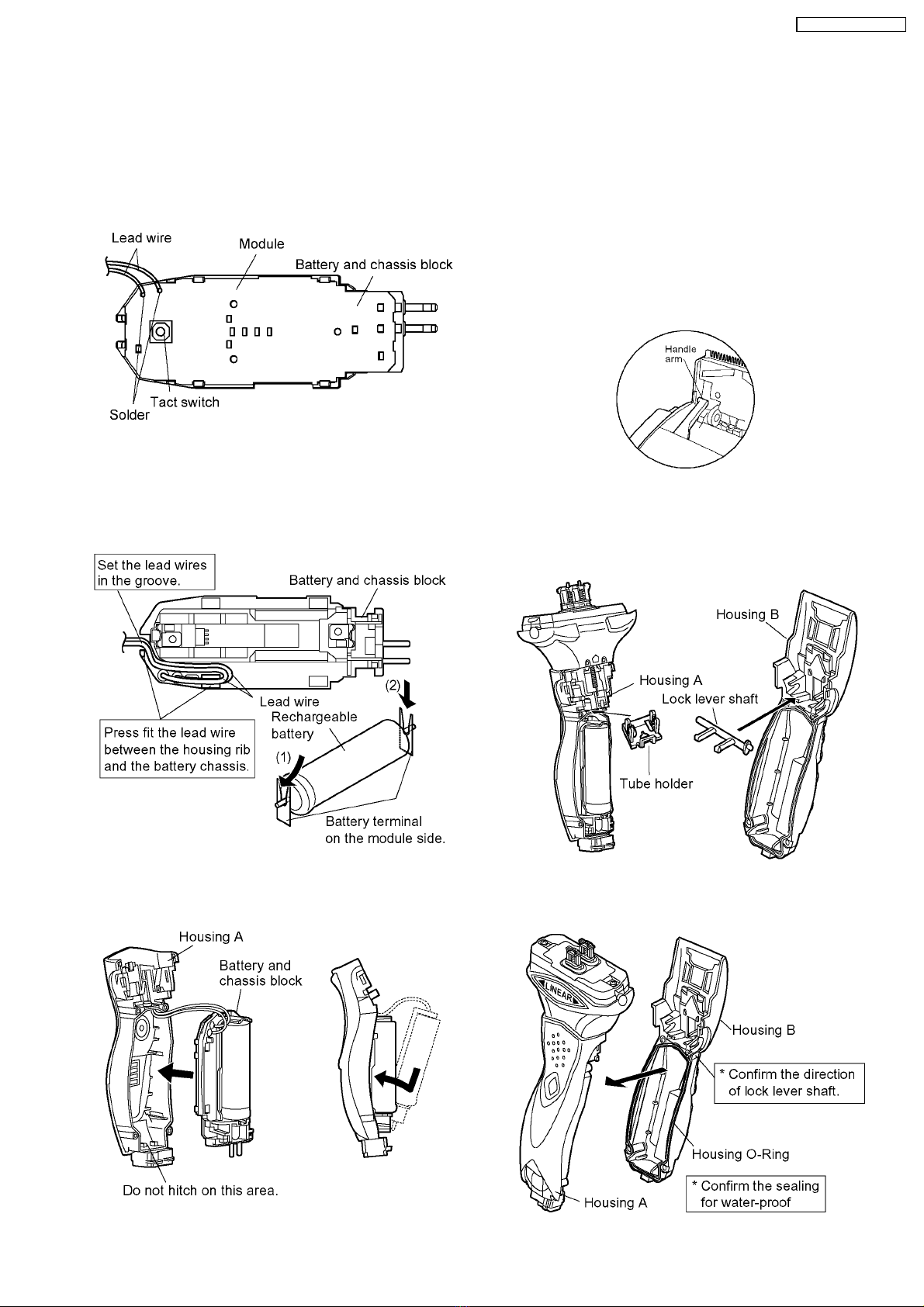

ES8046-A3 / ES8047-A3

1. Solder the lead wires with the module.

NOTE:

Make sure of the color of lead wires.

2. Make sure that the lead wires set in position. Install (+)

terminal of battery into the terminal plate at the linear motor

side and firmly set the battery sliding the direction of arrow.

NOTE:

Fix the lead wires with the adhesive tape.

3. When inserting the battery and module assembly into the

housing A, confirm if the module does not get any damage

or deformation.

4. In case of trimmer is removed;

Make sure if the bosses of handle arm insert into the holes

of trimmer. Align the bosses of housing with the holes of

trimmer, and hook the trimmer. Then, slide the trimmer up

and hook the both sides of trimmer handle.

NOTE:

Confirm its operation or smooth movement of trimmer.

5. Set the linear motor assembly on the housing A and sliding

it upward to hook. Confirm that the lead wire tube fits to the

housing A firmly and no foreign substance sticking around.

Attach the head block to housing A with care of the

direction. And attach the rock lever shaft to housing B.

6. When putting the housing A and the housing B together,

make sure if the waterproof seal must be fitted properly and

no foreign substance sticking around.

3 ASSEMBLY INSTRUCTIONS

NOTE: When reassembling, replace the new waterproof rubber.

Make sure whether there is NO foreign substance sticking around a part covered with waterproof seal.

ES8046-A3 / ES8047-A3

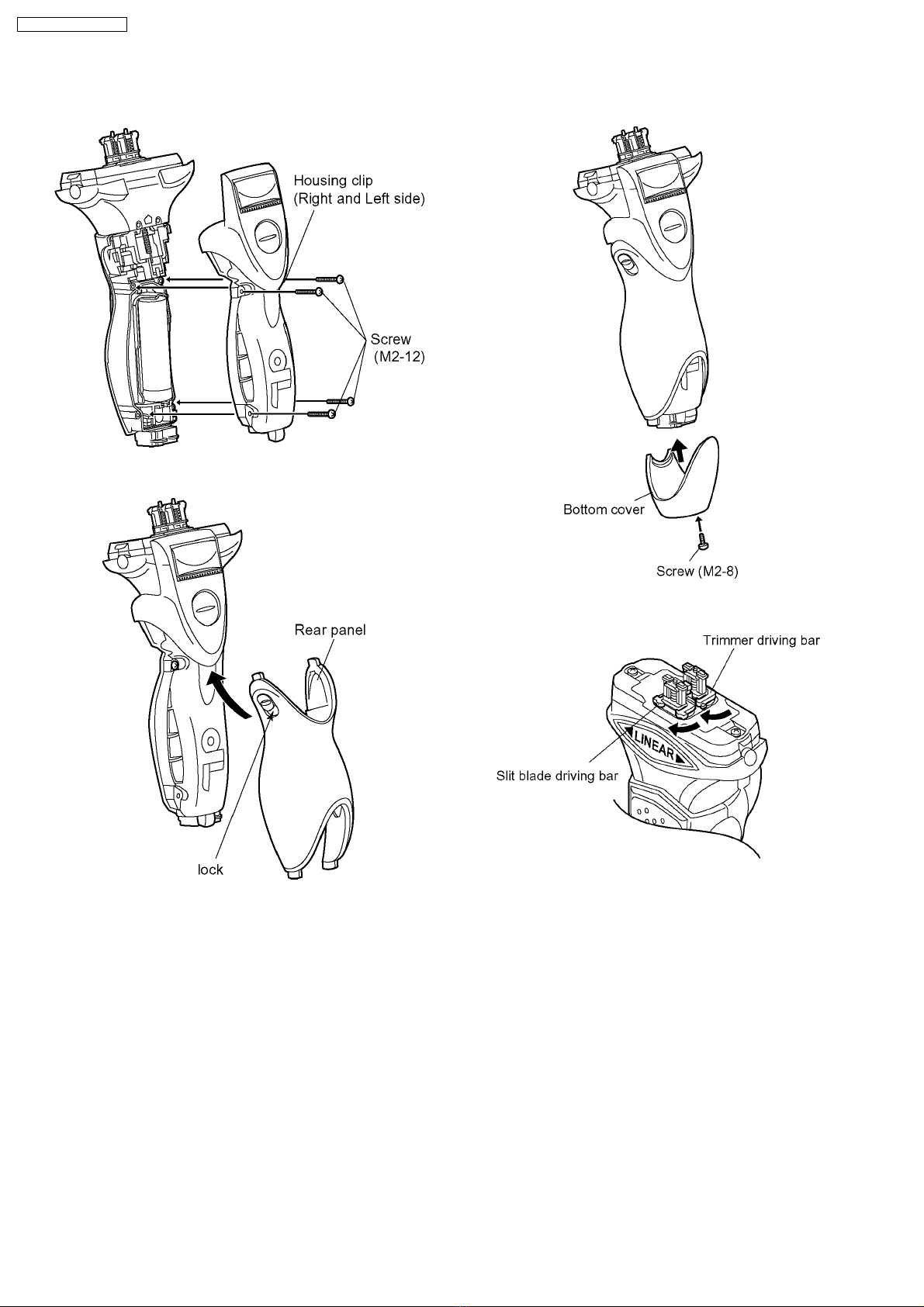

7. Tighten the four screws and set the housing clip.

8. Attach the rear panel with the position "LOCK".

9. Set the bottom cover tighten with a screw.

10. Set the trimmer driving bar and the slit blade driving bar.

ES8046-A3 / ES8047-A3

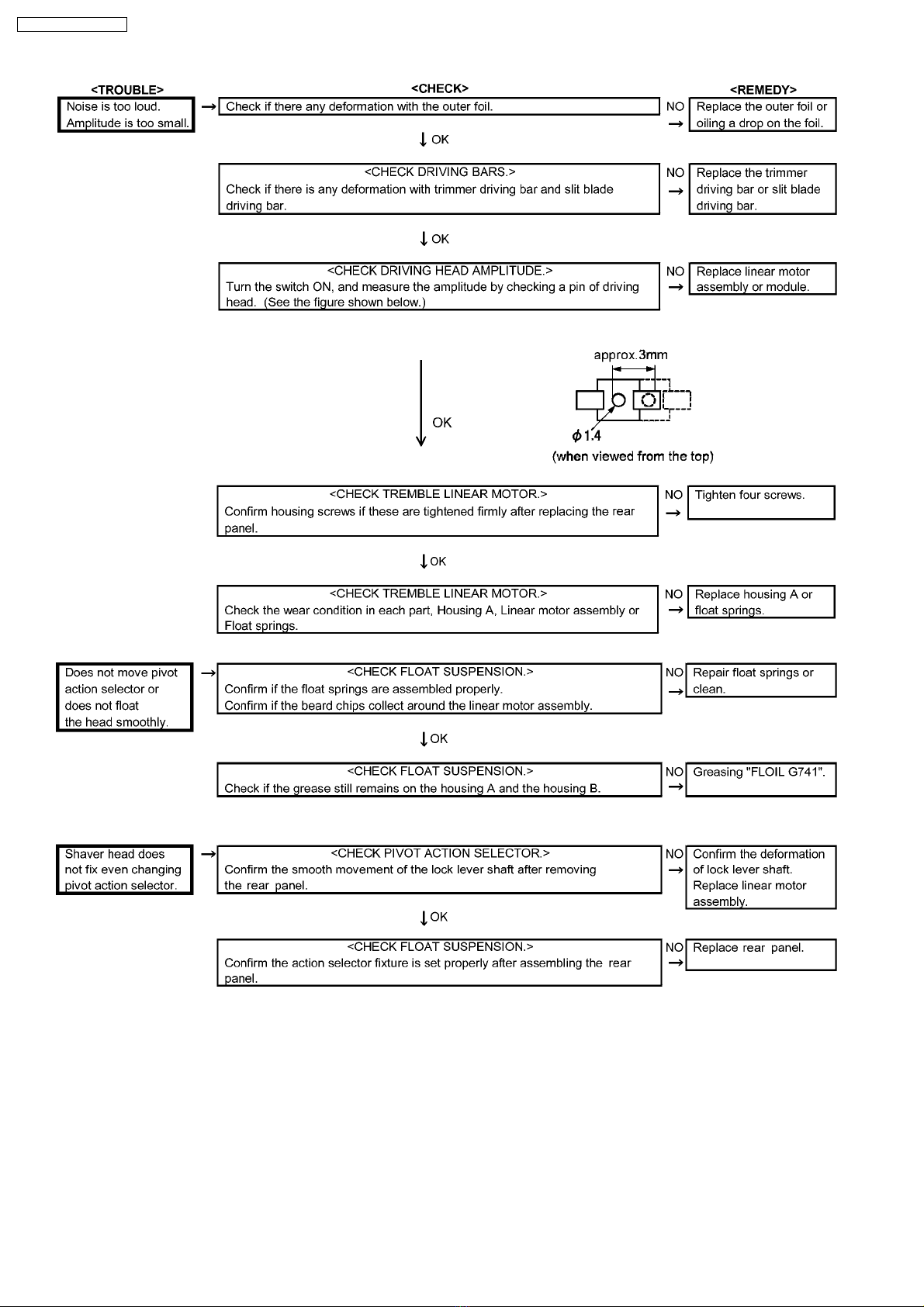

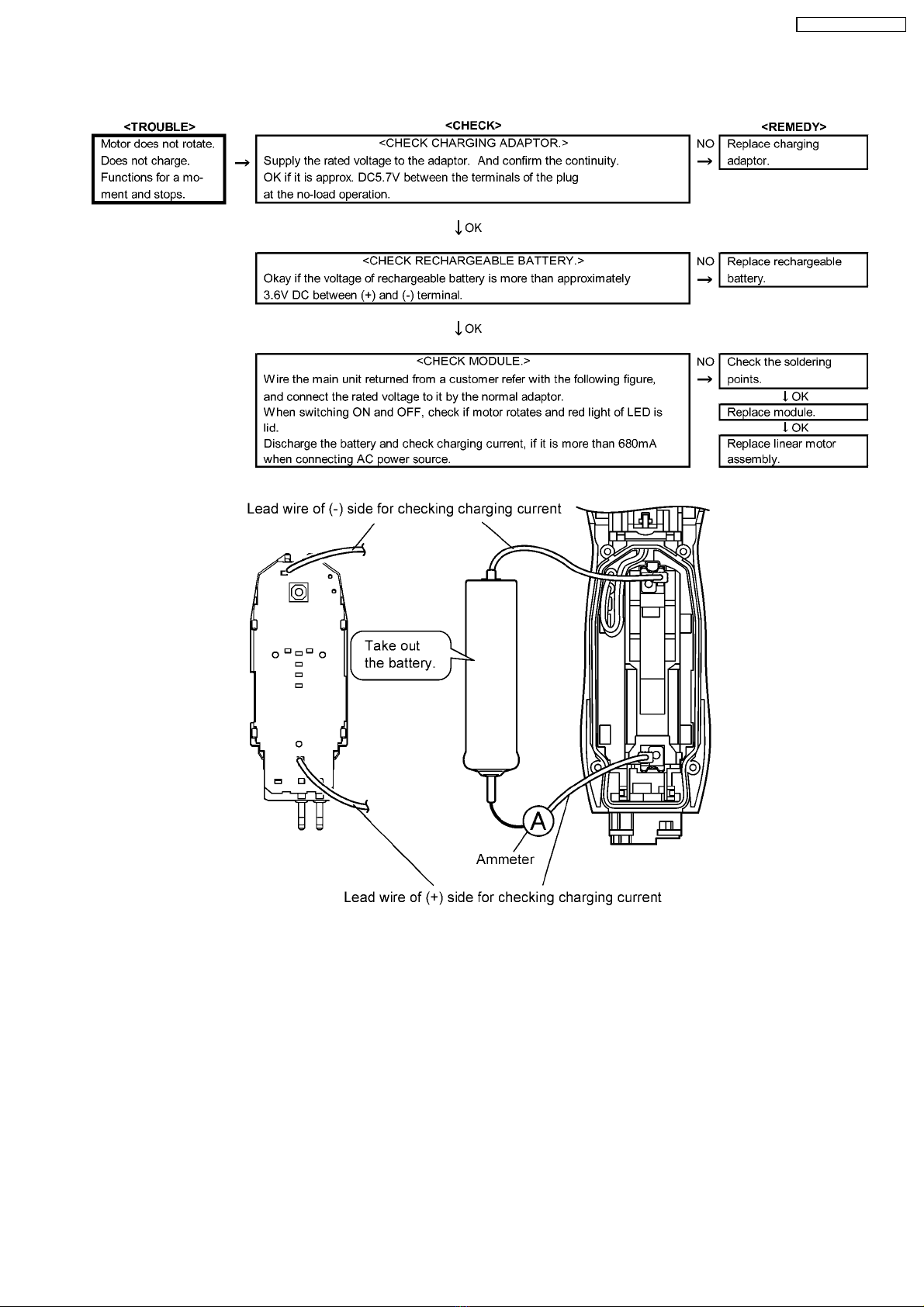

4 TROUBLESHOOTING GUIDE

ES8046-A3 / ES8047-A3

5 EXPLODED VIEW & REPLACEMENT PARTS LIST

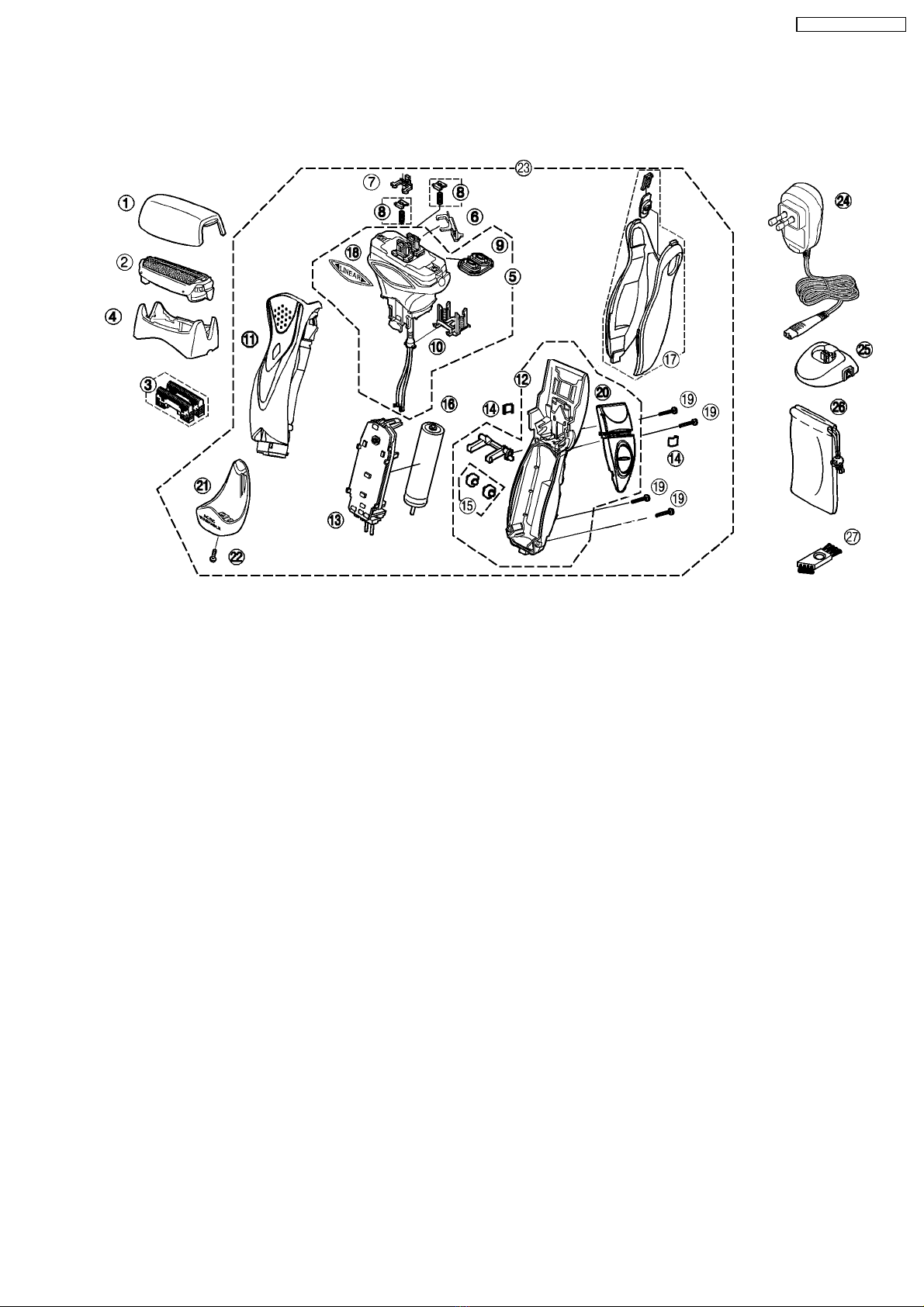

5.1. ES8046 EXPLODED VIEW

ES8046-A3 / ES8047-A3

5.2. ES8046 REPLACEMENT PARTS LIST

NOTE:

*A=available as an optional accessory

*B=only available as set

*C=available individually

Ref. No. Part No. Part Name & Description Remarks Per Unit

1WES8046X7158 PROTECTIVE CAP 1

2WES9085E OUTER FOIL 1

3WES9064EP INNER BLADE 1ST

4WES8045W0047 OUTER FOIL FRAME 1

5WES8045L1007 LINEAR MOTOR ASSEMBLY 1

5WES8046L1008 LINEAR MOTOR ASSEMBLY only for KOREA 1

6WES8046L1087 TRIMMER DRIVING BAR 1

7WES8046L1077 SLIT BLADE DRIVING BAR 1

8WES8046L0587 SPRING AND STOPPER *B (2SET/PK) 2

9WES8176L0327 WATERPROOF RUBBER 1

10 WES8046L0227 TUBE HOLDER 1

11 WES8046W3058 HOUSING A 1

12 WES8045W3067 HOUSING B 1

13 WES8046L2128 MODULE 1

14 WES8176L0167 HOUSING CLIP *C 2

15 WES8046L0377 ROLLER *B (2PCS/PK) 2

16 WES8176L2508 RECHARGEABLE BATTERY LITHIUM-ION TYPE 1

17 WES8045A3367 REAR PANEL 1

18 WES8045S3347 LOGO PLATE 1

18 WES8046S3348 LOGO PLATE only for KOREA 1

19 WES8176L6007 P TIGHT SCREW *C M2-12 4

20 WES8045A1507 TRIMMER 1

21 WES8046A3848 BOTTOM COVER 1

21 WES8046A3849 BOTTOM COVER only for TAIWAN 1

21 WES8046A3840 BOTTOM COVER only for CHINA 1

22 WES8176L6057 TAPPING SCREW M2-8 1

23 WES8046S3038 BODY BLOCK 1

23 WES8046S3039 BODY BLOCK only for KOREA 1

23 WES8046S3030 BODY BLOCK only for TAIWAN 1

23 WES8046S3031 BODY BLOCK only for CHINA 1

24 WES8047K7663 CHARGING ADAPTOR C-2 PLUG 1

24 WES8046K7662 CHARGING ADAPTOR A-2 PLUG only for TAIWAN 1

24 WES8047K7671 CHARGING ADAPTOR KS PLUG only for KOREA 1

24 WES8047K7676 CHARGING ADAPTOR GB PLUG only for CHINA 1

25 WES8047K7669 ADAPTOR STAND only for CHINA 1

26 WES8023A7008 SOFT CASE 1

27 WES8093H7057 CLEANING BRUSH 1

-WES8046S8008 INDIVIDUAL BOX 1

-WES8046S8009 INDIVIDUAL BOX only for KOREA 1

-WES8046S8000 INDIVIDUAL BOX only for CHINA 1

-WES8046S8108 OPERATING INSTRUCTIONS 1

-WES8046S8109 OPERATING INSTRUCTIONS only for CHINA 1

ES8046-A3 / ES8047-A3
