Ventilating Fan

FV-05VS1

FV-08VS1

READ AND SAVE THESE INSTRUCTIONS.R

Please read these instructions carefully

before

attempting to install,

operate or service the Panasonic Ventilating Fan. Failure to comply

with instructions could result in personal injury and/or property

damage. Please retain this booklet for future reference.

Description

Dimensions

Specifications

Table of Contents

Supplied Accessories

Unpacking

General Safety Information

4-5

Wiring Diagram

8-9

10-11

Installation

( In Existing Construction )

Installation

( Wooden Header )

Maintenance

Practical Guide to Installation

Product Service

6-8

Installation ( Joist Mounting- )I

Installation ( Joist Mounting- )II

( -Joist Mounting )I

Installation

III

Installation ( Between Joist Mounting )

14-15

Installation

( Wall Installation- )I

Installation

( Wall Installation- )II

IVII

Installation

( Wall Installation- )III

FV-05VS1

FV-08VS1

These Panasonic ceiling mount ventilation fans use a sirocco fan driven by a capacitor motor. The motor

is designed to have an extended service life with reduced energy consumption. It also incorporates a

thermal-cutoff for safety. The grille covering the main body is a spring-loaded, quick-release type. A damper

for preventing counterflow is provided.

Thumb screw

Long screw

(M4X30)

Quantity

Appearance

Part name

Grille

Suspension

bracket I

Suspension

bracket II

Screw

(M4X8)

Suspension

bracket III

Screw

(M4X10)

Spacer

Unit: ( )inches mm

(For 16 inches on center joists, only use suspension bracket . For 19.2 inches on center joists, only use

suspension bracket . If more than 19.2 inches on center joists, use suspension bracket & .)

III II III

FV-05VS1 FV-08VS1

Junction box cover

Junction box

Motor

Blade

Part nameNo. Part nameNo.

Damper

Fan body

Adaptor

Grille

Suspension bracket

Bracket cover

1/2 13()

36/895()

31/8 78()

11/2 38()

125()

23/860()

10 1/4 261()

12 300()

3 (76)

13 330()

10 1/4 261( ) 3 3/4 (94)

910

13 330()

13 1/4~15 1/2 336~394

16 1/2~18 3/4 419~480

21 1/4~23 1/2 540~597

()

Specifications are based on HVI standard.

Unpack and carefully remove unit from carton.

Refer to the Supplied Accessories list to verify that all parts are present.

1. Do not install this ventilating fan where air temperature may exceed 40 C (104 F).

2. Make sure that the electric service supply voltage is 120V, 60 Hz.

3. Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the Occupation

Safety and Health Act (OSHA).

4. Always disconnect the power source before working on or near the fan, motor or junction box.

5. Protect the power cord from sharp edges, oil, grease, hot surfaces, chemicals or other objects.

6. Do not kink the power cord.

7. Do not install the unit where ducts are configured as shown in Fig. A.

8. Provide suction parts with proper ventilation.

9. This unit is UL listed for use over a bathtub or shower when installed in a GFCI protected branch circuit.

Air directionModel No.

FV-05VS1

FV-08VS1

Exhaust

120

(W)

Power consumption

Speed

(rpm)

4.8 (10.7)

Weight

Ib.( )

Duct

diameter

(inches)

Noise

(sone)

759

0.8

887

1.4

Fig. A

Prohibition Prohibition Prohibition Prohibition

Adaptor

4.8 (10.7)

Air deliver

(cfm)

at 0.1'' WG.

CAUTION:

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. Not for use in cooking area. (Fig. B)

3. This product must be properly grounded.

Floor

Do not install above or

(Cooking area)

inside this area

45o

equipment

Cooking

Fig. B

WARNING:

To reduce the risk of fire, electric shock or injury to persons, observe the following:

A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact

to the manufacturer.

B. Installation work and electrical wiring must be done by qualified person(s) in accordance with all

applicable codes and standards, including fire-rated construction.

C. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)

of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's

guideline and safety standards such as those published by the National Fire Protection Association

(NFPA), and the American Society for Heating Refrigeration and Air Conditioning Engineers

(ASHRAE) and the local code authorities.

D. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

E. Ducted fans must always be vented to the outdoors.

F. These models are UL listed for tub and shower enclosures.

G. Solid state controls may cause harmonic distortion which can cause motor humming noise. To reduce

the risk of fire or electric shock, do not use this unit with any solid-state control device.

H. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting

means to prevent power from being switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

I. NEVER place a switch where it can be reached from a tub or shower.

J. Not to be installed in a ceiling thermally insulated to a value greater than R40.

Fan body

Red

Capacitor

White

Black

Green

Earth ground

Junction box

White

Black

Green

Neutral

Live

Earth

Power supply

AC120V 60Hz

Green

K. Install the fan at least 1.5m (5 feet) above the floor, and the fan must be installed above a counter or major

appliances that serves as a barrier.

White

2 Screw (M4X8)I

Suspension bracket III

Suspension bracket II

2. Insert the supension bracket into the fan body and

adaptor. (Select the suspension bracket as shown below)

Spacing A on center joists Insert Suspension bracket

12 inches

16 inches

19.2 inches vertical joists

24 inches

Refer to Fig. 2-1

Refer to Fig. 2-2

Refer to Fig. 2-3

Refer to Fig. 2-4

If spacing A on center joists is 24 inches, connect

suspension bracket and (C4 mark to C4 mark)

as shown below :

II III

Joists

Suspension

bracket I

Fig.2-1

Fan body

Suspension

bracket I

Suspension

bracket III

Fig.2-2

Fan body

Suspension

bracket III

Suspension

bracket I

Fig.2-3

Fig.2-4

Fan body

Suspension

bracket I

Suspension

bracket III

Suspension

bracket II

Fig.1

Fan body

Remove tape

Adaptor

Damper

1. Before installation, secure the fan body to adaptor by

using thumb screw. (Fig.1)

IMPORTANT :

Remove the tape from damper and adaptor

before installation. As shown below:

Fan body

Thumb screw

2 Long screws

(M4X30) screw (M4X10)II

Fan body

Joist

2 Long screws

(M4X30)

Joist

4 Long screws (M4X30)

Fan body

5. Remove junction box cover and secure conduit or

stress relief to junction box knock-out hole. (Fig. 5)

6. Refer to wiring diagram (page 5).

Using wire nuts, connect house power wires to

ventilating fan wires:

black to black; white to white; green to green;

Replace the junction box cover. (Fig. 5)

CAUTION:

Mount junction box cover carefully so that lead

wires are not pinched.

4. Install the suspension bracket to joists by using long

screws (M4X30) and secure it to the fan body by

using screw (M4X10). (Fig. 4)II

3. Install the suspension bracket and the flange of fan

body to joists by using long screws (M4X30) according

to Fig. 3.

7. Install a circular duct and secure it with duct tape

or clamps.

Fig. 4

Fig. 5

Fig. 3-2

Fig. 3-1

A = 10 1/4~12 inches

Junction box cover

Conduit

Circular duct

Wire nut

Conduit

Junction box

Green wires

Lead wires

Duct tape

CAUTION:

Joists

Adaptor

2 Long screws

(M4X30)

Fig. 7

Ceiling

Slot Mounting spring

Grille

12 1/8 (305)

inches mm()

Fig. 8

8. Finish ceiling work. Ceiling hole should be aligned

with the edge of the flange. (Fig. 6)

9. Insert mounting springs into slots as shown and

mount grille to fan body. (Fig. 7)

1. Disconnect plug connector from receptacle and

remove adaptor from fan body before starting

installation.

2. Insert the suspension bracket into the adaptor and

secure it to joists by using long screws (M4X30). (Fig. 8)

3. Follow step 5 to 7 of the Installation (page 7) to

complete the duct work and wiring.

If spacing A between joists is 21 1/4 to 23 1/2

inches, connect suspension bracket and

(C4 mark to C4 mark) according to page 6.

Select the suspension bracket according to

spacing A as shown below.

II III

suspension

bracket

suspension

bracket I

suspension

bracket III

suspension

bracket &II III

Spacing A

between Joists

inches (mm)

13 1/4~15 1/2

( 336~394 )

16 1/2~18 3/4

( 419~480 )

21 1/4~23 1/2

( 540~597 )

Fig. 6

inches (mm)

4. Insert to fan body

(refering to step 2 of Installation , page 6).

the suspension bracket in

2 Long screws

(M4X30)

Adaptor

13 1/4~15 1/2 ( 336~394 )

16 1/2~18 3/4 ( 419~480 )

21 1/4~23 1/2 ( 540~597 )

Suspension bracket

no more than 1/2 (13)

Ceiling

12 1/8 (305)

Ensure that distance B is no more than 1/2 inch (13 mm).

Fig. 9

Fig. 11

2 Long screws

(M4X30)

screw (M4X10)II

Conduit

Junction box cover

Circular duct

Joist

Fan body

Adaptor

claws

Make sure that adaptor claws are properly inserted

into body slots.

IMPORTANT:

5. Insert the fan body into joists. (Fig. 9)

6. Secure the fan body to adaptor by using thumb

screw and plug connector to receptacle. (Fig. 10)

7. Secure to joists by using

long screws (M4X30) and secure it to fan body by

using screw (M4X10) in vertical direction. (Fig. 11)

the suspension bracket

8. Follow step 8 to 9 of Installation (page 8) to

complete the installation work.

Fig.12-1

Adaptor

4 Screws

Fig.12-4

4 Screws Screw driver

Fig.12-3

Fan body

Fig.12-2

Fan body

Blower

When mounting

body and blower

separately

1. Loosen 4 screws (but

do not remove them

from blower). (Fig. 12-1)

2. Remove blower section.

(Fig. 12-2)

4. Insert fan body (without

blower section) into

joists. (Fig. 9)

5. Secure the adaptor to

fan body by using thumb

screw. (Fig. 10)

7. Insert the blower into the

fan body. (Fig. 12-3)

3. Remove adaptor from fan

body and secure it to

joists as in Fig. 8 of

page 8.

6. Secure the fan body

to joists by using long

screw(M4X30). (Fig. 11)

8. Secure the blower.

(Fig. 12-4) and plug

connector to receptacle.

(Fig. 10)

Fig. 10

Thumb

screw Plug connector IReceptacle I

Ceiling

Joist

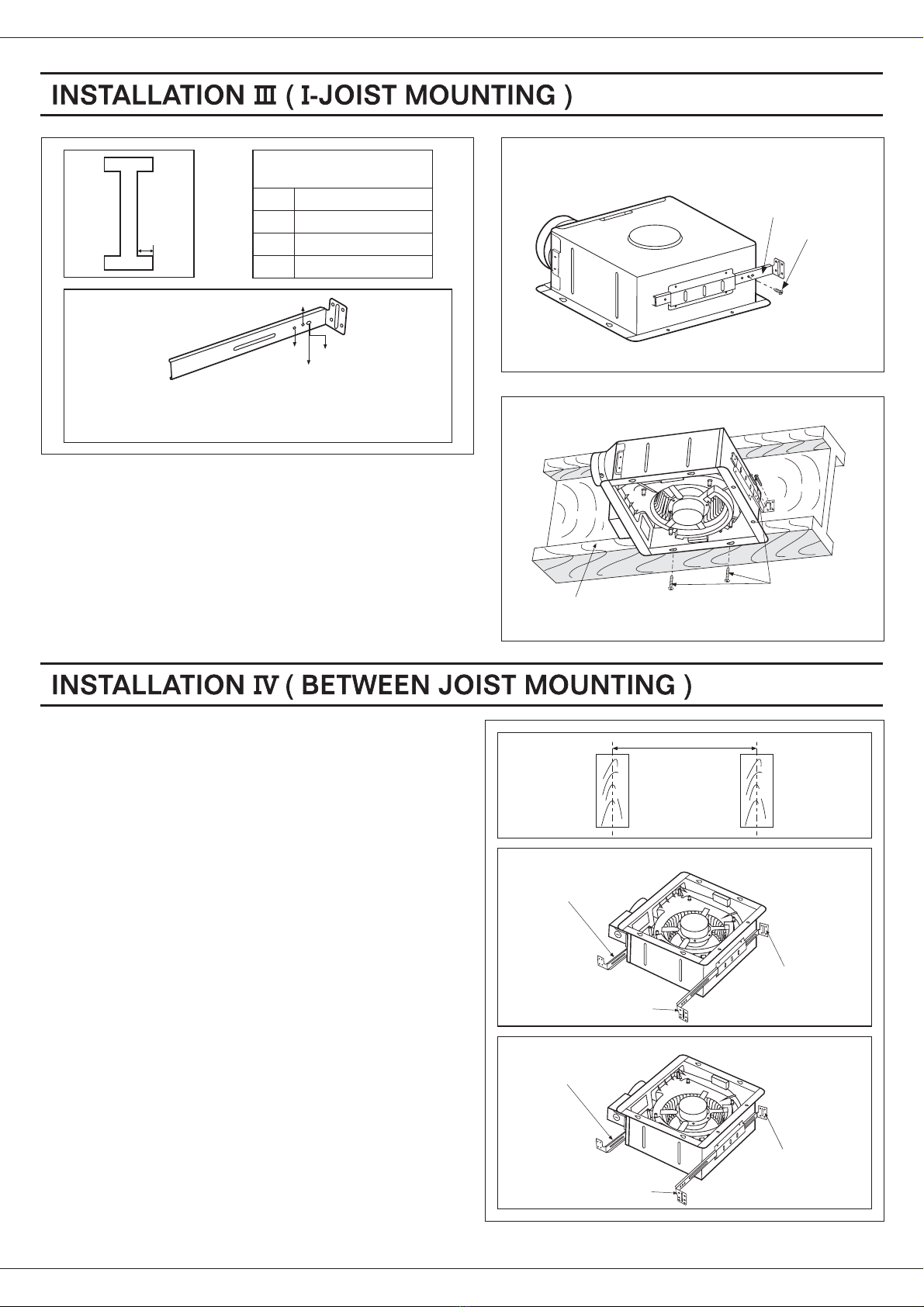

4 kinds of -joist

inches (mm)

9/16 ( )14.3

11/16 (17.5)

31/32 (24.6)

1 17/32 38.9()

Suspension bracket

The suspension can comply with

different kinds of -joist.

III

bracket

1. Before installation, Secure the fan body to adaptor by

using thumb screw. (Fig. 1 of page 6)

2. Connect the suspension to fan body. (Fig. 13)

(Select the hole by checking joist size fix the screw

to the frame hole.)

bracket III

I-

3. Connect the ventilating fan to the joist. (Fig. 14)I-

4. Follow step 5 to 9 of installation (page 7, page 8) to

complete the installation work.

2. Insert the suspension bracket into the bracket cover of

adaptor side and the back of the fan body. (Fig.15)

(select the suspension bracket according to spacing A

as shown below)

1. Before installation, Secure the fan body to adaptor by

using thumb screw. (Fig.1 of page 6)

Fig. 13

Fig. 14

C4 C1

Screw (M4X10)II

Suspension

bracket III

4 Long screws

(M4X30)

I-joist

16 inches and 19.2

inches horizontal joist

and

19.2 inches vertical joist

Suspension bracket I

Suspension bracket III

Suspension bracket II

A = 16 inches and 19.2 inches horizontal joist

Fig.15-1

Suspension bracket III

A = 19.2 inches vertical joist

Suspension bracket II

Suspension bracket I

Fig.15-2

Andere Handbücher für FV-08VS1

Dieses Handbuch passt für folgende Modelle

Andere Panasonic Lüfter Handbücher

Panasonic

Panasonic FV-07VF1 Bedienungsanleitung

Panasonic

Panasonic WhisperCeiling FV-15VQ4 Bedienungs- und Wartungshandbuch

Panasonic

Panasonic F-48MZ2 Bedienungsanleitung

Panasonic

Panasonic FV-08VSL3 Bedienungsanleitung

Panasonic

Panasonic WhisperWelcome FV-05VFM2 Bedienungsanleitung

Panasonic

Panasonic F-M14C2VBHH Bedienungsanleitung

Panasonic

Panasonic FV-0511VKS2 Bedienungsanleitung

Panasonic

Panasonic FV-04VE1 Bedienungsanleitung

Panasonic

Panasonic FV-15AST1 Bedienungsanleitung

Panasonic

Panasonic WhisperLite FV-05VQ5 Bedienungsanleitung

Panasonic

Panasonic ECONAVI F-M15H5VBSQH Bedienungsanleitung

Panasonic

Panasonic WhisperGreen FV-08VKS2 Bedienungsanleitung

Panasonic

Panasonic FV-07VB1 Bedienungsanleitung

Panasonic

Panasonic WhisperCeiling FV-15VQ3 Bedienungsanleitung

Panasonic

Panasonic FV-0511VQL1 Bedienungsanleitung

Panasonic

Panasonic FV-10VEC2 Bedienungsanleitung

Panasonic

Panasonic FY-3009U1 Bedienungsanleitung

Panasonic

Panasonic WhisperSense FV-08VQCL6 Bedienungsanleitung

Panasonic

Panasonic FV-0511VQL1 Bedienungsanleitung

Panasonic

Panasonic FV-11VH1 Bedienungsanleitung

Panasonic

Panasonic WhisperCeiling FV-20VQ3 Bedienungsanleitung

Panasonic

Panasonic FV-07VF1 Bedienungs- und Wartungshandbuch

Panasonic

Panasonic WhisperCeiling FV-30VQ3 Bedienungsanleitung

Panasonic

Panasonic WhisperGreen FV-13VKM3 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung

Litex Industries

Litex Industries E-CGL52CB5C1 Bedienungsanleitung

Lindab

Lindab LTDF Bedienungsanleitung
