2. Program Mode Table (Change from original page 63.)

Code Function SetValue Default RemoteSetting

001 Set dateandtime dd/mm/yyhh:mm 01/Jan/99 NG

002 Yourlogo --------- None NG

003 YourFAXnumber --------- None NG

004 Print sending report 1:Error / 2:ON/ 3:OFF Error OK

007 FAXring count 1to 5rings (for ext. tam) 2 OK

012 RemoteTAMactivation ON/OFF OFF/ID=11 NG

013 Dialingmode 1:Pulse / 2:Tone Tone OK

015 Sendbymemory 1:ON / 2:OFF OFF OK

022 Journal auto print 1:ON / 2:OFF ON OK

023 Overseas mode ON/OFF OFF NG

025 Delayed transmission ON/ OFF OFF NG

026 Auto calleridlist ON/ OFF ON OK

030 Silent FAXrecognition ring 3to 6rings 3 OK

036 Rxreduction 1:92%/ 2:86%/ 3:72%/ 4:OFF 92% OK

039 LCDcontrast 1:Normal / 2:Darker Normal OK

040 Silent detection 1:ON / 2:OFF ON OK

041 Remote FAXactivation code ON / OFF ONID=*9 NG

044 Receivealert 1:ON / 2:OFF ON OK

045 Recoll mode 1:T-BR/ 2:E-RE T-BR OK

046 Friendlyreception 1:ON /2:OFF ON OK

049 Autodisconnect 1:ON / 2:OFF ON OK

068 Ecmcommunication 1:ON / 2:OFF ON OK

070 FAX Pager call ON / OFF OFF NG

076 Connection tone 1:ON / 2:OFF ON OK

077 Auto answer mode 1:TEL/ FAX 2: FAXOnly FAXONLY OK

078 TEL/FAX Delayed ring 1 to 4 rings 2 OK

079 Filmdetection 1:ON / 2:OFF ON OK

080 Set default YES/ NO NO NG

501 Pausetime 001~600x 100msec 035 OK

502 Flashtime 01~99x10msec 080 OK

503 Dial speed 1:10pps / 2:20 pps 10pps OK

511 Voxsenes 1:High/ 2:Low High OK

520 CED frequency 1:2100Hz / 2:1100Hz 2100 OK

521 International mode 1:ON / 2:OFF ON OK

522 Auto standby 1:ON / 2:OFF ON OK

523 Receive equalizer 1:ON / 2:OFF OFF OK

551 ROMcheck --------- --------- NG

552 DTMFsignal tonetest ON / OFF OFF NG

553 Monitor onFAXcommunication 1:OFF /2:Phase B / 3:ALL OFF OK

554 Modemtest --------- --------- NG

555 Scannertest --------- --------- NG

556 Motor test --------- --------- NG

557 LEDtest --------- --------- NG

558 LCDtest --------- --------- NG

559 Document jamdetection 1:ON / 2:OFF ON OK

561 Keytest --------- --------- NG

563 CCDpositionadjustment 00~30 --------- OK

570 Break %select 1:61%/ 2:67% 67% OK

571 ITSautoredial time set 00~99 03 OK

572 ITSautoredial line disconnectiontimeset 001~999sec 065 OK

573 Remoteturn-onringnumber 01~99 20 OK

579 Detect bell type 1:Type I/ 2:Type II Type I OK

(Model KX-FP300E)

KX-FP300E

OK means "can set".

NG means "can not set".

NOTE:

Refer to 2.4.4. SERVICE FUNCTION TABLE for descriptions of the individual codes.

Example:

If you want to set value in the "004 Transmission report mode", press the dial key number 1, 2 or 3 corresponding to the

Set Value you want to select. (1: ERROR / 2: ON / 3: OFF)

Code Function Set Value Default Remote Setting

590 FAXautoredialtime set 00~99 03 OK

591 FAXautoredial line disconnectiontime set 001~999sec 065 OK

592 CNGtransmitselect 1:OFF/ 2:ALL/ 3:AUTO ALL OK

593 TimebetweenCEDand 300 bps 1:75ms / 2:500ms / 3:1sec 75ms OK

594 Overseas DISdetection 1:1st /2:2nd 1st OK

595 Receive error limit value 001~999 100 OK

596 Transmit level set 15~00bBm 11 OK

598 ReceivingSensitivity 20~48 43 OK

599 Ecmframe size 1:256 / 2:64 256 byte OK

700 EXT. TAMOGMRec. time 01~99sec 10sec OK

701 Novoice detecttime 01~99 40x100msec OK

717 Transmit speed select 1:9600/ 2:7200/ 3:4800/ 4:2400 9600bps OK

718 Receive speed select 1:9600/ 2:7200/ 3:4800/ 4:2400 9600bps OK

719 Ringer off in TEL/FAXmode 1:ON /2:OFF ON OK

721 Pause tone detect 1:ON / 2:OFF ON OK

722 Redial tone detect 1:ON / 2:OFF ON OK

745 Power onfilmfeed 1:ON / 2:OFF ON OK

763 CNGdetect time for friendlyreception 1:10s / 2:20s / 3:30s 30s OK

771 T1timer 1:35s /2:60s 35s OK

815 Sensor &VOXtest --------- --------- NG

852 Printtest pattern --------- --------- NG

853 Topmargin 1~9 5 OK

854 Leftmargin 1~8 5 OK

861 A4 size set 1:ON/ 2:OFF ON OK

880 Special journal 1:Start --------- NG

890 TEL/FAXringbacktone 1:ON/ 2:OFF ON OK

991 Setuplist 1:Start --------- OK

994 Journal list 1:Start --------- OK

995 Journal2list 1:Start --------- OK

996 Journal3list 1:Start --------- OK

998 Historylist 1:Start --------- OK

999 Servicelist 1:Start --------- OK

(Model KX-FP300E)

KX-FP300E

2.3.3.5. Analog Board Section (Change from original page 75.)

This chapter provides the testing procedures required for the analog parts. A signal route to be tested is determined

depending upon purposes. For example, the handset TX route begins at the handset microphone and signal is output to the

telephone line. The signal mainly flowing on this route is analog. You can trace the signal with an oscilloscope. The signal

flow on each route is shown in the Check Sheet here. If you find a specific problem in the unit, for example if you cannot

communicate with the H/S, trace that signal route locally with the following Check Sheet and locate the faulty point.

(SYMPTOM)

ITEMS TO CHECK ROUTE

I N O U T

CHECK SHEET

MONITOR Rx

DTMF

monitor

Speaker

Handset

DTMF for TEL LINE

FAX Tx

Dummy Ring

Back tone

RINGING

Alarm / Beep /

Key tone

FAX Rx

VOX TEL LINE-T2-C115-R154-IC5(61-67)-C116-R151-IC5(68-70)-C154-D37-R182-IC15(2-1)

-R189-CN9(3)-{CN503(3)-R716-IC501(45)}

TEL LINE-T1-R59-C44-IC10(6-7)-J33-C56-C59-R85-R89-C64-IC2(1-2)-C68-

CN7(9)-{CN501(9)-C701-IC801(3-4)-C809-R810-IC803(6-7)-J607-C603-R617-IC517(2-1)-C596-R605-

IC505(45)}

{IC501(38)-R567-R573-C564-CN501(1)}-CN7(11)-R161-C119-IC5(77-41)-C100-R139-IC5(40-38)-C91-

R132-IC3(4-5,8)-SPEAKER

{IC501(39)-R565-R572-C631-CN502(1)}-CN8(1)-R162-C120-IC5(78-41)-C100-R139-IC5(40-38)-C91-

R132-IC3(4-5,8)-SPEAKER

{IC501(39)-R565-R572-C631-CN502(1)}-CN8(1)-R162-C120-IC5(78-63)-C53-R73-IC10(2-1)-C37-R58-R57-

T1-TEL LINE

{IC505(44)-C593-R610-IC517(6-7)-C604-CN501(10)}-CN7(10)-C126-R159-IC5(73-63)-C53-R73-

IC10(2-1)-C37-R58-R57-T1-TEL LINE

{IC505(44)-C593-R610-IC517(6-7)-C604-CN501(10)}-CN7(10)-C126-R155-IC5(76-45,46)

C84-L37 Speaker

L36

{IC505(44)-C593-R610-IC517(6-7)-C604-CN501(10)}-CN7(10)-C126-R155-IC5(76-41)-C100-R139-

IC5(40-38) -C91-R132-IC3(4-5,8)-Speaker

TEL LINE-T1-R59-C44-IC10(6-7)-J33-C56-C57-R80-R150-C113-IC5(59-41)-C100-

R139-IC5(40-38)-C91-R132-IC3(4-5,8)-Speaker

Signal

TEL LINE -T1-R59-C44-IC10(6-7)-J33-C56-C57-R80-R150-C113-IC5(59-45,56)

---C84-L37---SPEAKER

L36

MIC---L35-R135-C94---IC5(52,54-63)-C53-R73-IC10(2-1)-C37-R58-R57-T1-TEL LINE

L38-R134-C93

Handset Rx

Handset Tx

DTMF detection TEL LINE-T2-C115-R154-IC5(61-35)-R180-C150-IC4(1-5)-R174-IC5(25)

CNG detection TEL LINE-T2-C115-R154-IC5(61-67)-R167-C134-IC2(10-11)-C68-CN7(9)-{CN501(9)-C701-IC801(3-4)-

C809-R810-IC803(6-7)-J607-C603-R617-IC517(2-1)-C596-R605-IC505(45)}

Caller ID TEL LINE-T2-C115-R154-IC5(61-67)-R167-C134-IC2(10-11)-C68-CN7(9)-{CN501(9)-C701-IC801(1-2)-

J606-C807-R808-IC803(6-7)-J607-C603-R617-IC517(2-1)-C596-R605-IC505(45)}

(TONE 2)

(TONE 1)

(Model KX-FP300E)

KX-FP300E

Code

Set Value

Code

Set Value

Note:

The above values are default.

2.4.3. USER MODE (The list berow is an example of the SYSTEM SETUP LIST

the unit prints out.) (Change from original page 88.)

(Model KX-FP300E)

KX-FP300E

2.4.4. SERVICE FUNCTION TABLE (Change from original pages 89, 90.)

Code

501

502

520

521

522

523

550

551

554

555

556

557

Pause time set

Flash time set

CED frequency select

International mode select

Auto standby select

Receive equalizer select

Memory clear: To reset the values to the default settings, except the top margin (853) and left margin (854).

ROM check

552 DTMF single tone test

Monitor on FAX

communication select

Modem test

Scan check

LED test

558 LCD test

559 Document jam detection

select

Function Set Value

100 ms.

1. 10 PPS

2. 20 PPS

Dial speed select

503

1. 2100 Hz

2. 1100 Hz

1. On

2. Off

1. On

2. Off

1. On

2. Off

1. Off

2. Phase B

3. All phases

1. On (1.8 km)

2. Off (Auto)

Effective Range Default

001 600

10 ms. 01 99

1, 2

035

1, 2 1

Remarks

" START " input

00 30

1. On

2. Off

Motor test

570 BREAK % select 1. 61%

2. 67% 1, 2

571 ITS auto redial time set number of times 00 99 03

1, 2

563

Scanner position adjustment value set

1 mm

KEY test

561

Set the RX equalizer

to automatic mode.

See 2.5. TEST FUNCTION

See 2.2.1. Paper Jam.

See 2.5. TEST FUNCTION

553

The resolution

changes to the default

when transmission is

completed.

See the Symptom/Countermeasure

Table for long distance and

international calls in 2.3.3.3.1.

Defective facsimile section.

See the Symptom/Countermeasure

Table for long distance and

international calls in 2.3.3.3.1.

Defective facsimile section.

(Model KX-FP300E)

KX-FP300E

Code Function Set Value Effective Range Default Remarks

572

573

ITS auto redial line

disconnection time set

Remote turn-on ring number set

second

number of rings

001 999

01 99

065

590 FAX auto redial time set number of times 00 99 03

592

593

594

595

CNG transmit select

Time between CED and 300 bps

Overseas DIS detection select

Receive error limit value set

1. 75 ms

2. 500 ms

3. 1 sec

1. Off

2. All

3. Auto

number of times

1. Detects at the

1st time

2. Detects at the

2nd time

Values entered without

a " minus sign " will be

regarded as negative.

Transmit level set dBm

1, 2, 3

1, 2

-15 00

100

591 FAX auto redial time

disconnection time set second 001 999 065

001 999

596

700 EXT.TAM OGM REC. time second 01 99

No Voice detect time 01 99

701 100 msec In the EXT. TAM mode,

silence is detected during

this period.

If the number of errors during

transmission exceeds this

value, the sending side

ends the call.

This is the answering

machine’s OGM recording

time.

Receiving Sensitivity 43, -43 dBm 20 48 43

598

40x100

579

Detect bell type

1,2 1

ECM frame size 1,2 1

599 1. 256 byte

2. 64 byte

2. Type

1. Type

See the Symptpm/Countentermeasure

Table for long distance and

international calls in 2.3.3.3.1.

Defective facsimile section.

See the Symptpm/Countentermeasure

Table for long distance and

international calls in 2.3.3.3.1.

Defective facsimile section.

Used when there is an error

problem. See the Symptom/

Countermeasure Table for

long distance and

international calls in 2.3.3.3.1.

Defective facsimilie section.

Used when there is an error

problem. See the Symptom/

Countermeasure Table for

long distance and

international calls in 2.3.3.3.1.

Defective facsimilie section.

(Change from original pages 89, 90.)

(Model KX-FP300E)

KX-FP300E

1. 9600BPS

2. 7200BPS

3. 4800BPS

4. 2400BPS

Code Effective Range Default Remarks

Set Value

Function

Selects whether the ringer is

on or off when the unit

receives an incoming signal

in the TEL/FAX mode.

Ringer Off in TEL/FAX mode

719 1, 2 1

1. On

2. Off

Sets the tone detection

mode during the pause.

1. On

2. Off 1, 2 1Sets the tone detection mode

after redialing.

721 1. On

2. Off 1, 2

Redial tone detect

Pause tone detect 1

745 Power ON film feed 1

1, 2

1. On

2. Off

771

Sets the time out.

763 1. 10sec

2. 20sec

3. 30sec 13 3

1, 2

1. 35sec

2. 60sec

A4 size set 1. On

2. Off 1, 2 1

853 Top margin 19

852 Print test pattern

854 18

861

See 2.5. TEST FUNCTIONS.

815

CNG detect time for friendly

reception

T1 Timer

Sensor & VOX check

880 History list

Sets the fall back speed in

the transmitting mode.

Transmit speed select

717 1 4 1

Receive speed select 14 1

1. 9600BPS

2. 7200BPS

3. 4800BPS

4. 2400BPS

718 Sets the fall back speed in

the receiving mode.

The period while CNG is

detected during friendly

reception.

When the power is turned on,

the film is wound to take up

any slack.

Used only at the

factory.

1. On

2. Off 1, 2 1

881 Journal 2 list

882 Journal 3 list

890 TEL/FAX 1st ring back tone

Left margin

722

Sets a higher value when

the response from the

other party needs more time

during FAX transmission.

See 2.4.7. SPECIAL SERVICE

JOURNAL.

See 2.4.7.3. PRINTOUT

EXAMPLE.

See 2.4.7.3. PRINTOUT

EXAMPLE.

(Change from original pages 89, 90.)

(Model KX-FP300E)

KX-FP300E

2.4.5. SERVICE MODE SETTINGS(Example of the printed out list.)

(Change from original page 91.)

Code Set Value

Code

Set Value

Note:

The above values are default.

(Model KX-FP300E)

KX-FP300E

6.7. NCU SECTION (Change from original page 155.)

6.7.1. GENERAL

This section is the interface between the telephone line and exterminal telephone. It is composed of an EXT.

TEL line relay (RL1), bell detection circuit, pulse dial circuit, pulse dial circuit, auto disconnect circuit, TAM interface

circuit, line amplifer and sidetone circuits and a multiplexer.

6.7.2. EXT. TEL. LINE RELAY (RL1)

1. Circuit Operation

Normaly, this relay switches to the external telephone side (break) and switches to the open side (make) when the unit starts

facsimile communication.

{IC5 (26) High Level Q14 ON RL1 (make)

6.7.3. TELEPHONE LINE CONNECTION

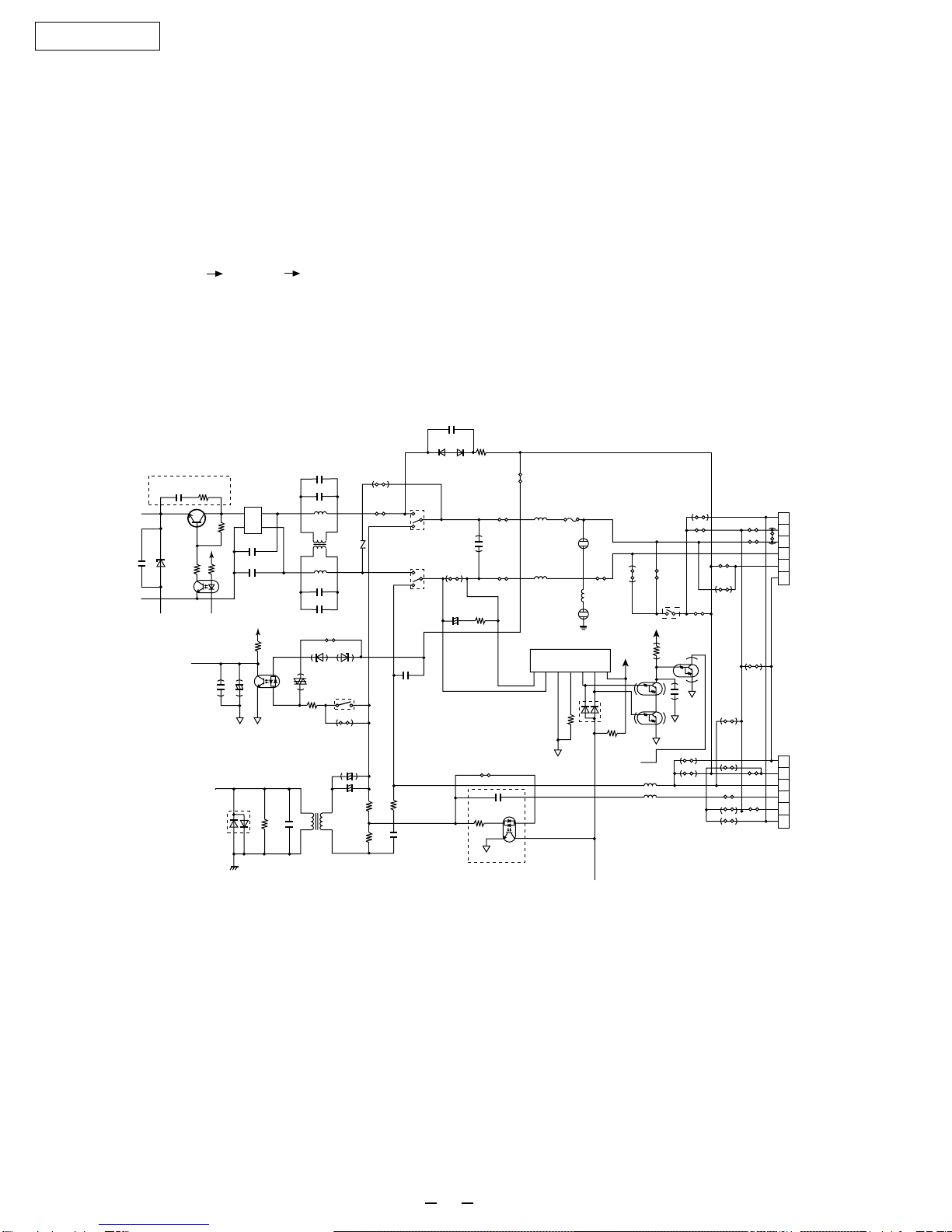

Circuit Diagram

120V

NO USED

+5VD

COILIN

COILOUT

GND

A-OUT

OUT1

OUT2

VCC

C10

C12

C15

C13

R19

C16

ZNR1

SA1

SA2

R192

D35

R17

R20

R16

R18

PC3

PC2

C14

C163

R13

R8 PC1

CN1

J62

J11

J10

J17

J18

J21

J22

J12

+5VD

RLY2

CN2

J16

J15

J14

J20

J5L2

J64

J13

J19

C153

EX-HOOK

J26

RLY3

J27

J24

J25

Q18

IC1

POS1

D1 D2

C203

N0 USED

RLY1-1

J23

RLY1-2

+5VD

—

C11

C162

R15

C5 R10

R11R12

—~

Andere Handbücher für KX-FP300E

Inhaltsverzeichnis

Andere Panasonic Faxgerät Handbücher

Panasonic

Panasonic KX-FP701CX Bedienungsanleitung

Panasonic

Panasonic KX-PD701DL Bedienungsanleitung

Panasonic

Panasonic KX-FC971CX-S Bedienungsanleitung

Panasonic

Panasonic KX-FP365CX Bedienungsanleitung

Panasonic

Panasonic KXF1600 - MFD FAX PRINTER Bedienungsanleitung

Panasonic

Panasonic UF-6950 - Panafax - Multifunction Handbuch

Panasonic

Panasonic UF 885 - Panafax B/W Laser Bedienungsanleitung

Panasonic

Panasonic KX-L6CL Bedienungsanleitung

Panasonic

Panasonic Panafax UF-585 Bedienungsanleitung

Panasonic

Panasonic KX-FM220 Bedienungsanleitung

Panasonic

Panasonic KX-FP152 Bedienungs- und Montageanleitung

Panasonic

Panasonic KX-FPG381 Bedienungsanleitung

Panasonic

Panasonic DX-600 Montage- und Wartungsanleitung

Panasonic

Panasonic KX-FT982HK Bedienungsanleitung

Panasonic

Panasonic KX-FM205 Bedienungsanleitung

Panasonic

Panasonic UF-5950 - Panafax - Fax Bedienungsanleitung

Panasonic

Panasonic KX-PW110CL Bedienungsanleitung

Panasonic

Panasonic KX-FT25HG Bedienungsanleitung

Panasonic

Panasonic KX-FC243FX Bedienungsanleitung

Panasonic

Panasonic KX-FL501 Bedienungsanleitung

Panasonic

Panasonic KX-FP148RU Bedienungsanleitung

Panasonic

Panasonic KX-FC966FX Bedienungsanleitung

Panasonic

Panasonic KXF100 - CONSUMER FACSIMILE Bedienungsanleitung

Panasonic

Panasonic KX-FPC161 Gebrauchs- und Wartungshandbuch

Beliebte Faxgerät Handbücher anderer Marken

Samsung

Samsung SF-515 Bedienungsanleitung

Radio Shack

Radio Shack TFX-1031 Bedienungsanleitung

imagistics

imagistics 2030 Handbuch

Furuno

Furuno FAX-30 Bedienungsanleitung

Savin

Savin 3740 Handbuch

Sharp

Sharp FO-51 Bedienungsanleitung

Muratec

Muratec MFX-C3035 Bedienungsanleitung

Canon

Canon FAX-L400 Bedienungsanleitung

Ricoh

Ricoh 1000L Kurzanleitung

Sharp

Sharp FO-3150 Bedienungsanleitung

Kyocera

Kyocera KM-F1060 Bedienungsanleitung

Sharp

Sharp FO-2970M Bedienungsanleitung

Canon

Canon JX510P Bedienungsanleitung

Mita

Mita LDC-870 Handbuch

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Bedienungsanleitung

Samsung

Samsung FX100 Handbuch

Sharp

Sharp MX-FXX1 Bedienungsanleitung

Develop

Develop ineo 25e Bedienungsanleitung
