Panasonic KX-PW607DL Bedienungsanleitung

Facsimile

Quick Reference Guide

Model No. KX-PW607DL

KX-PW607DW

KX-PW607DL

Main unit:

Portable handset:

KX-PW607

KX-FKN515

Thank you for purchasing a Panasonic facsimile.

This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

Any details given in this guide are subject to change without notice.

This unit is equipped with the voice guide features. (Japanese only)

For details about voice guide, please see page 10.

Table of Contents

Finding the controls …………………………………………………………… 2

Installations and connections ………………………………………………… 4

Setting the date and time……………………………………………………… 7

Setting your facsimile telephone number …………………………………… 7

Setting your logo ……………………………………………………………… 8

Character input and command key table …………………………………… 9

Voice guide…………………………………………………………………… 10

Automatic dialing on the main unit ………………………………………… 11

Automatic dialing on the portable handset (KX-FKN515) ……………… 13

Intercom ……………………………………………………………………… 14

Sending faxes ……………………………………………………………… 15

Receiving faxes ……………………………………………………………… 16

Operating the built-in answering device ………………………………… 18

Night mode…………………………………………………………………… 20

Call block …………………………………………………………………… 21

SD Memory Card …………………………………………………………… 22

Trademarks ………………………………………………………………… 23

Specifications ……………………………………………………… Backcover

KX-PW607DL_QG.indb 1 2008/01/24 16:08:33

Finding the controls

Main unit

5 6

12 3 4

14 15 16 171311 12 18

Liquid crystal display

The display turns off after about 2 minutes

of inactivity.

To turn on the display, press (Stop).

Speed Dialer button

Volume/Change/Redial/Phonebook key

To adjust the volume.

To change Hiragana into Kanji.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook.

To store a parameter.

Call/Fax List button starts a search in

— the Number Display (Caller ID) log.

— the fax list stored in memory.

Call/Fax List indicator lights when

— a call was missed.(For Number Display

service users.)

— a fax was stored in memory.

Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

Playback button plays back recorded

messages.

Record button records a telephone

conversation.

When an SD Memory Card is available, it

is recorded in the SD Memory Card.

Intercom button

Power indicator

SD Memory Card cover

SD indicator

Multi-operation buttons refer to the function

displayed on the display panel.

Fax button starts faxing.

Copy button starts copying.

Stop button

Tone button switches to tone dialing.

Night mode button

Sharp button

Key lock button can lock the main unit so

that no calls or settings can be made. To

turn key lock on, press this button for about

3 seconds until a single beep is heard.

“”is displayed.

To turn key lock off, press this button for

about 3 seconds.

Monitor button

Hold button

KX-PW607DL_QG.indb 2 2008/01/24 16:08:36

Finding the controls

Portable handset (KX-FKN515)

●



To adjust the volume.

●



To change Hiragana into

Kanji.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To make/answer calls.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For Number Display

service users.)

●



To use the speakerphone.

●



For call waiting service

users.

●



To clear letters/numbers.

Sharp button

Key lock button

●To lock the portable

handset so that no calls

or setings can be made.

To turn key lock on,

press this button for

about 3 seconds until a

single beep is heard.

●“ ” is displayed.

●To turn key lock off,

press this button for

about 3 seconds.

●



To use the phonebook.

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Dial buttons

Earpiece Liquid crystal display

Microphone

Do not cover the

microphone while

talking.

Function menu that is

controlled by or

Portable handset number

(and name)

No link to the main unit

Battery strength

Tone button

●To switch to tone dialing.

●



To end a call.

●



To end or exit from editing

or other operations.

How to use key

How to use buttons

●



To change your voice.

●



To mute your voice to the

other party by pressing this

button for about 2 seconds.

(To release the mute,

press this button again.)

●



To page the main unit

and/or portable handset(s).

KX-PW607DL_QG.indb 3 2008/01/24 16:08:36

When the unit runs out of ink film, the following message will be displayed.

Install a new ink film.

Installations and connections

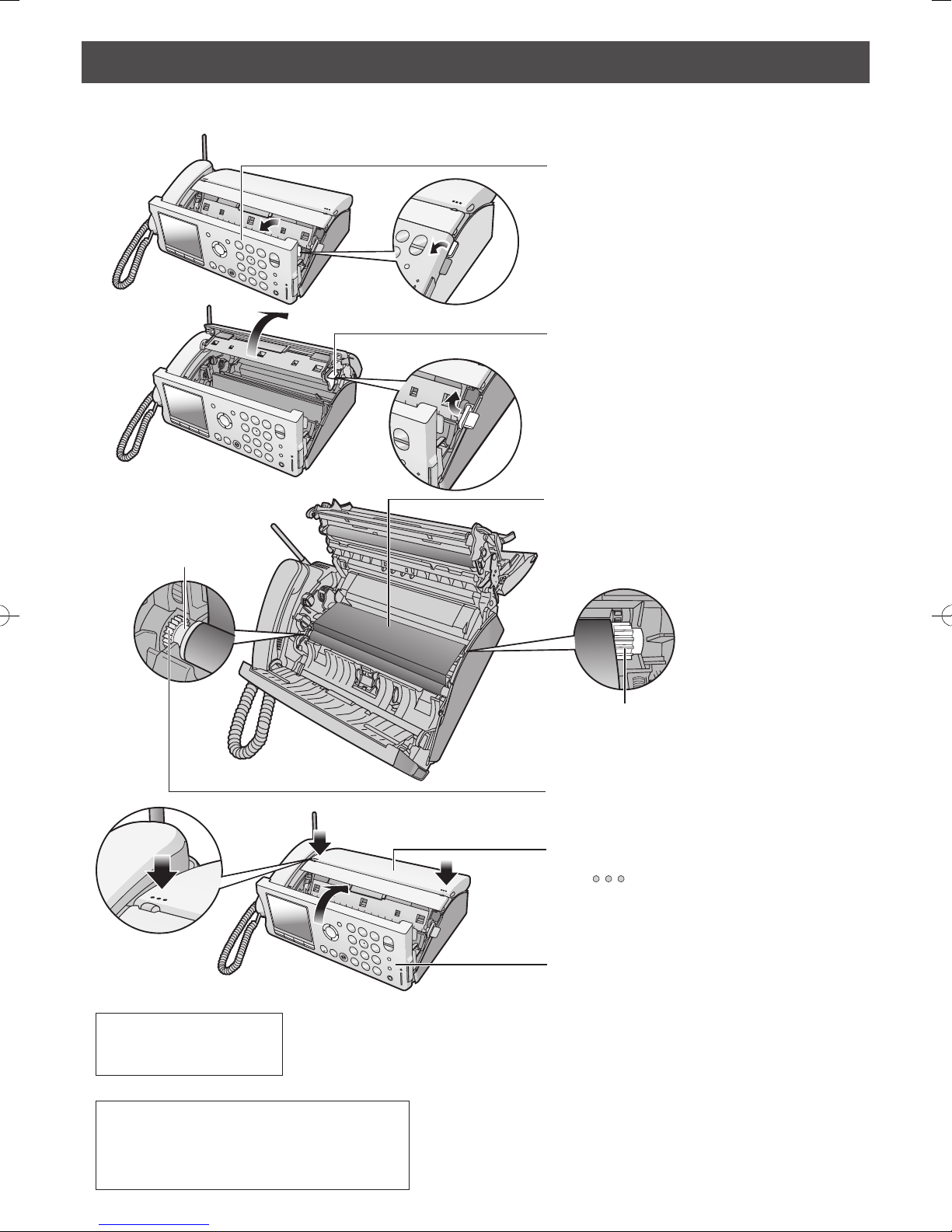

Installing the ink film

1Open the control panel.

2Open the back cover.

Replacement ink film:

KX-FAN190 (15 m) 714

KX-FAN190W (15 m X 2) 1,208

KX-FAN191 (15 m) (*1) 893

KX-FAN191W (15 m X 2) (*1) 1,523

4If the ink film is slack, tighten it by

winding this gear (

orange)

3Insert the ink film.

Insert the orange

gear

into the left slot

of the main unit.

Insert the white gear into the right slot

of the main unit.

5Close the back cover pressing

“ ” down on both sides

until it clicks into place.

6Close the control panel.

As of February 2008. Tax included.











*1 KX-FAN191/KX-FAN191W leaves a fainter print trail on the film

than does the KX-FAN190/190W.

KX-PW607DL_QG.indb 4 2008/01/24 16:08:38

Installations and connections

Installing recording paper (A4 size)

2Set up the recording paper stands.

Pull out the front stand first.

3Insert the recording paper into the

recording paper tray. (Up to 15 sheets)

Fan the stack of recording paper.

Recording paper

Printing side is

on the back.

1Open the recording paper tray.

1Remove the recording paper and fold the recording

paper stands in.

2Close the recording paper tray.

Folding the recording paper tray

KX-PW607DL_QG.indb 5 2008/01/24 16:08:39



 



Connecting the main unit

Installations and connections

1Raise the antenna.

Power cord

Telephone line cord

(supplied accessory) Wall jack

Power outlet

(AC 100 V)

3Connect the telephone line cord.

4Connect the power cord.

2Connect the cord and

place the handset on

the main unit.

After the Power On...

If you can not make a call...

Set the dialing mode with the main unit.

1. Press (Function).

Press

3. Press (Search button) repeatedly until the

desired setting is selected.

4. Press (Set).

5. Press (Stop).

Example :

 : Tone





: Pulse (20 PPS)



: Pulse (10 PPS)

 : Auto (Default)

1This unit will automatically select the dialing

mode (Tone/Pulse).

2When the following is displayed, press

(Stop).



  





Setting up the portable handset

(KX-FKN515)

4Charge the battery in the charger for 10 hours.

After your Panasonic battery is fully charged,

it will last up to about 5 hours of conversation.

Battery

Charger

Power outlet

(AC 100 V)

KX-PW607DL_QG.indb 6 2008/01/24 16:08:41

Setting the date and time Setting your facsimile

telephone number

1Press (Function). 1Press (Function).

5Press (Stop).

6Press (Stop).

Example :

3Enter your facsimile telephone number, up to

20 digits.

Example: +098 7654··

3Enter the correct year/month/day.

Example: October 1, 2008

Press .

2Press .

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

5Press (Set). 4Press (Set).

2Press .

Example :

















Cursor

The (Tone) button replaces

the digit with “+”.

The button replaces the digit with

a space.



















































































Example :













































KX-PW607DL_QG.indb 7 2008/01/24 16:08:42









 







3Enter your logo, up to 30 characters, using the dial

keypad.

To enter English characters easily, press

(Character input mode) repeatedly and select

“英” (English and sign input mode).

For details, see the table on page 9 for instructions.

Setting your logo

1Press (Function).

5Press (Stop).

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.









 









4. Press to move the cursor to the next space

and press four times.

5. Press five times.

4Press (Set).



















 

















 















 















 







2Press .

Cursor











 









Example :



Cursor

















KX-PW607DL_QG.indb 8 2008/01/24 16:08:45

Character input and command key table

Pressing the dial keys will select a character as shown below.

Character Hiragana Katakana English Numbers

Display of the

main unit and the

portable handset

［かな］［ｶﾅ］［英］［数］

Dial key

Main

(

unit

)

Portable

handset

(

KX-FKN515

)







 @ . _ – & $ ¥ % + = ~^

      

       

       

        

    

       

      

      

            ’”

     

  

Command keys

(Main unit), (Portable handset) Used to change the character input

mode.

(Main unit), (Portable handset) Used to move the cursor to the left

and right.

(Main unit), (Portable handset) Used to delete a character.

(Main unit), (Portable handset) Used to insert a space.

The characters on the display are somewhat different from those shown in the character input and command key table.

KX-PW607DL_QG.indb 9 2008/01/24 16:08:47

Operation guide

The unit starts the following voice guidance in Japanese:

Operations To cancel the operation guide

Send a fax

(Select “なし ”)

Copy

Add entries to the phonebook

(Select “なし ”)

Store phonebook entries in the speed dialer

Make a call using the phonebook/redial/

speed dialer/call memory

Change a ink film (Select “なし ”)

Select fax documents from the main unit memory

(Select “なし ”)

Select fax documents from the SD Memory Card

Reading-out dial

The unit announces the number dialed in Japanese, when you make a call with the main unit.

To cancel the reading-out dial

(Select “なし ”)

Voice guide

KX-PW607DL_QG.indb 10 2008/01/24 16:08:47

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Faxgerät Handbücher

Panasonic

Panasonic Panafax UF-4100 Bedienungsanleitung

Panasonic

Panasonic KX-F1110NZ Bedienungsanleitung

Panasonic

Panasonic Panafax UF-585 Bedienungsanleitung

Panasonic

Panasonic KX-FP121 Bedienungsanleitung

Panasonic

Panasonic Panafax UF-580 Bedienungsanleitung

Panasonic

Panasonic KX-FLM551E Bedienungsanleitung

Panasonic

Panasonic Panafax UF-127M Bedienungsanleitung

Panasonic

Panasonic KXF100 - CONSUMER FACSIMILE Bedienungsanleitung

Panasonic

Panasonic Panafax UF-S1 Bedienungsanleitung

Panasonic

Panasonic KX-FP148RU Bedienungsanleitung

Panasonic

Panasonic Panafax UF-140 Bedienungsanleitung

Panasonic

Panasonic KXF1100 - FAX Bedienungsanleitung

Panasonic

Panasonic KX-FP200L Bedienungsanleitung

Panasonic

Panasonic KX-F700C Bedienungsanleitung

Panasonic

Panasonic KX-FLB853EX Bedienungsanleitung

Panasonic

Panasonic KX-FC248HK Bedienungsanleitung

Panasonic

Panasonic Panafax UF-585 Bedienungsanleitung

Panasonic

Panasonic KX-FT63BX Bedienungsanleitung

Panasonic

Panasonic KX-PW102CW Bedienungsanleitung

Panasonic

Panasonic Panafax UF-127M Bedienungsanleitung

Panasonic

Panasonic KX-F7B Bedienungsanleitung

Panasonic

Panasonic KX-PW36CL Bedienungsanleitung

Panasonic

Panasonic KX-FC961CX Bedienungsanleitung

Panasonic

Panasonic Panafax UF-270 Bedienungsanleitung

Beliebte Faxgerät Handbücher anderer Marken

Samsung

Samsung SF-515 Bedienungsanleitung

Radio Shack

Radio Shack TFX-1031 Bedienungsanleitung

imagistics

imagistics 2030 Handbuch

Furuno

Furuno FAX-30 Bedienungsanleitung

Savin

Savin 3740 Handbuch

Sharp

Sharp FO-51 Bedienungsanleitung

Muratec

Muratec MFX-C3035 Bedienungsanleitung

Canon

Canon FAX-L400 Bedienungsanleitung

Ricoh

Ricoh 1000L Kurzanleitung

Sharp

Sharp FO-3150 Bedienungsanleitung

Kyocera

Kyocera KM-F1060 Bedienungsanleitung

Sharp

Sharp FO-2970M Bedienungsanleitung

Canon

Canon JX510P Bedienungsanleitung

Mita

Mita LDC-870 Handbuch

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Bedienungsanleitung

Samsung

Samsung FX100 Handbuch

Sharp

Sharp MX-FXX1 Bedienungsanleitung

Develop

Develop ineo 25e Bedienungsanleitung
