Model No.

KX-T7730/KX-T7750

Important Information

This product is intended to be connected to Panasonic KX series PBX only.

This product complies with the essential requirements of the Directive 1999/5/EC Radio

and telecommunications terminal equipment directive.

A copy of the manufacturers declaration of conformity to the essential requirements of the

R&TTE directive is available at the following web address: http://doc.panasonic.de

Proprietary Telephones

Quick Reference Guide

When using the KX-T7700 series, keep the following conditions in mind.

•

If there is any problem, unplug the extension line and connect a known working phone. If

the known working phone operates properly, have the defective phone repaired by a

specified Panasonic Factory Service Centre. If the known working phone does not

operate properly, check the PBX System and the internal extension wiring.

•

Keep the unit away from heating appliances and electrical noise generating devices such

as fluorescent lamps and motors.

•

The unit should be kept free of dust, moisture and vibration, and should not be exposed

to direct sunlight.

•

Do not use benzine, thinner, or any abrasive powder to clean the cabinet. Wipe it with a

soft cloth.

•

Do not disassemble this product. Dangerous electrical shock could result. The unit must

only be disassembled and repaired by qualified service technicians.

•

When a failure occurs which exposes any internal parts, disconnect the telephone line

cord immediately and return the unit to a service centre.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR ANY TYPE OF MOISTURE.

THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS

OBJECTS.

IMPORTANT NOTICE:

Under power failure conditions, this telephone may not operate. Please ensure that a

separate telephone, not dependent on local power, is available for use in an emergency.

Notes:

•

In this manual, the suffix of each model number is omitted.

•

For further information, refer to the Main Unit/PBX Manuals.

– 2 –

Features List

Off-hookOutside (CO) Line button On-hook Feature number Talk

"Location of Controls" is shown on page 8.

Desired Function Operation

Calling

To set

To dial

Redial

One-touch

Dialling

Calling an

operator

Personal Speed

Dialling

To an extension To an external party

extension no.

To program

To dial

–

assigned as a One-touch

dialling button

phone no.

(Check the type of your Main Unit.)

desired no.

(Check the type of your Main Unit.)

System Speed

Dialling

To dial

Making Calls

KX-TE Series

KX-TDA Series

phone no.

KX-TDA Series

(TE: max. 24 digits)

(TDA: max. 32 digits)

Personal speed

dial no.

System speed dial no.

TDA: 000-999

TE: 00-99

TDA: 00-99 (Default: 00-09)

TE: 0-9

Personal speed

dial no.

TDA: 00-99 (Default: 00-09)

TE: 0-9

Features List

Desired Function Operation

Picking up

a call Group

Directed

extension no.

(Check the type of your Main Unit.)

extension no.

group no.

To set

While hearing a busy tone

To answer

If you hear callback ringing

Automatic

Callback Busy

When the Dialled Extension is Busy/No Answer

Sender

To leave a notification

To cancel a notification

extension no.

(Check the type of your Main Unit.)

Message

Waiting

Receiver

To call back

To clear all notifications

receiver's

extension no.

(Check the type of your Main Unit.)

Receiving Calls

While on-hook

Hands-free

answerback

(KX-T7730 only)

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

– 3 –

Features List

Desired Function Operation

When the Dialled Extension is Busy/No Answer

Call Waiting

Set

Cancel

For outside calls

Set

Cancel

For intercom calls/doorphone calls

Receiver

Sender

While hearing a busy tone

Wait for an answer.

(Check the type of your Main Unit.)

For outside calls

Set

For intercom calls

Set

To talk to the new party

(While hearing the Call Waiting tone)

Terminating a current status

Holding a current status (outside call)

Holding a current status (extension)

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

Cancel

–

Features List

Desired Function Operation

Holding To retrieve a call at the holding extension

To retrieve an outside call from another extension

To retrieve a call on exclusive holdHolding

extension no. to an extension

Announce.

phone no. to an external party

Holding a call

exclusively

Transferring

a call

Paging

Announce.

All extensions

Group

All external speakers

All extensions & external speakers

group no.

To answer an announced page

Through a telephone speaker

To page

group no.

During a Conversation

Useful Features

third party's no.

Three-party

conference

(Check the type of your Main Unit.)

KX-TE Series

KX-TDA Series

Announce.

You can make a voice announcement to extensions or external speakers or both

in the preset group simultaneously.

KX-TE Series

KX-TDA Series

–

Features List

Desired Function Operation

Useful Features

Setting Absent

Message

message no.

parameter (if required)

message no.

(Check the type of your Main Unit.)

To an outside line

Cancel

Busy/No answer

All calls

extension no.

Follow Me

your extension no.

Follow Me Cancel

your extension no.

phone no.

line access

code

Clearing the

setting 7 9 0

(Check the type of your Main Unit.)

7 9 #

(Check the type of your Main Unit.)

Busy

Cancel

No answer

Busy/No answer

extension no.

All calls

extension no.

your extension no.

Follow Me

Follow Me Cancel

Forwarding

a call

Both calls

Outside calls

Intercom calls

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

– 6 –

Features List

Desired Function Operation

Do Not Disturb

(DND)

Set

Cancel

Both calls

Outside calls Cancel

Set

Intercom calls

lock code lock code

lock code

Lock

Unlock

Locking your

extension

extension PIN

Lock

Unlock

7 7

7 7 #

Consult your dealer for more details about the feature access numbers.

Useful Features

ICD Group

extension no.

Log-in/Log-out

For Log-in

For Log-out

For Log-in

For Log-out

Specified

All

(Check the type of your Main Unit.)

ICD Group: Incoming Call Distribution Group

(Check the type of your Main Unit.)

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

PIN: Personal Identification Number

(Check the type of your Main Unit.)

– 7 –

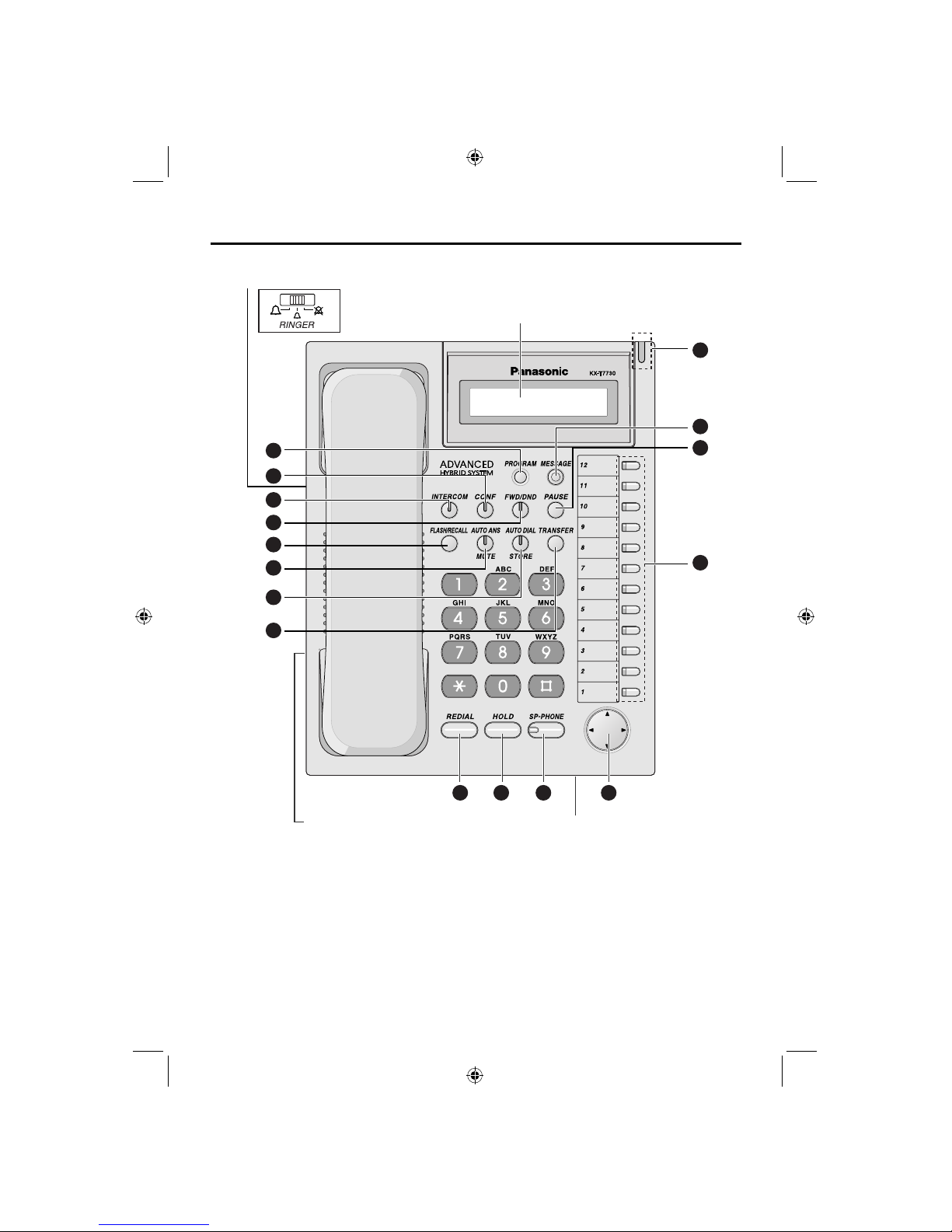

Location of Controls

* The display, the headset jack, and the microphone are only available for KX-T7730 users.

* Headset (not included)

Recommendable: KX-TCA87

Not available: KX-T7090

Headset Jack

LCD (Liquid Crystal Display)

RINGER Volume Selector

10 11

Microphone

–

7AUTO DIAL/STORE: Used for speed

dialling or storing program changes.

8TRANSFER: Used to transfer a call to

another party.

9REDIAL (ordinarily): Used to redial.

HOLD: Used to place a call on hold.

SP-PHONE (Speaker Phone)

(KX-T7730):

Used for the

handsfree operation.

MONITOR (KX-T7750): Used for

handsfree dialling. You can monitor the

party's voice handsfree.

Navigator Key (KX-T7730): Used to

adjust the volume and the display contrast

or select desired items for each function.

Volume Key (KX-T7750): Used to

adjust the volume.

PAUSE: Used to insert a pause during

dialling.

MESSAGE: Used to leave a message

waiting indication or call back the party

who left the message waiting indication.

Message/Ringer Lamp: The Message/

Ringer lamp informs you visually that you

have a message or a call.

• When you receive a call, the lamp flashes

depending on the ringing pattern. When

someone has left you a message, the

lamp is lit continuously.

• When the ringing pattern is set to Single

(Slow flash), Double (Moderate flash), or

Triple (Rapid flash) in your PBX, the lamp

flashes. When the other ringing patterns

are set in your PBX, the lamp may not

flash. (e.g., S-Double, Call Waiting

Tone1).

Flexible Outside (CO) Line Button:

Used to make or receive an outside call.

Pressing this button seizes an idle outside

line automatically. (Button assignment is

required.) Also used as the desired

function buttons. (Button assignment is

required.)

6AUTO ANS (Auto Answer)

(KX-T7730): Used to receive an

incoming call in the hands-free mode.

MUTE (KX-T7730): Used to mute the

microphone during a conversation.

VOICE CALL (KX-T7750): Used to

monitor an intercom call automatically.

1PROGRAM: Used to enter and exit the

programming mode.

FWD/DND (Call Forwarding/Do Not

Disturb):

Used to perform Call Forwarding

or Do Not Disturb.

5FLASH/RECALL: Used to disconnect the

current call and make another call without

hanging up.

2CONF (Conference): Used to establish a

multiple party conversation.

3INTERCOM: Used to make or receive

intercom calls.

–

Location of Controls

Initial Settings

Speaker volume

Press SP-PHONE. Press Up or Down.

While in on-hook or during a conversation

Handset/Headset volume

Press Up or Down.

While using a handset or headset

Ringer volume

SPSP-PHONE

Display contrast

Press Left or Right.

While in on-hook or receiving a call

KX-T7730

While in on-hook or receiving a call

Slide the lever of the RINGER Volume Selector

to the desired setting (HIGH/LOW/OFF).

RINGER

–

* The above settings may return to default settings if the telephone line cord is

disconnected or the main unit's power is interrupted.

Andere Handbücher für KX-T7730

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Telefon Handbücher

Panasonic

Panasonic KX-TG2397B Bedienungsanleitung

Panasonic

Panasonic KX-TGF850 Bedienungsanleitung

Panasonic

Panasonic KXTSC50B - PHONE/ANSWER MACHINE Bedienungsanleitung

Panasonic

Panasonic KX-T7690 Bedienungsanleitung

Panasonic

Panasonic KX-TGP600G Bedienungsanleitung

Panasonic

Panasonic KX-TDA600 - Hybrid IP PBX Control Unit Max. 1008... Betriebsanleitung

Panasonic

Panasonic KX-TCD505HKM Bedienungsanleitung

Panasonic

Panasonic KX-TG1061 Bedienungsanleitung

Panasonic

Panasonic HYBRID IP-PBX KX-TDA100 Bedienungsanleitung

Panasonic

Panasonic KX-TG7733M Bedienungsanleitung

Panasonic

Panasonic KX-T7668 Bedienungsanleitung

Panasonic

Panasonic VB-9411ADSUK Bedienungsanleitung

Panasonic

Panasonic KX-TGA820C Bedienungsanleitung

Panasonic

Panasonic KX-TC1701B - 900 MHz Cordless Phone Bedienungsanleitung

Panasonic

Panasonic KX-TDE600 Bedienungsanleitung

Panasonic

Panasonic KX-TG294SK Bedienungsanleitung

Panasonic

Panasonic KX-DT 343 Series Bedienungsanleitung

Panasonic

Panasonic KX-TC1743B Bedienungsanleitung

Panasonic

Panasonic KX-TC1696B Bedienungsanleitung

Panasonic

Panasonic KX-TG1061M - Cordless Phone Base Station Bedienungsanleitung

Panasonic

Panasonic KX-UT670 Bedienungsanleitung

Panasonic

Panasonic KX-TC1481B Bedienungsanleitung

Panasonic

Panasonic Hybrid IP-PBX Bedienungsanleitung

Panasonic

Panasonic KX-TS500MXB Bedienungsanleitung

Beliebte Telefon Handbücher anderer Marken

GE 2-9480 Bedienungsanleitung

Geemarc

Geemarc PHOTOPHONE 155 Bedienungsanleitung

D-Link

D-Link DWR-720/PW Bedienungsanleitung

Interquartz

Interquartz Gemini IQ333 Bedienungsanleitung

SSS Siedle

SSS Siedle HT 840-0 Bedienungsanleitung

Motorola

Motorola TITANIUM Bedienungsanleitung

LG H870DS Bedienungsanleitung

Samsung

Samsung GT-I9500 Bedienungsanleitung

AT&T

AT&T Trimline 205 Bedienungsanleitung

Selta

Selta zenyth 600 Bedienungsanleitung

Doro

Doro AFTI 20 Bedienungsanleitung

UNIQCELL

UNIQCELL A1 Bedienungsanleitung

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Bedienungsanleitung

BT Decor 425 Bedienungsanleitung

NEC

NEC SV8500 Bedienungsanleitung

Teledex

Teledex PEARL Bedienungsanleitung

Ericsson

Ericsson Dialog 3213 Bedienungsanleitung

Yealink

Yealink VP530 Bedienungsanleitung
