TABLE OF CONTENTS

Table of Contents

Congratulations ..................................... :................. •.... 3

Customer Record .................................................... ... 3

Care and Cleaning .................................................... 3

Specifications ............................................................. 3

Installation .................................................................... 4

Television Location .................................................... 4

Optional Cable Connections ...................................... 4

AC Power Supply Cord .............................................. 4

Cable /Antenna ......................................................... 4

Cable Connection ...................................................... 4

Antenna Connection .................................................. 5

Optional Equipment Connections ............................... 5

To Audio Amplifier...................................................... 6

Audio Adjustments..................................................... 6

Main Menu ..................................................................... 6

ACTION Button.......................................................... 6

CH /VOL Buttons....................................................... 6

Picture In Picture (PIP) Operation ............................... 7

PiP Operation with aVCR and Cable Box ................. 7

PIP Operation with a VCR -No Cable Box ................ 8

Main Menu Feature Chart ............................................ 9

Special Features ......................................................... 11

Languages ............................................................... 11

Timer ............... :........................................................ 11

Sleep Timer.............................................................. 11

Program Timer ......................................................... 12

CH CAP (Channel Caption) ..................................... 13

LOCK ....................................................................... 13

Game Guard Lock.................................................... 13

Unlocking Game Guard............................................ 14

Troubleshooting Chart ............................................... 15

Safety Instructions

WARNING

WARNING: To reduce the risk of electricshock do not remove cover or back. I

No user-serviceable parts inside. Refer servicing to qualified sewice personnel.

The lightning flash with arrow

head within a friangle is

intended to tell the user that

parts inside the product are a

risk of electric shock to persons.

The exclamation point within

tdangle is intended to tell the

user that important operating

and servicing instructions are in

the papers with the appliance.

WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

CONGRA TULA TIONS

ongratulations

'Your new TV features a solid state chassisthat isdesigned to giveyou many

years of enjoyment. It was thoroughly tested and tuned at the factory for

best performance.

_ust:amer Record

The model and serial number of this product are located on the back of the

TV. Youshould note the model and serial number inthe space provided and

retain as a permanent record of your purchase. This will aid in identification

in the event of theft or loss. Product registration is available at

www.prodreg.condpanasonic.

Model

Number

Serial

Number

_are and Cleaning

Screen (Turn TV Off)

• Use a mild soap solution or window cleaner with a soft clean

cloth. DO NOT USE ABRASIVE CLEANERS.

•Avoid excessive moisture and wipe dry.

Cabinet and Remote Control

•Use a soft cloth dampened with water or a mild detergent

solution. Do not use benzene, thinner, or other petroleum

based cleaners.

•Avoid excessive moisture and wipe dry.

;pecifications

Power Source

CT-27G23 CT-32G23

CT-35G23 CT-36G23

CT-2769S CT-3269S

Channel Capability- 181

Video Input Jacks

Audio Input Jacks

To Audio AMP Jack

120V AC, 60Hz

VHF-12; UHF-56; Cable 113

1Vp.p,75 Ohm, Phono Jack Type

500mY I_Ms 47K Ohm

O-2,0V RMS 4.7K Ohm

S-VHS Input Jack

(some models) S-Video (Y-C) Connectoi

Specifications are subject to change without notice or obligation.

INSTALLA TION

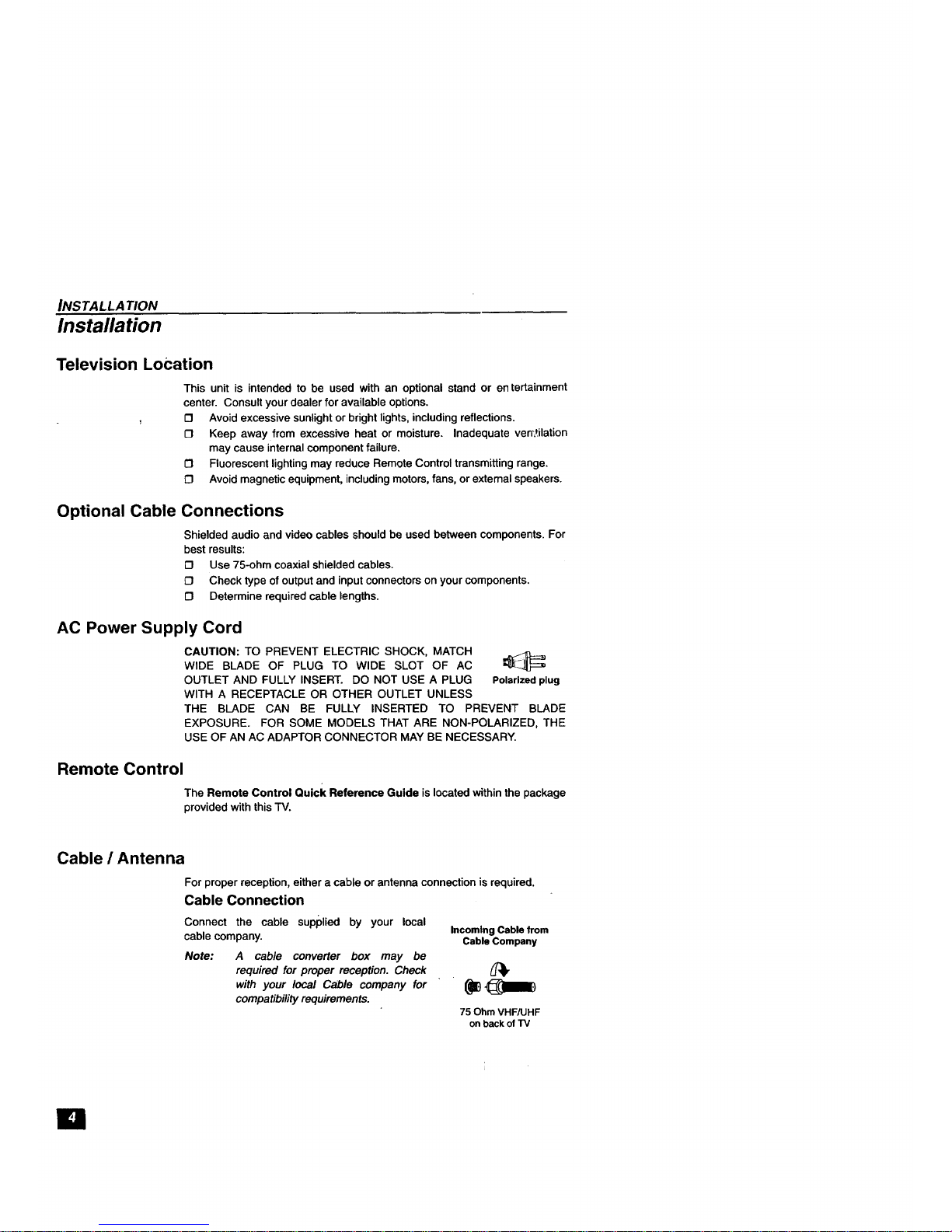

Installation

Television Location

This unit is intended to be used with an optional stand or entertainment

center. Consult your dealer for available options.

13 Avoid excessive sunlight or bright lights, including reflections.

13 Keep away from excessive heat or moisture, Inadequate ven-_ilation

may cause internal component failure.

13 Fluorescent lighting may reduce Remote Control transmitting range.

£3 Avoid magnetic equipment, includingmotors,fans, or external speakers.

Optional Cable Connections

Shielded audio and video cables should be used between components. For

best results:

OUse 75-ohm coaxial shielded cables.

13 Check type of output and input connectors on your components.

13 Determine required cable lengths.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT OF AC

OUTLET AND FULLY INSERT. DO NOT USE A PLUG Polarizedplug

WITH A RECEPTACLE OR OTHER OUTLET UNLESS

THE BLADE CAN BE FULLY INSERTED TO PREVENT BLADE

EXPOSURE. FOR SOME MODELS THAT ARE NON-POLARIZED, THE

USE OF AN AC ADAPTOR CONNECTOR MAY BE NECESSARY.

Remote Control

The Remote Control Quick Reference Guide is located within the package

provided with this "IV.

Cable /Antenna

For proper reception, either acable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local

cable company.

Note: A cab/e converter box may be

required for proper reception. Check

with your local Cable company for

compatibility requirements.

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

INSTALLATION

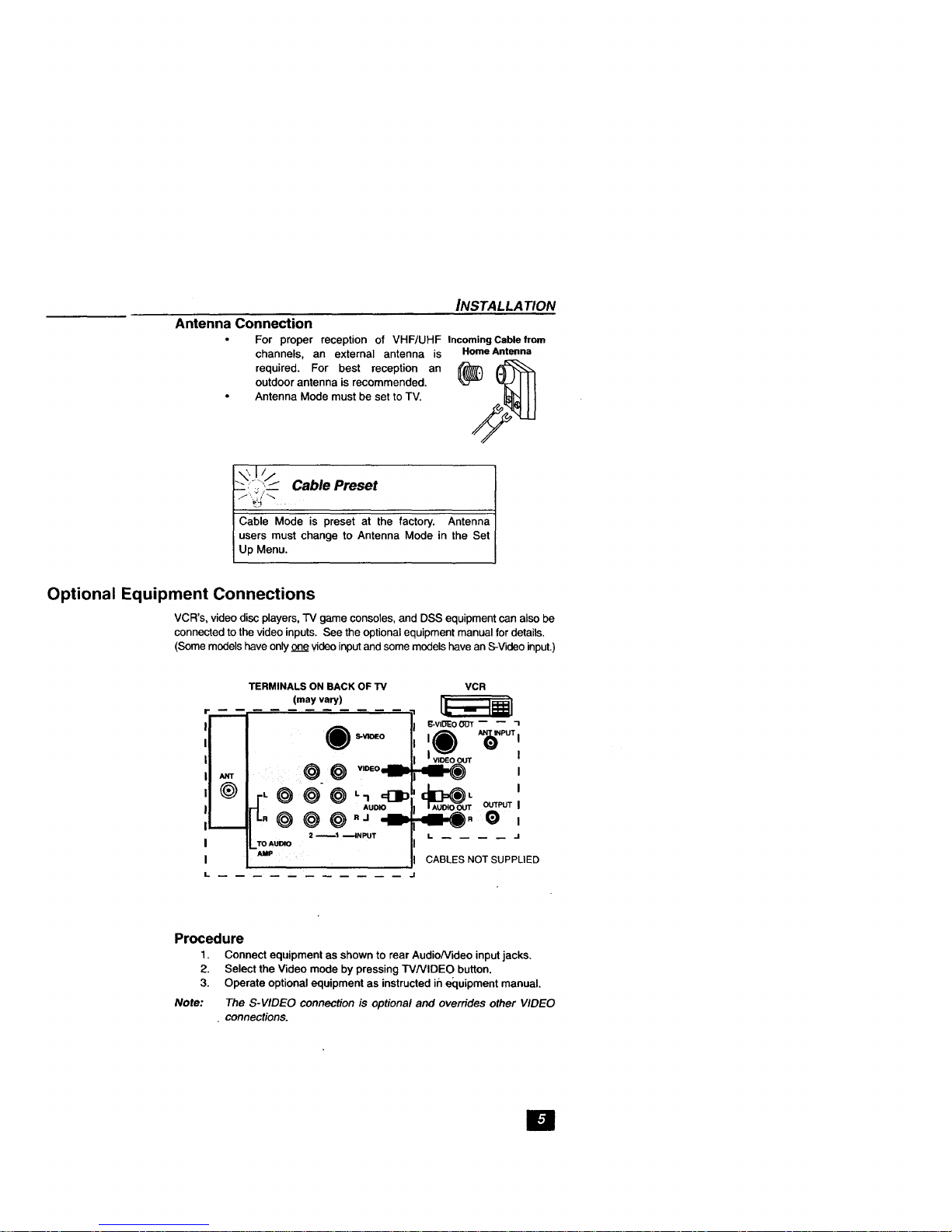

Antenna Connection

•For proper reception of VHF/UHF IncomingCablefrom

channels, an external antenna is HomeAntenna

required. For best reception an I_ _

outdoor antenna is recommended.

• Antenna Mode must be set to TV.

I_;I_/1

_l'° :_v,,'_ Cable Hreset

JC_

able Mode is preset at the factory. Antenna

I users must change to Antenna Mode in the Set

Up Menu.

Optional Equipment Connections

VCR's, video disc players,TV game consoles, and DSS equipment can also be

connected to the video inputs. See the optionalequipment manual fordetails.

(Some models have only one video input and some models have anS-Video input.)

TERMINALSON BACK OF TV VCR

(may vary) l'_l_l

r......._ .... ?

II I -- h _-VlI_O OUT -- -- "n

;I I _..o I;'0 _"_='

II I_o,o h Iv,_,oo_ i

,I_ IO@_ '

,I - I,-I '_ "_ ,uo., I,,'ff-u_oJ o_uTn

;L__lp.@@@.. -_-o. e,

,/L,o,o_o '--'-"'°' I, _..... "

I/"' ,II CABLES.OTSUPPLIED

L,J

Procedure

1. Connect equipment as shown to rear AudioNideo inputjacks,

2. Select the Video mode by pressing TVNIDEO button.

3. Operate optional equipment as instructed in equipment manual.

Note: The S-VIDEO connection is optional and overrides other VIDEO

connections.

MAIN MENU

TO AUDIO AMPlifier

Connect to an external audio amplifier input for listening to a stereo system.

Note: Do not conner TO AUDIO AMP terminally, directly to

external speakers.

Audio Adjustments

1. Press TV SPEAKERS ON button located in the back of Lthe TV or

select TV SPEAKERS ON located in the AUDIO menu on screen.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the TV.

5. Press TV Speakers OFF button on the back of the TV or

OFF&VAO from AUDIO menu.

6. Volume and mute are now controlled from the TV.

Note: In OFF&FAO the volume is controlled by the

external amplifier.

Main Menu

|=t3H

ACTION Button

Press the ACTION button to display the Main Menu and Sub Menus. Press

the ACTION button repeatedly to exit.

OH /VOL Buttons

Press the CH (channel) or.VOL (volume) buttons to select an icon. Use the

OH buttons to highlight the desired features. Use VOL buttons to select and

adjust features.

Remote Navigation Buttons

PICTURE IN PICTURE (PIP) OPERATION

Picture In Picture (PIP) Operation

siP Operation With a VCR and Cable Box

This television includes a Picture In Picture (PIP) feature. A second video

source (VCR, Camcorder, etc,) is required to provide a second picture.

,Connect your television to a VCR and Cable Box, as shown. (Some models

have only one video input and some models have an S-VIDEO video input.)

r--

,€

(

TERMINALS ON BACK OF "IV

.... (m_ayv._ar_)

-"@ @ @ .'-m,

2_--INPUT

TO AUDIO

"AMP

Incoming

Cable

Cable Splitter

(Not Supplied)

CABLES NOT SUPPLIED

Note: The Remote Control must be programmed with supplied codes to

operate the VCR and Cable Box. See Programming the Remote

Control in the Remote Control Quick Reference Guide.

Procedure

Press the PIP button on the Remote Control to display the PIP frame.

Note: The PIP picture is the same as the main picture, initially.

To view a different picture in the PIP frame:

•Press the W/VIDEO button on the Remote Control to select

the video PIP source.

Note: Verify the CABLE BOX and VCR are ON and the VCR

tuned to channel 3.

• Choose channels for the PIP frame by pressing the CABLE

buttonon the Remote Control and using the numeric keypad

or CH up/clown buttons.

•Choose channels for the Main Picture by pressing the TV

button on the Remote Control and using the numeric keypad

or CH up/down buttons.

The SWAP button switches the PIP and Main

Picture source. Press the RECALL button for PIP

and Main Picture source status, on screen.

PICTURE IN PICTURE (PIP) OPERATION

PIP Operation with a VCR -No Cable Box

This television includes a Picture In Picture (PIP) feature. A second video

source (VCR) is required to provide a second picture.

Connect yourtelevision to aVCR, as shown. (Some models have only one

video input and some models have an S-VIDEO input.).

II A

Incomil_g

Cable

CABLES NOT SUPPLIED

Note: The Remote Control must be programmed with the supplied codes

to operate the VCR. See Programming the Remote Control in the

Remote Control Quick Reference Guide.

Procedure

Turn the VCR OFF and tune the TV to channel 3.

Press the PIP button on the Remote Control to display the PIP frame

on screen.

Note: The PIf5 picture is the same as the Main picture, initially.

•Press the TV/VIDEO button on the Remote Control to select

the VIDEO PIP source.

•Press the VCR button on the Remote Control and turn ON

the VCR.

• Press the TM/MCR button on the Remote Control.

•Choose channels for PIP frame by pressing VCR

CHANNEL up/down buttons on the Remote Control.

• Choose channels for the Main Picture by pressing the TM

button on the Remote Control and using the numeric keypad

or CH up/down buttons.

The SWAP button switches the PIP and Main

Picture source, Press the RECALL button for PIP

and Main Picture source status, on screen.

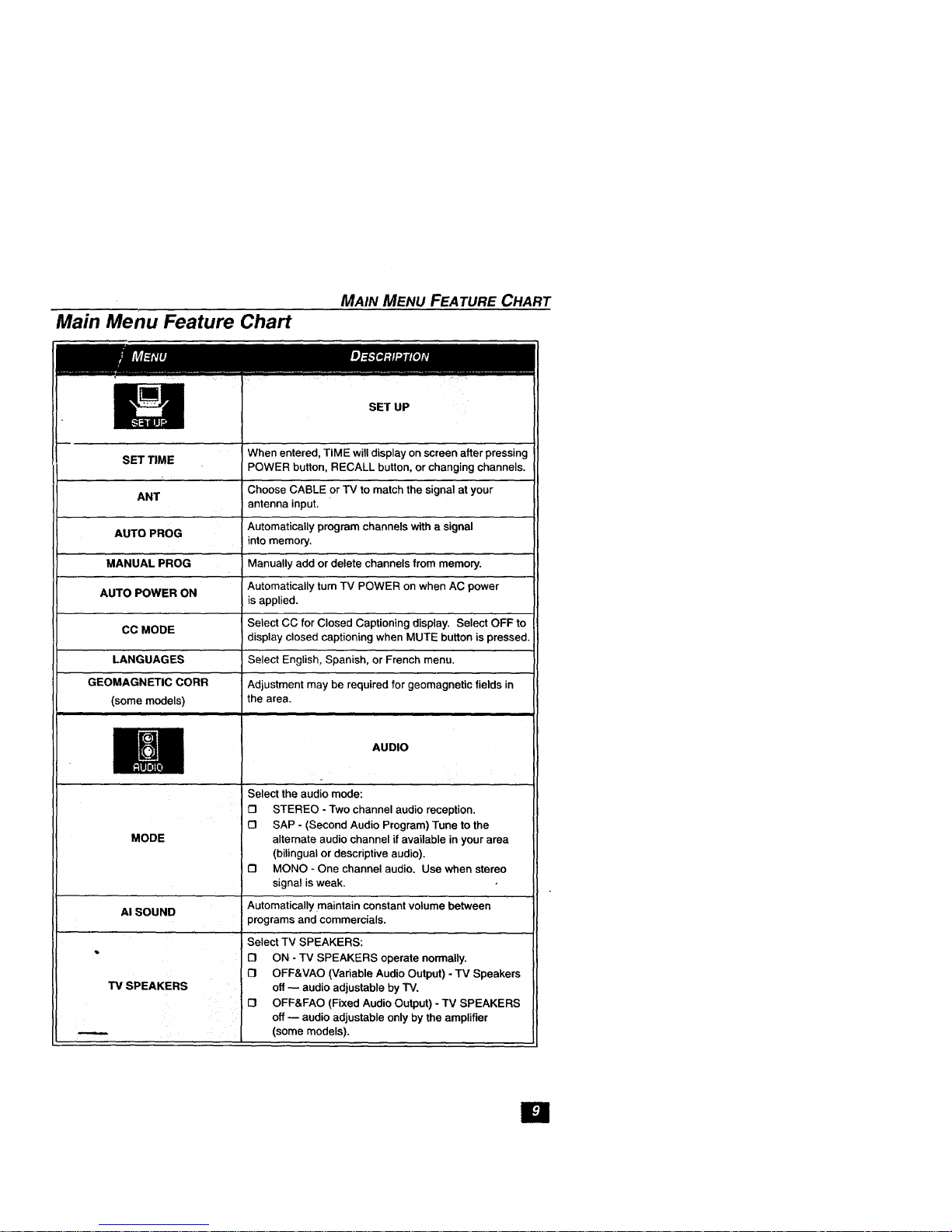

MAIN MENU FEATURE CHART

Main Menu Feature Chart

SET UP

SET TIME

ANT

AUTO PROG

MANUAL PROG

AUTO POWER ON

CC MODE

LANGUAGES

GEOMAGNETIC CORR

(some models)

MODE

AISOUND

TVSPEAKERS

When entered, TIME will displayon screen after pressing

POWER button, RECALL button, or changing channels.

Choose CABLE or TV to match the signal at your

antenna input.

Automatically program channels with a signal

into memory.

Manually add or delete channels from memory.

Automatically turn TV POWER on when AC power

is applied.

Select CC for Closed Captioning display. Select OFF to

display closed captioning when MUTE button is pressed.

Select English, Spanish, or French menu.

Adjustment may be required for geomagnetic fields in

the area.

AUDIO

Select the audio mode:

13 STEREO - Two channel audio reception.

13 SAP - (Second Audio Program) Tune to the

alternate audio channel if available in your area

(bilingual or descriptive audio).

13 MONO - One channel audio. Use when stereo

signal is weak.

Automatically .maintainconstant volume between

programs and commercials.

Select TV SPEAKERS:

13 ON - TV SPEAKERS operate normally.

13 OFF&VAO (Variable Audio Output) - TV Speakers

off -- audio adjustable by TV.

0 OFF&FAO (Fixed Audio Output) - TV SPEAKERS

off w audio adjustable only by the amplifier

(some models).

MAIN MENU FEATURE CHART

Main Menu Feature Chart (Cont.)

CH CAP

Provide labels for up to 30 stations using up to four

CHANNEL CAPTION characters for each station.

TIMER

SLEEP TIMER Program TV to automatically turn off in 30, 60, or

90 minutes. Select NO to turn timer off.

PROGRAM TIMER Program "IV to automatically turn on and off at selected

time on a selected channel, daily or only one day.

HPICTURE

PICTURE NORM Reset all picture adjustments to factory default settings.

+COLOR Adjust desired color intensity.

TINT Adjust natural flesh tones.

BRIGHTNESS Adjust dark areas for crisp detail.

PICTURE Adjust white areas of picture.

SHARPNESS Adjust clarity of outline detail.

LOC

GAME GUARD Program to prevent video games, cable box, and VCR's

from being viewed.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic Viera TX-L32X15P Bedienungsanleitung

Panasonic

Panasonic TX-21V50X Bedienungsanleitung

Panasonic

Panasonic TX-W32D4F Bedienungsanleitung

Panasonic

Panasonic CT-27D11D, CT-27D31C, CT-2772SC, CT-32D11C, CT-32D31C, CT-3274SC, CT-36D11C,... Bedienungsanleitung

Panasonic

Panasonic Viera TX-L65WT600E Referenzhandbuch

Panasonic

Panasonic TX-36PL35D Kurzanleitung

Panasonic

Panasonic Viera TX-L32X15E Bedienungsanleitung

Panasonic

Panasonic TX-68P150Z Bedienungsanleitung

Panasonic

Panasonic TX-36PL35D Bedienungsanleitung

Panasonic

Panasonic CT20SX11E - 20" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-25MK1P Bedienungsanleitung

Panasonic

Panasonic TX-P42G30E Bedienungsanleitung

Panasonic

Panasonic TC-L38D Bedienungsanleitung

Panasonic

Panasonic PVDM2092 - MONITOR/DVD COMBO Bedienungsanleitung

Panasonic

Panasonic TX-28MD3F Bedienungsanleitung

Panasonic

Panasonic TX-29FX25RF Bedienungsanleitung

Panasonic

Panasonic TX-21AT1F Bedienungsanleitung

Panasonic

Panasonic TX-33AK10P Bedienungsanleitung

Panasonic

Panasonic TX-28MD3P Bedienungsanleitung

Panasonic

Panasonic TX-29PS11P Bedienungsanleitung

Panasonic

Panasonic VIERA TX-42AS650B Bedienungsanleitung

Panasonic

Panasonic TC-P42X60 Bedienungsanleitung

Panasonic

Panasonic Viera TH-32AS610A Montageanleitung

Panasonic

Panasonic TX-P54Z11E Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
