ZX82

8-Zone Input

Expansion Module

Installation Manual

V1.10 and higher

Introduction

The ZX82, 8-zone Expansion Module, provides 8 zones input expansion to

Paradox panels; connects on the keypad bus of EVO, Spectra, or MG

panels. The ZX82 comes with its own tamper-proof enclosure and provides

Zone Status LED indicators as well as Power and Data.

Compatibility

• All Paradox control panels v6.80 or higher

• BabyWare v5.1 and higher

• Infield v5.1 and higher

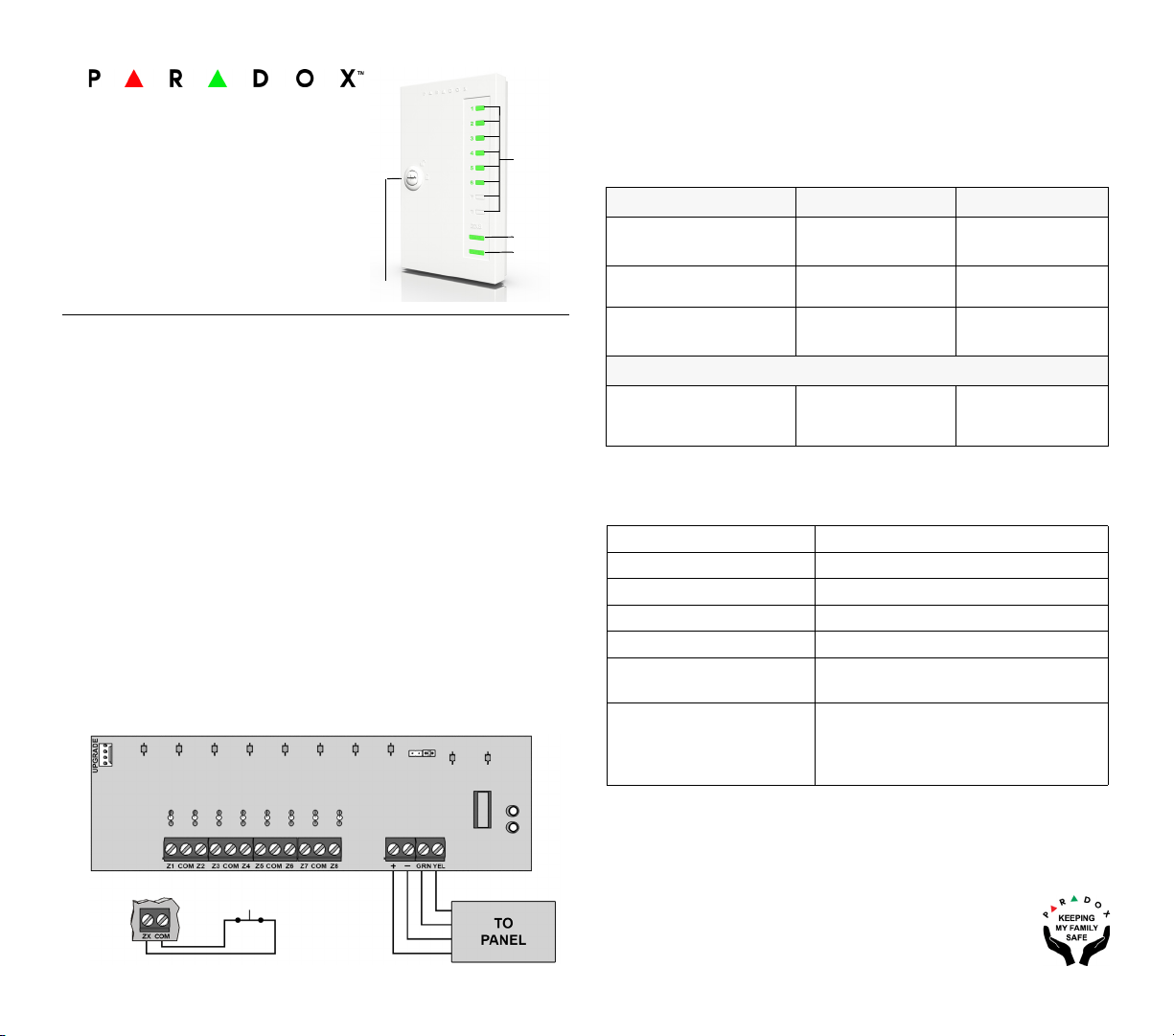

Connections

Connect the four bus terminals labeled

+ -

GRN

YEL

of the module to the

corresponding terminals on the control panel as shown.

To enable anti-tamper switch input on EVO, use input terminal Z8 and enable

section

[001]

option

[1]

To enable anti-tamper switch input on MG/SP, use input terminal Z1 and enable

section

[706] option [4] for panel +1, option [5] for panel +9 and option [6] for

panel +17.

Upgrading Firmware

The ZX82’s firmware can be upgraded in Infield via BabyWare using a

307USB Direct Connect Interface.

LED Indicators

*If control panel has an AC Loss all LEDs are turned off.

Technical Specifications

* Control Panel shall be certified to EN 50131-6 and used as the power supply

for the expansion module. If an external power supply is used, it must be

certified for EN 50131-6.

The security grade of the ZX82 is dependent on the security grade of the

system where it is installed. The maximum security grade is 3.

External Anti-Tamper

Switch (N.C.)

LED OFF ON

POWER OFF OK (10.5V to 16V)

RX / TX No clock or data

exchange

Clock and data OK

ZONE1 to ZONE8* Zone Closed Zone Opened /

Ta m p e r

ATZ Enabled on EVO

ZONE1 to ZONE8

Both zones connected

to this input are Closed

Any Zone connected

to this input is

Opened / Tamper

Input Voltage 10.5 to 16 Vdc

Current Consumption 100mA MAX all LEDs On

Number of Inputs 8 standard zone inputs

Operating Temperature -20 C to +50 C (-4 F to 122 F)

Humidity 95% maximum

Dimensions (H x W x D) 16.5 cm x 10.2 cm x 2.5 cm

(6.5 in x 4 in x 1 in)

Certification*

CE, EN 50131-3 Security Grade: 3

Environmental Class: II

Certification Body: Applica Test and

Certification AS

Display

Power

Lock

Data

ZX82-EI02 01/2019 PARADOX.COM

Programming EVO

1. Enter section [4003].

2. Enter the eight-digit module serial number.

3. Enter the three-digit module section number.

Module Tamper on Input-8

Section 001 - Bit 1, 0 = Disabled, 1 = Enabled

Note: If this option is enable the on-board tamper is disabled.

EOL/ATZ per Zone Input

Section 401 - Zone Input Options

Zone Input Options Individual Settings

EOL Resistor Value Selection

Section 402 - Zone Input Options

Zone Input Options Individual Settings

Programming MG/SP

1. Enter section [001] - [032].

2. Enter the two-digit zone definition.

3. Assign a partition.

4. Select or deselect zone options.

5. Press Enter.

6. Repeat steps 1 - 5 for remaining zones.

For more information on how to program zones, please refer to the MG/SP

Programming Guide.

Module Tamper on Input-1

Section 706 - Panel Programming

Note: If this option is enable the on-board tamper is disabled.

MG/SP Jumper Settings (Panel ATZ Off)

MG/SP Jumper Settings (Panel ATZ On)

Zone1 / Zone2 Zone3 / Zone4 Zone5 / Zone6 Zone7 / Zone8

_ / _

(0/0)

_ / _

(0/0)

_ / _

(0/0)

_ / _

(0/0)

OPTION DESCRIPTION

0System default; zone will follow global panel settings for EOL

1 EOL / ATZ disabled

2 EOL enabled / ATZ disabled

3 EOL disabled / ATZ enabled

4 EOL / ATZ enabled

Zone1 / Zone2 Zone 3 / Zone4 Zone5 / Zone6 Zone7 / Zone8

_ / _

(0/0)

_ / _

(0/0)

_ / _

(0/0)

_ / _

(0/0)

OPTION EOL Value Zone Value

01K 1K

12K2 1K5

23K3 3K3

34K7 4K7

44K7 6K8

52K2 4K7

68K2 8K2

72K2 2K2

Option Description Off ON

4ZX82 ID A (panel +1) Input 1 Zone input Tamper input

5ZX82 ID B (panel + 9) Input 1 Zone input Tamper input

6ZX82 ID C (panel + 17) Input 1 Zone input Tamper input

Module #

(Jumper) MG5000 MG5050 SP4000 SP5500 SP6000 SP65 SP7000

+1 3-10 6-13 5-12 6-13 9-16 10-17 17-24

+2 11-18 14-21 13-20 14-21 17-24 18-25 25-32

+3 19-26 22-29 21-28 22-29 25-32 26-32 N/A

Module #

(Jumper) MG5000 MG5050 SP4000 SP5500 SP6000 SP65 SP7000

+1 5-12 11-18 9-16 11-18 17-24 19-26 N/A

+9 13-20 19-26 17-24 19-26 25-32 27-32 N/A

+17 21-28 27-32 25-32 27-32 N/A N/A N/A

Warranty

For complete warranty information on this product, please refer to the Limited Warranty Statement

found on paradox.com/terms or contact your local distributor. Specifications may change without prior

notice.

Patents

US, Canadian and international patents may apply. Paradox is a trademark or registered trademark of

Paradox Security Systems (Bahamas) Ltd.
