3600 Hubbing Device Installation Instructions

Document Number 3610-A2-GZ45-10

March 1996

Overview

This document describes the pin assignments and

procedure for installing the 3600 Hubbing Device.

•The 3600 Hubbing Device is required to daisy

chain a Model 3610 Data Service Unit (DSU) onto

a Network Management System (NMS) control

channel (CC) or diagnostic channel (DC).

•The hubbing device plugs into a modular jack

located on the rear of the DSU and provides two

8-pin modular jacks for DC/CC connections.

Prior to installing a 3600 Hubbing Device, check the

hubbing device for damage. If there are signs of damage,

report this immediately to your shipping representative

and your AT&T Paradyne representative.

WARNING

This equipment has been tested and

found to comply with the limits for a

Class A digital device, pursuant to

Part 15 of the FCC rules. These limits are

designed to provide reasonable

protection against harmful interference

when the equipment is operated in a

commercial environment. This

equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with

the instruction manual, may cause

harmful interference to radio

communications. Operation of this

equipment in a residential area is likely

to cause harmful interference, in which

case, the user will be required to correct

the interference at his own expense.

The authority to operate this equipment

is conditioned by the requirement that no

modifications will be made to the

equipment unless the changes or

modifications are expressly approved by

AT&T Paradyne.

TO USERS OF DIGITAL APPARATUS IN

CANADA: The digital apparatus does not

exceed the Class A limits for radio noise

emissions from digital apparatus set out

in the radio interference regulations of

the Canadian Department of

Communications.

dyn

2March 1996 3610-A2-GZ45-10

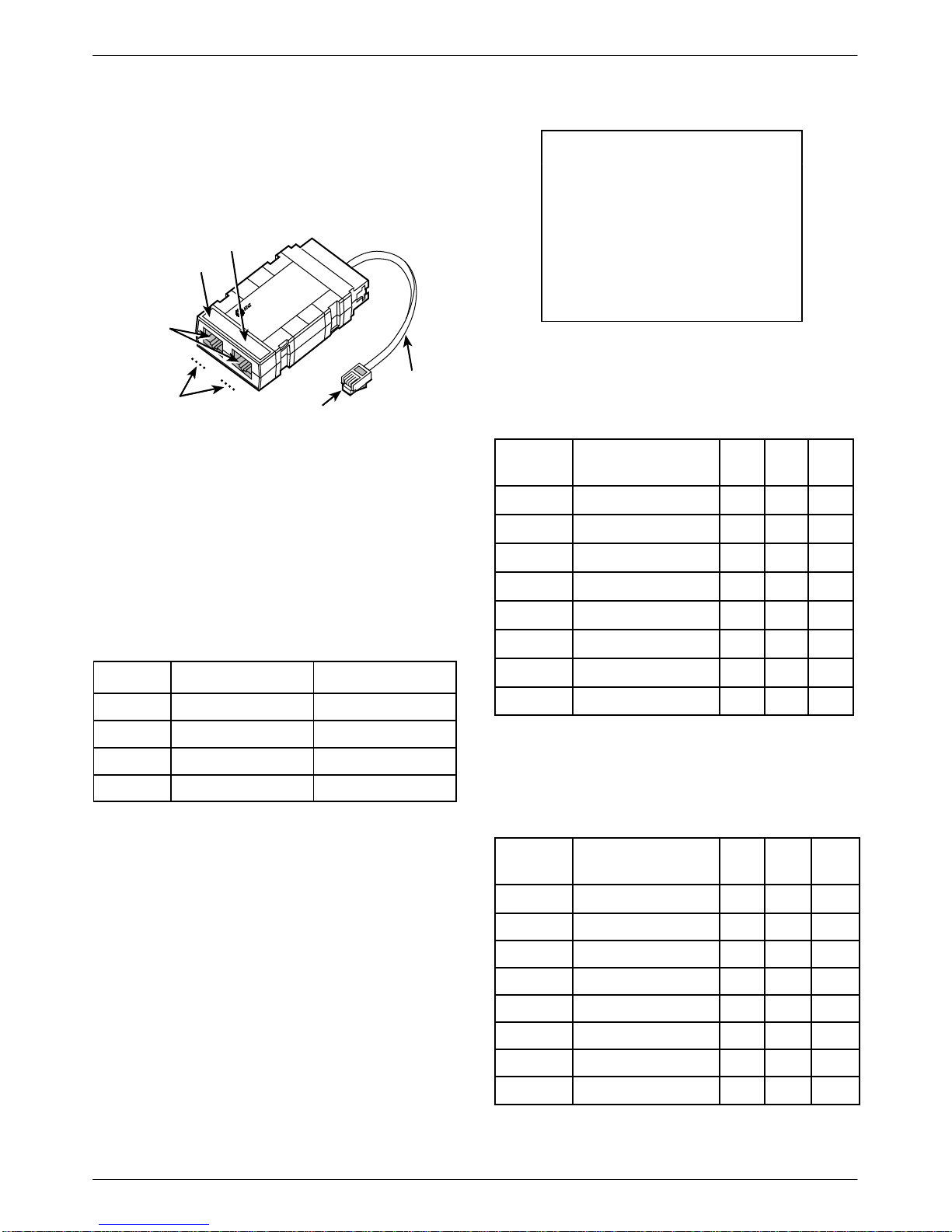

Hubbing Device Pin

Assignments

3000HUBBING DEVICE

MODEL #3000-F3-300

dyn

8-Pin

Modular

Jacks

6 Inches

Overall

4-Pin

Modular

Plug 496-13775-02

Numbers

CC IN/DC OUT CC OUT/DC IN

CC IN/DC OUT

Hubbing Device

CC OUT/DC IN

4-Pin Modular Plug

The 4-pin modular plug on the 3600 Hubbing Device is

the DSU interface. Table 1 lists the pin numbers and

signal names.

Table 1

4-Pin Modular Plug Pin Assignments

Pin # Signal Name Input/Output

1+5 VDC Input

2 DCOSD/CCIRD Input

3Signal Ground Ground

4 DCORD/CCISD Output

8-Pin Modular Jacks

Use the 8-pin modular jacks to connect the DSU to the

Network Management System, another 3600 Hubbing

Device, or a 3400 Hubbing Device. One jack supports CC

in and DC out. The other jack supports CC out and DC in.

Tables 2 and 3 list the pin numbers and signal names.

NOTE

The pin numbers on both

modular jacks are compatible

with the 3400 Hubbing Device.

Therefore, no additional adapter

is required when using the 3600

Hubbing Device and the 3400

Hubbing Device in the same

configuration.

Table 2

CC IN/DC OUT Jack Connector

Pin Assignments

Pin # Signal Name IN/

OUT CC

IN DC

OUT

1–V Pass Through — –V –V

2DCOCTS/CCIRTS IN RTS CTS

3DCORTS/CCICTS OUT CTS RTS

4DCOSD/CCIRD OUT RD SD

5Signal Ground — GND GND

6DCORD/CCISD IN SD RD

7N/C — N/C N/C

8+V Pass Through — +V +V

Table 3

CC OUT/DC IN Jack Connector

Pin Assignments

Pin # Signal Name IN/

OUT CC

OUT DC

1–V Pass Through — –V –V

2 DCICTS/CCORTS OUT RTS CTS

3 DCIRTS/CCOCTS IN CTS RTS

4DCISD/CCORD IN RD SD

5Signal Ground — GND GND

6 DCIRD/CCOSD OUT SD RD

7 N/C — N/C N/C

8+V Pass Through — +V +V

33610-A2-GZ45-10 March 1996

Installing the 3600 Hubbing

Device

NOTE

When installing 3600 DSUs and

3400 Series or DATAPHONE II

modems on the same DC, install

the DSU ahead (upstream) of

the modems. This configuration

prevents the DSU from losing

contact if the modem loses

power.

Procedure

To connect the 3600 Hubbing Device to the DSU:

1. Configure the DSU for either CC or DC operation

using the Diagnostic Connection configuration

option as described in the COMSPHERE 3600

Series Data Service Units, Models 3610 and 3611,

User’s Guide, Document number 3610-A2-GB46.

2. Plug the hubbing device’s 4-pin modular plug into

the jack labeled CC/DC and located at the rear of

the DSU.

3. Plug one end of the M6BJ cable into the hubbing

device jack labeled CC IN/DC OUT.

4. Plug the opposite end of the M6BJ cable into the

appropriate 6700 or 6800 Series NMS jack.

495-14723

NMS Network

Connection

CC/DC

Hubbing

Device

NMS

POWER LINE BACKUP CC/DC V.35

CC IN/DC OUT

3000HUBBING DE

MODEL #3000-F3

CC IN/DC OUT CC OUT/DC IN

M6BJ

Cable

3000HUBBING DEVICE

MODEL #3000-F3-300

dyn

The hubbing device is now connected to the DSU and

may be used to set up your network configuration.

Refer to Figure 1 on the following page for a sample

NMS configuration.

Refer to the COMSPHERE 3600 Series Data Service

Units, Models 3610 and 3611, User’s Guide for additional

connection information and configurations.

4March 1996 3610-A2-GZ45-10

Model

3610

DSU

Model

3610

DSU

Model

3610

DSU

3400

Series

Modem

3400

Series

Modem

871A

873A

6800

Series

NMS

3000

Series

Carrier

OUT

IN 4000

Series

Intelligent

Communications

Carrier

Upstream

Downstream

Upstream Downstream

496-13777-01

OUT

Tributary Extended

Control

Extended

Tributary

OUT

3600 Hubbing Device

3400 Hubbing Device

Note: All connections shown on this page use an M6BJ 6-conductor cord, unless otherwise noted.

OUT

D8W

Cable

D8W

Cable

NMS

Adapter

NMS

Adapter

Figure 1. NMS Configuration Example Using Hubbing Devices
