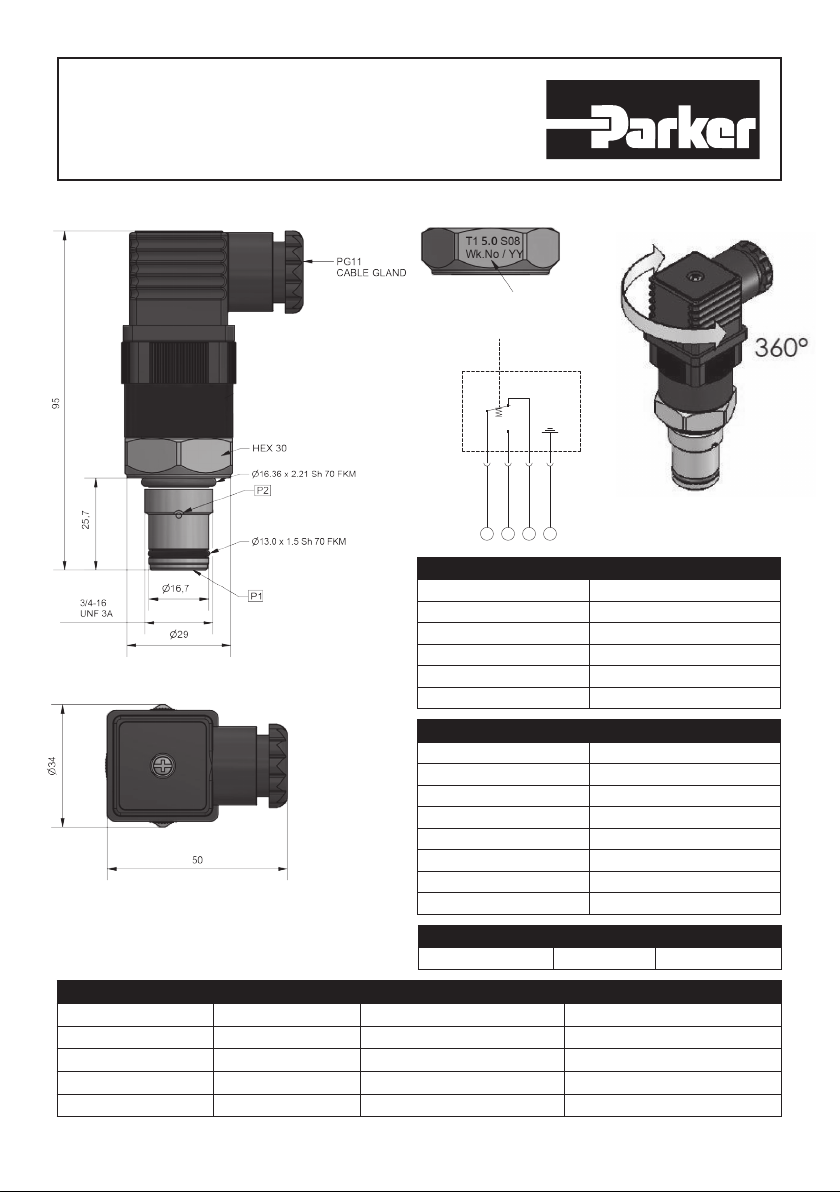

Parker DPIT1 VS08MDC1 Series Bedienungsanleitung

1234

COM

Normally open (N.O.)

Normally closed (N.C.)

P1-P2

DPIT1_VS08MDC1

ELECTRICAL DIFFERENTIAL

PRESSURE INDICATOR

The power supply of the sensor must be

provided by a dedicated voltage source

and not by a distributed dc network.

ELECTRICAL SPECIFICATIONS

VOLTAGE LOAD

14 V dc 5 (4) A

30 V dc 4 (3) A

125 V ac 5 (3) A

250 V ac 3 (2) A

Min load 5V dc 160 mA

TECHNICAL SPECIFICATIONS

Switching contacts SPDT

Max pressure (P1=P2) 450 bar

Proof pressure 675 bar

Max differ. pressure (P1-P2) 210 bar

Working temperature -20° to +100°C

Body material Brass

Max torque 50 Nm

Protection degree IP65

INDICATOR SELECTION TABLE

DP SETTING DP CODE ORDERING CODE MARKING CODE

1.2 bar (± 0.25) G DPIT1GVS08MDC1 T1 1.2 S08

2.5 bar (± 0.35) K DPIT1KVS08MDC1 T1 2.5 S08

3.5 bar (± 0.55) L DPIT1LVS08MDC1 T1 3.5 S08

5.0 bar (± 0.75) M DPIT1MVS08MDC1 T1 5.0 S08

SEAL KIT SEAL CODES ORDERING CODE

Fluoroelastomer V 930000298

Engraving on Hex.

Pressure setting & thread code

P1: High pressure, P2: Low pressure

Parker reserves the right to change or discontinue any model

or specification at any time and without notice.

Parker Hannifin / Hydraulic Filtration EMEA

Orders and inquiries: please contact your local Parker representative. 20348 C

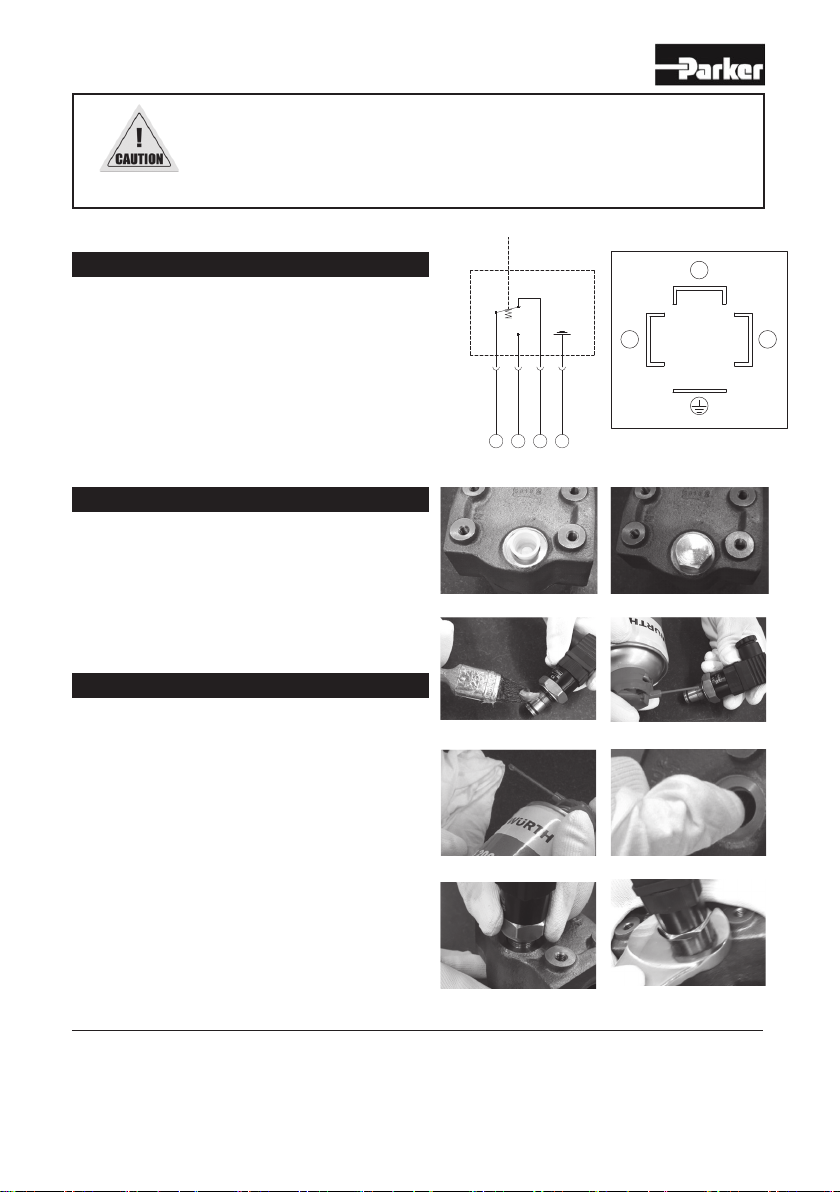

Contact conﬁguration of DPIT1 indicator is shown

in Pic. A. Indicator contains a SPDT switch and

can be connected as Normally open or Normally

closed.

Contact conﬁguration in the new DPIT1 indicator

will remain the same as it was in the old FMUT1

indicator (Pic. A).

Location of pins (plug side) shown in the Pic B.

Always connect cable after mounting indicator on ﬁlter head. Power supply must be off when connecting

indicator with cable to avoid electrocution. Power supply for sensor must be provided by dedicated voltage

source not by distributed DC network. Make sure connection cable is not under tension or slugghish. If the

indicator is not working properly, check external o-rings and replace if necessary. If this will not ﬁx the

problem, please replace the indicator.

ASSEMBLY INSTRUCTION DPIT1

CONTACT CONFIGURATION

Remove the indicator port plug (Fig. 1) or the

indicator plug (Fig. 2).

Lubricate indicator on the thread side with

industrial grade grease (Fig. 3) or oil (Fig. 4)

properly.

Clean indicator port to be dust and moisture

free (Fig. 5 and 6).

Insert indicator to indicator port. Exert pressure

from top of the indicator to overcome hardness

and tighten indicator turning clockwise (Fig. 7).

Use size 30 wrench to complete the tightening

to 50Nm (Fig. 8).

Do not attempt to turn the indicator by means

of plastic part, otherwise it could be damaged

beyond further use.

Fig. 9

INSTALLING INDICATOR TO FILTER HEAD

TIGHTENING SEQUENCE

This indicator comes with S08 thread,

which is used in EPF and GMF ﬁlters.

Please note that there are other ﬁlters

using U12H, U14M or U14H threads.

Make sure to install indicator to

the ﬁlter head before ﬁlter is

installed to the system.

All relevant safety regulations must be met.

Fig. 1 Fig. 2

Fig. 3 Fig. 4

Fig. 5 Fig. 6

Fig. 7

Pic. A Pic. B

Fig. 8

1234

COM

Normally open (N.O.)

Normally closed (N.C.)

P1-P2
