Parkside PNKP 105 B1 Bedienungsanleitung
HOT GLUE GUN PNKP 105 B1
HOT GLUE GUN
Translation of the original instructions ΠΙΣΤΌΛΙ ΘΕΡΜΌΚΌΛΛΗΣHΣ
Μετάφραση των αυθεντικών οδηγιών
λειτουργίας
HEISSKLEBEPISTOLE
Originalbetriebsanleitung
IAN 327104_1904
GB/IE/NI/CY Translation of the original instructions Page 1
GR / CY Μετάφραση των αυθεντικών οδηγιών λειτουργίας Σελίδα 15
DE/AT/CH Originalbetriebsanleitung Seite 29
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις εικόνες και
εξοικειωθείτε με όλες τις λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.
PNKP 105 B1 GB│IE│NI│CY │ 1 ■
Contents
Introduction .................................. 2
Intended use..........................................2
Features .............................................3
Package contents ......................................3
Technical details .......................................3
General safety warnings for power tools in
household use ................................ 4
Additional safety instructions for glue guns ..................5
Original accessories/auxiliary equipment ...................6
Operation ................................... 6
Maintenance and cleaning ...................... 7
Disposal ..................................... 8
Disposal of the appliance................................8
Kompernass Handels GmbH warranty............ 9
Service ..................................... 12
Importer.................................... 12
Translation of the original Conformity Declaration . 13
PNKP 105 B1
■ 2 │ GB│IE│NI│CY
HOT GLUE GUN PNKP 105 B1
Introduction
Congratulations on the purchase of your new appliance. You have
selected a high-quality product. The operating instructions are part of
this product. They contain important information about safety, usage
and disposal. Before using the product, please familiarise yourself
with all operating and safety instructions. Use the product only as
described and for the range of applications specified. Please also
pass these operating instructions on to any future owner.
Intended use
This appliance is specifically intended for a variety of creative hobby
applications involving the gluing of heat-sensitive materials such as
paper, flowers, cardboard, packaging, plastics, leather, ceramics,
glass and fabric. The material to be glued must be clean, dry and
free of grease. Any other usage of or modification to the appliance
is deemed to be improper and carries a significant risk of accidents.
The manufacturer accepts no responsibility for damage(s) attribut-
able to misuse. The appliance is not intended for commercial use.
PNKP 105 B1 GB│IE│NI│CY │ 3 ■

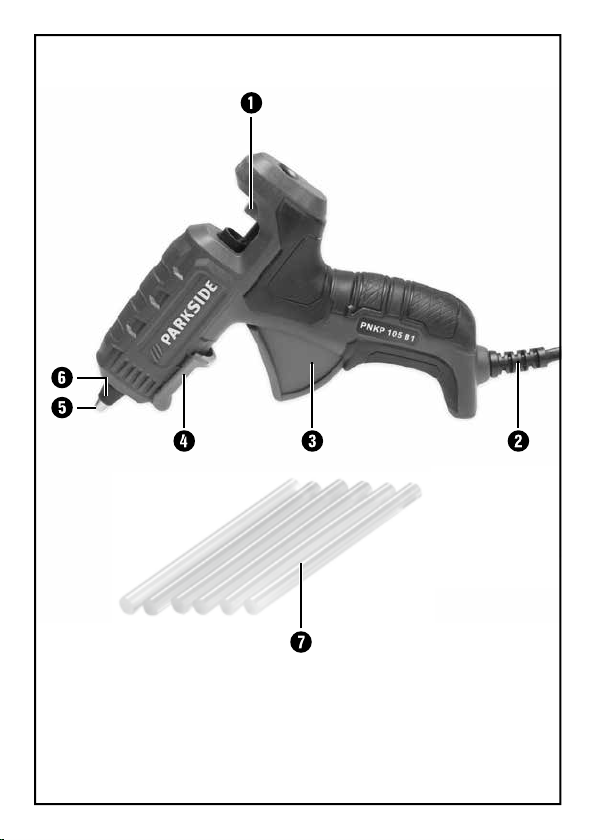

Features
Feeder shaft
Power cable
Trigger
Stand
Nozzle
Thermal protection for nozzle
Glue sticks
Package contents
1 hot glue gun PNKP 105 B1
1 stand
6 glue sticks
1 set of operating instructions
Technical details
Rated voltage: 230V ~50Hz (AC)
Rated power consumption: 5 W (20 W in operation)
Operating temperature: 105–140°C
Heating-up time: approx. 5 min.
Protection class: II/ (double insulation)
For glue sticks: ø 7 mm e.g. PARKSIDE PNKPZ 3 B2
PNKP 105 B1
■ 4 │ GB│IE│NI│CY
General safety warnings for power
tools in household use
CAUTION!
► Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
■ This appliance may be used by children aged
8 years and above and by persons with limited
physical, sensory or mental capabilities or lack
of experience and knowledge, provided that
they are under supervision or have been told
how to use the appliance safely and are aware
of the potential risks. Do not allow children to use
the appliance as a plaything. Cleaning and user
maintenance tasks may not be carried out by
children unless they are supervised.
■ To avoid potential risks, damaged mains cables
should be replaced by the manufacturer, their
customer service department or a similarly quali-
fied person.
PNKP 105 B1 GB│IE│NI│CY │ 5 ■
Additional safety instructions for glue guns
■ Children should be supervised to ensure that they do not play
with the appliance.
■ ATTENTION! This appliance must be placed on its stand
when not in use.
■ Always protect the appliance from rain and moisture. Water
entering a power tool will increase the risk of electric shock.
■ Do not misuse the power cord, e.g. to carry or hang up the appli-
ance, or to pull the plug from the socket. Keep cord away from
heat, oil, sharp edges or moving parts.
If the power cord is damaged or severed during work, do not touch
the cord but rather pull out the plug. Damaged or entangled
cords increase the risk of electric shock.
■ Only for indoor use.
■ If you take a break of longer than 30 minutes, pull out the power
plug.
■ Allow the appliance to cool completely after use and before
storage.
■ Do not work on any material containing asbestos.
■ Avoid the risk of injury or fire as well as health risks: RISK OF
BURNS! The adhesive and the nozzle reach a temperature of
around 105°C. Do not touch the nozzle or the glue. Do not
allow hot glue to come into contact with people or animals. In
case of contact with skin, rinse the affected part in cold running
water for a few minutes. Do not attempt to remove the adhesive
from the skin.
■ Always route the power cable towards the rear, away from the
appliance.
PNKP 105 B1
■ 6 │ GB│IE│NI│CY
Original accessories/auxiliary equipment
♦ Only use the accessories and additional equipment that are
specified in the operating instructions and compatible with the
appliance.
Operation
Preparing the surfaces to be glued:
■ Do not use flammable solvents to clean the surfaces to be glued.
■ The ambient temperature and the materials to be bonded may
not be colder than 5°C and not warmer than 50°C.
■ The area to be glued must be clean, dry and free of grease.
♦ Smooth surfaces should be roughened before gluing.
♦ Quick-cooling materials such as steel should be warmed a little
to facilitate adhesion.
1. Fold out the stand . Put down the appliance.
2. Push a glue stick into the feeder shaft .
3. Allow the appliance heat up for about 5 minutes.
The appliance is now ready for use.
PNKP 105 B1 GB│IE│NI│CY │ 7 ■
Preparing the surfaces to be glued:
♦ Pull the trigger to regulate the flow of glue in accordance
with your requirements.
1. Apply the glue in spots. For flexible materials, such as textiles,
apply the glue in zigzag lines.
2. Press the two workpieces to be bonded together immediately
after applying the glue and hold for about 30 seconds. The
glued bond is ready after about 5 minutes.
3. During breaks in work, put the glue gun down on the stand .
Switching the appliance off:
♦ Unplug the appliance from the mains socket.
The nozzle reaches a temperature of over 140°C.
Maintenance and cleaning
WARNING! ALWAYS REMOVE THE POWER PLUG
FROM THE POWER SOCKET BEFORE CLEANING
THE APPLIANCE.
■ The low-temperature glue gun is maintenance-free.
■ Keep the appliance clean and dry at all times.
■ Never permit liquids to enter inside the appliance. Use a cloth to
clean the housing. Never use petrol, solvents or cleansers which
can damage plastic.
