Parrot CK3100 LCD Bedienungsanleitung
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.
SCIROCCO
Installation manual:
Parrot MKi + Parrot
CK3100 range
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.
Disassembly
30min
Mounting kit
30min
Reassembly
30min
Testing
15min
Total
1h45min
NO
+IGN
NO
ISO
YES
UNIKA
FRONT LOUDSPEAKER
TEL mode
ALL
MUSIC mode

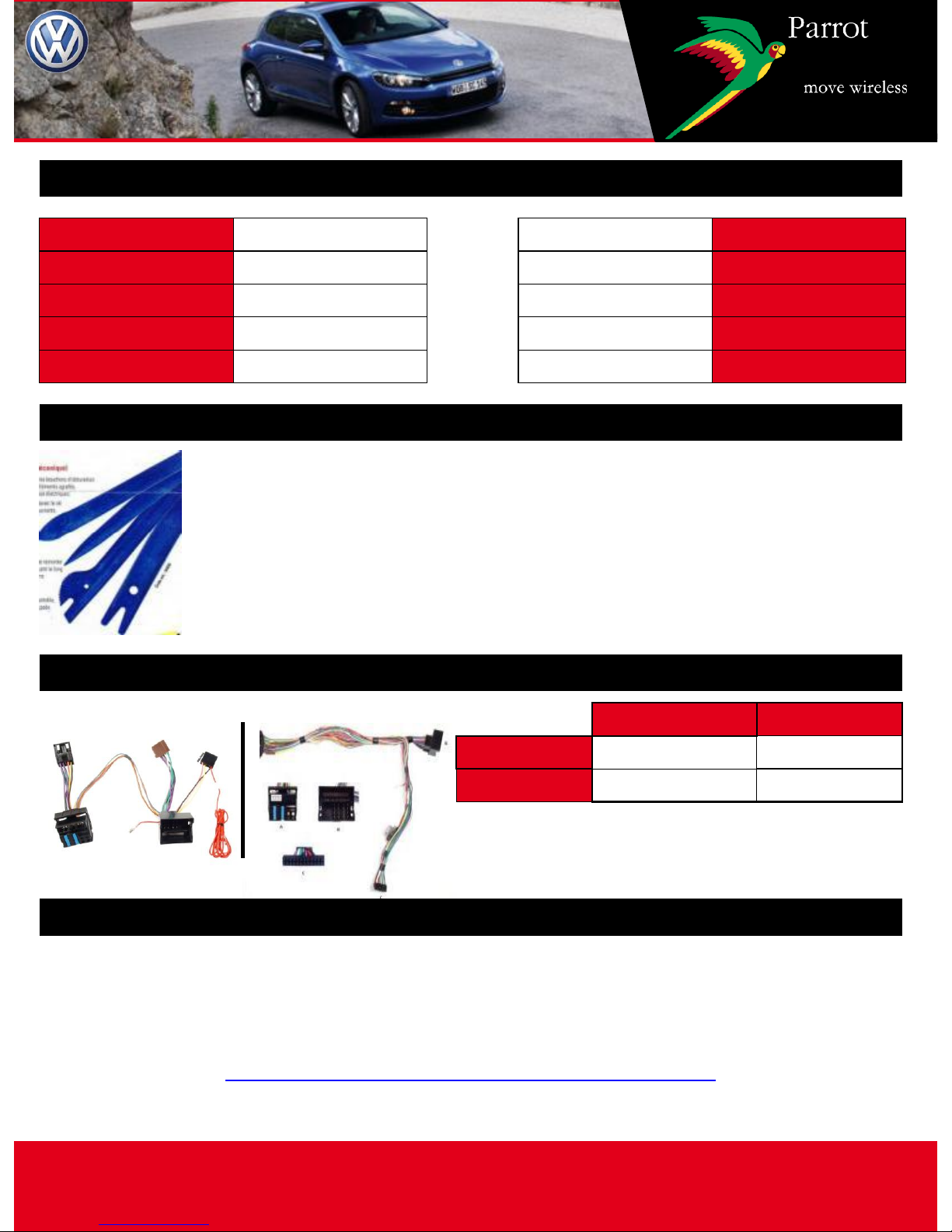

Fitting time / Main features
Tools
-TORX screwdriver
- Cutting pliers
- Crimping pliers
- Multimeter or Test lamp
- Wire tie
- Electrical tape
- 1.5 mm flat terminal and round male terminal
Plastic trim removal tools
FACOM / BOJO
Accessories required
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
http://www.parrot.com/usa/support/downloads
UpdatingUpdatingUpdating
"Please contact your retailer to purchase
accessories. List of retailers available at
www.certified.parrot.com"
Kram ref.
Dealer ref.
CK range
86 200
YY 138 CABL 2
MKi range
84 942
YY 138 CABL 2
Photos for illustration purposes
CK range MKi range
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

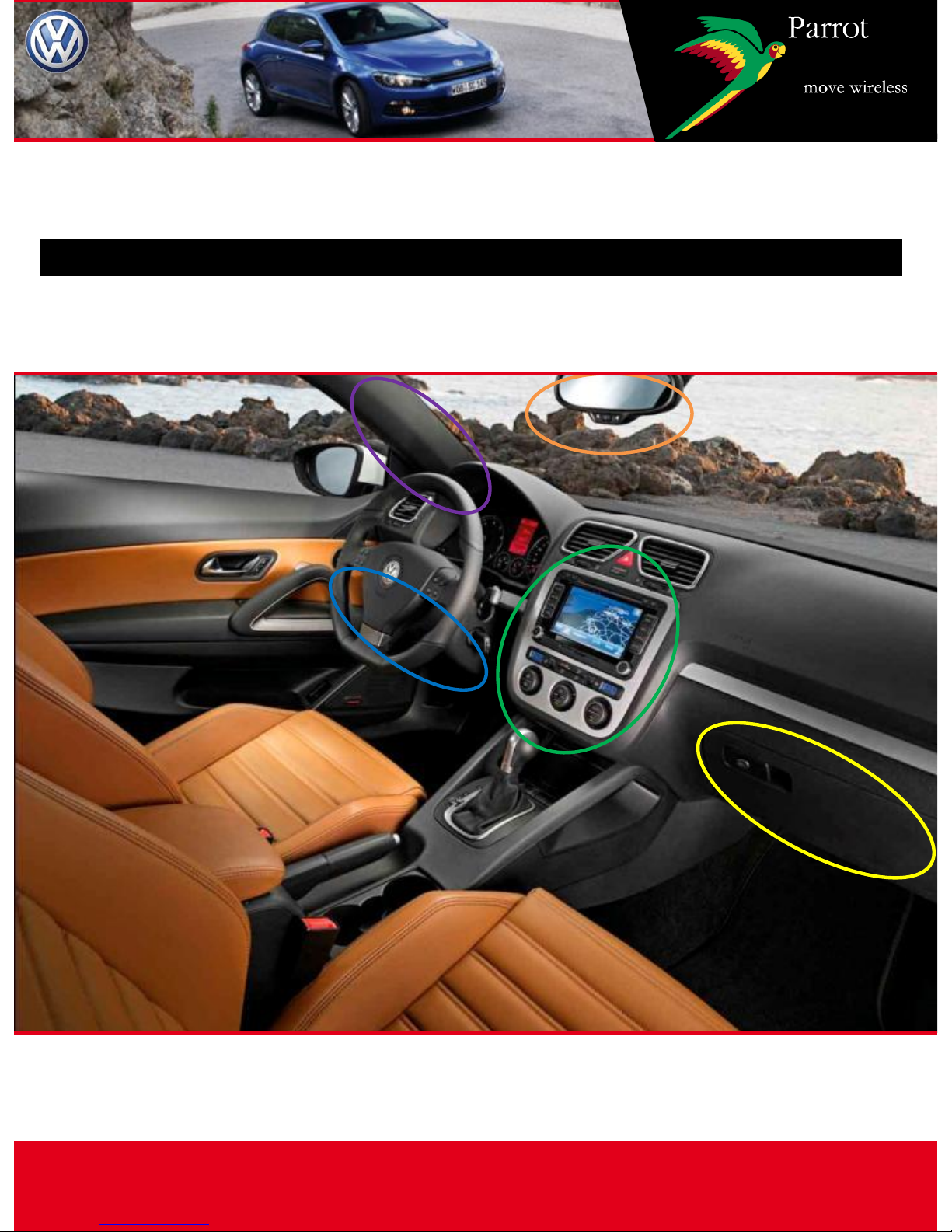

Disassembly
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

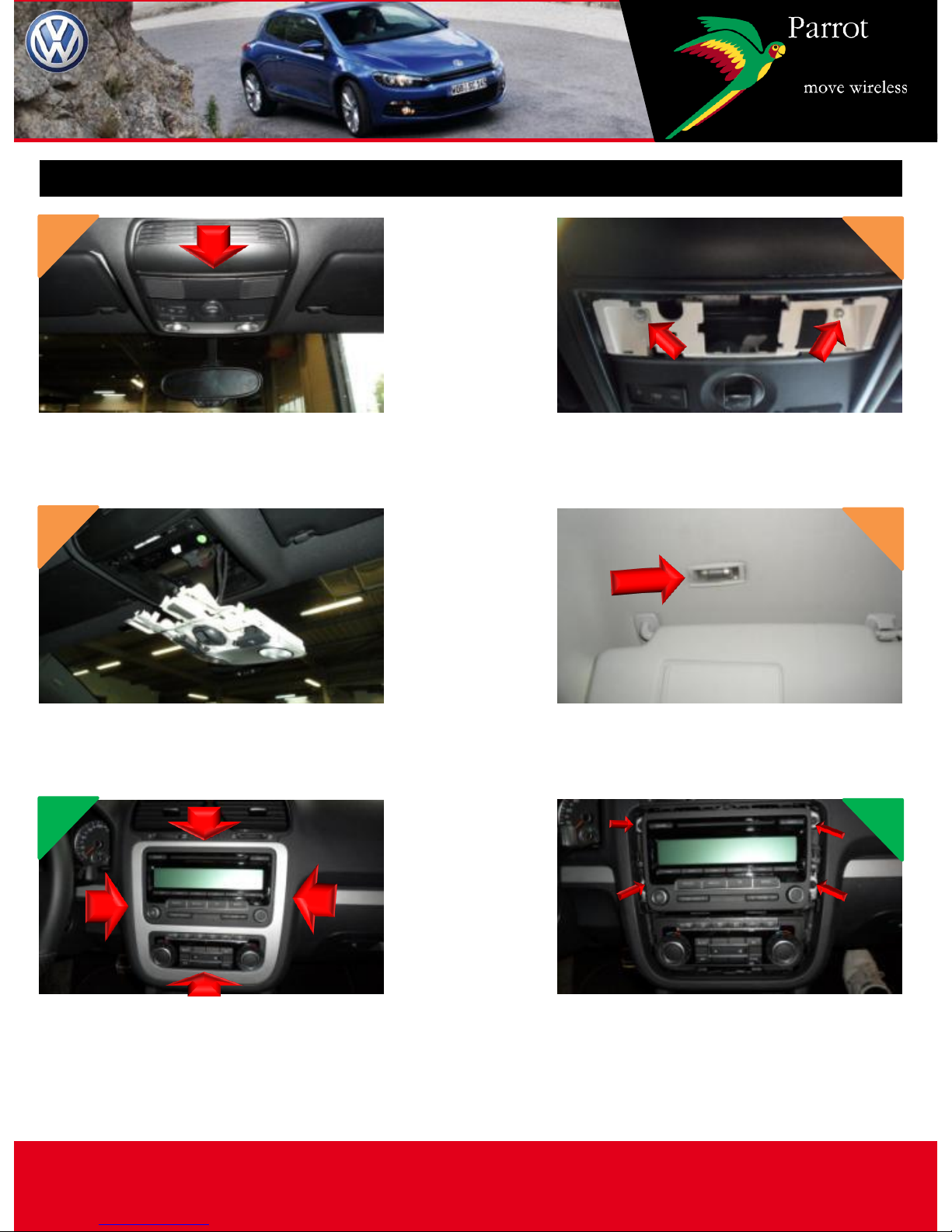

Disassembly 1 / 3
Release the panel by inserting the
plastic trim tools underneath. Remove screws 1 and 2.
Unclip the cabin light and
disconnect it.
Using the plastic trim tools,
unclip the courtesy light from the
left-hand side.
5 6
Using the plastic trim tools,
unclip the car stereo and air
conditioning surround. Unplug
the airbag indicator connector.
Remove screws 3, 4, 5 and 6
around the car stereo.
Disconnect the connector and
the aerial cables.
1 2
3
4
5
6
1
3
2
4
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

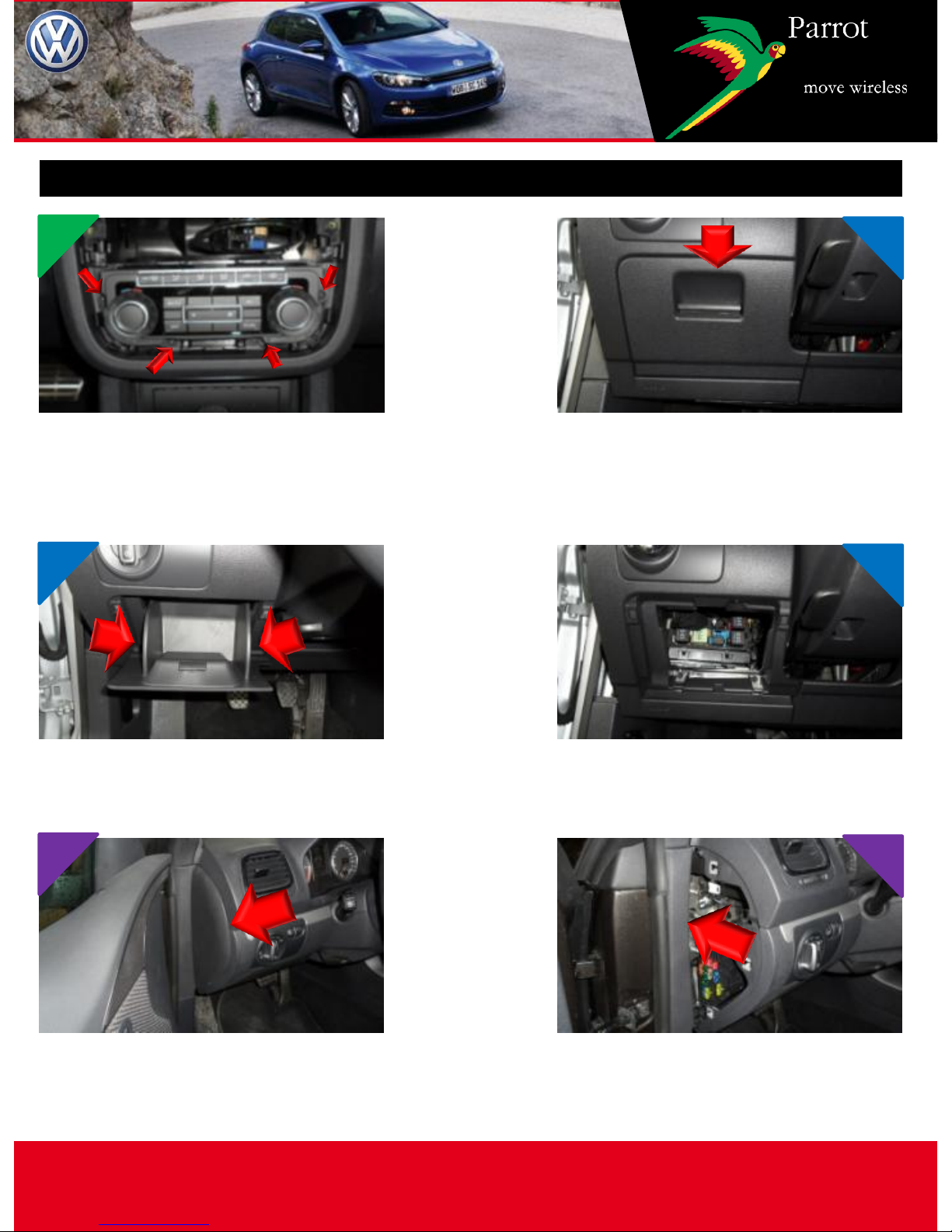

Disassembly 2 / 3
Remove screws 7, 8, 9 and 10
around the air conditioning
control unit, then remove it
without disconnecting it.
Open the storage compartment
under the steering wheel.
Press down on the tabs inside to
release the box. Pull up to unclip it.
7
9
8
10
11 12
Using the plastic trim tools,
unclip the side panel of the
dashboard on the driver's side.
Unclip the cover plate running
up the side of the door.
7
8 9
10
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

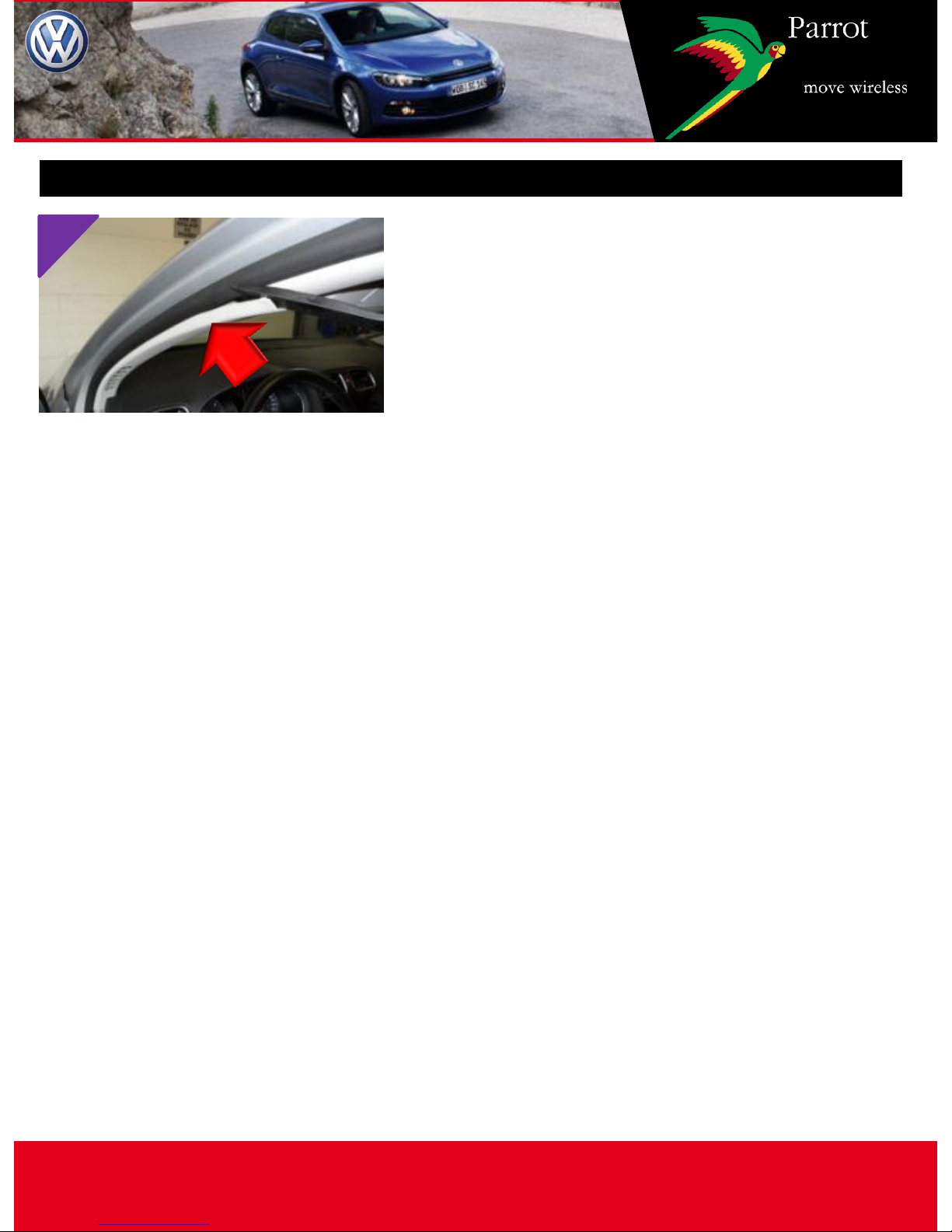

Disassembly 3 / 3
Remove the door seal.
13
9 10
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

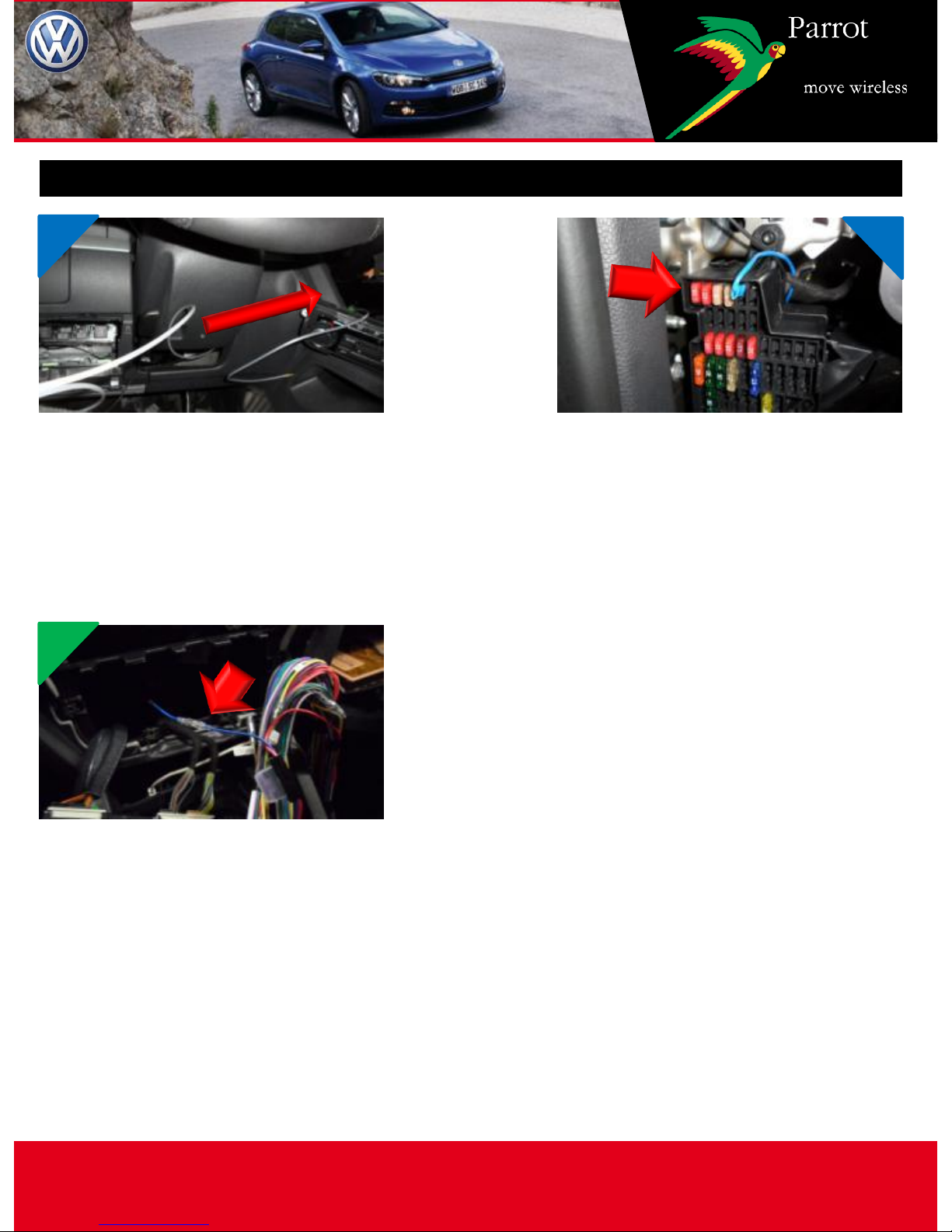

Finding an ACC wire
Using a guide, feed an electric
wire from under the steering
wheel to the air conditioning
control housing. Feed the wire to
the left into the fusebox housing.
Fit a 1.5 mm terminal and insert it
into one of the small fuse slots at
the top of the box (using a
multimeter, check that the +12V
supply is indeed controlled by the
ignition key).
Connect the +IGN wire using a
male round terminal to the blue
wire of the adapter in front of
the fuse holder.
1
3
2
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

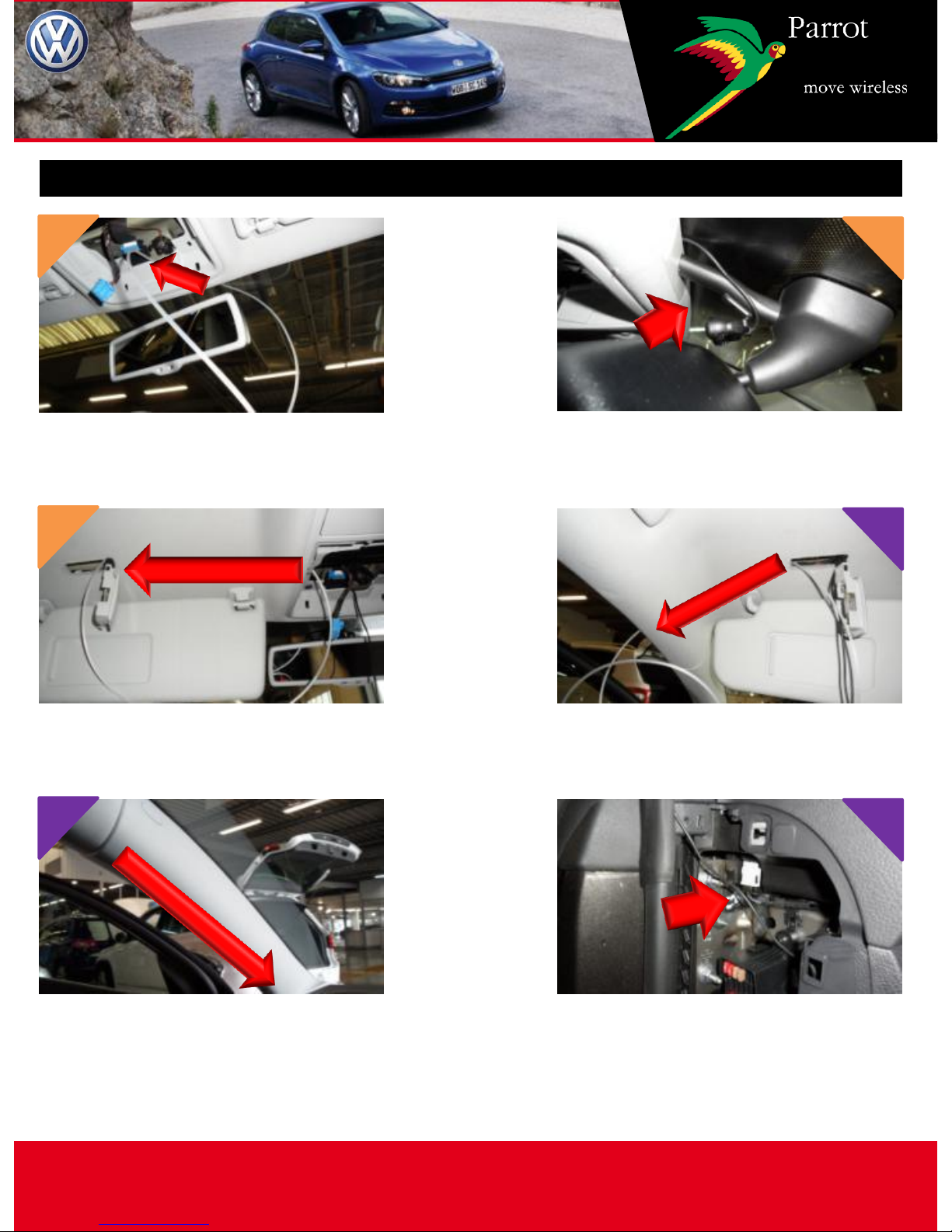

Wiring the microphone 1 / 2
Using a guide, feed the cable from
the windscreen to the cabin light.
Locate the microphone at the side
of the cabin light facing the user.
Using a guide, feed the cable
from the cabin light to the
courtesy light.
Using a guide, feed the cable
from the courtesy light to the
driver's side door.
4
5 6
Slide the cable along the driver's
door pillar while replacing the
door seal.
Pass the cable through the
fusebox.
1
3
2
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

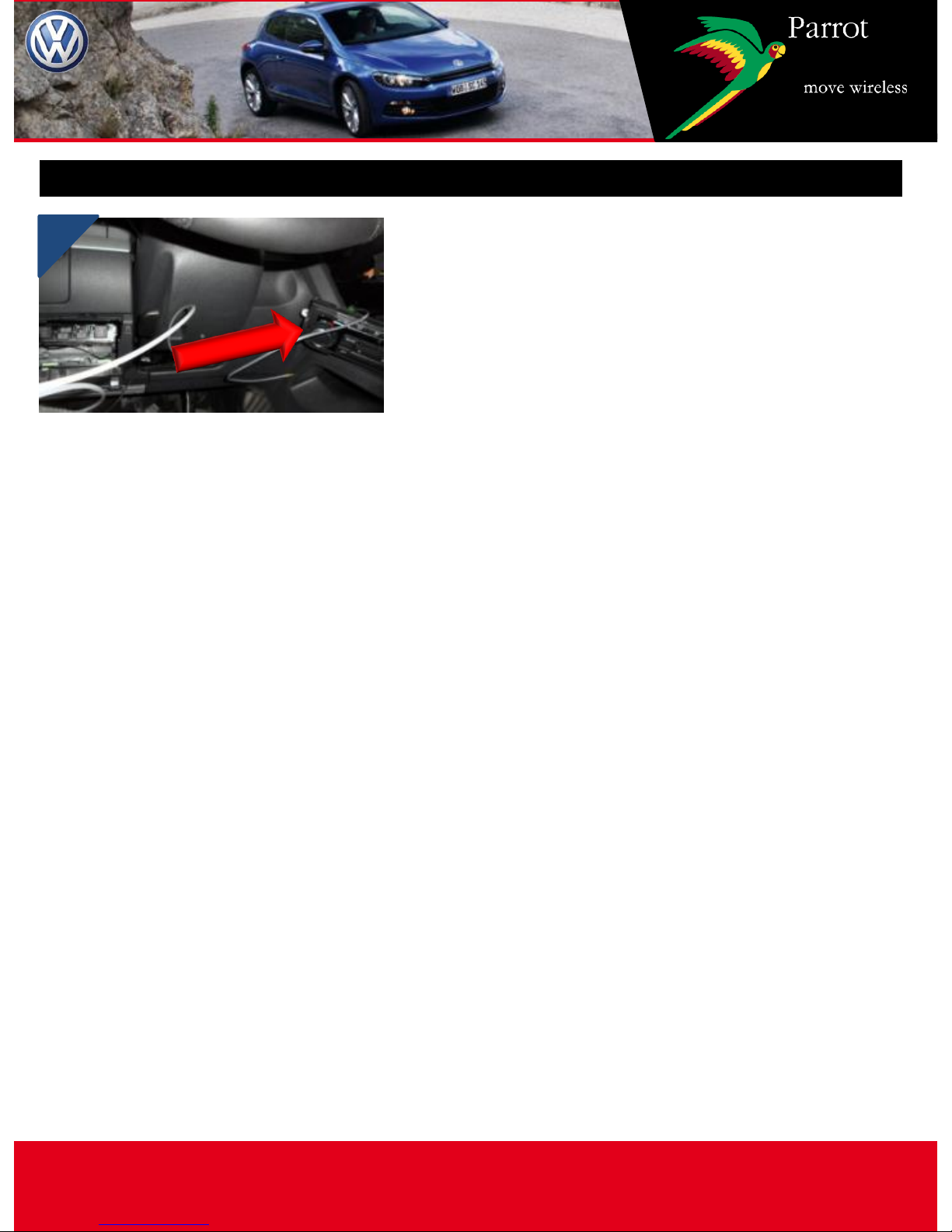

Wiring the microphone 2 / 2
Using a guide, feed the cable
under the steering wheel towards
the air conditioning unit control
housing.
7
SCIROCCO
The VOLKSWAGEN SCIROCCO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model SCIROCCO® year 2009, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

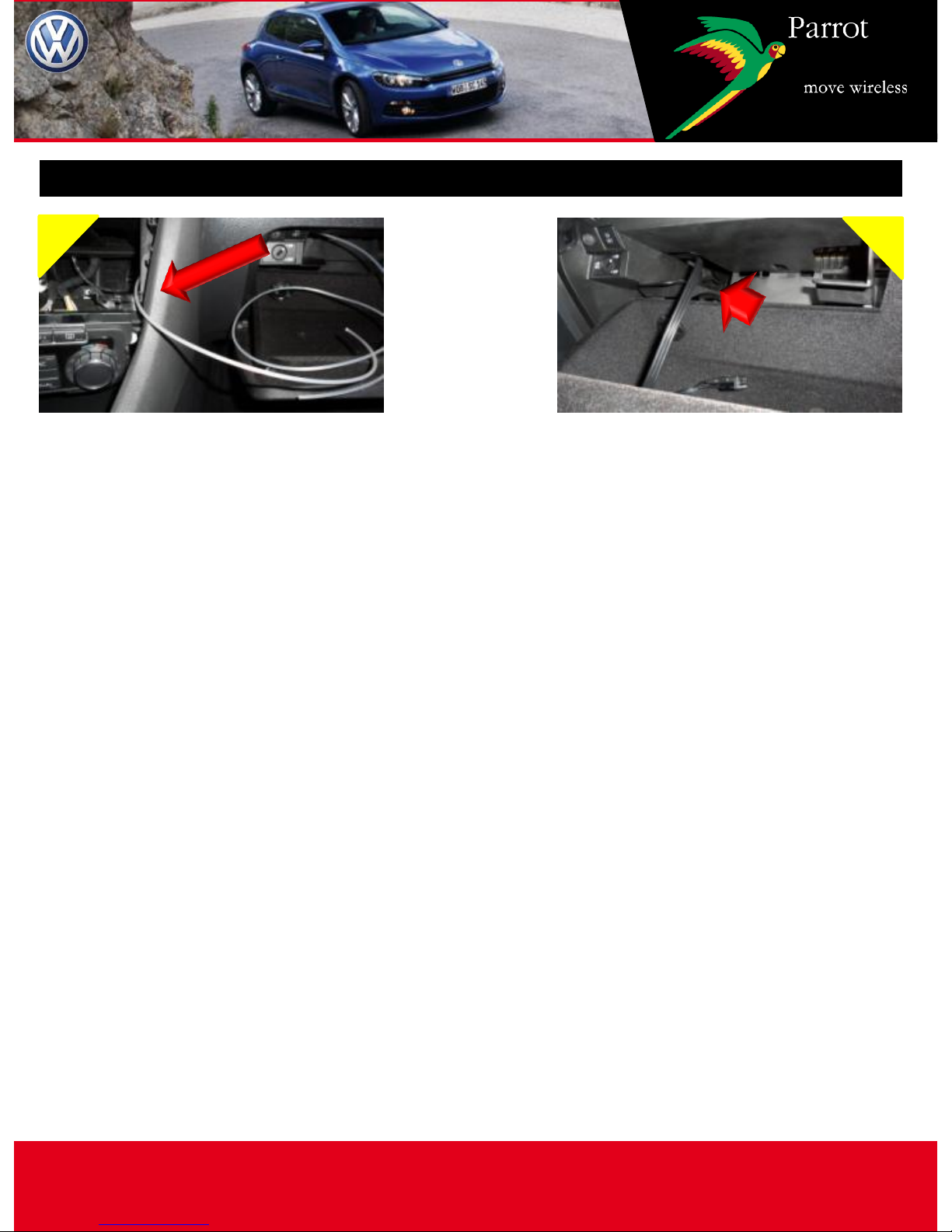

Feeding the accessory cable
Using a guide, feed the cable in
the top part of the glove
compartment through to the air
conditioning control unit housing.
Make sure that the cable is long
enough.
1 2
