Patriot Lighting ELI1433G Bedienungsanleitung

Includes (1) 3.7V 18650 1800mAH Li-ion rechargeable battery

LED

REF.

REF.REF.

REF. PARTS NAME

PARTS NAMEPARTS NAME

PARTS NAME

A Light fixture

B Spike

C Mounting strap

D 2 x screws

E 2 x plastic anchors

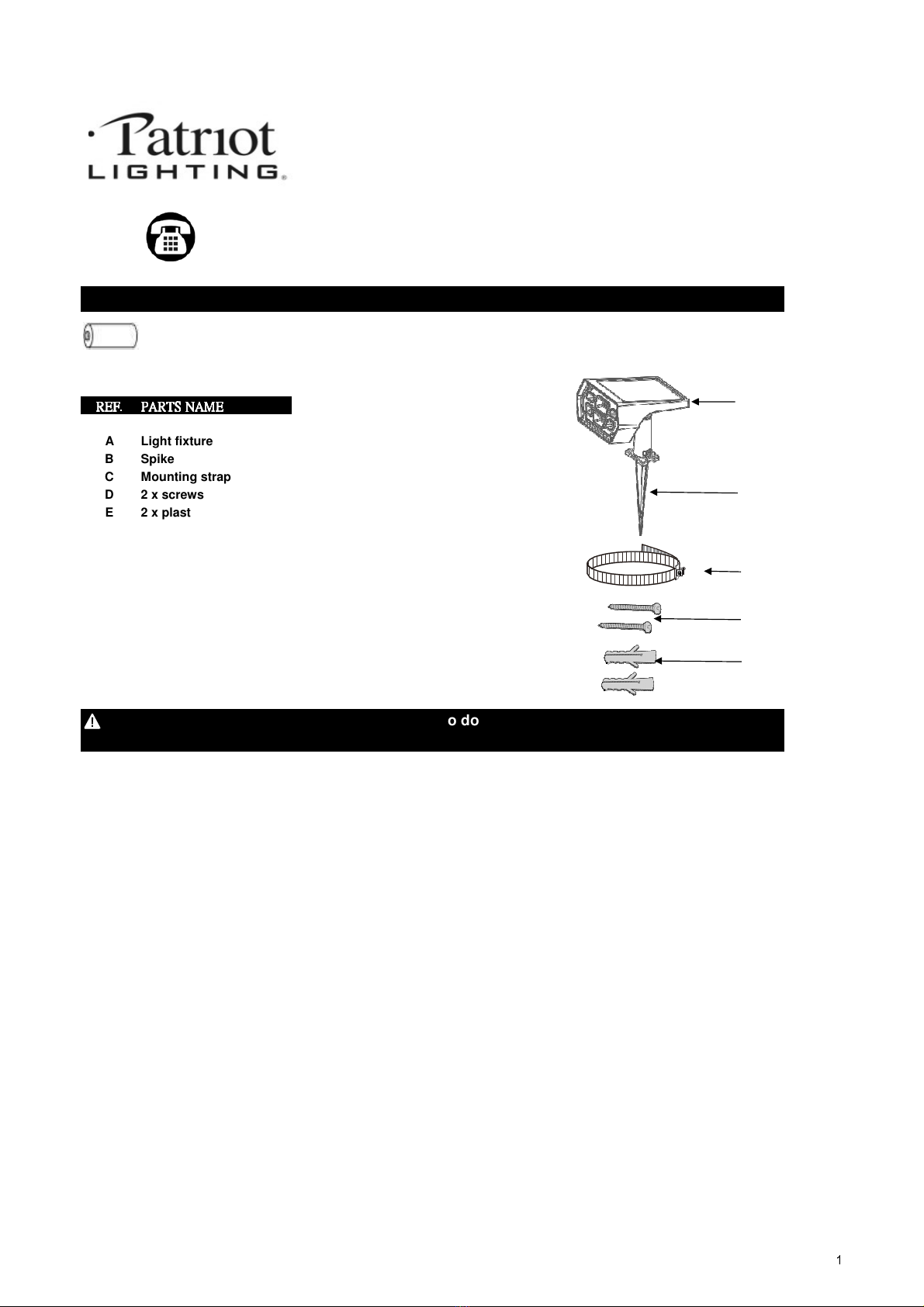

PACKAGE CONTENTS

Read all instructions before assembly. Failure to do so may result in faulty assembly and

potential injury.

FUNCTION: The built-in solar panel converts sunlight into electricity. The rechargeable battery stores the energy and converts

the power into light for use during the night. The lighting hours of the solar light depends on the geographical location and

weather condition. Stronger or longer exposure to sunlight enables the battery to store more energy and provide longer

lighting hours.

LOCATION: It is important to select an outdoor location with full, direct sunlight where the solar panel can receive at least 8

hours of sunlight each day. Shady areas will not enable batteries to be fully charged. This will reduce the lighting hours at

night. It is also important to avoid placing the solar light by light sources, such as street lights or porch lights, which may

cause the solar light to turn off automatically. The solar light is designated for outdoor usage and ideal for night lighting of

garden, paths, etc.

CLEANING AND MAINTENANCE: Please use a damp cloth to clean the solar panel. Do not use any chemical or abrasive

cleaner. It is important to ensure that no moisture enters into the solar light. Replacement parts may be ordered by using the

fixture model number and part's name; call the phone number located at the top and bottom of this instruction manual.

RECHARGEABLE BATTERY: This product contains (1) 3.7V 18650 1800mAH Li-ion rechargeable battery. When the battery

expires, it must be recycled or disposed of properly. Please contact your local waste disposal authority for correct procedure.

Do not put battery into fire.

Includes (12) warm white LEDs. The lifetime for LEDs is estimated to be 100,000 hours.

SKU Number: 343-4529

SOLAR SPOT LIGHT 600LM

Model Number: ELI1433G

Questions, problems, missing parts?

Before returning to your retailer, call our customer service at 855-232-6423

Monday – Friday 8:00 a.m. – 8:00 p.m. (EST)

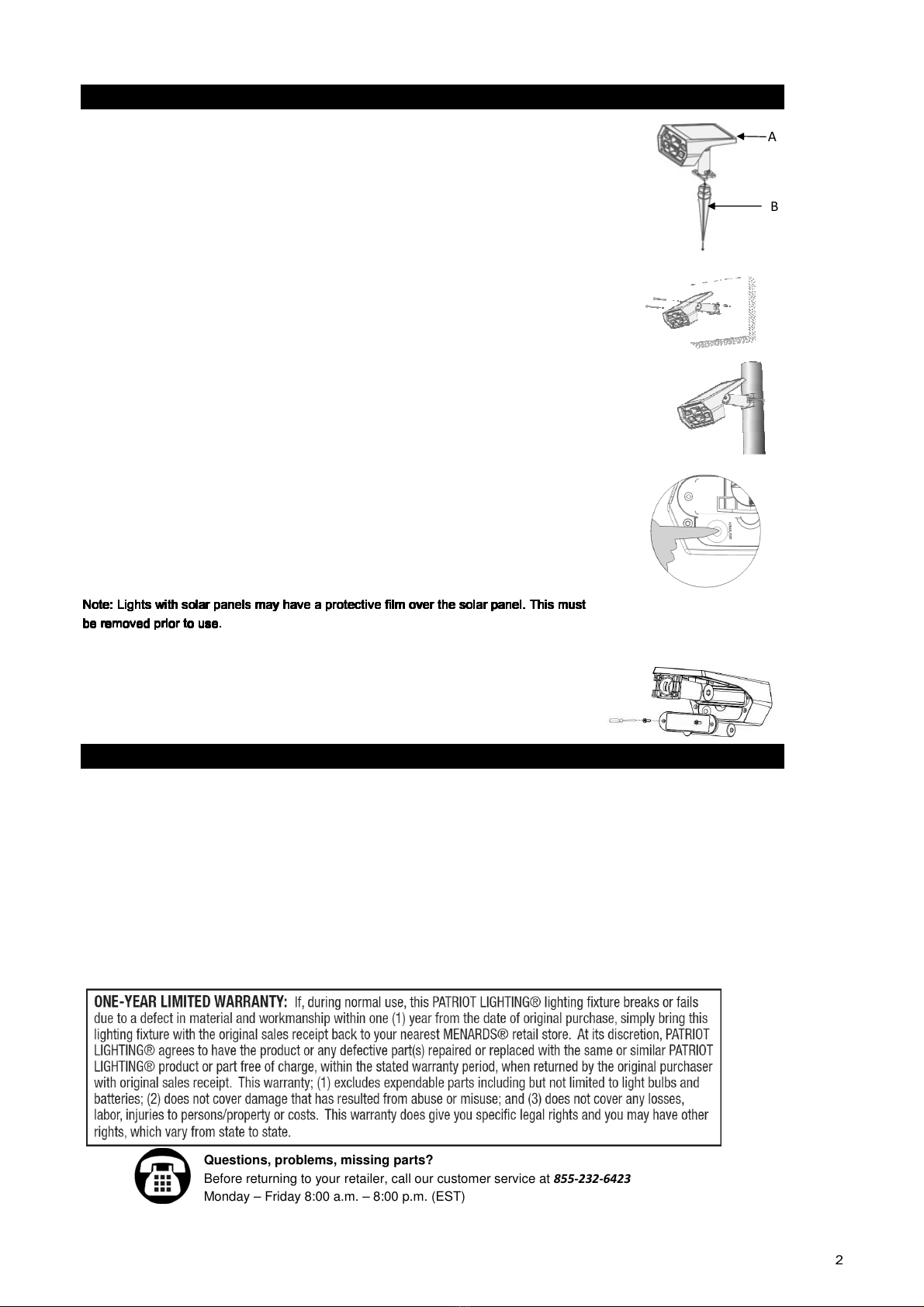

ASSEMBLY Figure 1

Figure 2

Figure 3

Figure 4

CHANGING BATTERIES (Figure 5) Figure 5

The light does not come on at night:

Lighting hours are short:

Check the location of the solar light. Make sure it is in a sunny area, and the battery can be fully charged during day time.

ASSEMBLY AND BATTERY REPLACEMENT INSTRUCTIONS

Check the rechargeable battery and make sure that it is in contact with the metal plate and the polarity is correct. If the

battery is worn out, replace the battery with a 3.7V 18650 1800mAH Li-ion rechargeable battery or 3.7V 18650 2000mAH Li-

ion rechargeable battery.

Pole mounting (Figure 3)

•Find a pole position where it can receive the best sunlight.

• Unscrew the Mounting strap (Part C) by using a flathead screwdriver. Thread the

Mounting strap (Part C) through the holes on the socket under the Light fixture (Part A).

Tighten the Mounting strap (Part C). Adjust the Light fixture (Part A) to your desired

direction.

• Gently remove all parts from the package and lay them out on a smooth surface.

Ground Spike (Figure 1)

• Insert the Spike (Part B) into the socket under the Light fixture (Part A).

• Stake the light into ground where it can receive the best sunlight, adjust the light to

your desired direction.

CAUTION: In compacted, clay, or hard soils, moisten the ground with water

before inserting the stake into the ground to avoid breakage.

• Never push the fixture into the ground by the fixture head.

Wall Mounting (Figure 2)

• Find a wall position where it can receive the best sunlight. Use the 2 x Plastic anchors

(Part E) and 2 x Screws (Part D) to install the Light fixture (Part A) to the wall.

Make sure the switch is not in the "OFF" position.

OPERATIONAL INSTRUCTIONS (Figure 4)

Always keep the solar light distant from other night light sources, such as exterior lights. Reposition the light to avoid close

contact with other night light sources.

Make sure solar panel is clean and free of dirt and debris. If needed use a damp cloth to clean the solar panel. Do not use

any chemical or abrasive cleaner. It is important to ensure that no moisture enters into the solar light.

• There are four optional lighting modes. To set High, Medium, Low or OFF lighting mode,

click the push button on the back of the Light fixture (Part A) in a loop. If you want to give

the battery a full charge or no longer use the light, please set to OFF position.

High mode: 600 lumens brightness, lights on for about 5 hours after full charge

Medium mode: 300 lumens brightness, lights on for about 6 hours after full charge

Low mode: 100 lumens brightness, lights on for about 8 hours after full charge

• Pull out the Light fixture (Part A) from the Spike (Part B).

• Take out the expired battery, insert a new one, making sure the polarity is correct.

• Reposition the battery compartment cover and fix tightly with the 2 screws.

• Unscrew the 2 screws in the battery compartment cover and remove the cover.

TROUBLESHOOTING

Note: Lights with solar panels may have a protective film over the solar panel. This must

Note: Lights with solar panels may have a protective film over the solar panel. This mustNote: Lights with solar panels may have a protective film over the solar panel. This must

Note: Lights with solar panels may have a protective film over the solar panel. This must

be removed prior to use.

be removed prior to use.be removed prior to use.

be removed prior to use.

Questions, problems, missing parts?

Before returning to your retailer, call our customer service at 855-232-6423

Monday – Friday 8:00 a.m. – 8:00 p.m. (EST)
