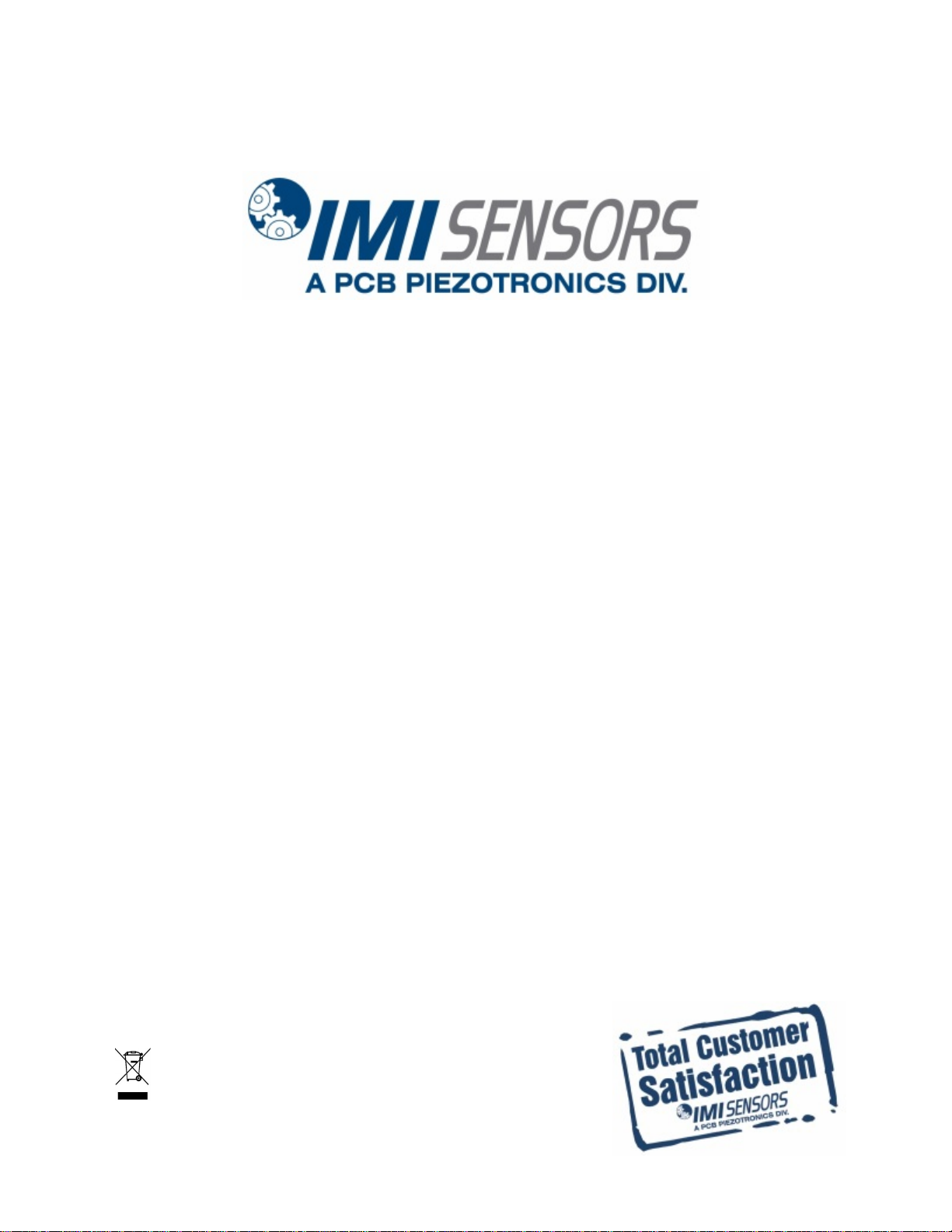

PCB Piezotronics IMI SENSORS 607M83 Bedienungsanleitung

Model 607M83

Industrial 3-Wire Accelerometer

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-959-4464

24-hour SensorLine: 716-684-0001

Fax: 716-684-3823

E-mail: [email protected]

Web: www.imi-sensors.com

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

Total Customer Satisfaction –PCB

Piezotronics guarantees Total Customer

Satisfaction. If, at any time, for any

reason, you are not completely satisfied

with any PCB product, PCB will repair,

replace, or exchange it at no charge.

You may also choose to have your

purchase price refunded in lieu of the

repair, replacement, or exchange of the

product.

Service –Due to the sophisticated

nature of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted,

may void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to insure that liquids are not permitted to

migrate into devices that are not

hermetically sealed. Such devices

should only be wiped with a dampened

cloth and never submerged or have

liquids poured upon them.

Repair –In the event that equipment

becomes damaged or ceases to

operate, arrangements should be made

to return the equipment to PCB

Piezotronics for repair. User servicing or

repair is not recommended and, if

attempted, may void the factory

warranty.

Calibration –Routine calibration of

sensors and associated instrumentation

is recommended as this helps build

confidence in measurement accuracy

and acquired data. Equipment

calibration cycles are typically

established by the users own quality

regimen. When in doubt about a

calibration cycle, a good “rule of thumb”

is to recalibrate on an annual basis. It is

also good practice to recalibrate after

exposure to any severe temperature

extreme, shock, load, or other

environmental influence, or prior to any

critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceability to SI through

N.I.S.T. In addition to the normally

supplied calibration, special testing is

also available, such as: sensitivity at

elevated or cryogenic temperatures,

phase response, extended high or low

frequency response, extended range,

leak testing, hydrostatic pressure

testing, and others. For information on

standard recalibration services or

special testing, contact your local PCB

Piezotronics distributor, sales

representative, or factory customer

service representative.

Returning Equipment –Following

these procedures will insure that your

returned materials are handled in the

most expedient manner. Before

Warranty, Service, Repair, and

Return Policies and Instructions

returning any equipment to PCB

Piezotronics, contact your local

distributor, sales representative, or

factory customer service representative

to obtain a Return Warranty, Service,

Repair, and Return Policies and

Instructions Materials Authorization

(RMA) Number. This RMA number

should be clearly marked on the outside

of all package(s) and on the packing

list(s) accompanying the shipment. A

detailed account of the nature of the

problem(s) being experienced with the

equipment should also be included

inside the package(s) containing any

returned materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as

they do not exceed 50% of the

replacement cost of the returned

item(s). PCB will provide a price

quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the

Purchase Order should include

authorization to proceed and return at

current pricing, which can be obtained

from a factory customer service

representative.

Warranty –All equipment and repair

services provided by PCB Piezotronics,

Inc. are covered by a limited warranty

against defective material and

workmanship for a period of one year

from date of original purchase. Contact

PCB for a complete statement of our

warranty. Expendable items, such as

batteries and mounting hardware, are

not covered by warranty. Mechanical

damage to equipment due to improper

use is not covered by warranty.

Electronic circuitry failure caused by the

introduction of unregulated or improper

excitation power or electrostatic

discharge is not covered by warranty.

Contact Information –International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative

or a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and

general contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: C

ECN: 45605

Component Name

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl

Ethers (PBDE)

Housing

PCB Board

Electrical

Connectors

Piezoelectric

Crystals

Epoxy

Teflon

Electronics

Thick Film

Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above

the limit requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

A A

B B

CODE

IDENT. NO.

52681

DWG. NO.

SCALE: SHEET

DRAWN CHECKED ENGINEER

TITLE

UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:

DIMENSIONS IN MILLIMETERS

[ IN BRACKETS ]

XX ±0.13

ANGLES 2 DEGREES

3425 WALDEN AVE. DEPEW, NY 14043

(716) 684-0001 E-MAIL: sales@pcb.com

DIMENSIONS IN INCHES

DECIMALS XX ±.01

ANGLES 2 DEGREES

FILLETS AND RADII

.003 - .005

DECIMALS X ± 0.3

FILLETS AND RADII

0.07 - 0.13

INSTALLATION DRAWING

18551

1 OF 1

FULL

MODEL 607 SERIES

XXX ±.005

JDM 10/9/14 ECB 10/9/14 DRK 10/9/14

18551

PCB Piezotronics Inc. claims proprietary rights in

the information disclosed hereon. Neither it nor any

reproduction thereof will be disclosed to others

without the written consent of PCB Piezotronics Inc.

REVISIONS

REV DESCRIPTION DIN

B ADDED METRIC MOUNTING INFORMATION 43341

FIG 1: A 1/8" HEX ALLEN

KEY IS REQUIRED FOR THE ENGLISH

MOUNTING STUD. A 3MM HEX

ALLEN KEY IS REQUIRED FOR THE

METRIC MOUNTING STUD. APPLY

SILICONE GREASE TO ALL MOUNTING

SURFACES (SEE ARROWS FIG 1 & 2)

FIG 2: TIGHTEN THE

MOUNTING STUD USING

THE ALLEN KEY. TORQUE

THE MOUNTING STUD TO

WITHIN 3 TO 4 FT-LBS.

(4.1 TO 5.4 Nm)

FIG 3: THREAD THE SENSOR'S

HEX NUT ONTO THE MOUNTING

STUD. POSITION THE CABLE OR

CONNECTOR TO THE DESIRED

LOCATION AND HAND TIGHTEN

THE HEX NUT.

FIG 4: TIGHTEN THE HEX

NUT USING A TORQUE WRENCH

TO WITHIN 2 TO 3 FT-LBS

(2.7 TO 4.1 Nm) WHILE HOLDING

THE CABLE OR CONNECTOR

IN THE DESIRED LOCATION.

FIG 5: IF FOR ANY REASON THE MOUNTING

STUD DOES NOT

DISENGAGE FROM THE SENSOR, USE A

FLAT HEAD SCREW DRIVER

TO HOLD THE STUD WHILE TURNING THE

HEX NUT COUNTERCLOCKWISE

WITH A WRENCH.

SILICONE GREASE

METRIC MOUNTING HOLE PREPARATION:

DRILL Ø.199[Ø5.05] .300[7.62] MIN

TAP M6 X 1-6g .200[5.08] MIN

ENGLISH MOUNTING HOLE PREPARATION:

DRILL Ø.218[Ø5.54] .300[7.62] MIN

TAP 1/4-28 UNF-2B .200[5.08] MIN

3.) FOR BEST RESULTS, PLACE A THIN LAYER OF SILICONE GREASE (DOW CORNING #4 OR EQUIVALENT) ON

INTERFACE PRIOR TO MOUNTING.

MOUNTING SURFACE SHOULD BE FLAT TO WITHIN .001[0.03] TIR WITH A MINIMUM 63 [1.6 ] FINISH FOR BEST RESULTS.

DRILL PERPENDICULAR TO MOUNTING SURFACE TO WITHIN ±1°

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PCB Piezotronics Messgerät Handbücher

PCB Piezotronics

PCB Piezotronics IMI SENSORS ICP HTM628F01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics SM101A06 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 604B61/-0003 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI Sensors 607A62 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics PCB-339A31 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI Sensors M648A00 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics Platinum Swiveler 607A11/020AD Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics J353B11 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 134A22 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 646B11 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics Triaxial ICP PCB-339A31/NC Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 3503A112KG Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SESNSORS 601A02 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 080A181 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS ICP HT602D11 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics J353B17 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics J352C67 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP HT352A25 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 3501B122KG Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS Spindler 607A60 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics P357A09/NC Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 350B23 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 3741F122G Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics P357B21 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung

Acterna

Acterna MS1400 Bedienungsanleitung
