Model 377A13

Precision Condenser Microphone

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-828-8840

24-hour SensorLine: 716-684-0001

Fax: 716-684-0987

E-mail: [email protected]

Web: www.pcb.com

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

Total Customer Satisfaction – PCB

Piezotronics guarantees Total Customer

Satisfaction. If, at any time, for any

reason, you are not completely satisfied

with any PCB product, PCB will repair,

replace, or exchange it at no charge. You

may also choose to have your purchase

price refunded in lieu of the repair,

replacement, or exchange of the product.

Service – Due to the sophisticated nature

of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted, may

void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to insure that liquids are not permitted to

migrate into devices that are not

hermetically sealed. Such devices should

only be wiped with a dampened cloth

and never submerged or have liquids

poured upon them.

Repair – In the event that equipment

becomes damaged or ceases to operate,

arrangements should be made to return

the equipment to PCB Piezotronics for

repair. User servicing or repair is not

recommended and, if attempted, may

void the factory warranty.

Calibration – Routine calibration of

sensors and associated instrumentation is

recommended as this helps build

confidence in measurement accuracy and

acquired data. Equipment calibration

cycles are typically established by the

users own quality regimen. When in

doubt about a calibration cycle, a good

“rule of thumb” is to recalibrate on an

annual basis. It is also good practice to

recalibrate after exposure to any severe

temperature extreme, shock, load, or

other environmental influence, or prior

to any critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceablility to N.I.S.T. In

addition to the normally supplied

calibration, special testing is also

available, such as: sensitivity at elevated

or cryogenic temperatures, phase

response, extended high or low

frequency response, extended range, leak

testing, hydrostatic pressure testing, and

others. For information on standard

recalibration services or special testing,

contact your local PCB Piezotronics

distributor, sales representative, or

factory customer service representative.

Returning Equipment – Following

these procedures will insure that your

returned materials are handled in the

most expedient manner. Before returning

any equipment to PCB Piezotronics,

contact your local distributor, sales

representative, or factory customer

service representative to obtain a Return

Warranty, Service, Repair, and

Return Policies and Instructions

Materials Authorization (RMA)

Number. This RMA number should be

clearly marked on the outside of all

package(s) and on the packing list(s)

accompanying the shipment. A detailed

account of the nature of the problem(s)

being experienced with the equipment

should also be included inside the

package(s) containing any returned

materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as they

do not exceed 50% of the replacement

cost of the returned item(s). PCB will

provide a price quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the Purchase

Order should include authorization to

proceed and return at current pricing,

which can be obtained from a factory

customer service representative.

Warranty – All equipment and repair

services provided by PCB Piezotronics,

Inc. are covered by a limited warranty

against defective material and

workmanship for a period of one year

from date of original purchase. Contact

PCB for a complete statement of our

warranty. Expendable items, such as

batteries and mounting hardware, are not

covered by warranty. Mechanical

damage to equipment due to improper

use is not covered by warranty.

Electronic circuitry failure caused by the

introduction of unregulated or improper

excitation power or electrostatic

discharge is not covered by warranty.

Contact Information – International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative or

a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and general

contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY 14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: B

ECN: 17900

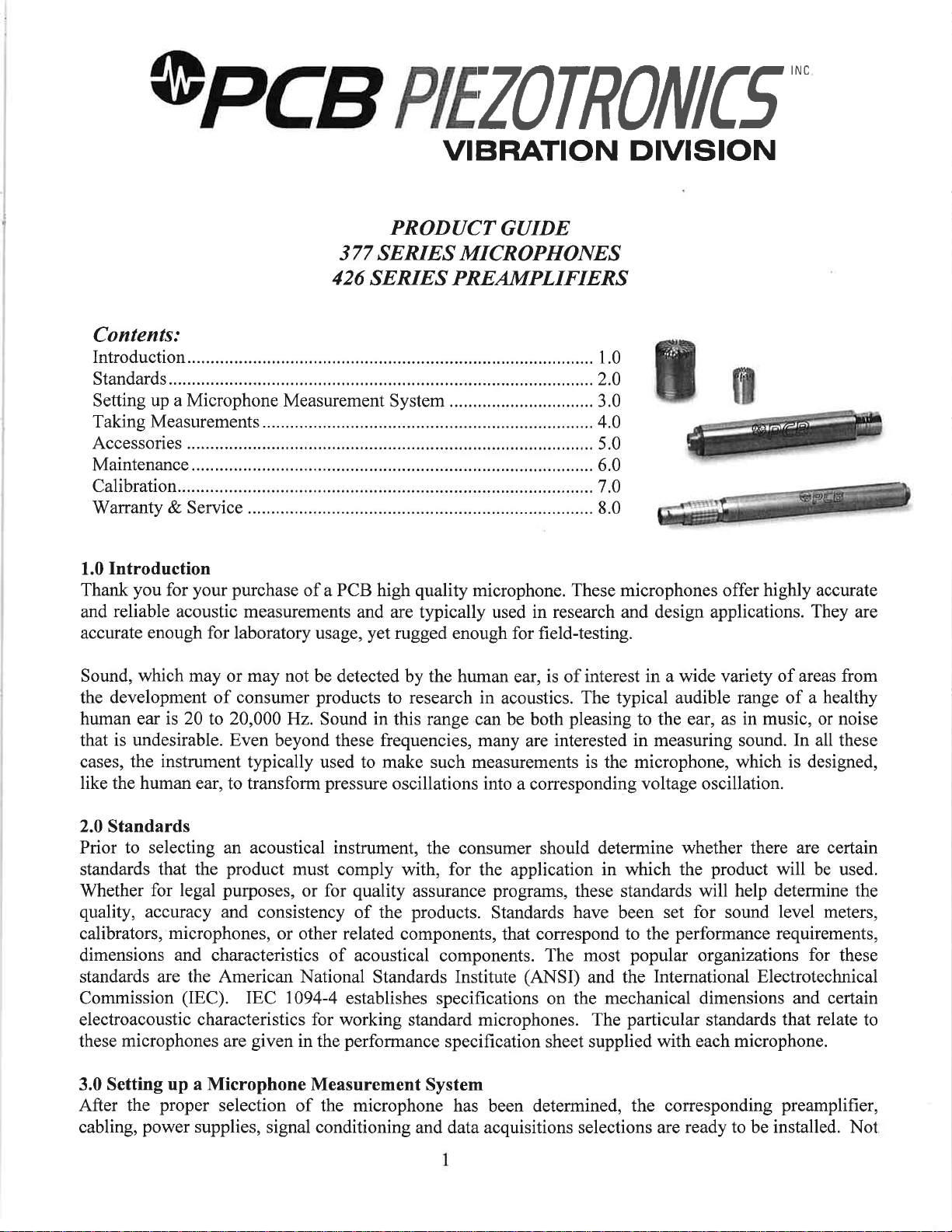

Model Number

377A13

PRECISION CONDENSER MICROPHONE

Revision: D

ECN #: 42896

Performance

ENGLISH

Nominal Microphone Diameter

1/2"

Frequency Response Characteristic

Pressure

Open Circuit Sensitivity

12.6 mV/Pa

[3]

Open Circuit Sensitivity(± 2 dB)

-38.0 dB re 1 V/Pa

[3]

Frequency Range(± 2 dB)

4 to 20,000 Hz

Lower Limiting Frequency(-3 dB)

1.0 to 3.0 Hz

Resonant Frequency(90° Phase Shift)

18,500 Hz

[1]

Inherent Noise

<20 dB(A) re 20

µPa

<20 dB(A) re 20

µPa

Dynamic Range(3% Distortion Limit)

>155 dB re 20 µPa

Standards Designation(IEC 61094-4)

WS2P

Environmental

Temperature Range(Operating)

-40 to +248 °F

-40 to +120 °C

Temperature Coefficient of Sensitivity(+14 to +158°F (-10 to +70°C)) 0.004 dB/°F

0.008 dB/°C

[1][3]

Static Pressure Coefficient

-0.005 dB/kPa

[1][3]

Humidity Coefficient of Sensitivity(0 to 100%, non-condensing)

± 0.001 dB/%RH

[3]

Influence of Axial Vibration(0.1g (1 m/s²))

66 dB re 20 µPa

[1]

Electrical

Capacitance(Polarized)

14 pF

[1]

Polarization Voltage

0 V

[2]

Physical

Housing Material

Stainless Alloy

Venting

Rear

Mounting Thread(Preamplifier)

0.4606 - 60 UNS

11.7 mm - 60 UNS

Mounting Thread(Grid)

0.5 - 60 UNS

12.7 mm - 60 UNS

Size (Diameter x Height)(with grid)

0.52 in x 0.5 in

13.2 mm x 12.7

Size (Diameter x Height)(without grid)

0.5 in x 0.47 in

12.7 mm x 11.9

Weight

0.23 oz

6.5 gm

[1]

All specifications are at room temperature unless otherwise specified.

In the interest of constant product improvement, we reserve the right to change specifications without notice.

ICP

is a registered trademark of PCB Group, Inc.

OPTIONAL VERSIONS

Optional versions have identical specifications and accessories as listed for the standard model

except where noted below. More than one option may be used.

NOTES:

[1]

Typical.

[2]

Prepolarized

[3]

re 250 Hz

SUPPLIED ACCESSORIES:

Model ACS

20 Calibration of Precision Condensor Microphones (1)

Entered: AP Engineer: MJN Sales: MV

Approved: MT

Spec Number:

Date: 5/7/2014 Date: 5/7/2014 Date: 5/7/2014 Date: 5/7/2014

37188

3425 Walden Avenue, Depew, NY 14043

Phone: 716-684-0001

Fax: 716-684-0987

E-Mail: info@pcb.com

CODE

IDENT. NO.

52681

DWG. NO.

SCALE: SHEET

DRAWN CHECKED ENGINEER

TITLE

UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:

DIMENSIONS IN MILLIMETERS

[ IN BRACKETS ]

ANGLES 2 DEGREES

3425 WALDEN AVE. DEPEW, NY 14043

(716) 684-0001 E-MAIL: [email protected]

DIMENSIONS IN INCHES

ANGLES 2 DEGREES

FILLETS AND RADII

.003 - .005

FILLETS AND RADII

0.07 - 0.13

OUTLINE DRAWING

29288

1 OF1

1/2" PRE-POLARIZED

MICROPHONES

DECIMALS XX ±.03

XXX ±.010

DECIMALS X ± 0.8

XX ± 0.25

JDM 9/14/05 ECB 9/14/05 CCL 9/14/05

A A

B B

.60 [15.3]

.64 [16.4]

.36 [9.2]

.50 [12.7] .4606-60 UNS

[11.7 mm-60 UNS]

THREADS

.52 [13.2]



.47 [12.0]

.48 [12.1]

.5000-60 UNS

[12.7mm-60 UNS]

THREADS

DIAPHRAGM

WITH GRID CAP WITHOUT GRID CAP

.04[1.0]

BLACK O-RING

REVISIONS

REV DESCRIPTION DIN

NR RELEASED TO DRAFTING

29288

PCB Piezotronics Inc. claims proprietary rights in

the information disclosed hereon. Neither it nor any

reproduction thereof will be disclosed to others

without the written consent of PCB Piezotronics Inc.

Andere PCB Piezotronics Mikrofon Handbücher

PCB Piezotronics

PCB Piezotronics 130E21 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 130B40 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377B11 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377B01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 378A12 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 130A23 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377A53 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377A60 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377B20 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377 Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377B13 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377A42 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 353B15 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377B10 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics PCB-376B02 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377C41 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 130E20 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377C01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377A12 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 355B03 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 130E21 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 130D22 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377 Series Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 377 Series Bedienungsanleitung

Beliebte Mikrofon Handbücher anderer Marken

IK Multimedia

IK Multimedia iRig Stream MIC PRO Bedienungsanleitung

DAPAudio

DAPAudio RM-101 Bedienungsanleitung

AKG

AKG CHM 21 Bedienungsanleitung

Sennheiser

Sennheiser evolution wireless series EM 100 Bedienungsanleitung

Sony

Sony C-48 Bedienungsanleitung

GIGAMEDIA

GIGAMEDIA GGM PAMICUHFG Bedienungsanleitung

Shure

Shure WH30TQG Bedienungsanleitung

auna PRO

auna PRO MIC-900 Bedienungsanleitung

AKG

AKG D 3800 Bedienungsanleitung

Shure

Shure KSM141 Bedienungsanleitung

MAIIN SOUND

MAIIN SOUND IIN style Bedienungsanleitung

Earthworks

Earthworks TC25 Bedienungsanleitung

Sennheiser

Sennheiser evolution D1 Bedienungsanleitung

Alesis

Alesis MicLink Wireless Bedienungsanleitung

DSPPA

DSPPA D6234 Bedienungsanleitung

Monacor

Monacor IMG STAGELINE ECM-300B Bedienungsanleitung

Ansr Audio

Ansr Audio Scan16 Bedienungsanleitung

Shure

Shure MXA710 Series Bedienungsanleitung
