Perlesmith PSTVMC03 Bedienungsanleitung
TV Cart Instruction Manual
Model:PSTVMC03
V3.0
Thank you for choosing this Perlesmith product! At Perlesmith
we strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others on www.perlesmith.com/pages/reviews if
you are satisfied. Should you have any issues, please don't
hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US/CA/DE/UK/FR/IT/ES/AU)
Minimum VESA pattern: 200mm/8 in.(W)x100mm/4 in.(H)
Check the VESA Pattern of Your TV before You Begin the Installation
If your TV VESA is greater than 600x400 mm/23x16 in. or less than VESA
200x100 mm/8x4 in., this TV cart is NOT compatible.
If this TV cart is NOT compatible, please contact customer service at
[email protected] to find a compatible product.
IMPORTANT SAFTY INFORMATION
• Please read through these instructions completely before attempting installation. If you
do not understand the instructions or have any concerns or questions, please contact
• Check package contents against Supplied Parts and Hardware List to assure that all
components were received undamaged. Do not use damaged or defective parts. lf you
require replacement parts, contact customer service at [email protected]
• Not all parts and hardware included will be used.
• Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaim any liability for injury or damage arising from
incorrect assembly, incorrect mounting, or incorrect use of this product.
• Please check www.perlesmith.com for more products and company information.
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIP OVER. TO HELP
PREVENT TIP OVER:
● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF TV OR TV CART.
● USE TIP OVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIP OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
TIP OVER WARNING
MAX:600mm/23 in.
MAX:400mm/16 in.
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
100 mm ≈ 4 in.
300 mm ≈ 11 3/4 in.
600 mm ≈ 23 6/10 in.
010 02 03 04 05 06 07 08 09 10 11 12 13 14
A (4pcs)
M6x12mm
Bolt
B (4pcs)
M6x35mm
Bolt
C (4pcs)
M8x25mm
Bolt
D (4pcs) E (4pcs)
M8x35mm
Bolt
F (4pcs)
M8x50mm
Bolt
M8x45mm
Bolt
G (4pcs) H (8pcs)
M6/M8
Washer
2.5mm
Spacer
I (4pcs) J (4pcs)
10mm
Spacer
22mm
Spacer
Hardware for Attaching TV Brackets to TV
A1 (4pcs)
M6x12mm
A2 (2pcs)
H2 (1pc) J2 (2pcs)
F2 (1pc)
G2 (1pc)
Wrench (1pc) Cable Tie (3pcs)
I1 (1pc) J1 (1pc)
Socket Wrench (1pc)
I2 (1pc)
B2 (2pcs) C2 (1pc) D2 (2pcs)
B1 (2pcs)
M8x20mm M5x12mmM8x50mm
D1 (4pcs)
M6
C1 (2pcs) E1 (4pcs) F1 (4pcs) G1 (2pcs) H1 (2pcs)
K2 (2pcs)
M8
Cable Tie Organizer
for keeping
cables organized

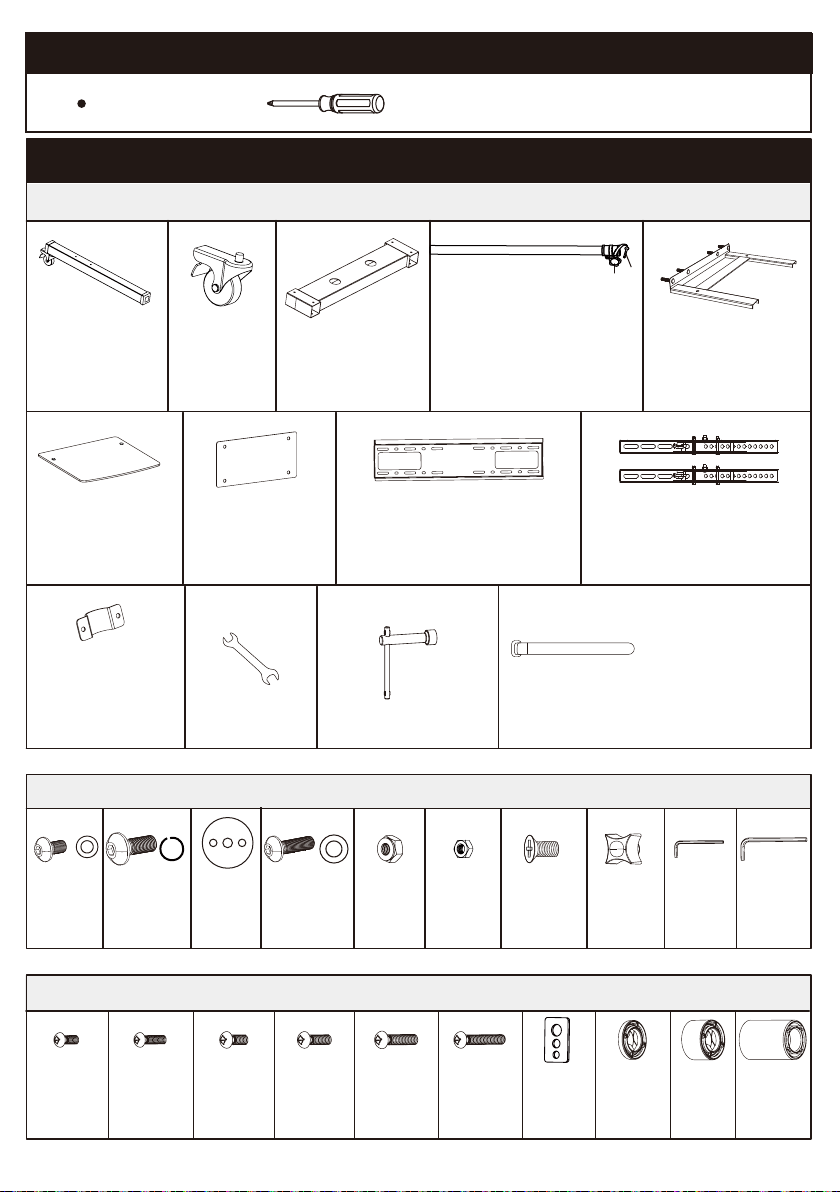

SUPPLIED PARTS AND HARDWARE
The upper pole can be
stretched from the lower pole.
Supplied Parts
Hardware for Assembling the TV Cart
Phillips Screwdriver
TOOLS NEEDED (NOT lNCLUDED)
L
K
Square Tube Caster Pole Assembly Glass Shelf Support
Glass Shelf Support Plate Square Plate TV Bracket
Shelf Support
Connector
5mm
Allen Key
4mm
Allen Key
Tube and
Pole Connector
Bolt Washer Bolt Washer Nut Nut Bolt Knob
Bolt Ring Washer
with 3
Holes
010 02 03 04 05 06 07 08 09 10 11 12 13 14
A2(2pcs) B2(2pcs) C2(1pc) A1(4pcs) I1(1pc)
Please tighten
the bolts [A1]
A1
I1
B2
A2
C2
STEP 1 Assemble the Base
STEP 1-1
STEP 1-2
Slide the tube and pole connector [C2] onto the square tubes [A2].
Secure the base using bolts and washers [A1]. Attach casters [B2]
to the square tubes [A2] using the provided allen key [I1].
Back
Front
Back
Front
Wrench
4mm [I1]
Allen Key
010 02 03 04 05 06 07 08 09 10 11 12 13 14
D2(2pcs) B1(2pcs) C1(2pcs) J1(1pc)
Secure Pole Assembly to Base
STEP 2
Step 2-1 Adjust the height of the pole assembly.
Step 2-1-1 Loosen the knobs then stretch the upper poles from the lower poles.
Step 2-1-2 Adjust the upper poles to your desired height.
Step 2-1-3 Insert the latches [L] into the holes nearest to the connecting part of
upper pole and lower pole then fasten the knobs [K] to fix the two upper poles in
place.
K
L
L
Note：Please note that the height of the two upper poles should be the same.
010 02 03 04 05 06 07 08 09 10 11 12 13 14
Front
Back
J1
D2
B1
C1
C2
Step 2-2 Secure the 2pcs poles assemblies [D2] to the tube and pole connector [C2]
using bolts and ring [B1], washers with 3 holes [C1] and Allen key [J1].
L
K
5mm [J1]
Allen Key
010 02 03 04 05 06 07 08 09 10 11 12 13 14
Wrench
E1(4pcs) H2(1pc) I2(1pc) D1(4pcs) J1(1pc)
Install the Square Plate to Upper Poles
STEP 3
Secure the square plate [I2] to the support plate [H2] via the holes on the upper poles using bolts
and washers [D1] and nuts [E1].
Back
Front
J1
D1 D1
I2
H2
E1
5mm [J1]
Allen Key
010 02 03 04 05 06 07 08 09 10 11 12 13 14
A (4pcs)
M6x12mm
Bolt
B (4pcs)
M6x35mm
Bolt
C (4pcs)
M8x25mm
Bolt
D (4pcs)
M8x35mm
Bolt
F (4pcs)
M8x50mm
Bolt
G (4pcs)
M6/M8
Washer
H (8pcs)
2.5mm
Spacer
I (4pcs)
10mm
Spacer
J (4pcs)
22mm
Spacer
Select TV Bolts
Select Spacers (if needed)
Only one bolts size fits your TV.
WITH SPACER
aLong Bolt
Short Bolt
Washer
Washer
Spacer
TV Bracket
TV Bracket
EXTRA
03
03
01
02
01
NO SPACER b
SPACE
M6 M8
01
03
02
M6 M8
E (4pcs)
M8x45mm
Bolt
If the provided bolts are not compatible with your TV, or if you need the M4
or M5 bolts, please contact us at: [email protected]
STEP 4A
STEP 4
STEP 4B
Secure the TV Brackets to TV
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.
We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short Too Long Correct Correct
Note:
1.If necessary, the spacers can be used in multi-layer. If the installation fails after trying
various methods, please contact customer service at [email protected].
2.Make sure the TV brackets are EQUALLY CENTERED on your TV AND securely
fastened in place.
010 02 03 04 05 06 07 08 09 10 11 12 13 14
Secure the TV Brackets to Your TV
Alternate Spacer Setups
With Spacer
b
03
No Spacer
a
03 03
01
01
02
3
For Rounded TV
For Flat TV with:
Inset Holes Cable Interference
For Flat TV
Spacer not necessary
J2
J2
H1
Note: Remove the pre-assembled
nuts [S] on the brackets, then secure
the knobs [H1] to the brackets.
STEP 4D
Secure the Knobs [H1] to the Brackets [J2]
STEP 4C
S
S
Note:
The preassembled nuts
[S] on the brackets can
be loosened by hand.
010 02 03 04 05 06 07 08 09 10 11 12 13 14
HEAVY! You may need
assistance with this step.

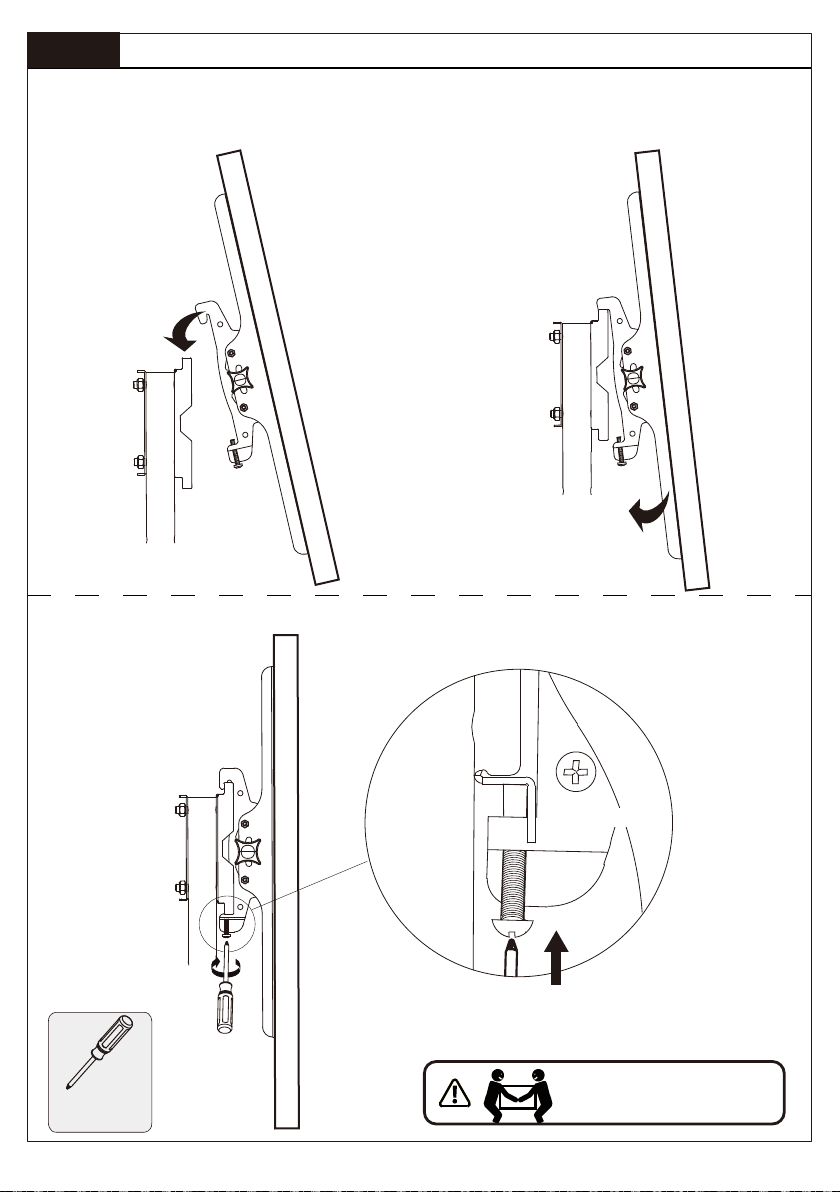

Secure the TV onto the Square Plate
STEP 5
Phillips
Screwdriver
Step 5-1 Hang the TV with brackets to the square plate.
Step 5-2 Push the bottom of the TV to square plate.
Step 5-3 Tighten the bolts preassembled on the brackets until the bolts touch the
square plate.
010 02 03 04 05 06 07 08 09 10 11 12 13 14
