Amprobe ACF3000 AK

AC Current Probe

AMPROBE

Operating Instructions

Mode d’emploi

Bedienungshandbuch

Manuale Operativo

Manual de uso

Table of Contents

Batteries are included.

Table ofContents

1 SAFETY ...................................................................... 1

2 INTRODUCTION ......................................................... 2

3 SPECIFICATIONS....................................................... 4

4 OPERATION ............................................................... 6

4.1 Battery installation ................................................... 6

4.2 Measuring currentwith the A C F3000 AK ................. 6

4.3 Operation ................................................................. 8

4.4 Battery status ........................................................... 8

5 MAINTENANCE .......................................................... 8

6 WARRANTY................................................................ 9

Issue 1 20/06/02.

Thank you forbuying this product

Forsafety reasons and optimum use of this instrument

read through the operating instructions very carefully.

Safety

1 SAFETY

The following symbols appearon the products:

Attention!Referto Manual

Double/Reinforced Insulation

Read all instructions completely before using this product.

To avoid electric shock:

•Use caution during installation and use of this product; high voltages and

currents may be presentin circuit undertest.

•This productmustbe used only by qualified personnelpracticing

applicable safety precautions.

•W earprotective clothing and gloves as required.

•Do notinstall this producton live conductors.

•Always de energize circuit undertestbefore installing flexible measuring

head.Always inspectthe electronics unit,connecting cable,and flexible

measuring head fordamage before using this product.

•Do notuse productif damaged.

•Always connectelectronics unit to display device before installing the

flexible measuring head.

•Neverchange batteries while measurementhead is installed on

conductor.

Introduction

2 INTRODUCTION

The Amprobe AC F 3000 AK is an AC currentprobe utilizing Rogowski

principle.The Amprobe A C F3000 AK can be used to measure AC current

up to 3000 A when used with a DMM,oscilloscope,orotherrecording

instruments.The flexible measuring head allows currentmeasurements on

conductors thatare hard to reach orinaccessible using typicalclamp-on

currentprobes.

The Amprobe A C F3000 AK provides a low-voltage,(3 V AC),output

proportionalto the currentbeing measured.Three selectable ranges

provide directreadings for30 A,300 A,and 3000 A full scale.

Specifications

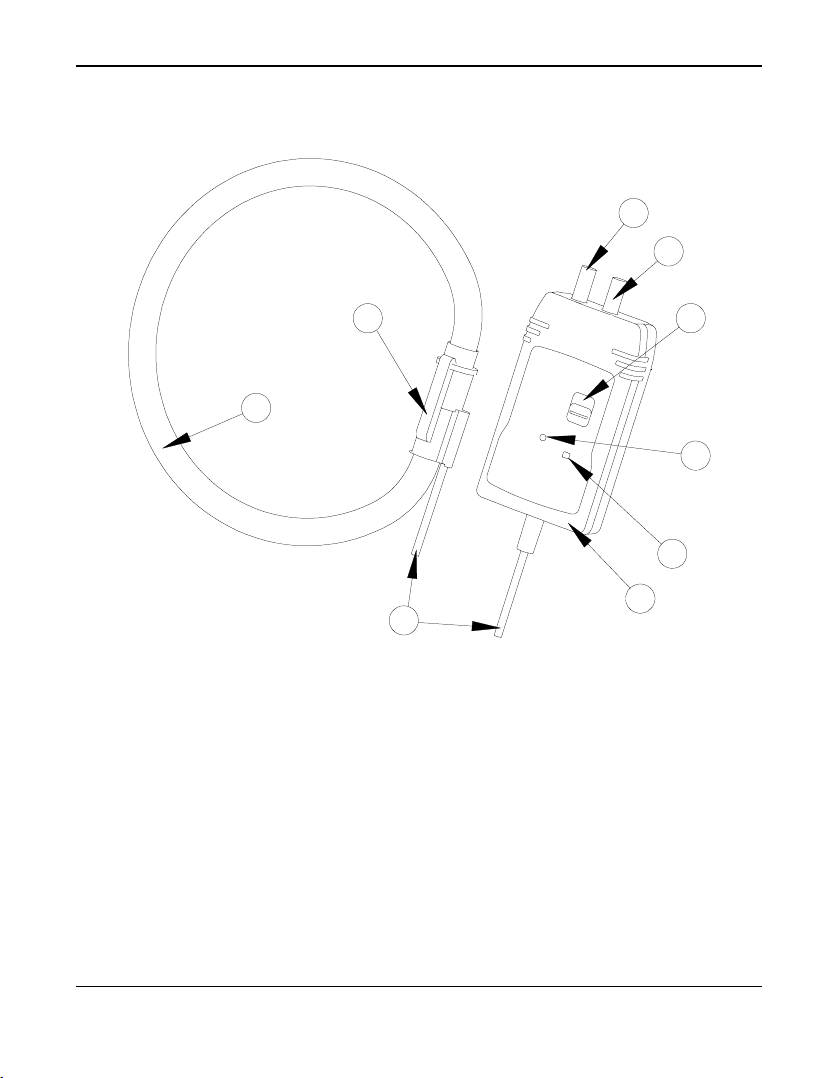

Fig 1

1.Measuring Head

2.Measuring Head Coupling

3.Head Outputcable

4.Enclosure

5.PowerOn /Range Selector

6.Battery Low Indicator

7.PowerOn Indicator

8.4mm Safety Plug (Common)

9.4mm Safety Plug (V Output)

Specifications

3 SPECIFICATIONS

Measuring ranges 30A /300A /3000A A C,switch selectable

Outputsensitivity 100mV /10mV /1mV perA (A C coupled)

Accuracy (at25ºC) ± 1% of range (45-65Hz)

Frequency range 10Hz to 20kHz (-1dB)

Phase error<± 1°(45-65Hz),± 10°(at20kHz)

Linearity ± 0.2% of reading from 10% ... 100% of range

Position sensitivity ± 2% of range with cable > 25mm (1") from the coupling

Externalfield ± 1% of range with cable >200mm (8") from the head

Minimum load 100kΩforspecified accuracy

Noise 8mV rms (0.3% of range) in 30A range

2mV rms (0.1% of range) in 300A and 3000A ranges

Gain variation ± 0.08% /°C

Operating temp.0°C to 70°C (32°F to 158°F) electronics

Storage temp.-20°C to +70°C (-4°F to 158°F)

Powersupply Two AA MN 1500 LR6 alkaline batteries orequivalent

Battery life 200 hours typical

Low battery Indicated by a red LE D

Enclosure IP5X flame retardantUL94-V O rated

MaterialValox 357 X

Specifications

Outputcon.4mm safety plugs

W eight0.19 kg (0.4 lb)

Safety BS E N 61010-1: 1993,600V C AT III Pol.Deg 2

Testvoltage: 5550 V AC for1 minute,Double insulation

EMC EN 61326 : 1998

Dimensions 116 (l) x 68.5 (w) x 30 (d) mm

4.57 x 2.71 x 1.18 inches

Measuring Head

Cable length 610mm (24 inches),double insulated

Cable dia.14.3mm (0.562 inches)

Bend radius 38.1mm (1.5 inches)

Outputcable 2m long (78.7inches)

Coupling dia.22.2mm (0.875 inches)

MaterialTPE rubber,Polypropylene,UL94-VO rated

Operating temp -20°C to +90°C (-4°F to 194°F)

Storage temp.-40°C to +105°C (-40°F to 221°F)

W eight0.18kg (0.4 Ib.)

Safety BS E N 61010-1 : 1993,600V C AT III Pol.Deg 2

Operation

4 OPERATION

4.1 BATTERY INSTALLATION

Never replace batteries with flexible measuring head installed on

conductor to be tested or outputconnected to a display device.

Never operate the unitwithoutthe battery cover fitted.

The Amprobe A C F3000 AK requires two AA MN1500 LR6 alkaline

batteries foroperation.The battery compartmentis accessed from the

rearof the electronics enclosure.

The batteries mustbe replaced when the LED is lit continuously orfails to

lightup.Ensure thatthe Amprobe A C F3000 AK currentprobe is away

from any currentcarrying conductorand the outputis disconnected from

any otherequipment.

Using a coin ora similartoolturn the battery lock ¼turn until the dot

aligns with the unlock symbol.The battery covercan now be removed.

Install the batteries ensuring thatcorrectpolarity is observed.Replace the

battery coverand turn the battery lock until the dotaligns with the lock

symbol.

4.2 MEASURING CURRENT WITH THE AMPROBE

ACF3000 AK

Read safety section ofinstructions before operating this product

Ensure conductor to be tested is de energised.

Connectthe outputof the electronics to the VOLTS inputof the DMM or

otherdata recording device.
