Information for users in the UK

(Not applicable outside the UK)

Positioning the TV

For the best results, choose a position where light does not fall directly on the screen, and at some distance away from radiators

or other sources of heat. Leave a space of at least 5 cm all around the TV for ventilation, making sure that curtains, cupboards etc.

cannot obstruct the air flow through the ventilation apertures.

The TV is intended for use in a domestic environment only and should never be operated or stored in excessively hot or humid

atmospheres.

General Points

Please take note of the section 'Tips' at the end of the English section in this booklet.

Interference

The Department of Trade and Industry operates a Radio Interference Investigation Service to help TV license holders improve

reception of BBC and IBA programmes where they are being spoilt by interference.

If your dealer cannot help, ask at a main Post Office for the booklet "How to improve Television and Radio Reception".

Mains connection

Before connecting the TV to the mains, check that the mains supply voltage corresponds to the voltage printed on the type plate

on the rear panel of the TV. If the mains voltage is different, consult your dealer.

Important

This apparatus is fitted with an approved moulded 13 Amp plug.

To change a fuse in this type of plug proceed as follows :

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS1362 5A,A.S.T.A. or BSI approved type.

In order to maintain conformity to the EMC directive, the mains plug on this product must not be removed.

Connecting the aerial

The aerial should be connected to the socket marked xat the back of the set. An inferior aerial is likely to result in a poor,

perhaps unstable picture with ghost images and lack of contrast. Make-shift loft or set-top aerials are often inadequate.

Your dealer will know from experience the most suitable type for your locality.

Should you wish to use the set in conjunction with other equipment, which connects to the aerial socket such as TV games, or a

video camera, it is recommended that these be connected via a combiner unit to avoid repeated connection and disconnection of

the aerial plug.

Loop aerial (if provided)

The loop aerial packed with the set will give satisfactory reception under good signal conditions. Fit the aerial bracket and lead by

pushing the peg into the square hole in the backcover until it latches in place. Then insert the plug on the lead into the aerial

socket.

Contents

English

Your remote control 2

Preparation 3

Installation 4

Store TV channels 4

Select the menu language and country 4

Automatic installation 5

Manual installation 5

Give name 6

Reshuffle the programme list 6

Select favourite TV channels 6

Install TV setup 7-8

EasyLink features are based on the “one touch operation” approach.This

means that a sequence of actions are executed at the same time in both

the television and the video cassette recorder, provided both are fitted

with the EasyLink function and connected with the eurocable

supplied with your video recorder.

Installation

Operation

Use of the remote control 9-10

Use of the menus

Picture menu 11

Sound menu 11-13

Features menu 14

Dual Screen 15

NEXTVIEW 16-19

Teletext 20-22

Connect peripheral equipment

Connecting and selecting equipment 23-26

Remote control functions for peripherals 26-27

Recording 28

Tips 29

Index 29

Glossary 30

2Preparation

yÚ

213

546

879

®Ò‡π

†

SMART

ACTIVE CONTROL

fhU

INSTANT Q

◊

MODE

VCR

Installation p. 4

DVD/Satellite selection p. 27

Videorecorder selection p. 26

NEXTVIEW/Teletext guide æ

on/off p. 16

main menu on/off MENU

p. 11

Peripherals p. 26 w

selection of EXT1,EXT2, EXT3

or FRONT

volume up/down p. 9 V

sound mute p. 9 ¬

programme selection p. 9 P

Qsurround modes p. 9

smart sound p. 10 M

smart picture p. 10 a

EasyLink p. 28

®INSTANT recording

Bswitch to standby p. 9

Teletext p. 20

bteletext on/off

Ctime display

subpage selection

fsolution to puzzles

henlarge

Cursor to select

your choice p. 4

OK activate your choice

Colour keys

direct teletext page or

subject selection, p. 20

Audio- and Video equipment

p. 26-27

ion screen info p. 9

0previous programme p. 9

◊video recorder/DVD function

Xbilingual choice /

sound info p. 10

Sfreeze the txt picture p. 10

bdual screen on/off p. 15

qpicture format p. 10

hactive control p. 10

Preparation

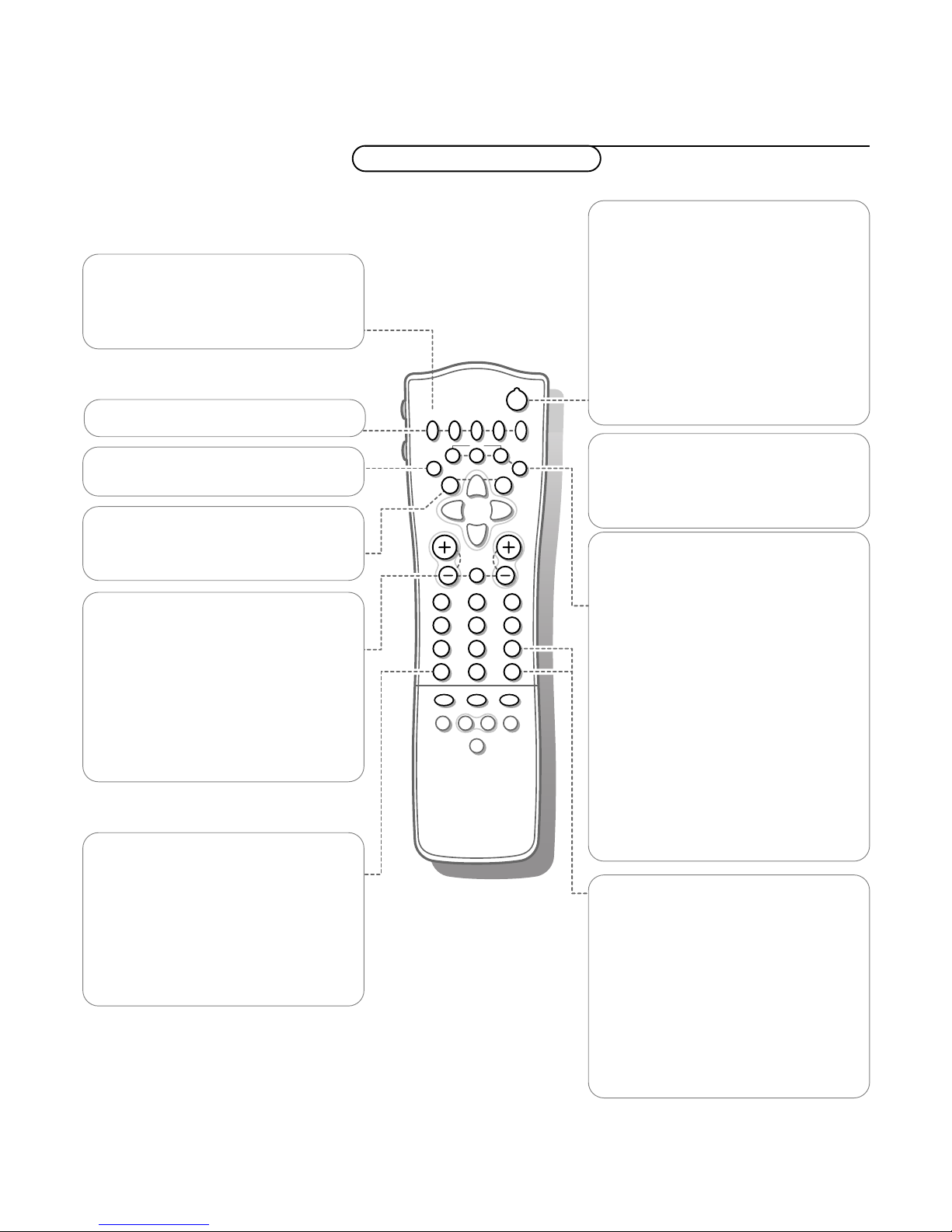

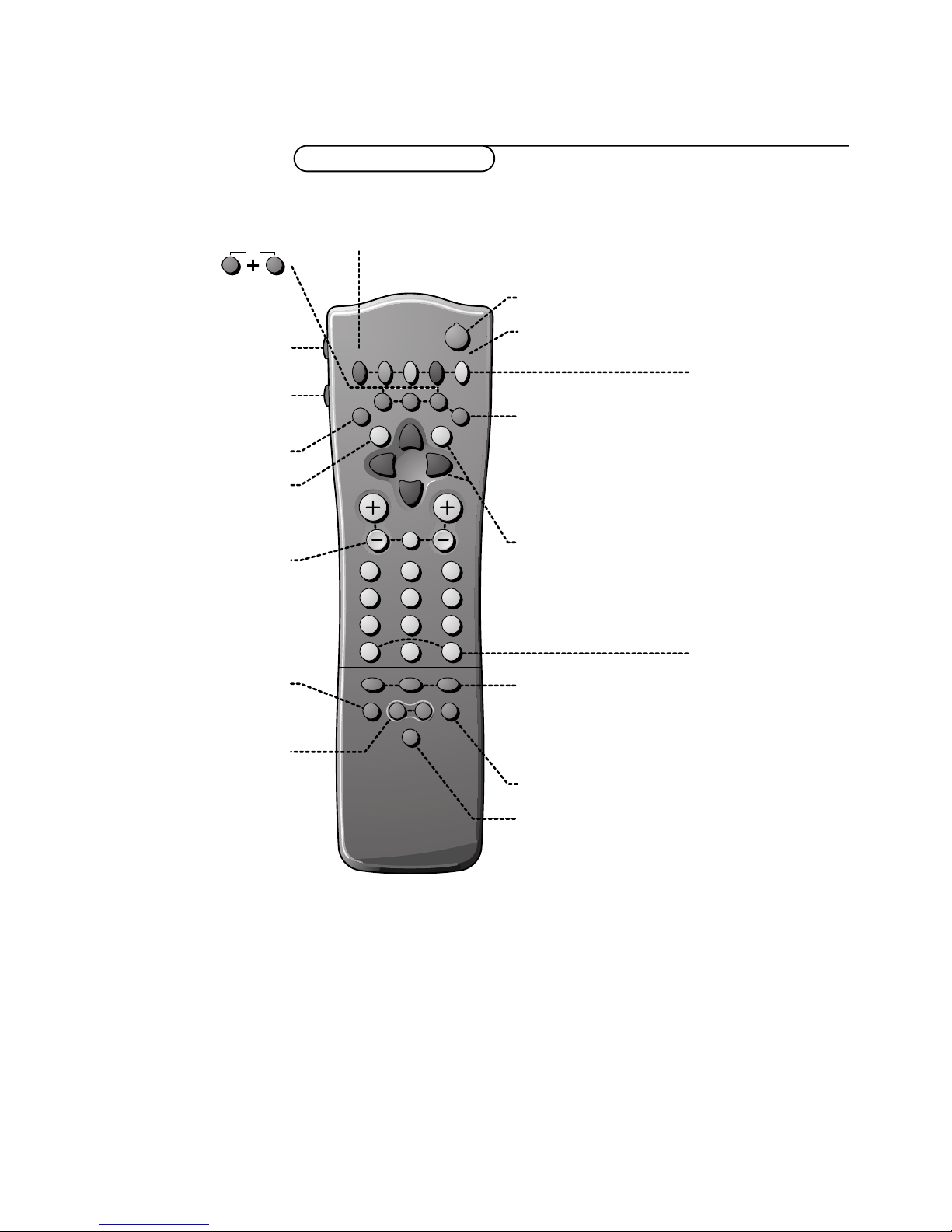

Your remote control

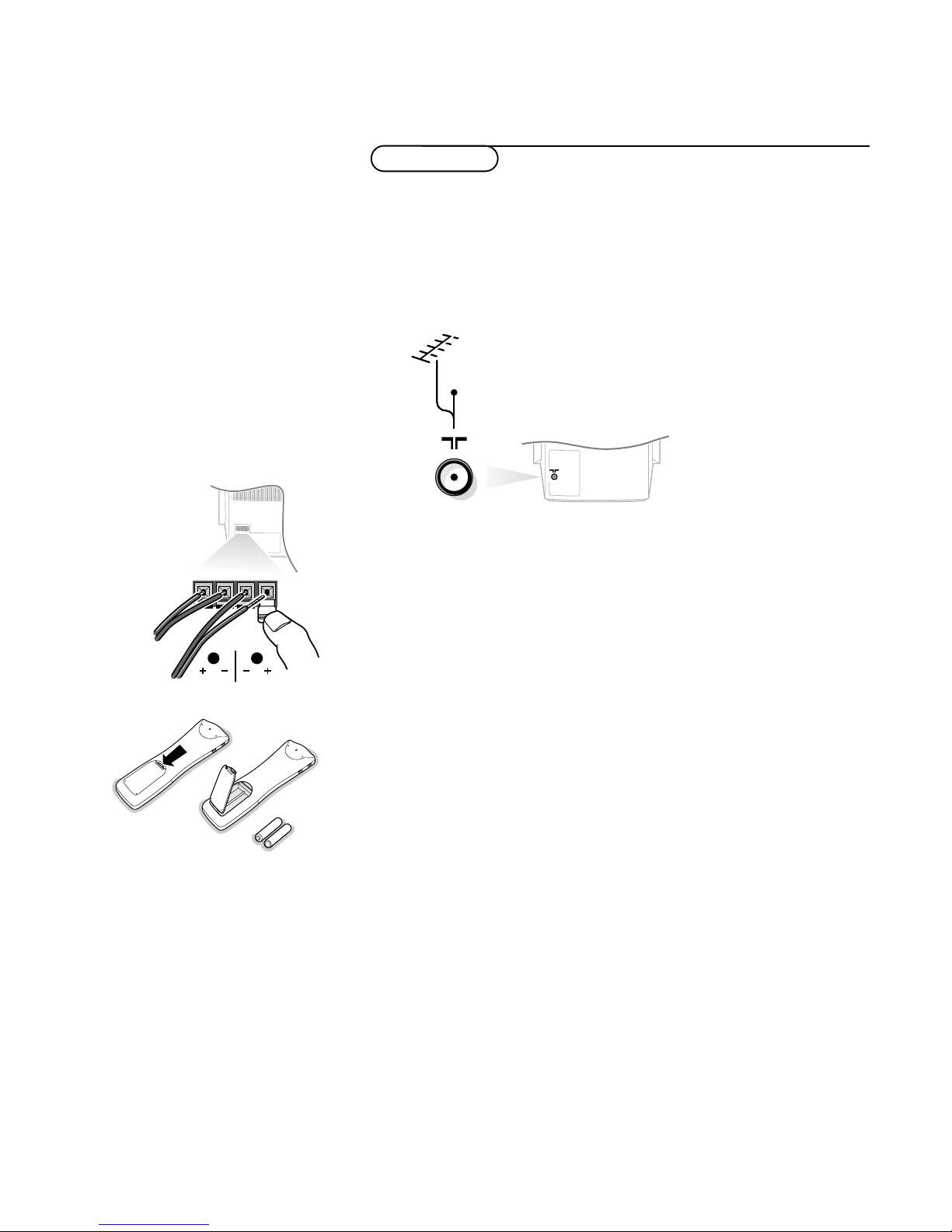

&Place the TV on a solid surface.

For ventilation, leave at least 5 cm free all around the TV.

Do not place the TV on a carpet.

To prevent any unsafe situations, do not place any objects on top of the TV.

Avoid heat, direct sunlight and exposure to rain or water.

éInsert the aerial plug firmly into the aerial socket xat the back of

the TV.

“Connect the two Surround Sound rear loudspeakers supplied to the

connector clips at the back of the TV. Always connect both Surround Sound

loudspeakers: the left rear loudspeaker at REAR L; the right rear loudspeaker

at REAR R.

Push the connector clip down and insert the end of the wire into the opening: the

positive wire (the one with the black line) to the red loudspeaker connection; the

negative wire to the black loudspeaker connection. Do not insert the wires too far.

The Surround Sound loudspeakers should always be located behind or to either side

of the listener. If preferred you can also hang the loudspeakers on the wall.

‘Insert the mains plug in the wall socket having a mains voltage of 220V-

240V.

To prevent damaging the mains (AC) cord which could cause a fire or electric

shock, do not place the TV on the cord.

(Remote control: Remove the cover of the battery compartment.

Insert the 2 batteries supplied (Type R6-1,5V).

The batteries supplied do not contain the heavy metals mercury and cadmium.

Nevertheless in many countries exhausted batteries may not be disposed of with

your household waste. Please check on how to dispose of exhausted batteries

according to local regulations.

Note: this remote control functions with TVs which use the RC6 signalling standard.

§Switch the TV on : Press the power switch on the front of your TV.

A green indicator on the front of the TV lights up and the screen comes on.

If the indicator is red, press the -P+ key on the remote control.

The green lamp blinks every time you press a key on the remote control.

When you switch on your set for the first time, the menu LANGUAGE

automatically appears on the screen. The explanation appears in different languages

one at a time. Choose your own language and press the OK key on the remote

control.

Go on to page 4.

3Preparation

Preparation

CABLE

R6 / AA

REAR

Press U and hat the same time.

4Installation

Installation

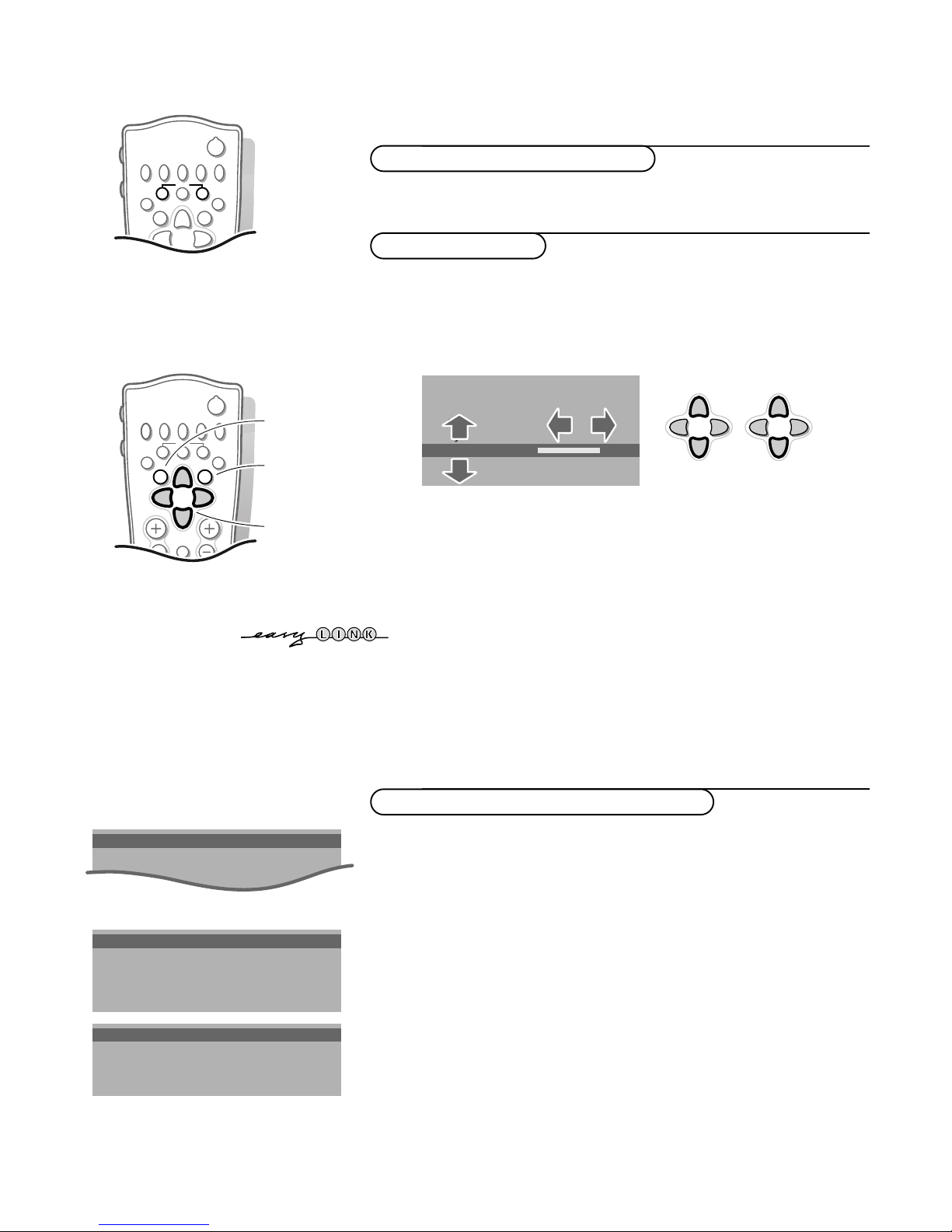

Select the INSTALLATION menu

&Use the cursor in the up/down, left/right directions to select a menu item.

éPress the OK key to activate.

“Use the MENU key to return or to switch the menu off.

To use the menus

Store TV channels

After the new or extra TV channels have been stored, the TV automatically transfers

those TV channels to the video recorder if it is equipped with the EasyLink function.

The message EasyLink : Downloading ...... appears on the screen. The

programme list of the video recorder is now the same as the one of the TV. If the TV

is connected to a video recorder which supports the NEXTVIEWLink function, the TV

also automatically transfers the language and country selections to the video

recorder.

First, select your language and country.

&Select Menu language and press the OK key.

éSelect your language and press the OK key.

Use the cursor up/down to scroll through the list and to bring up other

languages which are not displayed on the screen at present.

“Select Country and press the OK key.

‘Select the country where you are now located and press the OK key.

Use the cursor up/down to scroll through the list and bring up other

countries which are not displayed on the screen at present.

Select Other when none of the countries applies.

You can now search for and store the TV channels in two different ways:

using automatic installation or manual installation (tuning-in channel by

channel).

Select your choice and press the OK key.

Select the menu language and country

213

546

879

®Ò‡π

†

fhU

◊

INSTANT Q

yÚ

select menu item

activate

return or switch

main menu off

MENU TITLE

Menu language

Country

Automatic installation

JINSTALLATION

MENU TITLE

United Kingdom

....

JCOUNTRY

MENU TITLE

English

....

JMENU LANGUAGE

213

®Ò‡π

†

fhU

INSTANT Q

yÚ

MENU TITLE

Subject 1

Subject 2

Subject 3

JSubject 4

Subject 5

Subject 6

JSubject 4 L M

Searching for and storing TV channels is done channel by channel.

You must go through every step of the Manual installation menu.

Selection Mode is only present and lights up if the country selected also

offers the channel option (C-channels for aerial channels, S-channels for cable

channels).

You can choose either channel or frequency mode.

&Select the TV system

Select the country or part of the world from where you want to receive the

TV channel.

If you are connected to a cable system, select your country.

éPress the cursor down and enter the programme number with the digit keys.

“Search for a TV channel

Press the cursor left/right.

The frequency or the channel number increases until a TV channel is found.

Direct selection of a TV channel

If you know the frequency, the C- or S-channel number, enter it directly with

the digit keys 0 to 9.

Ask for a list from your cable company or dealer, alternatively consult the

Table of frequencies on the inside backcover of this handbook.

‘Fine tune

In case of poor reception, you can improve the reception by adjusting the

frequency with the cursor left/right.

(To store your TV channel, select Store and press the OK key.

Repeat steps &to (to store another TV channel.

§To exit from the menu press the MENU key on the remote control.

In the Automatic installation menu select Start and press the OK key to

activate the searching. All TV channels are searched for and stored

automatically.

If a cable system which broadcasts ACI (Automatic Channel Installation) or a

TV channel transmitting a teletext page with the frequencies and programme

names of all the TV channels which can be received, is detected, the search is

stopped and a programme list appears.

The programme list is automatically filled with all the programme numbers

and names of the TV channels transmitted.

It is possible that the cable company or the TV channel displays a broadcast

selection menu. Layout and items are defined by the cable company or the TV channel.

Make your choice with the cursor and press the OK key.

To exit from the menu press the MENU key on the remote control.

Go on to page 6.

5Installation

Manual installation

Automatic installation

Start

Stop

TV is searching

One moment please ...

JStop K

Automatic installation

Start

Stop

1 BBC1

2 BBC2

3 CNN

....

JStart K

Manual installation

(Selection Mode)

System

Programme No.

Fine tune

Store

JSystem K

6Installation

Give name

It is possible to change the name stored in the memory or to assign a name

to a TV channel which has not yet been entered.A name with up to 5 letters

or numbers can be given to the programme numbers 0 to 99. For example

SUPER, BBC1,...

Between 99 and 0 you can also name any peripherals that are connected to a

euroconnector.

&Select Give name in the INSTALLATION menu and press the OK key.

éSelect the programme number.

“Press the OK key.

‘Select the character with the cursor up/down.

(Select the following position with the cursor right.

§Select the following character.

èPress the OK key when finished.

!Press the MENU key to return to the INSTALLATION menu.

Spaces, numbers and other special characters are located between Z and A.

According to your preference you can change the order of the stored TV

channels.

&Select Reshuffle in the INSTALLATION menu and press the OK key.

éSelect the programme number you want to exchange.

“Press the OK key.

‘Select the new number you want to exchange it with.

(Press the OK key.

Repeat the operation until all TV channels are allocated as you like.

§Press the MENU key to return to the INSTALLATION menu.

Reshuffle the programme list

After leaving the installation you can browse through the TV channels by

pressing the - P + key. Only those TV channels which are in the favourite list

will be displayed. Non-favourite TV channels can still be selected with the digit

keys. By default all stored channels are added to the favourite list.

&Select Favourite programmes in the INSTALLATION menu and press

the OK key.

éSelect your favourite programme number.

“Select Ye s or No with the cursor left/right.

‘Repeat for every TV channel you want to make a favourite or a

non-favourite TV channel.

(Press the MENU key to return to the INSTALLATION menu.

In order for NEXTVIEW to function properly, the first TV channel from the favourite list

should also broadcast the correct local date and time via teletext.

Select Favourite TV channels

INSTALLATION

Menu language

Country

Automatic installation

Manual installation

Give name

Reshuffle

Favourite programmes

SETUP

JGive name

Give name

EXT1

EXT2

EXT3

FRONT

1 BBC1

2 BBC2

3 ....

4 ....

5 ....

Reshuffle

EXT1

EXT2

EXT3

FRONT

1 CNN

2 BBC2

3 ....

4 ....

5 ....

J1 CNN

Favourite programmes

0 ... No

1 ... Yes

2 ... No

3 .... No

4 .... Yes

5 ....

J2 ... Yes

7Installation

The Setup menu allows you to adjust initial settings, i.e. those which are not

related to the installation of the TV channels.

The Setup menu contains items that control the settings of the TV’s functions,

features, services and peripherals you may have connected.

&Use the cursor in the up/down, left/right directions to select the menu item.

éUse the OK key to activate.

“Use the MENU key to return or switch menu off.

Digital sources

See Connect Peripheral Equipment, p. 24 to connect your digital equipment,

like a DVD, a digital satellite tuner or a similar digital device.

Define Decoder/Descrambler programme numbers

If a decoder or a descrambler is connected, see p. 23, you can define one or

more programme numbers as decoder programme numbers.

Press the cursor left/right to select the input used to connect to your

decoder Off,EXT1 or EXT2.

Select Off if you do not want the selected programme number being

activated as a decoder programme number.

Select EXT2 when the decoder is connected to your EasyLink video recorder.

When selecting the decoder, the message EasyLink: Downloading Presets....

appears on the screen.

Picture tilt (if provided)

Select Picture tilt with the cursor up/down.

Keep the cursor left/right pressed to adjust the rotation of the picture.

Information line

Select On and after the selection of a TV programme or after pressing the

ikey on the remote control, a TV channel which broadcasts teletext may

transmit the name of the TV channel, the programme name or another

message.This is displayed on screen next to information about sound and

picture format.

When selected Off, only sound and picture format information is displayed

after the selection of a TV channel or after pressing the ikey.

Factory settings

Select Factory settings and press the OK key to restore picture and sound

settings, predefined in the factory.

Extra front speakers

See Connect Extra loudspeakers,Amplifier, p. 25.

If no extra front speakers/amplifier are connected, do not change the

predefined factory setting which is No (TV).

Install TV Setup

INSTALLATION

Menu language

Country

Automatic installation

Manual installation

Give name

Reshuffle

Favourite programmes

SETUP

JSETUP

Decoder/Descrambler

Programme

Decoder Status

JProgramme

SETUP

Digital Sources

Decoder/Descrambler

(Picture tilt)

Information line

Factory settings

Extra front speakers

Auto Surround

Auto format yes/no

INSTALLATION

JDigital sources

8Installation

Auto Surround

Sometimes the broadcaster transmits special signals for Surround Sound

encoded programmes.

Dependent on your speaker configuration, the TV automatically switches to

the best surround sound mode when Auto Surround is switched On.

When rear speakers are connected and selected, Dolby Pro Logic will be

reproduced.When no rear speakers are connected, 3D surround will be

reproduced. However it is possible to override this setting.

Auto format

Selecting Ye s causes the screen to automatically fill as much of the picture as

possible when TV programmes are not carrying special signals detecting the

correct screen format.

With the qkey on the remote control you can still select other picture

formats. See p. 10.

Installation

Select Installation and press the OK key in the centre of the cursor to

return immediately to the INSTALLATION menu.

‘To exit from the menu press the MENU key repeatedly.

SETUP

Digital sources

Decoder/Descrambler

(Picture tilt)

Information line

Factory settings

Extra front speakers

Auto Surround

Auto format yes/no

INSTALLATION

JAuto format yes/no

9Use of the remote control

yÚ

SMART

ACTIVE CONTROL

Maw

bSX

213

546

879

®Ò‡π

†

fhU

◊

INSTANT Q

BStandby

The set is switched off and the red indicator

(orange when acquiring NEXTVIEW

information) lights up.When acquiring

NEXTVIEW information the TV is switched to

full standby after a max. period of 1 hour and

the red indicator lights up.

To switch the TV on again, press - P + or the

digit keys.

If your EasyLink video recorder has the

system standby function and you press the

standby key for 3 seconds, both the TV and

video recorder are switched to standby.

®Ò‡π†Video recorder see p. 26

MENU Main menu on/off see p. 11

OK Press this key to activate your choice,

when in the menus.

æNEXTVIEW/TXT guide on/off

see p. 16

®Instant record

If your video recorder has the EasyLink

function the INSTANT ®key for record can

be operated in the TV mode.

QSurround mode

Press this key repeatedly to select another

available surround mode: Dolby Pro Logic, 3D

Surround, Dolby 3 Stereo, Stereo or Hall.

iScreen information

Press for 5 seconds to activate/de-activate

the extended or reduced display of TV

channel and programme information on the

screen.

Press briefly to display information about the

selected TV channel and programme, the

sound reception, picture settings and the

remaining time set with the sleeptimer.

0/9 Digit keys

To select a TV channel.

For a two digit programme number, enter the

second digit within 2 seconds.

To switch immediately to a selected one digit

TV channel, keep the digit key pressed a bit

longer.

0Previous programme

The previously selected TV channel is

displayed.

The ◊is only for a video recorder/DVD.

Use of the remote control

Operation

bTeletext on/off see p. 20.

UTime display

The time, downloaded from the TV channel

(with teletext) stored on programme number

1 or the lowest favourite programme

number, is displayed on the screen.

This function is not available when continuous

subtitles have been switched on.

fReveal (in teletext mode)

Press to reveal/conceal the hidden

information, such as solutions to riddles and

puzzles.

hEnlarge (in teletext mode)

Press repeatedly to display the upper part,

the lower part and then to return to the

normal page size.

VVolume

Press + or - to adjust the volume.

¬ Mute

Temporarily interrupt the sound or restore

it.

PProgramme selection

To browse through the TV channels

activated in the Favourite Programme menu.

Andere Handbücher für 28PW6615

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips 21PT2404 Bedienungsanleitung

Philips

Philips 21PT5547 Bedienungsanleitung

Philips

Philips 28PW8717 Bedienungsanleitung

Philips

Philips 28PT7159/12 Bedienungsanleitung

Philips

Philips 28PW6324/58R Bedienungsanleitung

Philips

Philips 21PT5121 Bedienungsanleitung

Philips

Philips 21PT4429 Bedienungsanleitung

Philips

Philips PS1956C Bedienungsanleitung

Philips

Philips 28PW9513 - annexe 1 Bedienungsanleitung

Philips

Philips 21PT1546 Bedienungsanleitung

Philips

Philips 27PT633R Handbuch

Philips

Philips 14PT2116 Bedienungsanleitung

Philips

Philips 28PW6520 Bedienungsanleitung

Philips

Philips 21PT6446 Bedienungsanleitung

Philips

Philips 32PW6518/01 Bedienungsanleitung

Philips

Philips 21PT5421 Bedienungsanleitung

Philips

Philips 21PT9467 Bedienungsanleitung

Philips

Philips Mono FSQ 20PT1346 Bedienungsanleitung

Philips

Philips PR1910B Bedienungsanleitung

Philips

Philips 14PT1686 Bedienungsanleitung

Philips

Philips 21PT9460 Bedienungsanleitung

Philips

Philips 27PT9007D/17E Bedienungsanleitung

Philips

Philips 21PT5324/01R Bedienungsanleitung

Philips

Philips MAGNAVOX DFU TS3258 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
