Philips 775 Bedienungsanleitung
English page 3
Français page 10
Deutsch Seite 17
Nederlands pagina 24
Italiano pagina 31
Español página 38
Português página 45
2
1Do not allow the shaver to become wet.
2Do not leave the appliance in a position
where it can become damaged by direct
sunlight or other heat source.
• Please bear in mind that your skin may
need two to four weeks to become fully
accustomed to the Philishave shaving
system.
12
920
■■■ Important English
■■■ Shaving
3Insert the small plug into
the shaver. Ensure that the
plug is pushed fully home.
(Note the indication mark.)
Insert the mains plug into a
wall socket. Mains voltages:
ranging from 100 to 240 Volts. (The shaver
adjusts automatically.)
3
3
4Switching on: Slide the
switch upwards.
Switching off: Slide the switch
downwards.
5The comfort control can be
adjusted to suit skin
sensitivity.
Start with the control set to
position 1 (for sensitive skin)
and then try other positions to
find the one that suits you
best.
6Move the shaving unit
quickly over the skin and
especially against the
direction of the hair growth,
stretching the skin with your
free hand to bring the hairs
into an upright position.
• Best results are obtained if the skin is dry.
Preferably shave before or some time after
washing.
• If required apply a pre-shave lotion. This can be
particularly helpful if the climate is warm and
humid.
4
1 2 3 4 5 6 7 8 9
5
6
4
■■■ Trimmer
The trimmer can be engaged whilst the motor is
running.
7To engage the trimmer push
the slide upwards.
To disengage move the slide
downwards.
Brush the trimmer clean after
each use.
8The trimmer has been
especially designed for
grooming sideburns,
moustache and beard.
The trimmer is not required for
long hairs in the neck area;
these hairs can easily be
shaved off with the shaving
unit.
9Maintenance (every six
months)
Apply two drops of light
machine oil to the teeth of the
trimmer.
5
7
8
9
OIL
■■■ Cleaning
• Always ensure that the shaver is switched off and
the mains cord is disconnected before carrying
out maintenance or cleaning.
• Handle the shaving heads carefully to avoid
causing damage.
•Advice: Clean the shaver regularly.
10 - 13 Every week:
shaving head slots and hair chamber
- (Fig. 10) Use the short bristled
brush to clean the shaving
head slots.
- (Fig. 11) To remove the
shaving unit depress the
retaining button (1) and lift the
shaving unit from the shaver (2).
- (Fig. 12 - 13) Remove hairs
from the chamber and shaving
unit using the long bristled
brush.
6
10
11
1
2
12 13
14 - 25 Every 3 months:
shaving head slots, the hair chamber and
shaving unit (guards and cutters)
(If your skin is of an oily type or if you have been
using a pre-shave lotion: 1x per month.)
- First clean the shaver head slots and hair
chamber as previously described.
(See figs. 10 - 13.)
Then proceed with figs. 14 - 25 for cleaning the
shaving unit.
- (Fig. 14 - 15) Release and
remove the retaining plate.
The shaving heads remain in
the shaving unit.
- (Fig. 16) Remove only one
shaving head (guard and
cutter) at a time for cleaning
to ensure that the cutters
and guards
do not
become
mixed.
Each cutter
has been
ground
together
with the guard. If the guards
and cutters are mixed, it may
take some weeks before
optimal shaving performance
is restored.
7
2
1
14
15 16
17
- (Fig. 18) Clean the cutter
by brushing only in the
direction of the arrow
using the short bristled
brush.
- (Fig. 20 & 25) If you have a
very dry skin, or if
degreasing liquid (e.g. alcohol)
has been used to clean the
shaving heads, lubricate the
shaving heads with one drop
of light machine oil.
As an alternative to using light
machine oil
for
lubrication
you may
use the
specially
formulated
Philishave
cleaner /
lubricant
type 389
SHC/1
available
from
Authorised
Philips
Service
8
18
19
20
OIL
21
22
2
1
23
24 25
OIL
Dealers.
■■■ Replacement shaving
heads

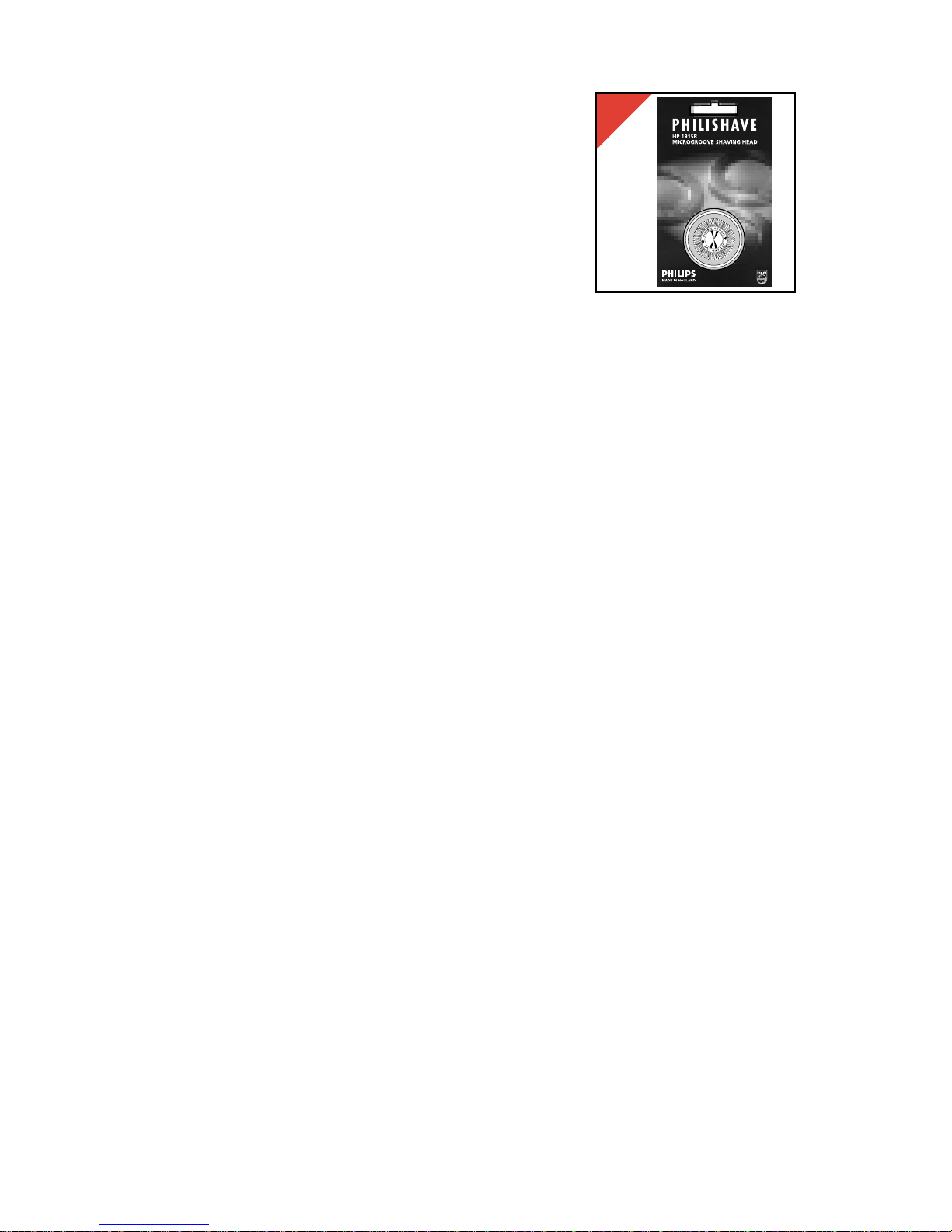

26 Use only Philishave
replacement heads type
HP 1915 R when replacing
worn or damaged shaving
heads.
■■■ Accessories
The following accessories for your shaver are
available from Philips retailers or Authorised Service
Dealers as optional extras:
Type number: Accessory:
HP 1928 Travelling pouch, gives
protection and enables
compact storage for shaver and
mains cord.
HP 1926 Stand/wall holder for space
saving storage.
9
26
10
1Evitez tout contact de l'appareil avec l'eau.
2Ne laissez pas l'appareil exposéàde fortes
chaleurs ou aux rayons directs du soleil.
•Lorsque vous utilisez le système de
rasage Philishave pour la première fois, il
est important de savoir qu'une période
d'adaptation de la barbe de 2 à4
semaines est nécessaire pour obtenir
l'efficacitéoptimale du rasage.
12
920
■■■ Important Français
■■■ Rasage
3Branchez d'abord le cordon
sur le connecteur en
l'enfonçant jusqu'àla ligne
repère. Tensions
d'utilisation : 100 - 240 V.
(Le rasoir s'adapte
automatiquement à la tension
d'utilisation).
