Philips QS6140/32 Bedienungsanleitung

Триммер для усов и бороды Philips QS6140/32

StyleShaver: Инструкция пользователя

www.philips.com/welcome

QS6160, QS6140

ENGLISH 6

 17

 29

 40

 51

 63

 74

 86

 97

 108

 120

 131

 143

 154

 165

 177

Introduction

Congratulations on your purchase and welcome to Philips!To fully

benet from the support that Philips offers, register your product at

www.philips.com/welcome.

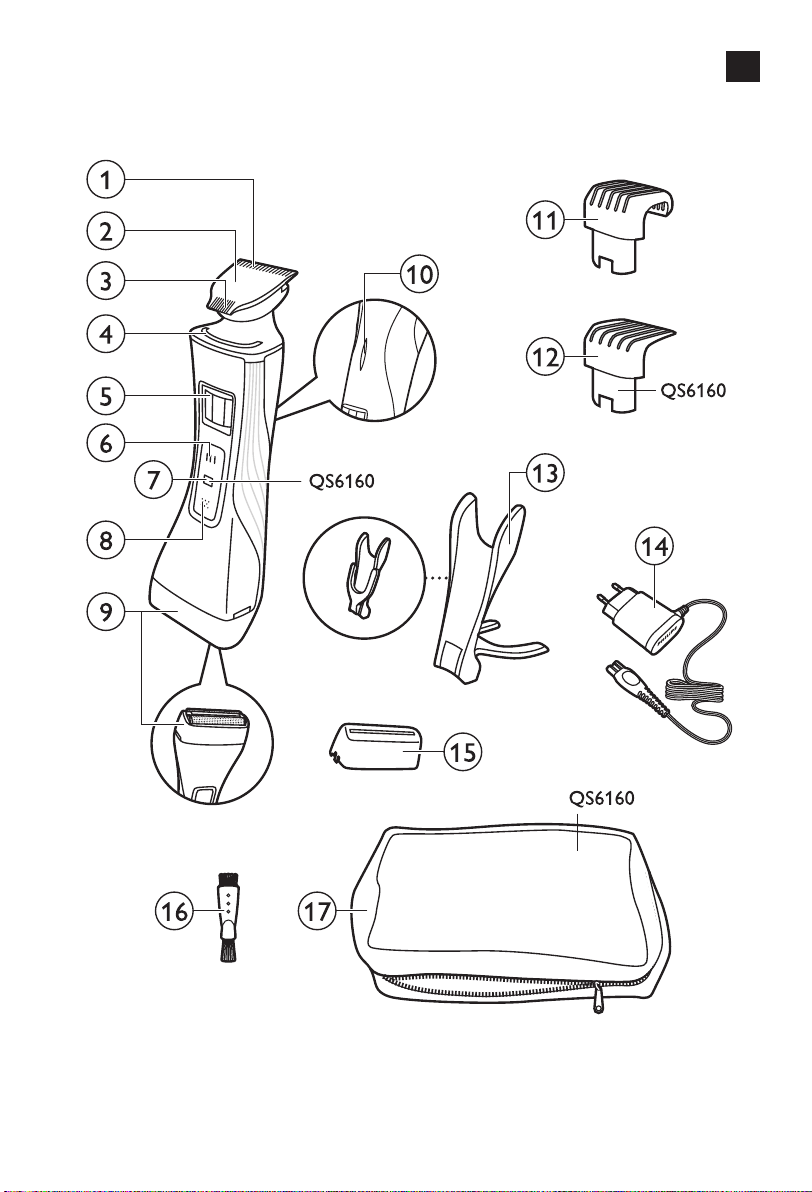

General description (Fig. 1)

1 Precision trimmer (32 mm)

2 Trimming head

3 Precision trimmer (15 mm)

4 Guiding groove

5 Hair length setting selector

6 Trimming head on/off button

7 Travel lock indication (QS6160 only)

8 Shaving head on/off button

9 Shaving head

10 Battery status indicator

11 Trimming comb

12 Trimming comb (QS6160 only)

13 Charging stand

14 Adapter with small plug

15 Protection cap

16 Cleaning brush

17 Storage pouch (QS6160 only)

Important

Read this user manual carefully before you use the appliance and save it for

future reference.

Danger

- Keep the adapter dry.

Warning

- Check if the voltage indicated on the adapter corresponds to the local

mains voltage before you connect the appliance.

- The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this causes a hazardous situation.

- This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety.

- This appliance is not intended for use by children. Children should be

supervised to ensure that they do not play with the appliance.

Caution

- Use, charge and store the appliance at a temperature between 5°C

and 35°C.

- Do not charge the appliance in the storage pouch.

- Only use the adapter and the charging stand supplied.

- Never immerse the appliance in water or any other liquid, nor use it in

the shower. Only rinse the appliance under the tap to clean it.

ENGLISH

- If the appliance is subjected to a major change in temperature, pressure

or humidity, let the appliance acclimatise for 30 minutes before you use it.

- If the adapter or the charging stand is damaged, always have it replaced

with one of the original types in order to avoid a hazard.

- Do not use the appliance if the shaving head or one of the trimming

combs is damaged or broken, as this may cause injury.

- This appliance is only intended for trimming and dry shaving facial hair

(beard, moustache and sideburns).

General

- The appliance complies with the internationally approved IEC safety

regulations and can be safely cleaned under the tap.

Compliance with standards

This Philips appliance complies with all standards regarding electromagnetic

elds (EMF). If handled according to the instructions in this user manual, the

appliance is safe to use based on scientic evidence available today.

Charging

QS6160 only: Charging normally takes approx. 1 hour.

QS6140 only: Charging normally takes approx. 4 hours.

When the appliance is fully charged, it has an operating time of 50 minutes.

Battery status indicator:

- When the battery status indicator ashes white, the battery is being

charged.

- When the battery status indicator lights up white continuously, the

battery is fully charged.This indication is shown for 30 minutes and

then the battery status indicator goes out.

- When the battery status indicator ashes orange, the battery is almost

empty (approx. 10 minutes of operating time left).

- When the battery status indicator ashes orange quickly, the battery

is empty and you have to charge the appliance before you can use it

again.

Note:The appliance can only be charged in the charging stand.

1 Insert the small plug into the charging stand.

Note:The small plug is easiest to insert when the charging stand is folded.

2 Unfold the charging stand (‘click’).

3 Put the adapter in the wall socket.

ENGLISH 7

4 Put the appliance in the charging stand.

,The battery status indicator starts to ash white to indicate that the

appliance is charging.

,When the battery is fully charged, the battery status indicator lights

up white continuously.



You can use the appliance to trim or dry shave facial hair (beard,

moustache and sideburns).This appliance is not intended for shaving or

trimming lower body parts.

Tip: Take your time when you rst start to shave. You have to acquire practice

with the appliance. Your skin also needs some time to adjust to the procedure.



The trimming combs allow you to trim to different lengths.

Start at the highest setting to acquire practice with this appliance.

See the table below for an overview of the hair length settings and the

corresponding hair lengths.

Setting Hair length after trimming

1 1 mm - 3/64 inch

. 1.5 mm - 1/16 inch

2 2 mm - 5/65 inch

. 2.5 mm - 3/32 inch

3 3 mm - 1/8 inch

4 4 mm - 5/32 inch

5 5 mm - 3/16 inch

6 6 mm - 1/4 inch

7 7 mm - 9/32 inch

8 8 mm - 5/15 inch

ENGLISH8

Setting Hair length after trimming

9 9 mm - 3/8 inch

10 10 mm - 13/32 inch

* no comb = 0.5mm - 1/32 inch

1 Hold the appliance in the trimming position, with the trimming head

pointing upwards and the shaving head pointing downwards.

2 Slide the comb into guiding groove of the appliance (‘click’).

3 Press the hair length setting selector and then move it from left to

right or right to left to select a setting.

- The line above the hair length setting selector shows which setting you

have selected.

324

ENGLISH 9
