SAFETY INFORMATION

•Disconnect mains plug when:

Øthe red light below the TV screen is flashing continuously.

Øa bright white line is displayed across the screen.

Øcleaning the TV screen. Never use abrasive cleaning agents. Use a slightly

damp chamois leather or soft cloth.

Øthere is a lightning storm.

Øthe set is left unattended for a prolonged period of time.

•No open flame sources, such as lighted candles, should be placed on or near the TV.

•Do not place your TV set under direct sunlight or heat.

•Leave at least 1/4” around each side of TV set for sufficient ventilation to avoid over-

heating.

•Avoid placing set where it is likely to be exposed to rain or water (e.g. near the

window).

•No objects filled with liquids should be placed on top the TV in order to avoid

dripping or splashing of liquids into the set.

USEFUL TIPS

•Do not leave the television off (in standby mode) for a prolonged period of time.

Switch off set to allow the CRT to be de-gaussed (demagnetized). A de-gaussed CRT

will have optimum picture quality.

•Do not re-position the television while it is switched on. Non-uniformity in screen

color may result.

•Never attempt to repair a defective TV yourself. Always consult skilled service

personnel.

L05 User’s Manual 091105.1833

Before Calling Service

A list of common symptoms is presented as follows. Before you call for service, perform

these simple checks. Some of these symptoms can be readily corrected. Note: Please

become familiar with the commercial features as described in TV Installation / Setup,

because the effects of several of these features, if they are not thoroughly understood,

might appear as faulty operation.

Symptom Possible Corrective Action

TV does not respond to commands (volume,

channel, power), or cannot be turned on if it is off,

or cannot be turned off if it is on.

Check commercial TV setup (TV installation /

setup) menu settings, including power forced on,

front keypad lockout, channel ring, volume

minimum / maximum features.

TV turns off by itself •TV automatically turns off after approx. 5

minutes when no RF signal is present.

•Check Energy Saving Programmability setting

(see ESP) in TV installation / setup.

Lack of color uniformity (color unevenness)

•Switch off the TV using the mains power

button.Wait approximately 20 minutes before

switching on again.

•Ensure that the TV is not placed near speakers

or magnetic objects.

No power

Verify that the TV’s AC power cord is plugged into

the mains socket. If there is still no power,

disconnect plug. Wait for 60 seconds and re-insert

plug. Switch on the TV again.

No picture •Check antenna connection at rear of the TV.

•Check CABLE TUNING setting (NO / YES).

•Possible TV station problem. Try another

channel.

Picture ok, no sound. •Try increasing the volume.

•Check that the sound is not muted. If it is

muted, press the Mute button on the remote

control to restore sound.

•Check the MIN VOLUME/ MAX VOLUME

settings in the setup menu

Sound ok, but poor color or no picture Check picture adjustments (brightness, contrast,

color, tint).

Snowy / noisy picture •Check antenna, cable, and/or set-top box

connections and antenna / cable.

•Possible electrical interference from appliances

or other sources.

Double images / “ghost” images Check antenna, cable and/or set-top box.

Television does not respond to remote control. •Check batteries.

•Aim remote control handset directly at remote

control sensor lens on the TV.

Channel Change to digital channels is slow Channels must be programmed in the Digital OSD

menu for the shortest channel change time.

Note: These televisions are shipped in commercial mode with Digital OSD turned ON. If is

pressed while on a digital channel the television will display the digital menu instead of the

commercial menu. To properly configure the television using the commercial menu, it is necessary to

be on an analog channel to access the setup m

enu.

L05 User’s Manual 091105.1833

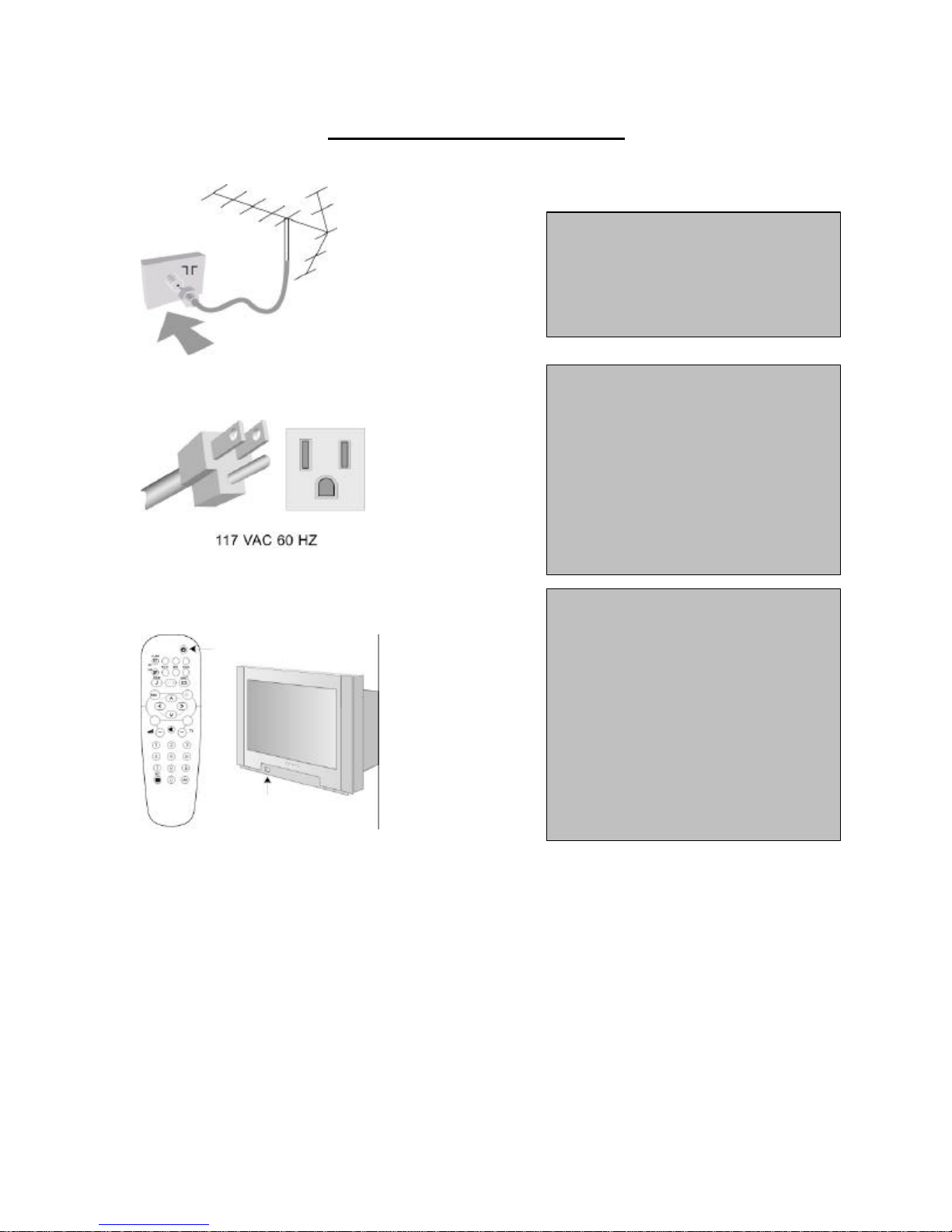

Basic Television Connection

Antenna Connection

•Connect the antenna or RF cable

signal to the 75-ohm RF ‘F’ connector

socket located on the TV’s rear jack panel.

Mains Connection

• Verify that the mains voltage and

frequency are correct. Please refer to the

product labeling and documentation.

Note: The power button on the front panel

does not disconnect the television from the

AC mains; it toggles the TV’s power mode

between on and standby. To completely

remove AC mains power, you must unpl

the AC mains plug.

Switching on the Set

• Press the power button on the TV’s front

panel or on the remote control to switch on

the set.

Note 1: If the TV is in commercial mode, it

might not respond to the front panel or the

remote control, depending upon the TV’s

mode and setup configuration. Please refer

to the section TV Installation and TV

Setup Menu in this documentation for

more information.

Note 2: See Mains Connection, above.

L05 User’s Manual 091105.1833

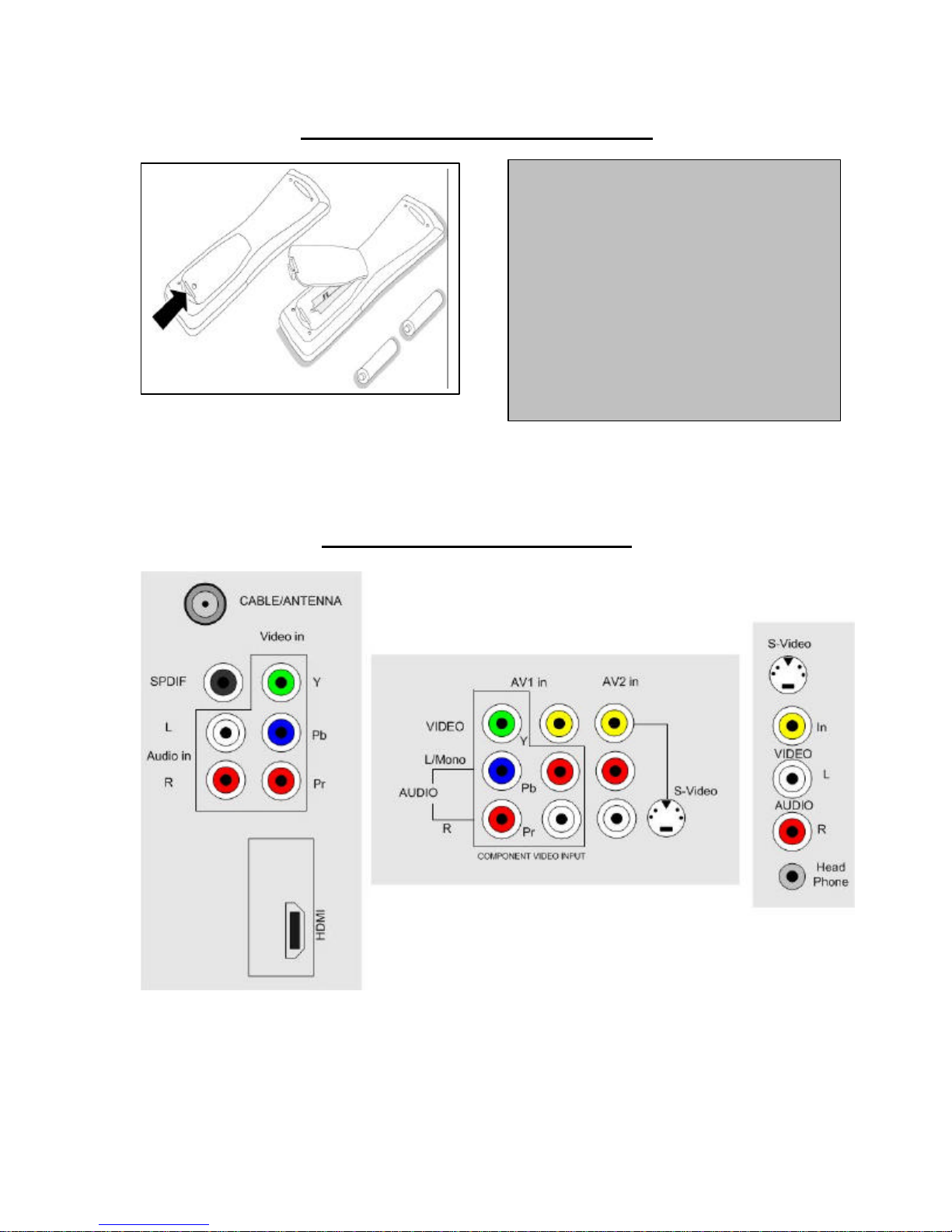

Use And Care of Remote Control

Rear Jack Panel Connections

To load the supplied batteries into the remote

control:

-Remove the battery compartment lid

from the back of the remote control.

-Insert the correct type of batteries into

the compartment.

-Ensure that the (+) and (-) ends of the

batteries are placed in the correct positions.

-Re-attach the battery compartment lid.

Note: Always remove the batteries from the

remote control if it is not to be used for a long

period. This can help prevent damage to the

remote from possible battery leakage.

L05 User’s Manual 091105.1833

REMOTE CONTROLS

The following remote controls are applicable to the L05 HW-series television products.

These can be used for setup and configurationpurposes.

RC2888/01 RC2573GR

Guest Remote Setup Remote

(Optional)

For the purpose of explanation, a guest remote, for the L04 series, similar to the

illustration, is used. Remote control RC2573GR is a special and optional remote control

specifically for configuring Institutional TV / Business Display Solutions features and

SmartCard settings, and is purchased separately. Refer to the documentation for the

RC2573GR for detailed information.

When you press RECALL on the RC2573GR setup remote control, when it is in

setup mode, information similar to the following will appear on the TV screen. This

information describes the TV chassis firmware version, diagnostic codes, setup

information, and other service and technical data regarding the television configuration.

Line #10 indicates whether the TV is in CONSUMER or COMMERCIAL mode,

and whether it is on-line with a SmartPort DCM (such as a CLON99BK SmartLoader).

For more information, please refer to the service documentation for the ITV/BDS L05

TV chassis.

1 L05HU1 1.2

CSM

2 CODE 34 0 0 0 0 0

3 OP 2 96 225 57 126 116 0

4 AUTO AUTO MONO

5 NOT TUNED

7 C0 50 CL 50 BR 47 HU 19 SH 50

8 VL 4 BL 0

9 BS 50 TR 50

10 COMMERCIAL SMART PORT OFF

11 CHANNEL CVI

L05 User’s Manual 091105.1833

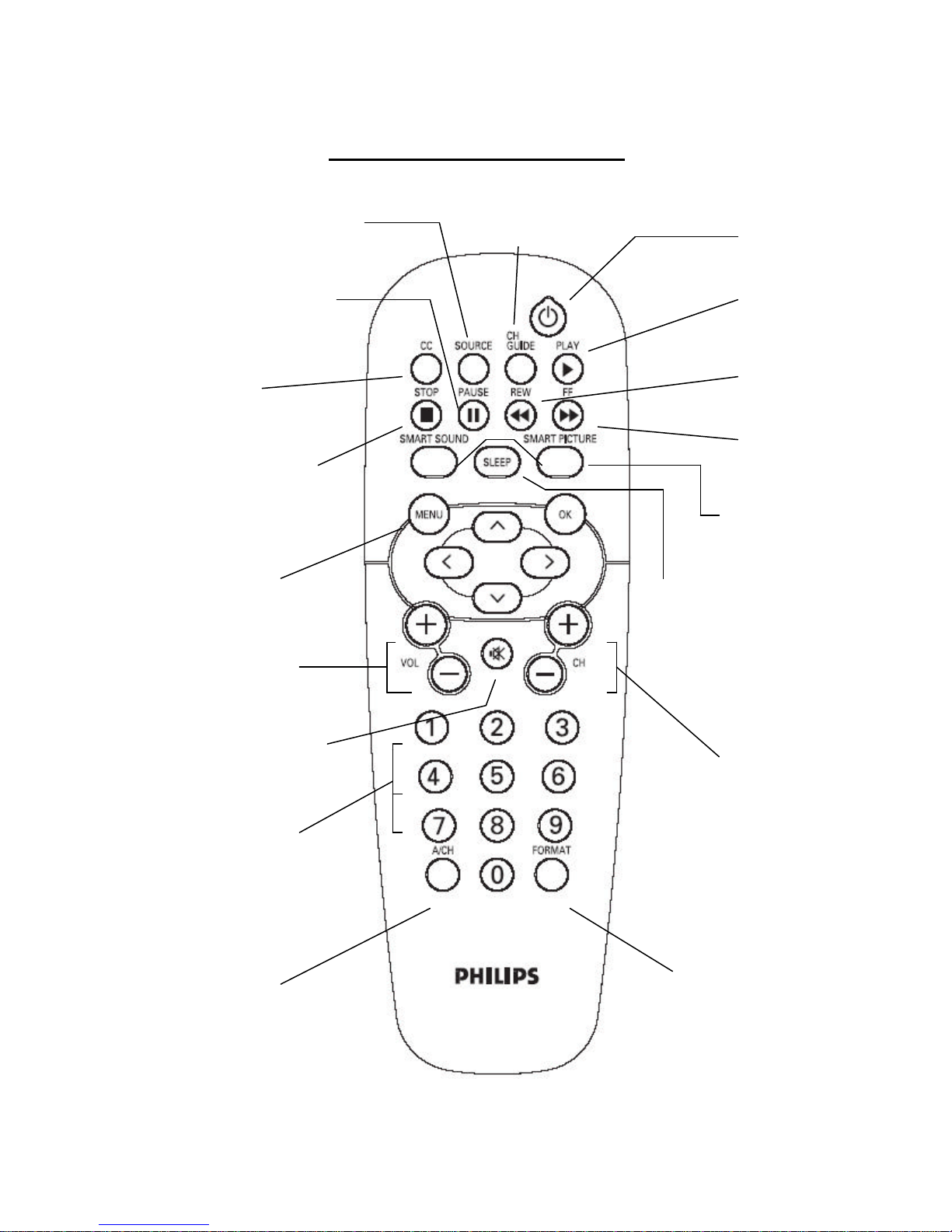

Guest Remote Control Keys

Standby

Press to switch

the

TV off.

DVD PLAY

To Start DVD playback

(if applicable)

DVD FAST

FORWARD

To Fast Forward DVD

playback (if applicable)

Close Caption

To activate Close

Caption functionality

DVD STOP

To Stop DVD

playback

(if applicable)

DVD PAUSE

To Pause DVD

playback

Smart Keys

To select

predefined picture

and sound settings.

Sleep

Activates the sleep timer.

Press repeatedly to

increment the countdown

time with 15 minutes.

+ Vol -

To adjust the volume.

Mute

Interrupt the sound or

restore it.

0/9 Digit keys

To select a TV channel.

For a two digit program

number, enter the second

digit before the dash

appears.

+ CH –Channel

Selection

To move up or down a TV

channel.

16:9 Formats

To adjust TV

screen formats

Alternate Channel

To toggle between

alternating channels

To call up or exit the

menus.

DVD Rewind

To Rewind DVD

playback

Source Select

To toggle between

available video sources

CH Guide

activate Channel

Guide functionality

L05 User’s Manual 091105.1833

Consumer vs. Commercial Mode

The television is shipped in Commercial mode; however, at times it may be necessary to

operate the set in Consumer mode. To switch between Commercial Mode and Consumer

Mode the following sequence should be followed:

•With the RC2573GR Master setup remote enter 024995 and press the key.

•Use the Right cursor button to switch the Mode of the set between Consumer and

Commercial.

•With the proper mode selected, cursor down and use the Right cursor button to store

the selected mode.

•After the mode is stored, the television will power itself off. At this point disconnect

AC and perform a cold start on the television.

•The set should now be in the selected mode.

Accessing TV Setup Menus

With remote control RC2888/01

(only when SECURITY in the TV SETUP menu is set to LOW).

To activate TV Setup menu:

1. Select a channel number.

2. Key in 3 1 9 7 5 3.

3. Press .

The above sequence should be performed within 20 seconds, and the TV SETUP menu

will appear.

With remote control RC2573GR

(only in TV Commercial mode)

Part A: To check the television’s mode.

1. Set the remote control selectable switch to SETUP.

2. Press RECALL key and the TV Status menu will appear.

3. Check line 10 of the menu to see if the TV is in the Commercial or Consumer

mode.

4. If the TV is in the Commercial mode, then proceed to Part B to activate the TV

Setup menu. Otherwise, go to Part C to change the TV mode to Commercial.

Part B: To activate TV Setup menu.

1. Press the RECALL key to clear the menu.

2. Press MENU to activate the TV Setup menu.

Part C: To select Commercial mode, if the TV is in Consumer mode (or to select

Consumer mode, if the TV is in Commercial mode).

L05 User’s Manual 091105.1833

1. Press the RECALL key to clear the menu.

2. Press 0 2 4 9 9 5.

3. Press M key and the TV Mode menu appears.

4. Press + or -to select Commercial mode.

5. Highlight STORE and press the 4 key to store the change. TV will then go to

standby mode.

6. Press any numeric key to switch on the TV again and follow the procedure in Part

B, step 2 to activate the TV Setup menu.

L05 User’s Manual 091105.1833

TV Setup Main Menu

LANGUAGE ENGLISH

CHANNELINSTALL >

CABLETUNING >

FACTORY CH RESET >

USE CHANNEL TABLE NO/YES

DIGITAL OSD NO/YES

ENTER DIGITAL MENU >

BRIGHTNESS ||||||||||||| 0 –100

COLOR ||||||||||||| 0 –100

CONTRAST ||||||||||||| 0 –100

SHARPNESS ||||||||||||| 0 –100

TINT ||||||||||||| -50 -+50

ROTATION ||||||||||||| 0 –63

DEFAULT FORMAT WIDESCREEN/4:3/ZOOM 14:9/ZOOM 16:9/ SUBTITLE

ZOOM/SUPER ZOOM

NOISE REDUCTION NO / YES

SOUND MODE MONO / STEREO

SAP NO/YES

AVL NO / YES

BALANCE ||||||||||||| -31 -+31

TREBLE ||||||||||||| 0 –100

BASS ||||||||||||| 0 –100

INCREDIBLE STEREO NO / YES

ULTRA BASS YES

VOLUME BAR YES

MIN VOLUME ||||||||||||| 0 –100

MAX VOLUME ||||||||||||| 0 –100

SWITCH ON VOLUME STANDARD /||||||||||||| 0 –100

SWITCH ON CHANNEL STANDARD / TV 1 -125 / AV 1 / AV 2 / SIDE / S-VIDEO /

CVI / AV3YC / HDMI / HD CVI

POWER ON STANDARD/ FORCED / RESTORED

CHANNELDISPLAY NONE / NUMBER / LABEL / ALL

KEYBOARDLOCK NO / YES

ESP OFF / 1 HR / 2 HR / ... / 99 HR

AUDIO/VIDEO MUTE OFF / BLUE / BLACK

WELCOMEMESSAGE >

CHANNEL GUIDE NO / YES / POWER ON

REMINDER NO / YES

3 DIGIT ENTRY NO / YES

A/CH A/V SWITCH NO / YES

CC OFF / CC-1 / CC-2 / CC ON MUTE

SAVE CC NO / YES

SOURCE MENU ITEM NO / YES

HDMI AUDIO SELECTION HDMI/AV 1/AV 2/AV 3

V-CHIP MENU ITEM NO / YES

SAVED V-CHIP NO / YES

V-CHIP SETUP >

SLEEPTIMER OFF / 15 MIN / 30 MIN / 45 MIN/ 60 MIN / 90 MIN / ... / 240

MIN

SECURITY STANDARD / HIGH

Only 8 menu items will be displayed at one time.

1) To scroll through the menu, press (cursor up / down) on the remote

control. A highlight indicates that the respective menu item’s setting is selected for

modification.

2) To modify the setting of the selected menu item press (cursor

left / right).

3) To exit, press or RECALL on the RC2573GR setup remote control.

Andere Handbücher für 26-REAL FLAT COMMERCIAL WIDESCREEN HDTV...

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Flachbildfernseher Handbücher

Philips

Philips 47PF9441D Bedienungsanleitung

Philips

Philips 26PF3302 Bedienungsanleitung

Philips

Philips 20PF5121 Bedienungsanleitung

Philips

Philips 32PFL9705H Bedienungsanleitung

Philips

Philips 37PFL5322/12 Bedienungsanleitung

Philips

Philips 28PW6506 - annexe 1 Bedienungsanleitung

Philips

Philips RS232 Bedienungsanleitung

Philips

Philips 32PFL7803D Bedienungsanleitung

Philips

Philips 15PF5121 Bedienungsanleitung

Philips

Philips Matchline 42PF9986 Bedienungsanleitung

Philips

Philips 32-LCD HDTV MONITOR FLAT TV DIGITAL CRYSTAL CLEAR... Bedienungsanleitung

Philips

Philips RS232 Bedienungsanleitung

Philips

Philips 42PFL7332 - annexe 1 Bedienungsanleitung

Philips

Philips Cineos 37PFL9732D Bedienungsanleitung

Philips

Philips 20FT3037 Handbuch

Philips

Philips Matchline 42PF9936D Bedienungsanleitung

Philips

Philips 37PF9731D Bedienungsanleitung

Philips

Philips 28PW8818/12 Bedienungsanleitung

Philips

Philips 47PFL7603D - annexe 1 Bedienungsanleitung

Philips

Philips 19PFL4322 Bedienungsanleitung

Philips

Philips 22PFL3415H/60 Bedienungsanleitung

Philips

Philips 15PF9936/78 Bedienungsanleitung

Philips

Philips BDH4222V Bedienungsanleitung

Philips

Philips 42PFL7572D - annexe 1 Bedienungsanleitung

Beliebte Flachbildfernseher Handbücher anderer Marken

Samsung

Samsung LT-P326W Bedienungsanleitung

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Bedienungsanleitung

JVC

JVC LT-26DX7BFN Bedienungsanleitung

Samsung

Samsung CT2Z45 Bedienungsanleitung

Samsung

Samsung LNR1550X Bedienungsanleitung

Westinghouse

Westinghouse TX-42F970Z Bedienungsanleitung

Toshiba

Toshiba 32BV500B Bedienungsanleitung

Samsung

Samsung Smart TV UN55D6000 Leitfaden

RCA

RCA MR53R400 Bedienungsanleitung

JVC

JVC GGT0362-001A-H Bedienungsanleitung

Sanyo

Sanyo FVM4212 Bedienungsanleitung

JVC

JVC LT-32Z48 Bedienungsanleitung

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Gebrauchsanweisung

Vizio

Vizio M190MV Gebrauchs- und Pflegehandbuch

Samsung

Samsung UN55F7050AF Bedienungsanleitung

RCA

RCA TruFlat F20TF30 Bedienungsanleitung

Samsung

Samsung LW32A33W Kurzanleitung

Sony

Sony FD Trinitron Wega KV-30HS420 Bedienungsanleitung
