Philips 43PFH4082/96 Bedienungsanleitung

Published by Yingqun.Wen 4082 Quality Subject to modification

2017 ©TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

Chassis name Platform Model name

4082 MSD3463 43PFH4082/96

4082

2017-Nov-25

Published by Yingqun.wen 4082 Quality Subject to modification

2017-July-19

2017 ©TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

1.Product inforamtion……….……………………………………………………………………………………3

2.Connections overview……..…..…..………………..…………………………………………………………6

3.Mechanical Instructions………………….…………………………………………………………………….7

Cable dressing (43" 4082 series)………………………………………………………………………………7

Assembly/Panel Removal ………………………………………………………………………………………7

4.Factory Modes…………….……………….………………….…………………………………………….….15

5. So ft wa re up gr ad in g an d Pa nel Cod e …… …… … .. . …… …… …… …………………… …… … .. 1 7

6.Circuit Descriptions…..……………………….………………………………………………………………19

7.IC Data Sheet……...……………………………………………………………………………………….…..25

8.Circuit Diagrams……………...……………………………………………………………………………….27

9.Styling Sheet……………….…………………….……………………………………………………………..35

4082 series 43"……………………………………………………………………………………………….35

1. Product information

Product information is subject to change without notice.

For detailed product information，please visit www.philips.com/support

Display Type

Diagonal screen size

• 43PFH4082/96: 42.51 inch

Display resolution

• 43PFH4082/96 : 1920*1080p

Input resolution

• 800 x 600p - 60 Hz

• 1024 x 768p - 60 Hz

• 1280 x 768p - 60 Hz

• 1360 x 765p - 60 Hz

• 1360 x 768p - 60 Hz

• 1280 x 1024p - 60 Hz

• 1920 x 1080p - 60 Hz23.5

Video formats Resolution — Refresh rate

• 480i, 480p,576i, 576p,720p,1080i,1080p(24/25/30/50/60Hz)

Computer formats Resolutions (amongst others)

720*400@70HZ

640*480@60HZ

800*600@60HZ

1024*768@60HZ

1360*768@60HZ

1280*720@60HZ

1280*960@60HZ

1280*1024@60HZ

1600*900@60HZ

1920*1080@60HZ

Dimensions and Weights

43PFH4082/96

• without TV stand:

Width 969mm - Height 578 mm - Depth 83mm - Weight 7.4kg

• with TV stand:

Width 969 mm - Height 625mm - Depth 226mm - Weight 7.5kg

Connectivity

I/O port to be clearly indicated

TV*2/USB*2/VGA*1

/HDMI*3/YPBPR&AV-IN*1/Earphone

*1/Coaxial-OUT*1/PC audio*1/Audio

in*1

Playback YES

Component (HD/SD)@24p/50/60 (HD/SD)@24p/50/60

HDMI Number 3

HDMI 1 HDMI 1.4 /up to 2k@60hz

4：4：4 down

HDMI 2 HDMI 1.4 /up to 2k@60hz

4：4：4 down

HDMI 3 HDMI 1.4 /up to 2k@60hz

4：4：4 down

HDMI 4 NA

HDCP v2.2 (on HDMI 2.0 port) YES

HDMI ARC HDMI-3

PC input (VGA) VGA

AV （input）YES

Headphone YES

Video and Audio out NA

Digital audio out (SPDIF)

co-axial/Optical Co-axial Out

RJ45 NA

DLNA/ Certification NA

WiFi NA

EasyLink (HDMI-CEC) YES

Antenna Tuner /Satellite tuner Antenna Tuner(down)

Wireless connections N/A

Wi-Fi Band Concurrent N/A

Bluetooth for subwoofer/RC (do not claim

commercially)

N/A

MHL(Version ) HDMI-1

Sound

Mono/Stereo/Virtual Surround Mono/Stereo/Virtual Surround

Output Power (10% THD) RMS (RMS Watts) 16W

Speaker configuration 8W+8W

Speaker system (Number of on board Speakers ) 2.0

Speaker type built-in(normal)

Auto Volume Levelier / Auto Volume Levelier + N/A

Dolby Digital DecoderType(DD/DD+) N/A

DTS Studio Sound N/A

DTS 2.0+ Digital out N/A

SPL (>= 84dB @ 2m) 78dB @ 2m

Acoustic frequence range 160~8K HZ<=16dB

Multimedia

Video Playback Formats MPEG-1/MPEG-2/MPEG-4 H.264

FLV/RV8/RV9/RV10

Subtitles Formats Support SRT、ASS

Music Playback Formats MP3，AAC

Picture Playback Formats JPG、JPEG、BMP、PNG

Pause TV/USB recording (PVR) YES

Time shift YES

PIP/POP NA

USB USB2.0(*2)

USB Harddisk Format (Power) FAT/NTFS (500mA)

Power

Product specifications are subject to change without

notice. For more specification details of this product,

see www.philips.com/support

Power

• Mains power : AC 100-240V 50/60Hz

• Standby Energy Consumption:≤0.5W

• Ambient temperature : 5°C to 40°C

2. Connections Overview

3. Mechanical Instructions

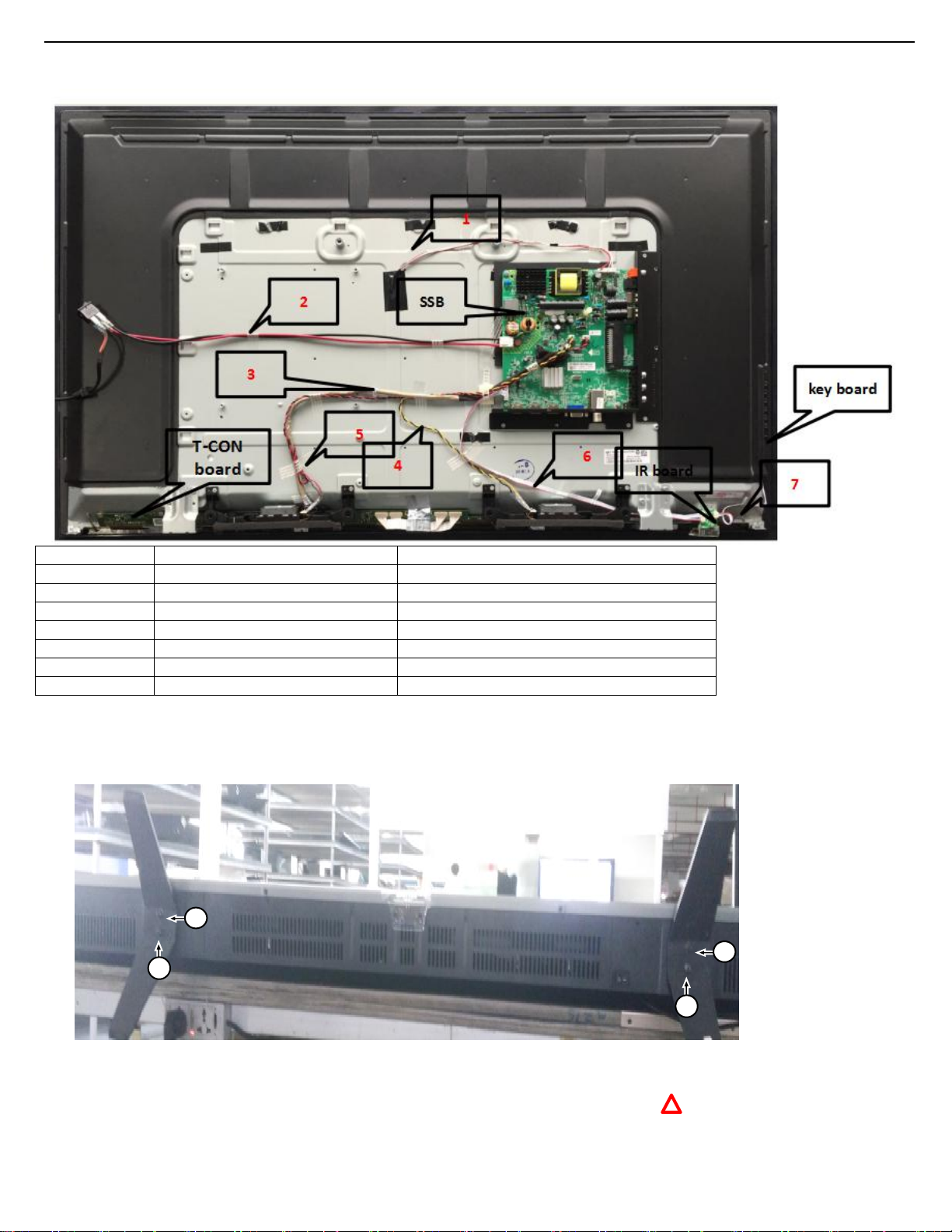

3.1 Cable Dressing

Serial no part description function

1 Backlight wire Connect to PJ2

2 Power wire Connect to PCN105

3 LVDS wire Cn401 to T-CON board

4 Speaker wire CN203 to speaker (yellow black wire)

5 Speaker wire CN201 to speaker (red black wire)

6 two-terminal wire CN104 to IR board

7 two-terminal wire IR Board to key board

3.2 Assembly/Panel Removal

3.2.1 Stand removal1. Remove the fixation screws [1] that secure the stand

2. Take the stand bracket out from the set.

3.2.2 Disassemble Back Cover-1

1. Use electric screwdriver to dismantle 7PCS Ф3×6mm screws from back cover. Figure 1

2. Put removed screws at appointed material box.Do not mix it with others material

3. After self-check OK,flow it into next station by foot switch.

3.2.3 Disassemble Back Cover-2

1. Take off screws with electric screwdriver. Figure 1

2. Categorize and place removed screws at the appointed material box. Do not mix with other material.

3. Both hands respectively grasp the middle of left and right sides of back cover-M,lift the right side of back cover to separate the

buckle on lower right side of back cover-M,from back cover-L.Then Pushing back cover-M toward right and up to make the

buckle on the lower left side of back cover-M separate from back cover-R. Take out power cord from the slot and then take

down back cover-M and put it on the mat of circulated cart. Figure 2

4. After self-check OK,flow it into next station by foot switch.

3.2.4 Disassemble Wire

1. Use diagonal pliers to cut off 2pcs cable ties from the baffle and place them at appointed position. Figure 1

2. As figure show,tear off fabric tapes from wires and place them at appointed position. Figure 1

3. As Figure show,tear off aluminum foil from FFC wire and place them at appointed position. Figure 1

4. Unplug all wire terminals from motherboard connector. Figure 1

5. Unplug rocker power switch and power cord from the slot of back cover. Figure1/A

6. Take down power cord and LVDS wire,categorize and place them at appointed position orderly

Figure 2

3.2.5 Dismantle left/right back cover

1. Use electric screwdriver to dismantle 2pcs Ф3×6mm screws from back cover. Figure 1

2. Place removed screws at the appointed material box. Do not mix with other material

3. Take down back cover-L and back cover-R respectively,and place them at appointed position.

4. After self-check OK,flow it into next station by foot switch.
