Issue 7.4 February 2020

40-522/523/524 User Manual

PXI High Density Matrix Module

Page (II) HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture..............................................................4.2

Using The IVI, Direct or VISA Driver ....................................4.3

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Relay Lookup Tables - 40-522 ..............................................7.2

Relay Lookup Tables - 40-523 ..............................................7.4

Relay Lookup Tables - 40-524 ..............................................7.6

CONTENTS

Page (VI) HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI High Density Matrix 40-522

ISSUE 9.0 APR 2018

Supported by

eBIRST

eBIRST switching system test tools simplify switching system fault-

nding by quickly testing the system and graphically identifying the

faulty relay.

For more information go to: pickeringtest.com/ebirst

• High Density Reed Relay Matrix Module

• 1-Slot PXI (CompactPCI) Module

• Dual 12x8 Matrix

• 1-Pole or 2-Pole Versions

• Large Matrices Built Using Multiple Modules

• Uses High Reliability Pickering Ruthenium Reed

Relays For Maximum Performance

• Fast Operating Speed <500µs

• Switch up to 150V, 1.25A with 20W Max Power

• VISA, IVI & Kernel Drivers Supplied for Windows

• Supported by PXI or LXI Chassis

• Supported by

eBIRST

™

• 3 Year Warranty

40-522 Dual 12x8 Matrix

X102

X104

X108

X101

X103

X105

X106

X107

X112

X109

X110

X111

Y102

Y104

Y108

Y101

Y103

Y105

Y106

Y107

Y202

Y204

Y208

Y201

Y203

Y205

Y206

Y207

X202

X204

X208

X201

X203

X205

X206

X207

X212

X209

X210

X211

MATRIX

CROSSPOINT

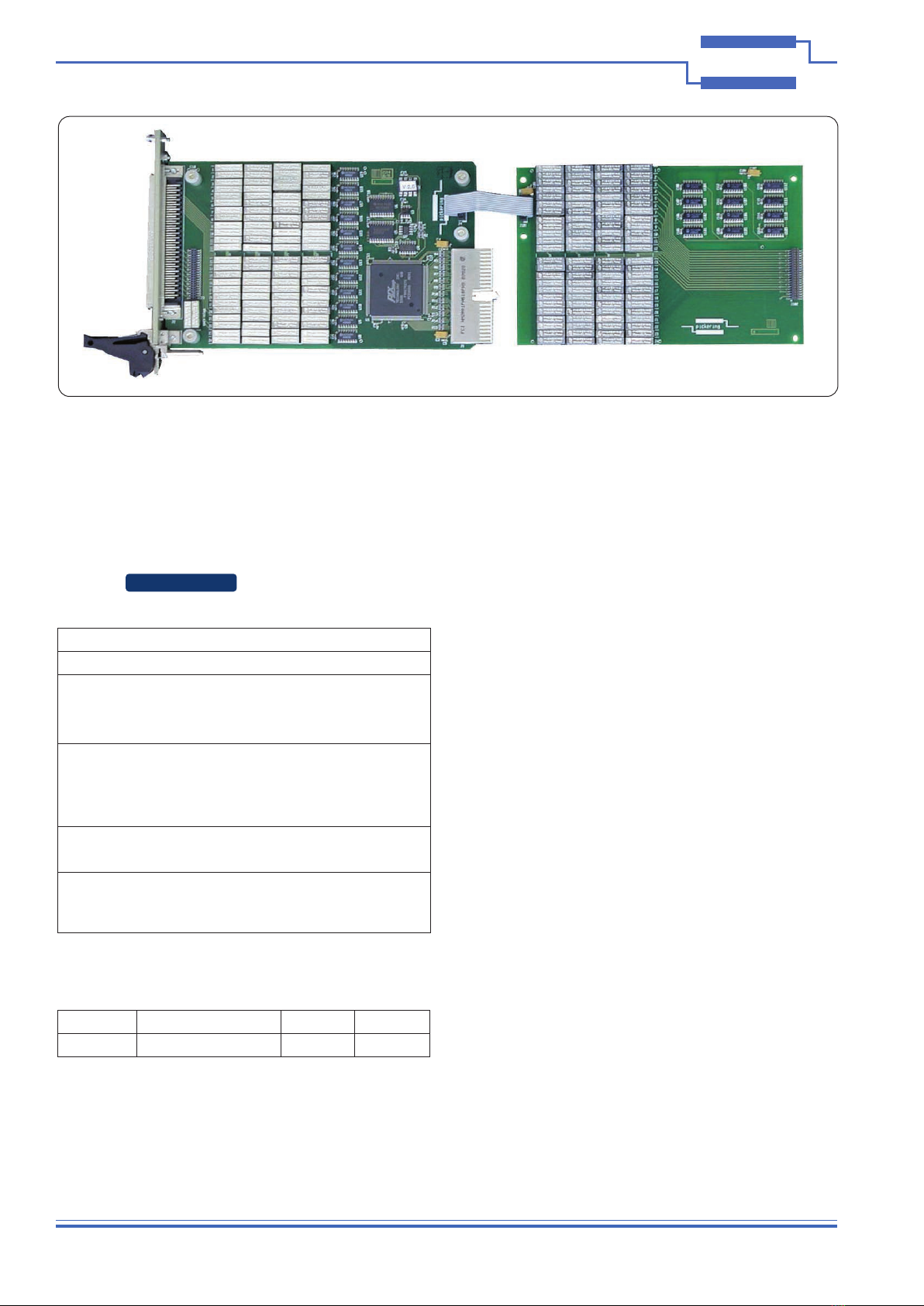

The 40-522 module is congured as a dual 12x8 matrix and is

available in 1-pole and 2-pole reed relay formats.

Typical applications include signal routing in ATE and data

acquisition systems. The two banks may be used for operating

a 4-wire measurement system (bank 1 for source, bank 2 for

measure).

Larger matrices may be constructed by daisy chaining the common

signals from multiple PXI modules.

40-522 HIGH DENSITY MATRIX

Page 1.2 HIGH DENSITY MATRIX MODULES 40-522/523/524

pickering

SECTION 1 - TECHNICAL SPECIFICATION

High Density Matrix – 40-522

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Switch Type: Ruthenium Reed

Max Switch Voltage: 150VDC/100VAC*

Max Power:

Max Switch Current:

Max Carry Current:

20W

1.0A

1.25A

Initial Path Resistance

On (Single Module):

Off (Single Module):

Thermal Offset:

<900mΩ

>109Ω

<5µV

Operate Time:

Release Time:

<0.5ms, 0.25ms typical

Expected Life

Low power load:

Full power load:

1x109 operations

>5x106 operations

* For full voltage rating, signal sources to be switched must be fully

isolated from mains supply and safety earth.

Power Requirements

+3.3V +5V +12V -12V

0400mA (280mA typical) 0 0

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0°C to +55°C

Up to 90% non-condensing

5000m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20°C to +75°C

Up to 90% non-condensing

15000m

PXI & CompactPCI Compliance

The module is compliant with the PXI Specication 2.2. Local Bus,

Trigger Bus and Star Trigger are not implemented.

Uses a 33MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable EU

directives: Low-voltage safety EN61010-1:2010, EMC Immunity

EN61326-1:2013, Emissions EN55011:2009+A1:2010.

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular le formats are

available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 96-pin male micro-D connector, for pin outs

please refer to the operating manual.

Relay Type

The 40-522 modules are tted with ruthenium sputtered reed

relays, these offer very long life with good low level switching

performance and excellent contact resistance stability. Spare reed

relays are built onto the circuit board to facilitate easy maintenance

with minimum downtime.

All reed relays are manufactured by our sister company Pickering

Electronics: pickeringrelay.com

Internal View of the 40-522 High Density Matrix Module

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pickering Steuereinheit Handbücher

Pickering

Pickering 42-724 Bedienungsanleitung

Pickering

Pickering 4x-727A Bedienungsanleitung

Pickering

Pickering 40-262 Bedienungsanleitung

Pickering

Pickering PXI 40-710 Bedienungsanleitung

Pickering

Pickering 40-559 Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-569 Bedienungsanleitung

Pickering

Pickering 40-331 Bedienungsanleitung

Pickering

Pickering PXI BRIC 40-562A Bedienungsanleitung

Pickering

Pickering 40-527A Bedienungsanleitung

Pickering

Pickering 60-553 Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 41-765 Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-561A Bedienungsanleitung

Pickering

Pickering Pxi 41-182A Bedienungsanleitung

Pickering

Pickering BRIC 40-565B Bedienungsanleitung

Pickering

Pickering Pxi 41-660 Bedienungsanleitung

Pickering

Pickering 40-670 Bedienungsanleitung

Pickering

Pickering 40-521 Bedienungsanleitung

Pickering

Pickering 4 890 Series Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-584 Bedienungsanleitung

Pickering

Pickering 40-670A Bedienungsanleitung

Pickering

Pickering Pxi 41-750 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
