Issue 8.2 May 2023

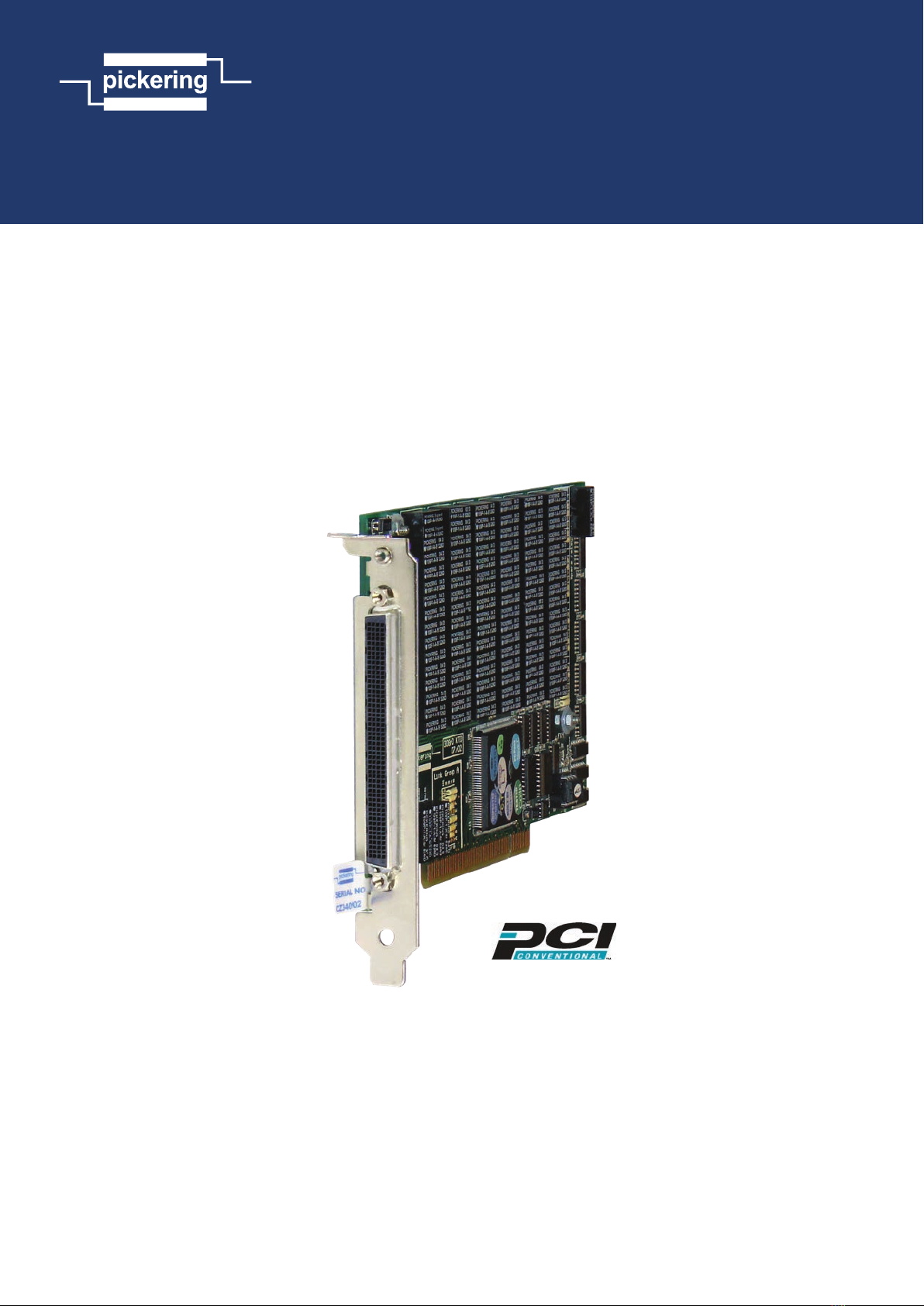

50-670 User Manual

PCI Very High Density Multiplexer Card

Page (II) VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PCI Cards ................4.1

Card Architecture ..................................................................4.2

Card Sub-Units ......................................................................4.3

Programming The Card.........................................................4.15

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting.........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Relay Lookup Tables.............................................................7.1

Component Layout................................................................7.2

CONTENTS

Page (VI) VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

Page (VII)

PCI REED RELAY CARD 50-110 / 115 / 120 / 125

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This card may contain hazardous voltages. Before removing the card from the chassis remove all

supplies and disconnect user I/O signals.

Unused slots in the PC chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. . If the product is not used in this manner for example by using an

extender card then additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This card must not be used for the switching of Mains Circuits. For the switching of voltages up to

the card’s full specication, Secondary Circuit power supplies and the Device Under Test must be

fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

PCI Switching

Card

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

Page (VIII) PCI REED RELAY CARD 50-110 / 115 / 120 / 125

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

yVery High Density Multiplexer

yUp to 198 Switch Pins Available with 1, 2, 4, 8, 16

or 32-Pole Switching Formats

yUses High Reliability Pickering Reed Relays

yFast Operating Speed 500 µs Typical per Relay

yHot Switch up to 100 VDC/70 VAC,

Cold Switch up to 150 VDC/100 VAC

yCarry Current 1.2 A With 20 W Max Power

yAutomatic Isolation Switches Reduce Capacitive

Loading in Large Systems

yDrivers Supplied for Windows & Linux, Plus

Support for Real-time Systems

yShares Same Architecture As PXI 40-670 Module

ySupported by

eBIRST

™

y3 Year Warranty

The 50-670 series of very high density multiplexer cards

feature a wide range of switching conﬁgurations. Typical

applications include signal routing in ATE and data acquisition

systems.The 50-670 shares the same architecture as the

established PXI 40-670.

The card is factory set into one of the multiplexer

conﬁgurations shown in the table below. Connections are

made via a front panel 200-pin socket.

50-670 Very High Density Multiplexer Range:

1 Bank, 198 Channels, 1-Pole

1 Bank, 99 Channels, 2-Pole

1 Bank, 49 Channels, 4-Pole

1 Bank, 24 Channels, 8-Pole

1 Bank, 10 Channels, 16-Pole

1 Bank, 5 Channels, 32-Pole

1 Bank, 99 Channels, 1-Pole

1 Bank, 49 Channels, 2-Pole

1 Bank, 24 Channels, 4-Pole

1 Bank, 10 Channels, 8-Pole

1 Bank, 5 Channels, 16-Pole

The majority of 50-670 cards (see order codes) allow multiple

channels to be simultaneously selected. Alternatively, product

variants can be supplied that operate as a conventional

multiplexer with break-before-make action when a new

channel is selected.

Supported by

eBIRST

eBIRST switching test tools simplify fault-ﬁnding by quickly

testing the system and graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

Note: The multiple channel selection option is not available for

the 50-670-022-198/1 multiplexer.

Built in automatic isolation switching (available in 1, 2 and

4-pole conﬁgurations) connects only the currently active

multiplexer bank on to the analogue common, keeping

capacitive loading and leakage current in large multiplexer

systems to a minimum. Larger multiplexers may be

constructed by daisy chaining the common signals from

multiple cards.

Front Panel Connector

This product is based on the obsolete Molex LFH series

connector that has been superseded by a Pickering

commissioned form, ﬁt, function equivalent. The new

connector series is 100% compatible with the Molex

connectors allowing either gender of Pickering connector to

mate with the corresponding Molex part without issue.

pickeringtest.com

50-670

PCI Very High Density Multiplexer

Issue 11.0 April 2023

Page 1.2 VERY HIGH DENSITY MULTIPLEXER CARD 50-670

pickering

SECTION 1 - TECHNICAL SPECIFICATION

1.1

2.1

Com 1

49.1

Isolation

Switch

1.2

2.2

Com 2

49.2

1.3

2.3

Com 3

49.3

1.4

2.4

Com 4

49.4

50-670-022 49-Channel

4-Pole Multiplexer

50-670-022 99-Channel

2-Pole Multiplexer

1.1

2.1

Com 1

99.1

Isolation

Switch

1.2

2.2

Com 2

99.2

1.1

1.25

Com 1

5.1

1.2

1.26

Com 2

5.2

1.3

1.27

Com 3

5.3

1.4

1.28

Com 4

5.4

1.5

1.29

Com 5

5.5

1.6

1.30

Com 6

5.6

1.7

1.31

Com 7

5.7

1.8

1.32

Com 8

5.8

Com 25

Com 26

Com 27

Com 28

Com 29

Com 30

Com 31

Com 32

5.25

5.26

5.27

5.28

5.29

5.30

5.31

5.32

CHANNEL 1CHANNEL 5

50-670-022 5-Channel 32-Pole Multiplexer

50-670-022 10-Channel 16-Pole Multiplexer

1.1

1.9

Com 1

10.1

1.2

1.10

Com 2

10.2

1.3

1.11

Com 3

10.3

1.4

1.12

Com 4

10.4

1.5

1.13

Com 5

10.5

1.6

1.14

Com 6

10.6

1.7

1.15

Com 7

10.7

1.8

1.16

Com 8

10.8

Com 9

Com 10

Com 11

Com 12

Com 13

Com 14

Com 15

Com 16

10.9

10.10

10.11

10.12

10.13

10.14

10.15

10.16

CHANNEL 1CHANNEL 10

Com

Isolation

Switch

198

50-670-022 198-Channel 1-Pole

Multiplexer

(50-670-022-198/1 multiple channel

selection not available)

50-670

pickeringtest.com Page 2

PCI Very High Density Multiplexer

Inhaltsverzeichnis

Andere Pickering Multiplexer Handbücher

Pickering

Pickering 40-737 Bedienungsanleitung

Pickering

Pickering 40-650A Bedienungsanleitung

Pickering

Pickering 40-680 Bedienungsanleitung

Pickering

Pickering 40-610A Bedienungsanleitung

Pickering

Pickering 40-670 Bedienungsanleitung

Pickering

Pickering 40-614C Bedienungsanleitung

Pickering

Pickering 40-681A Bedienungsanleitung

Pickering

Pickering 40-667B Bedienungsanleitung

Pickering

Pickering 40-670C Bedienungsanleitung

Pickering

Pickering 40-630A Bedienungsanleitung

Pickering

Pickering PXI 40-660 Bedienungsanleitung

Pickering

Pickering 40-659A Bedienungsanleitung

Pickering

Pickering PCI 50-725 Bedienungsanleitung

Pickering

Pickering 40-655A Bedienungsanleitung

Pickering

Pickering 40-657 Bedienungsanleitung

Pickering

Pickering LXI 65-231-9 Series Bedienungsanleitung

Pickering

Pickering 40-616A Bedienungsanleitung

Pickering

Pickering 40-659A Bedienungsanleitung

Pickering

Pickering 40-760 Bedienungsanleitung

Pickering

Pickering PXI 40-617 Bedienungsanleitung

Pickering

Pickering PXI 40-635A Bedienungsanleitung

Pickering

Pickering LXI 60-890-053 Bedienungsanleitung

Pickering

Pickering PXI 40-620 Bedienungsanleitung

Pickering

Pickering PXI Power MUX BRIC 40-571A Bedienungsanleitung

Beliebte Multiplexer Handbücher anderer Marken

Campbell

Campbell AM416 Bedienungsanleitung

Paradyne

Paradyne SIM2000 Bedienungsanleitung

Panasonic

Panasonic WJFS616 - SWITCHER Bedienungsanleitung

Lanex

Lanex TM-77 Bedienungsanleitung

Bosch

Bosch VSS8394/01T Bedienungsanleitung

Quark-Elec

Quark-Elec QK-A035 Bedienungsanleitung

ADTRAN

ADTRAN Frameport 768 Bedienungsanleitung

Elo TouchSystems

Elo TouchSystems E247 Bedienungsanleitung

Paradyne

Paradyne Hotwire 8786 Bedienungsanleitung

RFL Electronics

RFL Electronics 9508D UCC Bedienungsanleitung

Miranda

Miranda AMX-101i Bedienungsanleitung

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Bedienungsanleitung

GE StoreSafe SDVR-10 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8410C Bedienungsanleitung

ADC

ADC HiGain ELU-319 5E Bedienungsanleitung

Paradyne

Paradyne Hotwire 8774 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8810C-SL Bedienungsanleitung

Viessmann

Viessmann 5229 Bedienungsanleitung
