SUPER AUDIO CD PLAYER

PD-50AE

Instruction

Manual

Before Start

Safety Information .................................................................. 2

What's in the box .................................................................... 3

Part Names

Front Panel ............................................................................. 4

Rear Panel .............................................................................. 5

Remote Controller .................................................................. 6

Display .................................................................................... 7

Install

Connections with an amplifier ................................................. 8

Connecting the power cord, etc. ............................................11

Playback

Playing discs ......................................................................... 12

Using this unit as a D/A converter ........................................ 14

Adjusting sound quality ......................................................... 15

Advanced Setup

Advanced Settings................................................................. 16

Others

Troubleshooting .................................................................... 17

Other notes............................................................................ 18

General Specifications........................................................... 19

> Before Start > Part Names > Install > Playback

Advanced Setup | Others

Safety Information

Before Start

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

7KHOLJKWQLQJIODVKZLWKDUURZKHDGV\PEROZLWKLQDQHTXLODWHUDOWULDQJOHLVLQWHQGHGWRDOHUWWKHXVHUWRWKHSUHVHQFHRIXQLQVXODWHG³GDQJHURXVYROWDJH´ZLWKLQWKHSURGXFW¶VHQFORVXUHWKDWPD\EHRIVXႈFLHQWPDJQLWXGHWRFRQVWLWXWHDULVNRIHOHFWULFVKRFNWRSHUVRQV7KHH[FODPDWLRQSRLQWZLWKLQDQHTXLODWHUDOWULDQJOHLVLQWHQGHGWRDOHUWWKHXVHUWRWKHSUHVHQFHRILPSRUWDQWRSHUDWLQJDQGPDLQWHQDQFHVHUYLFLQJLQVWUXFWLRQVLQWKHOLWHUDWXUHDFFRPSDQ\LQJWKHDSSOLDQFH&$87,217235(9(177+(5,6.2)(/(&75,&6+2&.'21275(029(&29(525%$&.1286(56(59,&($%/(3$576,16,'(5()(56(59,&,1*7248$/,),('6(59,&(3(56211(/

:$51,1*

7235(9(177+(5,6.2)(/(&75,&6+2&.'21275(029(&29(525%$&.1286(56(59,&($%/(3$576,16,'(5()(56(59,&,1*7248$/,),('6(59,&(3(56211(/7KLVHTXLSPHQWLVQRWZDWHUSURRI7RSUHYHQWD¿UHRUVKRFNKD]DUGGRQRWSODFHDQ\FRQWDLQHU¿OOHGZLWKOLTXLGQHDUWKLVHTXLSPHQWVXFKDVDYDVHRUÀRZHUSRWRUH[SRVHLWWRGULSSLQJVSODVKLQJUDLQRUPRLVWXUH7RSUHYHQWD¿UHKD]DUGGRQRWSODFHDQ\QDNHGÀDPHVRXUFHVVXFKDVDOLJKWHGFDQGOHRQWKHHTXLSPHQW'RQRWXVHRUVWRUHEDWWHULHVLQGLUHFWVXQOLJKWRURWKHUH[FHVVLYHO\KRWSODFHVXFKDVLQVLGHDFDURUQHDUDKHDWHU7KLVFDQFDXVHEDWWHULHVWROHDNRYHUKHDWH[SORGHRUFDWFK¿UH,WFDQDOVRUHGXFHWKHOLIHRUSHUIRUPDQFHRIEDWWHULHV6WRUHVPDOOSDUWVRXWRIWKHUHDFKRIFKLOGUHQDQGLQIDQWV,IDFFLGHQWDOO\VZDOORZHGFRQWDFWDGRFWRULPPHGLDWHO\6ORWVDQGRSHQLQJVLQWKHFDELQHWDUHSURYLGHGIRUYHQWLODWLRQWRHQVXUHUHOLDEOHRSHUDWLRQRIWKHSURGXFWDQGWRSURWHFWLWIURPRYHUKHDWLQJ7RSUHYHQW¿UHKD]DUGWKHRSHQLQJVVKRXOGQHYHUEHEORFNHGRUFRYHUHGZLWKLWHPVVXFKDVQHZVSDSHUVWDEOHFORWKVFXUWDLQVRUE\RSHUDWLQJWKHHTXLSPHQWRQWKLFNFDUSHWRUDEHG5LVNRIH[SORVLRQLIEDWWHU\LVUHSODFHGE\DQLQFRUUHFWW\SH5LVNRIH[SORVLRQ,IGLVSRVDORIDEDWWHU\LQWR¿UHRUDKRWRYHQRUPHFKDQLFDOO\FUXVKLQJRUFXWWLQJRIDEDWWHU\

3UHFDXWLRQV

,I\RXLQVWDOOWKHDSSDUDWXVLQDEXLOWLQLQVWDOODWLRQVXFKDVDERRNFDVHRUUDFNHQVXUHWKDWWKHUHLVDGHTXDWHYHQWLODWLRQ/HDYHFP´RIIUHHVSDFHDWWKHWRSDQGVLGHVDQGFP´DWWKHUHDU7KHUHDUHGJHRIWKHVKHOIRUERDUGDERYHWKHDSSDUDWXVVKDOOEHVHWFP´DZD\IURPWKHUHDUSDQHORUZDOOFUHDWLQJDÀXHOLNHJDSIRUZDUPDLUWRHVFDSH2SHUDWLQJ(QYLURQPHQW2SHUDWLQJHQYLURQPHQWWHPSHUDWXUHDQGKXPLGLW\&WR&)WR)OHVVWKDQ5+FRROLQJYHQWVQRWEORFNHG'RQRWLQVWDOOWKLVXQLWLQDSRRUO\YHQWLODWHGDUHDRULQORFDWLRQVH[SRVHGWRKLJKKXPLGLW\RUGLUHFWVXQOLJKWRUVWURQJDUWL¿FLDOOLJKW,PSRUWDQW1RWLFH7KHPRGHOQXPEHUDQGVHULDOQXPEHURIWKLVHTXLSPHQWDUHRQWKHUHDURUERWWRP5HFRUGWKHVHQXPEHUVRQ\RXUHQFORVHGZDUUDQW\FDUGDQGNHHSLQDVDIHSODFHIRUIXWXUHUHIHUHQFH&$87,217KHSRZHUVZLWFKEXWWRQRQWKLVXQLWZLOOQRWFRPSOHWHO\VKXWRIIDOOSRZHUIURPWKH$&RXWOHW6LQFHWKHSRZHUFRUGVHUYHVDVWKHPDLQGLVFRQQHFWGHYLFHIRUWKHXQLW\RXZLOOQHHGWRXQSOXJLWIURPWKH$&RXWOHWWRVKXWGRZQDOOSRZHU7KHUHIRUHPDNHVXUHWKHXQLWKDVEHHQLQVWDOOHGVRWKDWWKHSRZHUFRUGFDQEHHDVLO\XQSOXJJHGIURPWKH$&RXWOHWLQFDVHRIDQDFFLGHQW7RDYRLG¿UHKD]DUGWKHSRZHUFRUGVKRXOGDOVREHXQSOXJJHGIURPWKH$&RXWOHWZKHQOHIWXQXVHGIRUDORQJSHULRGRIWLPHIRUH[DPSOHZKHQRQYDFDWLRQ7KLVSURGXFWLVIRUJHQHUDOKRXVHKROGSXUSRVHV$Q\IDLOXUHGXHWRXVHIRURWKHUWKDQKRXVHKROGSXUSRVHVVXFKDVORQJWHUPXVHIRUEXVLQHVVSXUSRVHVLQDUHVWDXUDQWRUXVHLQDFDURUVKLSDQGZKLFKUHTXLUHVUHSDLUZLOOEHFKDUJHGIRUHYHQGXULQJWKHZDUUDQW\SHULRG3RZHU&RUG&DXWLRQ+DQGOHWKHSRZHUFRUGE\WKHSOXJ'RQRWSXOORXWWKHSOXJE\WXJJLQJWKHFRUGDQGQHYHUWRXFKWKHSRZHUFRUGZKHQ\RXUKDQGVDUHZHWDVWKLVFRXOGFDXVHDVKRUWFLUFXLWRUHOHFWULFVKRFN'RQRWSODFHWKHXQLWDSLHFHRIIXUQLWXUHHWFRQWKHSRZHUFRUGRUSLQFKWKHFRUG1HYHUPDNHDNQRWLQWKHFRUGRUWLHLWZLWKRWKHUFRUGV7KHSRZHUFRUGVVKRXOGEHURXWHGVXFKWKDWWKH\DUHQRWOLNHO\WREHVWHSSHGRQ$GDPDJHGSRZHUFRUGFDQFDXVHD¿UHRUJLYH\RXDQHOHFWULFDOVKRFN&KHFNWKHSRZHUFRUGRQFHLQDZKLOH:KHQ\RXILQGLWGDPDJHGDVN\RXUQHDUHVWRXUDXWKRUL]HGVHUYLFHFHQWHURU\RXUGHDOHUIRUDUHSODFHPHQW&$87,217KLVSURGXFWLVDFODVVODVHUSURGXFWFODVVL¿HGXQGHUWKH6DIHW\RIODVHUSURGXFWV,(&

CLASS 1 LASER PRODUCT

,QIRUPDWLRQIRUXVHUVRQFROOHFWLRQDQGGLVSRVDORIROGHTXLSPHQWDQGXVHGEDWWHULHVSymbol for

equipment

Symbol examples

for batteries

7KHVHV\PEROVRQWKHSURGXFWVSDFNDJLQJDQGRUDFFRPSDQ\LQJGRFXPHQWVPHDQWKDWXVHGHOHFWULFDODQGHOHFWURQLFSURGXFWVDQGEDWWHULHVVKRXOGQRWEHPL[HGZLWKJHQHUDOKRXVHKROGZDVWH)RUSURSHUWUHDWPHQWUHFRYHU\DQGUHF\FOLQJRIROGSURGXFWVDQGXVHGEDWWHULHVSOHDVHWDNHWKHPWRDSSOLFDEOHFROOHFWLRQSRLQWVLQDFFRUGDQFHZLWK\RXUQDWLRQDOOHJLVODWLRQ%\GLVSRVLQJRIWKHVHSURGXFWVDQGEDWWHULHVFRUUHFWO\\RXZLOOKHOSWRVDYHYDOXDEOHUHVRXUFHVDQGSUHYHQWDQ\SRWHQWLDOQHJDWLYHHႇHFWVRQKXPDQKHDOWKDQGWKHHQYLURQPHQWZKLFKFRXOGRWKHUZLVHDULVHIURPLQDSSURSULDWHZDVWHKDQGOLQJ)RUPRUHLQIRUPDWLRQDERXWFROOHFWLRQDQGUHF\FOLQJRIROGSURGXFWVDQGEDWWHULHVSOHDVHFRQWDFW\RXUORFDOPXQLFLSDOLW\\RXUZDVWHGLVSRVDOVHUYLFHRUWKHSRLQWRIVDOHZKHUH\RXSXUFKDVHGWKHLWHPV7KHVHV\PEROVDUHRQO\YDOLGLQWKH(XURSHDQ8QLRQ)RUFRXQWULHVRXWVLGHWKH(XURSHDQ8QLRQ,I\RXZLVKWRGLVFDUGWKHVHLWHPVSOHDVHFRQWDFW\RXUORFDODXWKRULWLHVRUGHDOHUDQGDVNIRUWKHFRUUHFWPHWKRGRIGLVSRVDO:(((KWWSZZZRQN\RFRPPDQXDOZHHHZHHHSGI

> Before Start > Part Names > Install > Playback

Advanced Setup | Others

What's in the box

1. Main unit (1)

2. Remote controller (RC-980C) (1), Batteries (AAA/R03) (2)

3. Analog Audio Cable (For testing operation) (1)

4. Power Cord (1)

• Instruction Manual (This document) (1)

• The power cord must be connected only after all other cable connections are completed.

• We will not accept responsibility for damage arising from the connection of equipment

manufactured by other companies.

• Specifications and appearance are subject to change without prior notice.

The main power cannot be turned on or off with the remote controller. Use the 8 STANDBY/

ON button on the main unit.

> Before Start >PartNames > Install > Playback

Advanced Setup | Others

Front Panel

Part Names

1. 8 STANDBY/ON button/indicator: Switch the main power of the unit on and off. When

starting up the unit, the indicator in the center of the button lights blue.

2. STANDBY indicator: Lights red when the unit is in standby mode.

3. Disc tray: Place discs here. 8-cm discs can also be used.

4. ; button: Open or close the disc tray.

5. Play buttons:

u t : Return to the beginning of the track being played. Press again to move to the

track before. Press and hold to rewind the track quickly.

/h : Play or pause play.

y i : When pressed during play, move to the next track. Press and hold to fast-

forward through the track.

: This button stops playback.

6. Remote control sensor

• The reception range of the remote controller is within a distance of approx. 16´/5 m,

and an angle of 20° in vertical direction and 30° to right and left.

7. CD/SACD button/indicator: Switch between CD/SACD as the source. When playing a

hybrid SACD, the layer being played switches if you press this during play. (P18)

The indicator lights blue when SACD is selected.

8. DIRECT button/indicator: Switch the DIRECT mode ON and OFF. (P15)

The indicator lights blue when the DIRECT mode is ON.

9. Display (P7)

10.

SOURCE button: Switches the source to be played.

11.

SETUP button: Displays the SETUP menu. (P16)

6bkbl87 9

14352

> Before Start >PartNames > Install > Playback

Advanced Setup | Others

Rear Panel

1. ANALOG OUT jack: Use an analog audio cable to connect an integrated amplifier, for

example.

2. AC IN: Connect the supplied power cord.

3. USB DAC port: Use a USB cable (A-B type) to connect a computer.

4. DIGITAL OUT OPTICAL/COAXIAL jack: Use a digital optical cable or digital coaxial cable

to connect an integrated amplifier, for example.

5. CONTROL IN/OUT jack: By connecting Pioneer brand amplifiers and audio devices,

centralized control is possible, for example you can control the amplifiers and audio

devices.

345

> Before Start >PartNames > Install > Playback

Advanced Setup | Others

Remote Controller

1. ^ STANDBY/ON button: When the main power of the unit

is on, this turns the unit on or into standby mode. The

main power cannot be turned on or off with the remote

controller.

2. SHUFFLE button: Set shuffle play. (P13)

3. REPEAT button: Set repeat play. (P13)

4. Numbered buttons: Use to directly input the track number

of a music CD when selecting tracks. Also used to enter

track numbers for program play.

5. CLEAR button: Clear the content set for program play.

(P13)

6. DIGITAL FILTER button: Select one of three types of

DIGITAL FILTER. (P15)

7. Cursors, ENTER button: Select the item with the cursors

and press ENTER to confirm.

8. SETUP button: Displays the SETUP menu. (P16)

9. Play buttons:

u : Return to the beginning of the track being played.

Press again to move to the track before.

/h : Play or pause play.

i : Move to the next track.

t : Press and hold to fast-rewind through the track

being played.

g : Stop playback.

y : Press and hold to fast-forward through the track

being played.

10.

SOURCE button: Switches the source to be played.

11.

DIRECT button: Switch the DIRECT mode on and off.

(P15)

12.

DISPLAY button: Switch the information on the display.

• Depending on the source, the operation may not start.

13.

;OPEN/CLOSE button: Open or close the disc tray.

14.

PROGRAM button: Used for program play. (P13)

15.

LOCK RANGE button: Displays the LOCK RANGE

ADJUST settings screen. (P15)

16.

RETURN button: Returns the display to the previous

state.

17.

UP SAMPLING button: Switch the UP SAMPLING

feature ON and OFF. (P15)

18.

CD/SACD button: Switch between CD/SACD as the

source. When playing a hybrid SACD, the layer being

played switches if you press this during play. (P18)

19.

DIGITAL OUT button: Switch the digital output ON and

OFF. (P16)

20.

DISPLAY OFF button: Press to turn off the display of this

unit. Press again to turn the display on.

21.

DIMMER button: You can adjust the brightness of the

display in three steps. (Default Value: Level 3)

bl bt

bm ck

Match the polarity when

inserting the batteries.

> Before Start >PartNames > Install > Playback

Advanced Setup | Others

Display

1. Lights during play of SACD and DSD.

2. Message display: Displays information about tracks and menus.

3. Lights when operations with the cursor buttons on the remote controller are possible.

4. Displays the play status.

5. Lights when the digital audio output setting is on. (P16)

6. Lights when showing such items as the remaining time for a track or the disc, or the total

time of the disc.

7. Display when an MQA file or stream is played. For details, refer to "Playing MQA".

(P18)

DSD DIGITAL

TOTAL REMAIN

52 63 4

> Before Start > Part Names >Install > Playback

Advanced Setup | Others

Connections with an amplifier

Install

Play the audio from discs played on this unit and from

devices connected to this unit through speaker systems

connected to integrated amplifiers or AV receivers. Connect

to suit the input jacks on your amplifier.

Connecting with an analog audio cable

The signal is converted to analog in the D/A converter of

this unit and then output to an integrated amplifier, for

example. Connect the LINE IN jacks on an integrated

amplifier to the ANALOG OUT jack (RCA jack) on this unit.

This unit

Integrated amplifier, AV receiver, etc.

a Analog Audio Cable

> Before Start > Part Names >Install > Playback

Advanced Setup | Others

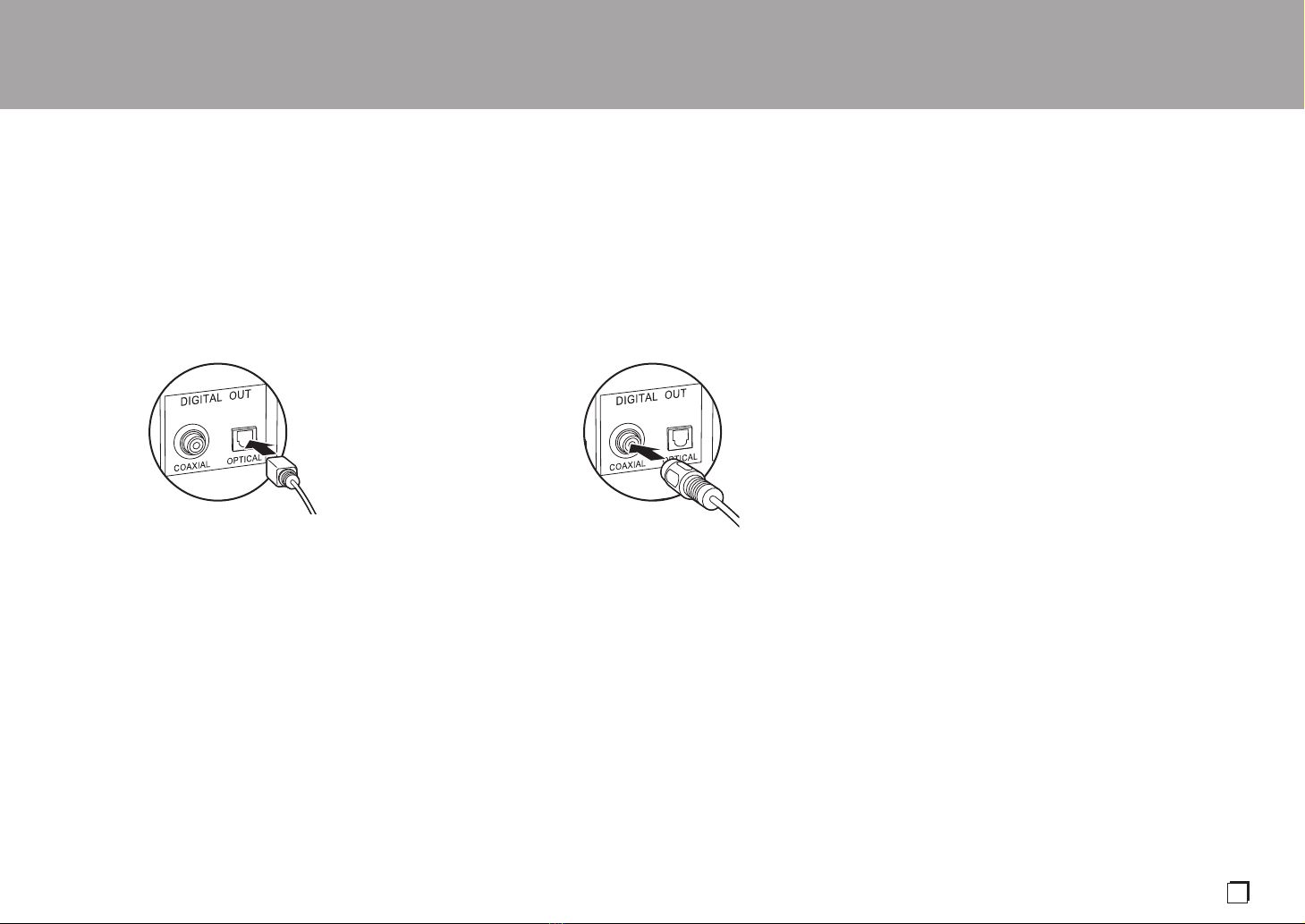

Connecting with a digital optical cable

The signal is converted to analog in the D/A converter of the

integrated amplifier, for example. Connect the OPTICAL IN

jack on an integrated amplifier to the DIGITAL OUT

OPTICAL jack on this unit.

• The audio of SACD and DSD or input from USB DAC is

not output from the DIGITAL OUT OPTICAL jack of this

unit.

• The digital signals that can be output by this unit are

linear PCM signals with a sampling frequency and

quantization bit rate of 192 kHz/24 bit (operation may not

be possible with all connected devices or environments).

Connecting with a digital coaxial cable

The signal is converted to analog in the D/A converter of the

integrated amplifier, for example. Connect the COAXIAL IN

jack on an integrated amplifier to the DIGITAL OUT

COAXIAL jack on this unit.

• The audio of SACD and DSD or input from USB DAC is

not output from the DIGITAL OUT COAXIAL jack of this

unit.

• The digital signals that can be output by this unit are

linear PCM signals with a sampling frequency and

quantization bit rate of 192 kHz/24 bit (operation may not

be possible with all connected devices or environments).

> Before Start > Part Names >Install > Playback

Advanced Setup | Others

The control jack

If you have multiple Pioneer brand devices, and if they have

CONTROL IN/OUT jacks, you can centrally control them

through the remote controller sensor on the amplifier, for

example. By connecting with monaural miniplug cables

(without resistors) as shown in the diagram, then even if this

unit and other devices are put in locations where they

cannot receive the remote controller signal, you can still use

the remote controller to control this unit or other devices by

pointing the remote controller at the remote controller

sensor on the amplifier, for example.

• Also make sure to connect with the analog audio cable.

Centralized control cannot work correctly with only the

control jack connection.

• The remote controller sensor on this unit stops working if

you connect a monaural miniplug cable (without resistor)

to the CONTROL IN jack of this unit.

• The remote controller sensors on the other devices stop

working if you connect a monaural miniplug cable

(without resistor) to the CONTROL OUT jack of this unit.

• If a Pioneer brand network player and amplifier is

connected by the CONTROL IN/OUT jack, you can

perform basic operations on this unit, the network player,

and amplifier on a smart phone app over a network.

(One example of connection)

CONTROL

OUT

CONTROL

OUT

This unit

Amplifier

Audio device

a Monaural Miniplug Cables (without resistors)

Inhaltsverzeichnis

Andere Pioneer CD-Player Handbücher

Pioneer

Pioneer CMX-3000 Bedienungsanleitung

Pioneer

Pioneer LaserDisc CLD-D604 Bedienungsanleitung

Pioneer

Pioneer CLD-J910 Bedienungsanleitung

Pioneer

Pioneer X-CM32BTD-k/-w Bedienungsanleitung

Pioneer

Pioneer CDJ 1000MK3 - Professional CD/MP3 Turntable Bedienungsanleitung

Pioneer

Pioneer LaserActive CLD-A100 Bedienungsanleitung

Pioneer

Pioneer DEH-P410 Bedienungsanleitung

Pioneer

Pioneer PD-M406 Bedienungsanleitung

Pioneer

Pioneer cld-v850 Bedienungsanleitung

Pioneer

Pioneer CD-P75FM Bedienungsanleitung

Pioneer

Pioneer CDX-P2050VS Bedienungsanleitung

Pioneer

Pioneer DEH-P5450 Bedienungsanleitung

Pioneer

Pioneer Elite PD-D9-J Bedienungsanleitung

Pioneer

Pioneer BARCODE CLD-V2600 Bedienungsanleitung

Pioneer

Pioneer DRM-6324X Bedienungsanleitung

Pioneer

Pioneer CLD-3070 Bedienungsanleitung

Pioneer

Pioneer CDJ-400 - Cd/Media Player Bedienungsanleitung

Pioneer

Pioneer LaserDisc CLD-D604 Bedienungsanleitung

Pioneer

Pioneer DEH-P6450 Bedienungsanleitung

Pioneer

Pioneer CLD-900 Bedienungsanleitung

Pioneer

Pioneer PD-F607 Bedienungsanleitung

Pioneer

Pioneer CDJ 1000MK3 - Professional CD/MP3 Turntable Bedienungsanleitung

Pioneer

Pioneer CLD-1500 HEM Bedienungsanleitung

Pioneer

Pioneer PDR-W839 Bedienungsanleitung

Beliebte CD-Player Handbücher anderer Marken

RCA

RCA RP-7923 Bedienungsanleitung

Philips

Philips AZ1207 Bedienungsanleitung

Philips

Philips CD582 Bedienungsanleitung

Philips

Philips AZ 6821 Bedienungsanleitung

Lasonic

Lasonic MSU-2020 Bedienungsanleitung

THOMSON

THOMSON RCD150 Bedienungsanleitung

Denon

Denon DCD-1420 Bedienungsanleitung

Panasonic

Panasonic SJ-MR100 Bedienungsanleitung

Onkyo

Onkyo DX-7210 Bedienungsanleitung

Sony

Sony MZ-R3 Bedienungsanleitung

Denon

Denon DVM-4800 Bedienungsanleitung

JBL

JBL MR-32 Bedienungsanleitung

RCA

RCA RCD152 Bedienungsanleitung

Technics

Technics SL-PS770A Bedienungsanleitung

Clarion

Clarion compact disc Bedienungsanleitung

Sony

Sony MZ-M10 Bedienungsanleitung

Philips

Philips Expanium AZ 1538 Bedienungsanleitung

Rotel

Rotel RCD 975 Bedienungsanleitung
