Pioneer PD-S707 Bedienungsanleitung

ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880

PIONEER ELECTRONIC CORPORATION 1998

MY ‡AC220–230V

MV ‡AC220–230V

SD ‡AC110V/120-127V/220-230V/240V With the voltage selector

HPW ‡AC230– 240V

COMPACT DISC PLAYER

RRV1981

T–ZZR JULY 1998 Printed in Japan

PD-S707

CONTENTS

1. SAFETY INFORMATION....................................2

2. EXPLODED VIEWS AND PARTS LIST .............3

3. SCHEMATIC DIAGRAM...................................12

4. PCB CONNECTION DIAGRAM ....................... 19

5. PCB PARTS LIST.............................................26

6. ADJUSTMENT..................................................30

7. GENERAL INFORMATION ..............................38

7.1 IC................................................................38

7.2 DISPLAY ....................................................39

7.3 BLOCK DIAGRAM .....................................40

8. PANEL FACILITIES AND SPECIFICATIONS

...................................................................41

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S)AND TYPE(S).

Power Requirement

Type Model

PD-S707 The voltage can be converted by the following method.

1¡

STABLEPLATTER MECHANISM

Î

POWER

—OFF _ON

÷COMPU

÷ ÷ AUTO

OFF

COMPACT DISC PLAYER

Hi-bit Legato Link Conversion

REPEAT

◊Û¿∫≥?≥

EDIT DIGITAL

OUTPUT DISPLAY

PHONES LEVEL

MIN MAX

PHONES

4¢

OPEN/CLOSE

OUTPUT LEVEL

1¡4¢

783

Î

COMPACT DISC PLAYER

REMOTE CONTROL UNIT

CU-P0092

PROGRAM

HI-LITE

RANDOM

11 12

910

15 16

13 14

19 20

17 18

–+

> 20

PD-S707

1. Laser Interlock Mechanism

The position of the switch (S601) for detecting loading

state is detected by the system microprocessor, and the

design prevents laser diode oscillation when the switch

(S601) is not on CLMP terminal side (CLMP signal is OFF

or high level.). Thus, the interlock will no longer function if

the switch (S601) is deliberately set to CLMP terminal

side (low level).

The interlock also does not function in the test mode

∗

Laser diode oscillation will continue, if pin 33 of

CXA1782CQ (IC151) on the MAIN BOARD ASSY is

connected to GND, or pin 22 of IC301(LDON) is

connected to low level (ON), or else the terminals of Q151

are shorted to each other (fault condition).

2. When the cover is opened with the servo mechanism

block removed and turned over, close viewing of the

objective lens with the naked eye will cause exposure to a

Class 1 laser beam.

MY type

MV and HPW types

MY type

REAR

1. SAFETY INFORMATION

IMPORTANT

THIS PIONEER APPARATUS CONTAINS

LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS

SHOULD BE DONE BY A SPECIALLY

INSTRUTED PERSON.

LASER DIODE CHARACTERISTICS

MAXIMUM OUTPUT POWER: 5 mw

WAVELENGTH: 780 – 785 nm

∗Refer to page 31 .

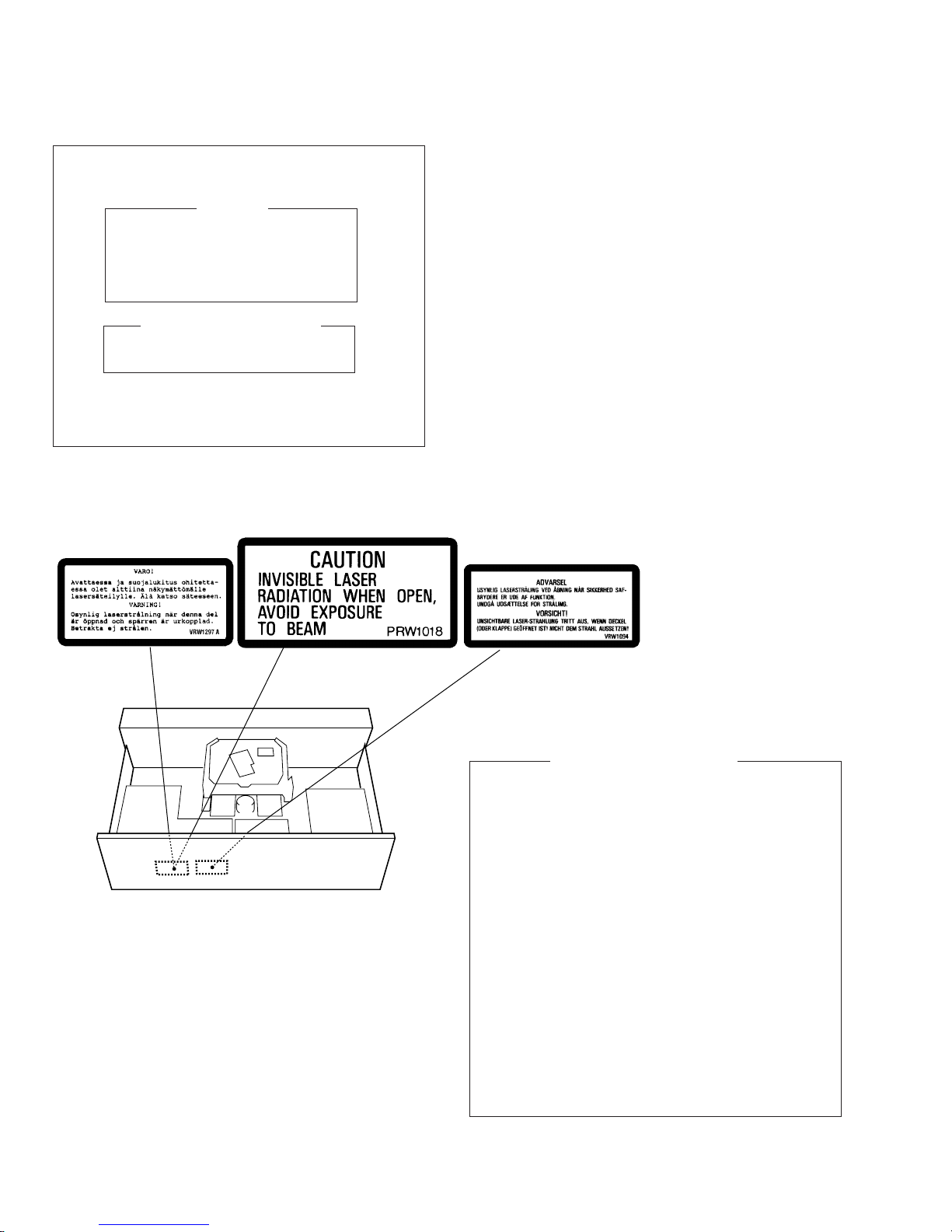

LABEL CHECK

Additional Laser Caution

PD-S707

3 Packing Case S707 PHG2321 PHG2328 PHG2327 PHG2327

8 Operating Instructions PRD1032 Not used Not used Not used

(Italian/Dutch/ Swedish/ Portouguese)

8 Operating Instructions (Chinese) Not used Not used PRD1030 Not used

NSP 11 Warranty Card ARY7022 ARY7008 Not used ARY7022

12 V Spacer Not used PHC1089 Not used Not used

NSP 13 Caution 220V Card Not used Not used ARR7003 Not used

14 Control Cable Not used Not used Not used PDE1247

16 Polyethylene Bag Not used Z21- 013 Not used Not used

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

(1)PACKING PARTS LIST

1 Styrol Protector (F) PHA1319

2 Styrol Protector (R) PHA1320

3 Packing Case See Contrast table(2)

4 Seat (750 ×600 ×0.5) Z23–007

5 Output Cable (L=1.2 m) PDE1248

6 Remote Control Unit PWW1143

(CU-PD097)

7 Battery Cover PZN1103

8 Operating Instructions See Contrast table(2)

NSP 9 Dry Cell Battery (R03, AAA) VEM–022

10 Polyethylene Bag Z21–038

(0.03 ×230 ×340)

NSP 11 Warranty Card See Contrast table(2)

12 V Spacer See Contrast table(2)

NSP 13 Caution 220V Card See Contrast table(2)

14 Control Cable (for SR) (L=1m) See Contrast table(2)

15 Operating Instructions PRE1268

Mark No. Description Parts No.

Mark

(2) CONTRAST TABLE

PD-S707/MY, MV, SD and HPW are constructed the same except for the following:

Remarks

Part No.

MY type MV type SD type HPW type

Symbol and Description

No.

NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.

÷The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

÷Screw adjacent to

∞

mark on the product are used for disassembly.

(English/ French/ German/Spanish)

16 Polyethylene Bag SeeContrasttable(2)

1 (1/2)

1 (2/2)

2 (2/2)

2 (1/2)

Except

SD type Only

MY and SD types Only

MV type Only

HPW type Only

SD type

PD-S707

2.2 EXTERIOR (1/2)

25 19

22 11

13 15

22 22

Refer to " 2.3 EXTERIOR (2/2)".

Refer to " 2.4 LOADING

MECHANISM ASSY TT96".

SD type Only

MV and HPW types Only

Fuse Holder

MV type Only

MY type Only

Except MV

type

PD-S707

NSP 2 PRIMARY SWITCH ASSY PWZ3869 PWZ3869 PWZ3870 PWZ3869

3 POWER BOARD ASSY PWZ3800 PWZ3801 PWZ3802 PWZ3803

5 AC Power Cord PDG1003 PDG1055 PDG1013 ADG1123

6 Power Transformer PTT1301 PTT1301 PTT1302 PTT1301

8 Rear Base S707 PNA2433 PNA2447 PNA2448 PNA2449

14 Caution Label Not used PRW1018 Not used PRW1018

15 Caution Label VRW1094 Not used Not used Not used

NSP 16 Caution Label (HE) VRW1297 Not used Not used Not used

25 Voltage Selector Not used Not used AKX7001 Not used

26 Fuse (T5A)(For AC Power Cord) Not used PEK1003 Not used Not used

(1) EXTERIOR (1/2) PARTS LIST

1 MAIN BOARD ASSY See Contrast table(2)

NSP 2 PRIMARY SWITCH ASSY See Contrast table(2)

3 POWER BOARD ASSY See Contrast table(2)

4 Strain Relief CM-22B

5 AC Power Cord See Contrast table(2)

6 Power Transformer See Contrast table(2)

NSP 7 Under Base PNA2446

8 Rear Base S707 See Contrast table(2)

NSP 9 Bottom Plate PNA2376

NSP 10 Side Angle PNB1583

11 Insulator Assy VXA2356

NSP 12 Loading Mechanism Assy TT96 PXA1611

13 Power Knob PAC1897

14 Caution Label See Contrast table(2)

15 Caution Label See Contrast table(2)

NSP 16 Caution Label (HE) See Contrast table(2)

17 Screw (3×6) ABA1207

18 Screw ABA1011

19 Screw BBZ30P080FZK

20 Screw BBT30P080FCC

21 .............

22 Screw IBZ30P100FCC

23 Binder ZCA-SKB90BK

24 Cord Clamper RNH–184

25 Voltage Selector See Contrast table(2)

26 Fuse (T5A) See Contrast table(2)

Mark No. Description Parts No.

Mark

(2) CONTRAST TABLE

PD-S707/MY, MV, SD and HPW are constructed the same except for the following:

1 MAIN BOARD ASSY PWZ3793 PWZ3794 PWZ3795 PWZ3796

Remarks

Part No.

MY type MV type SD type HPW type

Symbol and Description

No.

PD-S707

2.3 EXTERIOR (2/2)

10 11

812

PD-S707

1 DISPLAY BOARD ASSY PWZ3807 PWZ3807 PWZ3807 PWZ3808

NSP 3 PHONE BOARD ASSY PWZ3815 PWZ3815 PWZ3816 PWZ3816

11 FL Sheet S707 PAM1737 PAM1737 PAM1763 PAM1763

(1) EXTERIOR (2/2) PARTS LIST

1 DISPLAY BOARD ASSY See Contrast table(2)

NSP 2 FUNCTION BOARD ASSY PWZ3812

NSP 3 PHONE BOARD ASSY See Contrast table(2)

4 H.P. Angle PNB1582

5 Mode Button S707 PAC1895

6 Play Button RAC2204

7 Manual Button PAC1894

8 Track Knob S707 PAC1898

9 Headphone Knob PAC1707

10 Display Window PAM1766

11 FL Sheet See Contrast table(2)

12 Front Panel S707 PAN1370

13 Side Sash PAP1004

14 LED Lens PNW2745

15 Panel CDB PNW2810

16 Panel LB PNW2811

17 Panel RB PNW2812

18 Name Plate PAN1376

19 ………………

20 Washer ABE1009

21 ………………

22 ………………

23 .....................

24 Tray Plate Assy S707 PEA1348

NSP 25 Tray Panel B PNW2814

NSP 26 Tray Badge PAN1358

27 Bonnet Case PYY1257

28 Screw BBZ40P080FZK

29 Nut NK90FUC

30 Screw PPZ30P080FMC

Mark No. Description Parts No. Mark No. Description Parts No.

31 Screw IBZ30P060FMC

32 Connector Assy 4P PDE1294

33 ………………

34 Screw BBZ30P080FZK

35 Screw BPZ20P060FMC

36 Cord Clamper RNH–184

Mark

(2) CONTRAST TABLE

PD-S707/MY, MV, SD and HPW are constructed the same except for the following:

Remarks

Part No.

MY type MV type SD type HPW type

Symbol and Description

No.

PD-S707

2.4 LOADING MECHANISM ASSY TT96

Spacer

227

Refer to " 2.5 SERVO

MECHANISM ASSY T96".

PD-S707

LOADING MECHANISM ASSY TT96 PARTS LIST

1 Lever Switch (S601) DSK1003

2 Float Screw PBA1027

3 Rubber Belt PEB1186

4 Motor Pulley PNW1634

5 Drive Gear PNW1996

6 Synchronized Lever PNW2168

7 Gear Pulley PNW1998

8 SW Head PNW1999

9 Float Base PNW2767

10 Left Cam PNW2001

11 Right Cam PNW2002

12 Float Spring PBH1120

13 Lock Spring PBH1121

14 Float Rubber PEB1014

15 Table Rubber Sheet PEB1181

16 Tray PNW2760

17 Table Guide PNW2004

18 Lock Plate PNW2005

19 D.C. Motor (0.75W, LOADING) PXM1010

20 Screw BMZ26P040FMC

21 Screw IPZ26P060FCU

22 Screw IPZ20P080FMC

23 Turn Table Assy PEA1165

24 Loading Base PNW2761

25 Table Shaft Holder Assy PXA1383

26 Turn Table PNR1035

NSP 27 Servo Mechanism Assy T96 PXA1606

28 E Ring YE20FUC

29 Shaft Holder PNB1382

30 Screw BPZ26P060FMC

31 Screw BBZ26P060FMC

NSP 32 Earth Lead DE010VF0

33 Caution Label PRW1244

34 Connector Assy 5P PDE1243

NSP 35 Table Base PXA1382

NSP 36 Tray Assy TT PXA1397

Mark No. Description Parts No. Mark No. Description Parts No.

Spacer

FFC Holder

Use nipper or other tool to cut the three sections marked

in figure 1. Then remove the spacer

While supporting the spindle motor shaft with the

stopper, put spacer on top of the carriage base, and stick

the disc table on top (takes about 9kg pressure). Take

off the spacer.

How to Install the Disc Table

2.1mm

Disc table

(Pressure of about 9kg)

Carriage

Base

PCB

Stopper

Spindle motor

Spacer setting

Position

Spacer

PD-S707

SERVO MECHANISM PARTS LIST

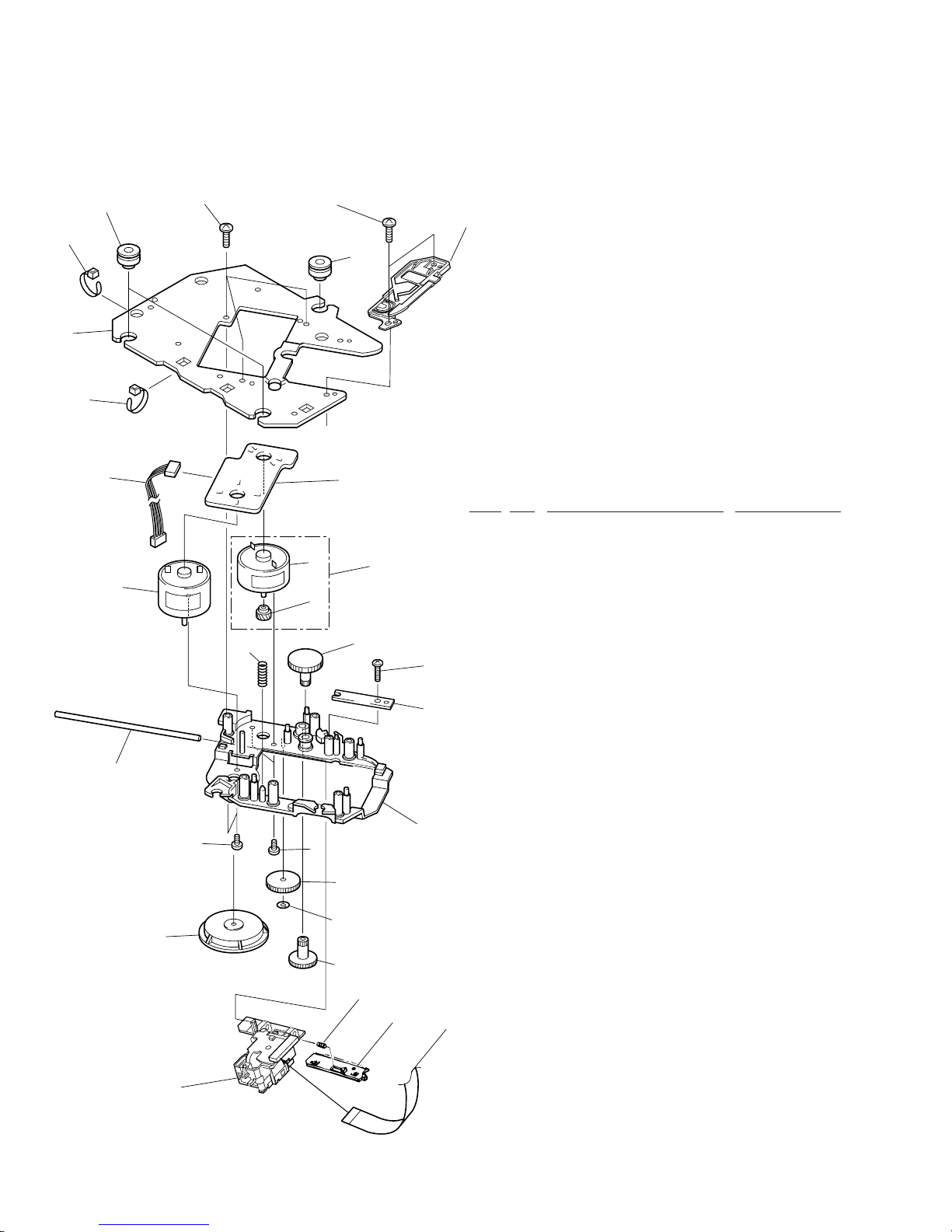

2.5 SERVO MECHANISM ASSY T96

1 Carriage D.C. Motor (0.3W) PXM1027

2 Pinion Gear PNW2055

3 Spindle Motor Assy PEA1236

(SPINDLE, with Oil)

4 Carriage Base PNW2699

5 Disc Table PNW1067

6 Screw JFZ20P030FNI

7 Screw JFZ17P025FZK

8 Gear 3 PNW2054

9 Gear 2 PNW2053

10 Washer WT12D032D025

11 Pickup Assy PEA1335

12 Guide Bar PLA1094

13 Gear 1 PNW2052

14 Gear Stopper PNB1303

15 Screw BPZ20P060FMC

16 Earth Spring PBH1132

NSP 17 Mechanism Base T.T.96 PNB1592

18 Screw BPZ26P100FMC

19 Mechanism Board Assy PWX1192

20 Binder PEC–107

21 Float Rubber PEB1031

22 Float Rubber PEB1170

23 FFC Holder PNW2734

24 Connector Assy 4P PDE1238

25 Carriage Motor Assy PEA1246

(CARRIAGE)

26 Rack Spring PBH1128

27 Rack Holder PNW2056

28 F.F.C.(16P) PDD1185

Mark No. Description Parts No.

21 18

18 23

Inhaltsverzeichnis

Andere Pioneer CD-Player Handbücher

Pioneer

Pioneer CDX-P2050VS Bedienungsanleitung

Pioneer

Pioneer PD-30-K/-S Bedienungsanleitung

Pioneer

Pioneer LaserDisc CLD-D760 Bedienungsanleitung

Pioneer

Pioneer CDJ-400 - Cd/Media Player Bedienungsanleitung

Pioneer

Pioneer PR-8210 Bedienungsanleitung

Pioneer

Pioneer CLD-1590K Bedienungsanleitung

Pioneer

Pioneer DEH-P3000R Bedienungsanleitung

Pioneer

Pioneer Elite PD-D6MK2-KElite D6 Bedienungsanleitung

Pioneer

Pioneer SCSI-2 Bedienungsanleitung

Pioneer

Pioneer Super Tuner III D DEH-P8600MP Bedienungsanleitung

Pioneer

Pioneer CLD-2710K Bedienungsanleitung

Pioneer

Pioneer DEH-M6217ZH Bedienungsanleitung

Pioneer

Pioneer CLD-V5000 Bedienungsanleitung

Pioneer

Pioneer PD-70AE Bedienungsanleitung

Pioneer

Pioneer CDX-P1270 Bedienungsanleitung

Pioneer

Pioneer PD-S703 Bedienungsanleitung

Pioneer

Pioneer DEH-P945R Bedienungsanleitung

Pioneer

Pioneer LaserDisc CLD-D604 Bedienungsanleitung

Pioneer

Pioneer CLD-1750 Bedienungsanleitung

Pioneer

Pioneer PD-217 Bedienungsanleitung

Pioneer

Pioneer CLD-99 Bedienungsanleitung

Pioneer

Pioneer PD-TM3 Bedienungsanleitung

Pioneer

Pioneer DEH-X8750BT Bedienungsanleitung

Pioneer

Pioneer SUPER TUNER III DEH-503 Bedienungsanleitung

Beliebte CD-Player Handbücher anderer Marken

RCA

RCA RP-7923 Bedienungsanleitung

Philips

Philips AZ1207 Bedienungsanleitung

Philips

Philips CD582 Bedienungsanleitung

Philips

Philips AZ 6821 Bedienungsanleitung

Lasonic

Lasonic MSU-2020 Bedienungsanleitung

THOMSON

THOMSON RCD150 Bedienungsanleitung

Denon

Denon DCD-1420 Bedienungsanleitung

Panasonic

Panasonic SJ-MR100 Bedienungsanleitung

Onkyo

Onkyo DX-7210 Bedienungsanleitung

Sony

Sony MZ-R3 Bedienungsanleitung

Denon

Denon DVM-4800 Bedienungsanleitung

JBL

JBL MR-32 Bedienungsanleitung

RCA

RCA RCD152 Bedienungsanleitung

Technics

Technics SL-PS770A Bedienungsanleitung

Clarion

Clarion compact disc Bedienungsanleitung

Sony

Sony MZ-M10 Bedienungsanleitung

Philips

Philips Expanium AZ 1538 Bedienungsanleitung

Rotel

Rotel RCD 975 Bedienungsanleitung
