Operating instructions

Digital High Definition Tuner

SH-DT510

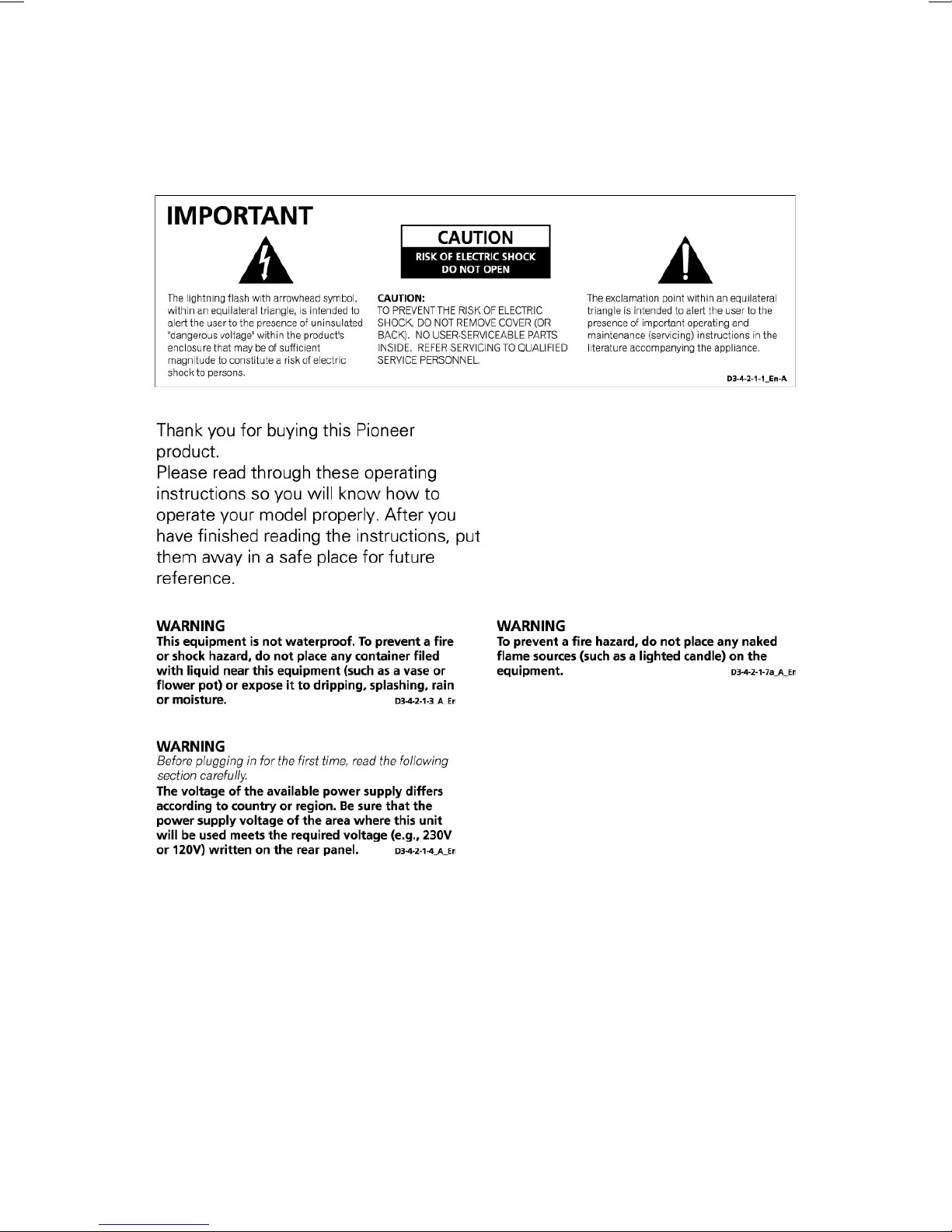

Safety First

VENTILATION CAUTION

When installing this unit, make sure to leave space

around the unit for ventilation to improve heat

radiation (at least 8 cm at top, 5 cm at rear, and 5

cm at each side).

WARNING

Slots and openings in the cabinet are provided for

ventilation to ensure reliable operation of the

product, and to protect it from overheating. To

prevent fire hazard, the openings should never be

blocked or covered with items (such as newspapers,

table-cloths, curtains) or by operating the

equipment on thick carpet or a bed.

D3-4-2-1-7b_A_En

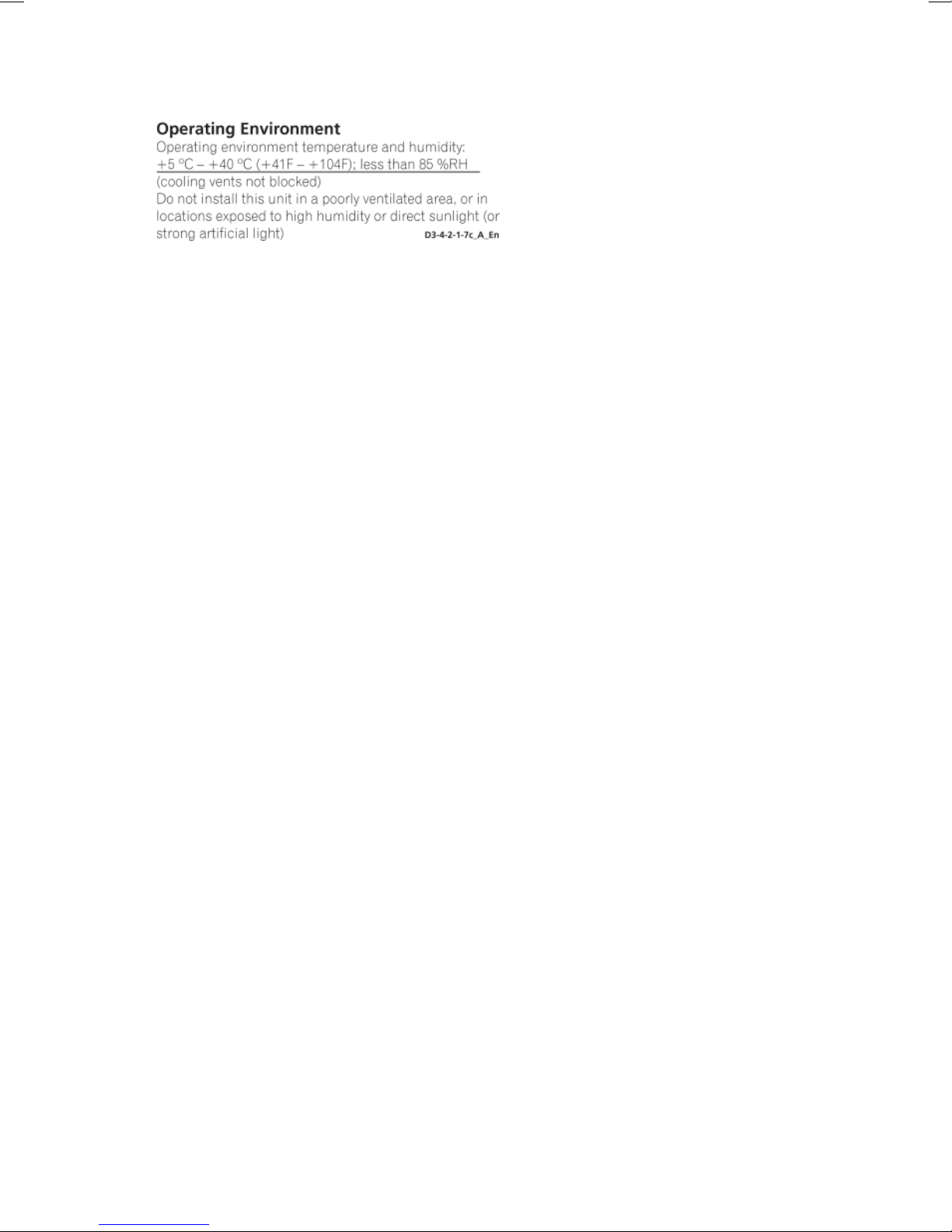

STANDBY/ON Button

STANDBY: When set to the STANDBY position, the

main power flow is cut and the unit is no longer

fully operational. A minute flow of power feeds

the unit to maintain operation readiness.

STANDBY Indicator

The red indicator is lit when the unit is in the

standby mode.

WARNING

This product equipped with a three-wire grounding

(earthed) plug - a plug that has a third (grounding)

pin. This plug only fits a grounding-type power

outlet. If you are unable to insert the plug into an

outlet, contact a licensed electrician to replace the

outlet with a properly grounded one. Do not

defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A_En

CAUTION

The STANDBY/ON switch on this unit will not

completely shut off all power from the AC outlet.

Since the power cord serves as the main disconnect

device for the unit, you will need to unplug it from

the AC outlet to shut down all power. Therefore,

make sure the unit has been installed so that the

power cord can be easily unplugged from the AC

outlet in case of an accident. To avoid fire hazard,

the power cord should also be unplugged from the

AC outlet when left unused for a long period of time

(for example, when on vacation).

D3-4-2-2-2a_A_En

TABLE OF CONTENTS

Safety First .............................................................................. 2

Chapter 1: Introduction ......................................................... 6

Summary of Features ........................................................................................ 6

Getting Started ................................................................................................... 7

Menu Tree .......................................................................................................... 8

Chapter 2: Installation ........................................................... 9

Introduction ......................................................................................9

Package Contents ............................................................................. 9

Description of Equipment ...............................................................9

Remote Control Unit (RCU) ................................................................................ 9

Functions Of RCU Buttons ............................................................................. 10

Front Panel ........................................................................................................... 11

Rear Panel ............................................................................................................ 11

Physical Installation ............................................................................................ 12

Sample Configurations ....................................................................................... 13

HDMI Connection ........................................................................................... 13

High Definition TV(Y/Pb/Pr) Connection ..................................................... 13

S-Video Connection ........................................................................................ 14

Composite Video Connection ......................................................................... 14

Antenna Loop Connection .............................................................................. 15

Digital Audio Connection ............................................................................... 15

Chapter 3: Channel Setting ................................................. 16

Introduction ....................................................................................16

INSTALLATION ............................................................................17

QUICK SCAN ..................................................................................................... 17

AUTO SCAN ........................................................................................................ 18

MANUAL SCAN ................................................................................................. 19

CLEAR ALL DATA ............................................................................................ 19

General Setting ............................................................................... 20

TIME SETUP ...................................................................................................... 20

AUDIO SETUP .................................................................................................... 20

i - PLATE SETUP ............................................................................................... 21

SOFTWARE ........................................................................................................ 22

CURRENT VERSION .................................................................................... 22

INSTALL NEW S/W ...................................................................................... 22

Chapter 4: Using the Tuner ................................................. 23

Introduction .................................................................................... 23

Switching the Tuner On and Off .................................................. 23

Using the Menus and Remote Control Unit (RCU) .................... 23

Selecting Favorite Channels ............................................................................... 24

Favorite Channel List ......................................................................................... 24

PARENTAL GUIDANCE ................................................................................... 25

CHANGE PASSWORD ...................................................................................... 25

i-PLATE (INFORMATION PLATE) ............................................................... 26

TELETEXT / Closed Caption ........................................................................... 27

SLEEP .................................................................................................................. 28

Appendix A: Interference with The HDTV Tuner ............. 29

Appendix B: Troubleshooting .............................................. 30

Appendix C: DTV CHANNEL TABLE .............................. 32

Appendix D: Specifications .................................................. 34

Glossary ................................................................................. 36

Chapter 1: Introduction

Digital High Definition Tuner's Functions

The SH-DT510 digital High Definition tuner opens up a new world of free-to-

air terrestrial programming. This tuner can receive channels from

VHF/UHF band TV station's digital signals. All the major terrestrial free-to-air

digital station numbers currently available in your area are listed in the on-

screen menu. To access the high quality digital programs, simply select

the channel number on your remote control.

The SH-DT510 tuner is MPEG 2 / DVB-T (digital video broadcast-terrestrial)

compliant, delivering crisp video images and excellent sound. It supports a

broad signal range from 51-858 MHz, and can be easily programmed for all

the channels within the VHF/UHF frequency spectrum.

Summary of Features

The SH-DT510 supports digital functions that are MPEG 2-DVB compliant.

Just follow the friendly On-Screen Display (OSD) to guide you through all

the steps necessary to configure your tuner ; then begin enjoying all the

video and audio channels with crisp picture quality and the crystal clear

sound.

The key features of the receiver are described below:

Front Panel

The Front Panel of the tuner includes an LED display with important

channel information. For more information on the Front Panel refer to

Chapter 2

Remote Control Unit ( RCU )

The Remote Control Unit (RCU) provides access to a full range of the

system features. In addition to providing access to terrestrial programs with

the channel and volume controls, it can also be used to access all the

system menus.

In particular, the RCU has to be used to configure the transmission

parameter settings, select the channels you want to include in the program

list, as well as access many other configuration options. For more

information on using the RCU, refer to Chapter 2 and to the various system

operations described in Chapter 3.

System Menus

All the tuner's features can be accessed through the system menus. These

menus can be accessed with simple point and click actions, using the

navigation and select buttons on the RCU. The menus include items such as

Transmission Parameter Configuration, Channel List, Audio Options, and

Parental Lock. For more information on using the menu system, refer to the

simple "Menu Tree" described later in this chapter, or refer to the more

detailed menu descriptions in Chapters 3 and 4.

Parental Lock

Channels which are not suitable for viewing by children can be protected by

using the parental lock feature. (Password is initially set to "0000".)

Getting Started

This section provides a brief introduction to the SH-DT510 tuner. If a

service provider or professional system installer has already installed your

digital High Definition tuner and antenna, then this section should provide all

the

information you need to start using the tuner. For more information on basic

operations, refer to Chapter 3.

Before connecting any devices to the tuner, refer to the

"Safety First" page.

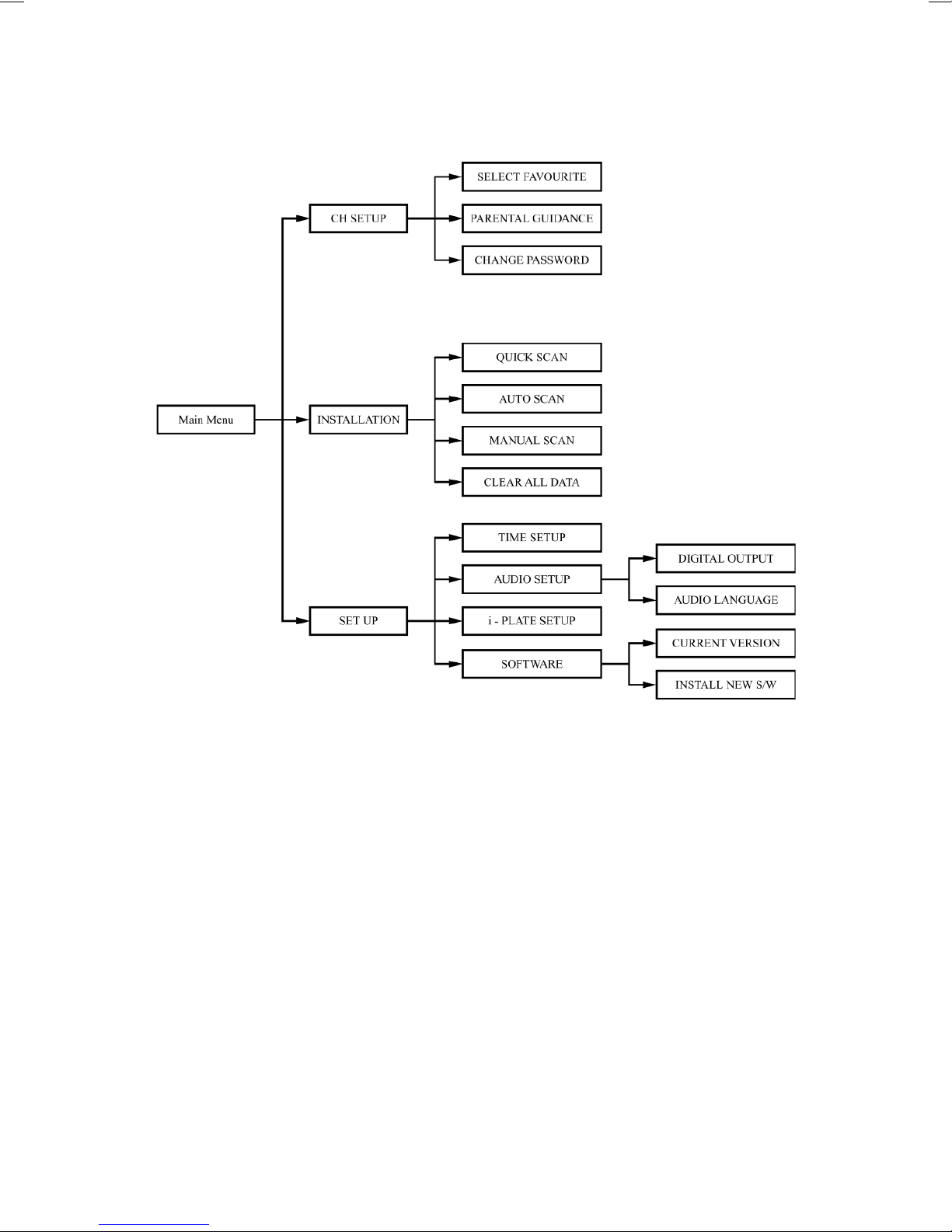

Menu Tree

Note:

You need to enter a " Password " to access some of the functionality in the menu.

Password is initially set to "0000". For more information, please refer Chapter 4

"CHANGE PASSWORD".

Chapter 2: Installation

Introduction

If your service provider or system installer has already set up the antenna and

connected the tuner, then you can start the operations specified in Chapter 4.

However, if you are setting up the system by yourself, please read through this

section and be sure you follow all of the precautions listed under "Safety First".

Package Contents

Unpack the tuner and check that all of the items listed below are included.

•SH-DT510 Digital High Definition tuner

•Remote Control Unit (with 2 AAA batteries)

•Audio Cable

•Video Cable

•Y/Pb/Pr cable

•Power Cable

•Operating instructions

Description of Equipment

The SH-DT510 digital High Definition tuner is designed to receive Free-To-Air

digital programming from VHF/UHF terrestrial TV channels.Please see the following

description:

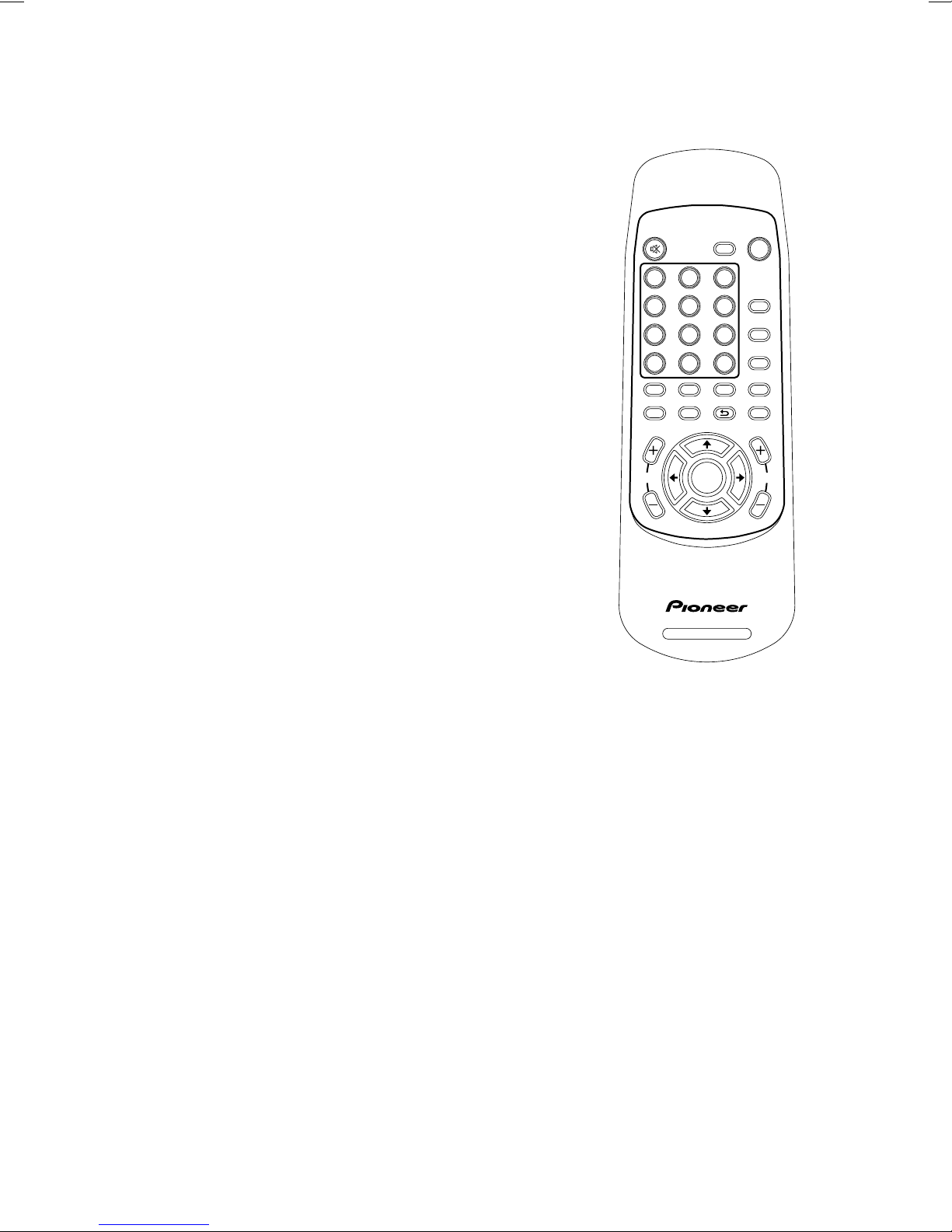

Remote Control Unit (RCU)

The RCU provides easy access to all of the tuner's functions, including selecting

channels and using the menus. It uses infrared signals and must be operated at a

distance of three to four meters from the receiver. When using the RCU, be sure that

there is a direct line of sight to the tuner.

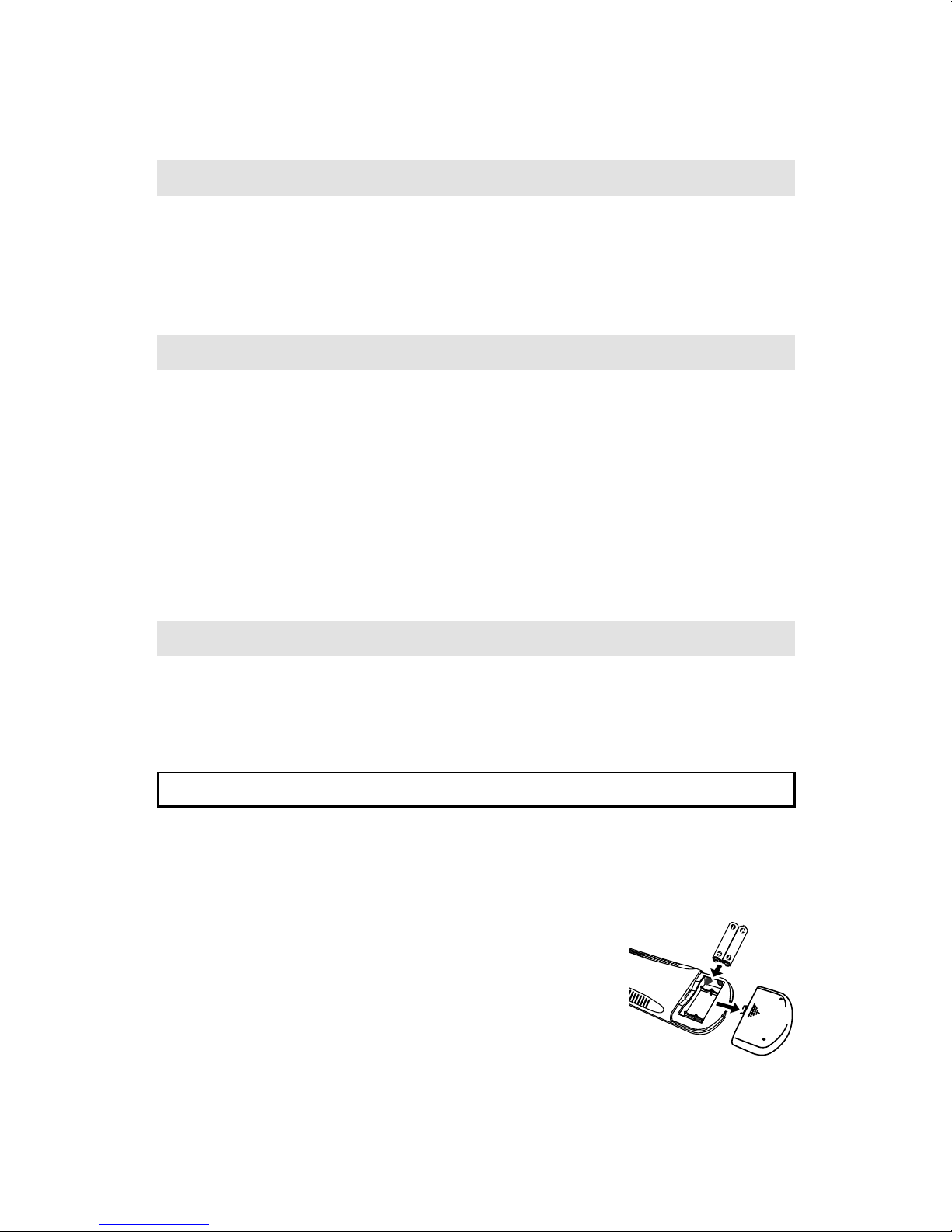

The batteries for the RCU are packaged separately. Before

you start using the tuner, please install these batteries with

+/- terminals aligned as per the picture below.

Note:

•To avoid damaging the RCU through battery leakage,

discard any depleted or old batteries.

•When disposing of used batteries, please comply

with governmental regulations or environmental public

instruction's rules that apply in your country/area.

Functions Of RCU Buttons

The buttons on the remote control are described as follows:

•STANDBY/ON: Switches the tuner between ON and

STANDBY modes.

•Numeric Buttons: For entering channel number or

password.

•INFO: Displays i-Plate providing information about the

current channel.

•MENU: Activates the On-Screen Menu.

•FAV.: Selects the Favorite channel list.

•Direction buttons: Move through menus or submenus.

•ENTER: Displays channel list or enters highlighted menu

feature.

•CH+/CH-: Selects viewing channel one up or down in

program list.

•VOL+/VOL-: Raises or lowers audio volume.

•A.RATIO: Adjusts the picture height/width ratio between

16:9 and 4:3.

- 16:9(Wide Screen Display) : to display 16:9 program on 16:9

TV screen to display 4:3 program on 4:3 TV screen.

- 4:3(16:9 Letterbox): to display 16:9 program on 4:3 TV screen

in letterbox.

- 4:3(16:9 Crop) : to display 16:9 program cropped on 4:3 TV

screen.

•V.FORMAT: Toggle between "PAL (625i)", "1080i-

50(1125i)", "720P-50(750P)", and "576P-50(625P)" video format through Y/

Pb/Pr video format connector to optimise resolution.

Note:

PAL, 625i and 720x576i are identical,

1080i-50, 1125i and 1920x1080i are identical,

720P-50, 750P and 1280x720p are identical,

576P-50, 625P and 720x576p are identical.

•MUTE: Audio mute toggle.

•TTX: For Teletext Emulation and DVB Subtitle.

•RETURN: Exits main menu or one level up from submenus, and exits from the

EPG and information screens.

•LIST: Displays the complete channel /program list.

•AUDIO: Show the multiple table to move /buttons for selecting language

•Colour buttons: 4 colour buttons are prepared to be used for TELETEXT operations.

Use for fast access a group or block of Teletext pages.

•SLEEP: Sets the sleep timer.



STANDBY

SLEEP

V. FORMAT

321

654

987

AUDIO

INFO

A.RATIO

TELETEXT

RETURN

VOLCH

ENTER

DIGITAL TUNER

TTX

LISTFAV.

MUTE

Inhaltsverzeichnis

Andere Pioneer Tuner Handbücher

Pioneer

Pioneer GEX-P920XM - XM Radio Tuner Bedienungsanleitung

Pioneer

Pioneer KEH-P7035 Bedienungsanleitung

Pioneer

Pioneer GEX-P700DAB/EW Bedienungsanleitung

Pioneer

Pioneer F-93 Bedienungsanleitung

Pioneer

Pioneer DEH-2330R Bedienungsanleitung

Pioneer

Pioneer F-X30L Bedienungsanleitung

Pioneer

Pioneer XV-DV55 Bedienungsanleitung

Pioneer

Pioneer F-Z93L Bedienungsanleitung

Pioneer

Pioneer TX-610 Bedienungsanleitung

Pioneer

Pioneer DEH-3300RX1N Bedienungsanleitung

Pioneer

Pioneer GEX-P910XM Bedienungsanleitung

Pioneer

Pioneer GEX-P920XM - XM Radio Tuner Bedienungsanleitung

Pioneer

Pioneer GEX-M7027XMZH/XN/UC Bedienungsanleitung

Pioneer

Pioneer XC-IS22CD Bedienungsanleitung

Pioneer

Pioneer F-201LHEX1K Bedienungsanleitung

Pioneer

Pioneer F-757 Bedienungsanleitung

Pioneer

Pioneer S-DV99ST Bedienungsanleitung

Pioneer

Pioneer GEX-P10HD - HD Radio Tuner Bedienungsanleitung

Pioneer

Pioneer SH-D07 Bedienungsanleitung

Pioneer

Pioneer TX-800 Bedienungsanleitung

Pioneer

Pioneer TX-710L Bedienungsanleitung

Pioneer

Pioneer TX-6700 Bedienungsanleitung

Pioneer

Pioneer TX-930 Bedienungsanleitung

Pioneer

Pioneer TS7 Bedienungsanleitung

Beliebte Tuner Handbücher anderer Marken

Tunersys

Tunersys WS16 1 Bedienungsanleitung

Arcam

Arcam DT91 Bedienungsanleitung

Magnum

Magnum MD 102T Bedienungsanleitung

HDHomeRun

HDHomeRun 20121008 Bedienungsanleitung

Crestron

Crestron C2N-TXM Bedienungsanleitung

Eico

Eico HFT-92 Bedienungsanleitung

MFJ

MFJ MFJ-928 Bedienungsanleitung

NAD

NAD C 445 Bedienungsanleitung

Sony

Sony ST-SA5ES Bedienungsanleitung

Sirius Satellite Radio

Sirius Satellite Radio SC-FM1 Bedienungsanleitung

Antique Automobile Radio

Antique Automobile Radio 283501B Bedienungsanleitung

Monacor

Monacor PA-1200R Bedienungsanleitung

Technics

Technics ST-X301L Bedienungsanleitung

Manhattan

Manhattan 176156 Bedienungsanleitung

Marantz

Marantz ST-15S1 Bedienungsanleitung

Korg

Korg HA-40 Bedienungsanleitung

Harman Kardon

Harman Kardon TU915 Bedienungsanleitung

Teac

Teac T-1D Bedienungsanleitung
