Planar LB1500R Bedienungsanleitung

LB1500R

LB1500RTC

LB1503R

Open-Frame Monitors

USER’S GUIDE

www.planar.com

European Union 2002/95/EC Directive on

the Restriction of Hazardous Substances (RoHS)

In February 2003, the European Union issued Directive 2002/95/EC on the Restriction of Hazardous

Substances, commonly known as RoHS, in certain electrical and electronic equipment. It restricts the use

of six hazardous substances, including lead (Pb).

The Directive states that all products placed on the European market after July 1, 2006 must be compliant

with its requirements.

Planar Systems Inc. is fully in support of and compliant with EU Directive 2002/95/EC on all its products,

except where exempted, such as medical. Should those exemptions be removed in the future, Planar will

comply with such Directives or amendments.

A Planar part number will be modified with an “LF” suffix designation to indicate RoHS compliance, as

shown on the part number label affixed to the display and on the box containing the display.

Important Recycle Instructions:

LCD Lamp(s) inside this product contain mercury. This product may contain other electronic waste

that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local,

state, or federal Laws. For more information,

contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information

check WWW.LAMPRECYCLE.ORG.

Revision Control

Date Description

May 2006 Document number 020-0463-00A

March 2007 Document number 020-0463-01A Inserted LB1500RTC information

Contents

Usage Notice

Precautions .......................................................................................................................................2

Introduction

About the Products...........................................................................................................................3

Package Overview............................................................................................................................5

Installation

Product Overview.............................................................................................................................6

Signal Input Layout..........................................................................................................................6

Start Your Installation ......................................................................................................................7

User Controls

Rear Panel Controls..........................................................................................................................8

How to Use the OSD Menus..........................................................................................................10

On-Screen Display Menus..............................................................................................................11

Appendices

Troubleshooting..............................................................................................................................13

Warning Signal...............................................................................................................................14

Product Dimensions .......................................................................................................................14

Compatibility Modes......................................................................................................................18

LB1500R / LB1500RTC / LB1503R User’s Guide (020-0463-01A) 2

Usage Notice

Warning- To prevent the risk of fire or shock hazards, do not expose

this product to rain or moisture.

Warning- Pease do not open or disassemble the product as this may

cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to

maximize the life of your unit.

Do:

Turn off the product before cleaning.

LCD front surface may be cleaned using a soft clean cloth moistened with mild window

glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.

Use only high quality safety approved AC/DC power adapter that comes with your

monitor.

Disconnect the power plug from the AC outlet if the product is not going to be used for

an extended period of time.

Don’t:

Do not touch the LCD Display screen surface with sharp or hard objects.

Do not use abrasive cleaners, waxes or solvents for cleaning.

Do not operate the product under the following conditions:

oExtremely hot, cold or humid environment.

oAreas susceptible to excessive dust and dirt.

oNear any appliance generating a strong magnetic field.

oIn direct sunlight.

LB1500R / LB1500RTC / LB1503R User’s Guide (020-0463-01A) 3

Introduction

About Planar’s LB1500R/LB1500RTC/LB1503R

The LB1500R/LB1500RTC/LB1503R is a 15” flat panel screen with an active matrix,

thin-film transistor (TFT) liquid crystal display (LCD).

Features include:

Direct analog signal input

Direct digital DVI signal input (LB1503R)

Direct composite video signal input (LB1503R)

Active matrix TFT LCD technology

1024x768 XGA resolution

15” viewable display area

31.5 ~ 60 kHz horizontal scan

56 ~ 75 Hz refresh rate

Auto -adjustment function

Multilingual OSD user controls

VESA DPMS power saving

75 mm VESA rear mount attachment

LB1500R / LB1500RTC / LB1503R User’s Guide (020-0463-01A) 4

Touch Screen for LB1500RTC

Capacitive for finger interface

Surface: Anti-glare treatment

Interface: USB

Durability: 225 million touches in a single location

Hardness: Cannot be scratched using any stylus with Mohr’s rating of less than 6.5

Transmissivity: up to 91.5% at 550 nm

Driver: Microsoft®Windows®2000/XP/CE/XP Embedded/Server™ 2003/Linux

LB1500R / LB1500RTC / LB1503R User’s Guide (020-0463-01A) 5

Package Overview

LB1500R/LB1500RTC

Monitor LB1503R Monitor Quick Start Guide

Power Adapter Power Cord VGA Signal Cable

DVI-D Cable

For LB1503R Video BNC Cable

For LB1503R USB Cable

For LB1503R

Touchscreen Driver

Installation CD-ROM

LB1500R / LB1500RTC / LB1503R User’s Guide (020-0463-01A) 6

12VDC

Power

DVI Input VGA

Input Audio

Input

Composite

Video

12VDC

Power Input VGA

Input Audio

Input

Installation

Product Overview

Front View Front View

LB1500R/LB1500RTC LB1503R

Signal Input Layout

Figure 1. LB1503R Connector Inputs

Figure 2. LB1500R/LB1500RTC Connector Inputs

LB1500R LB1500RTC

LB1500R / LB1500RTC / LB1503R User’s Guide (020-0463-01A) 7

Start Your Installation

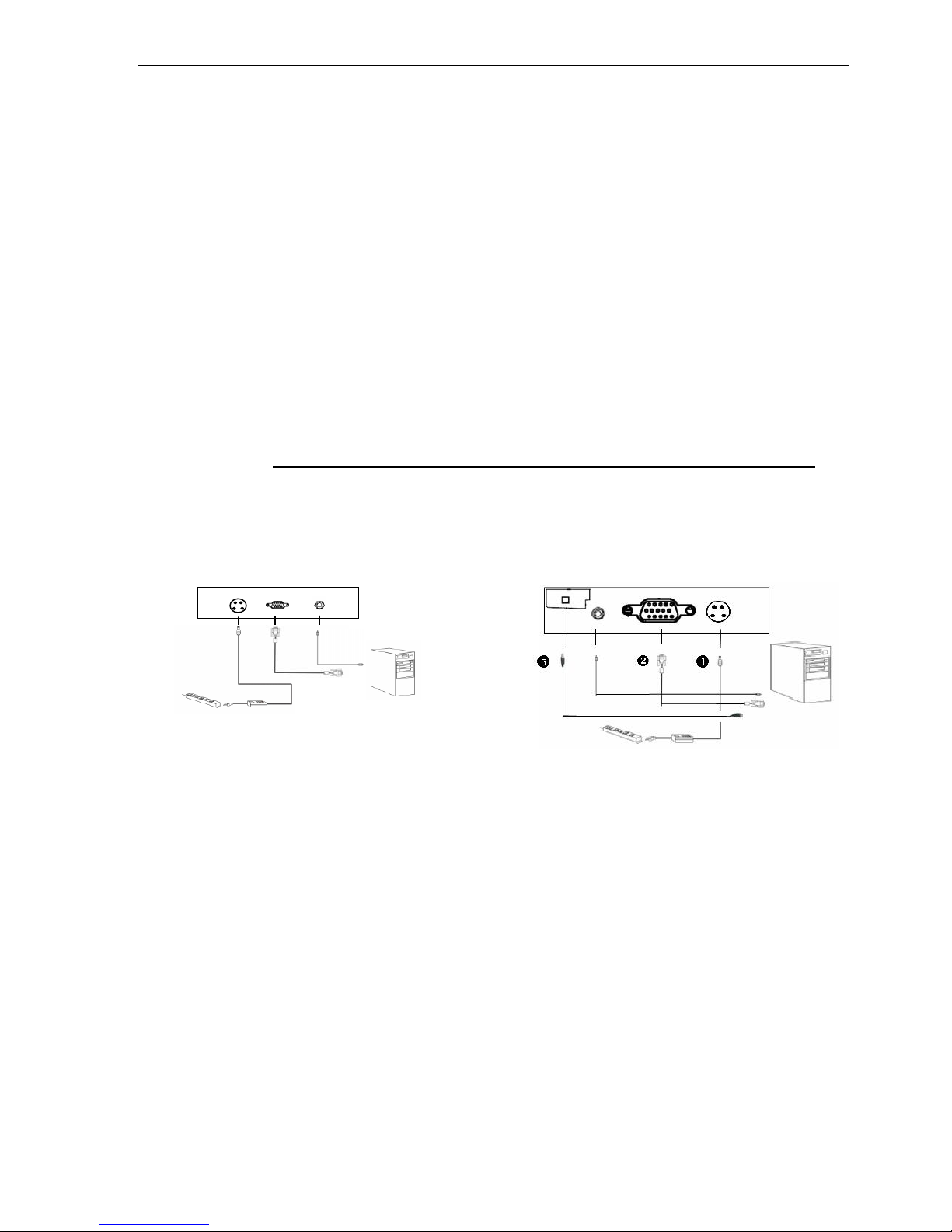

Connecting the Display (Figure 3)

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipment is turned off.

2. Connect the DC power cord to the power connector; plug one end of the AC

power cord into the power adapter, and the other end into an electrical outlet

(n).

3. Connect the VGA signal cable from display VGA input connector to the 15-pin

connector of your host computer and tighten the screws ().

4. For LB1503R connect the DVI signal cable from display DVI input connector

to DVI connector of your host computer and tighten the screws ()

5. For LB1503R connect the composite video cable from display video input to

video output source ().

6. For LB1500RTC do not connect the USB cable until touchscreen software

driver is installed! ()

7. Turn on your computer, display and or video source.

Figure 3. The LB1500R Connections Figure 3. The LB1500RTC Connections

 
