Planar PT1985P Bedienungsanleitung

PT1975R / PT1911MX /

PT1975S / PT1985P

Touch Screen LCD Monitors

USER’S GUIDE

www.planartouch.com

The information contained in this document is subject to change without notice.

This document contains proprietary information that is protected by copyright. All rights

are reserved. No part of this document may be reproduced, translated to another lan-

guage or stored in a retrieval system, or transmitted by any means, electronic,

mechanical, photocopying, recording, or otherwise, without prior written permission.

Windows is a registered trademark of Microsoft, Inc.

Other brand or product names are trademarks of their respective holders.

Important Recycle Instructions:

Lamp(s) inside this product contains mercury. This product may contain other

electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in

accordance with local, state, or federal Laws. For more information, contact the Electronic

Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check

WWW.LAMPRECYCLE.ORG.

For more information on how to recycle your product, please visit

WWW.PLANARSYSTEMS.COM/GREEN.

Table of Contents

Usage Notice ...........................................................................3

Precautions .........................................................................................3

Introduction .............................................................................4

About PT1957R / PT1911MX / PT1975S / PT1985P ..........................4

Touch Screen for PT1975R..........................................................5

Touch Screen for PT1911MX .......................................................5

Touch Screen for PT1975S..........................................................5

Touch Screen for PT1985P..........................................................6

Package Overview ..............................................................................7

Installation ...............................................................................8

Product Overview................................................................................8

Front View......................................................................................8

PT1975R / PT1911MX / PT1975S Bottom View............................8

PT1985P Bottom View...................................................................8

Start Your Installation ..........................................................................9

Connecting the Display (Figure 12.1)................................................ 11

Kensington Security Slot ...................................................................13

VESA Mount your monitor.................................................................14

Remove the Deskstand..............................................................15

User Controls ........................................................................16

Side Panel Controls ..........................................................................16

How to Use the OSD Menus .............................................................17

On-Screen

Display

Menus

.............................................................19

Appendix................................................................................20

Troubleshooting ...........................................................................................20

Warning Signal.............................................................................................21

No Signal ................................................................................................21

Going to Sleep.........................................................................................21

Out of Range ...........................................................................................21

Product Dimensions.....................................................................................22

Compatibility Modes.....................................................................................24

Touch Screen Driver Installation..................................................................25

Product Registration and Technical Support ...............................................31

Usage Notice

Warning-To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning-Please do not open or disassemble the product as

this may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended

in this user’s manual to maximize the life of your unit.

Do:

Turn off the product before cleaning.

Touch screen surface may be cleaned using a soft clean cloth

moistened with mild window glass commercial cleaners or 50/50

mixture of water and isopropyl alcohol.

Use a soft cloth moistened with mild detergent to clean the display

housing.

Use only high quality and safety approved AC/DC adapter.

Disconnect the power plug from AC outlet if the product is not going

to be used for an extended period of time.

Don’t:

Do not touch the LCD Display screen surface with sharp or hard

objects.

Do not use abrasive cleaners, waxes or solvents for your cleaning.

Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- In direct sunlight.

Introduction

About PT1975R / PT1911MX / PT1975S /

PT1985P

The PT1975R / PT1911MX / PT1975S / PT1985P is a 19” flat panel

screen with an active matrix, thin-film transistor (TFT) liquid crystal

display (LCD).

Features include:

Direct Analog signal input

Direct Digital signal input

Active matrix TFT LCD technology

1280x1024 SXGA resolution

19” viewable display area

31.47 ~ 80 kHz horizontal scan

56 ~ 75 Hz high refresh rate

0.294mm x 0.294mm Pixel pitch

Auto adjustment function

Multilingual OSD user controls

VESA DPMS power saving

Kensington security slot

75 mm / 100 mm VESA mount

Removable base for flexible mounting solutions.

PT1975R – 5-wire resistive touch screen with dual RS-232 Serial/USB

controller

PT1911MX – Capacitive touch screen with dual RS-232 Serial/USB

controller

PT1975S – SAW touch screen with dual RS-232 Serial/USB controller

PT1985P – Projected capacitive touch screen with USB controller

Built-in speakers-1W X 2

Touch Screen for PT1975R

5-wire resistive touch screen for finger and stylus input

Surface: Anti-glare treatment

Interface: Dual RS-232 Serial/USB controller

Durability: 35 million touches at a single point

Hardness of surface: 3H Typical

Operating force: 40g~200g when using a silicon rubber tipped pen with a

1 mm diameter minimum and a hardness of 60 degree.

Transmittance: 82%±5%

Driver: Windows®7, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded,

Linux, Apple®Mac OS

Touch Screen for PT1911MX

Capacitive touch screen for finger input

Surface: Anti-glare treatment

Interface: Dual RS-232 Serial/USB controller

Durability: 225 million touches at a single point

Hardness of surface: Mohs’ Hardness rating of 7

Transmittance: 85%±5%

Driver: Windows®7, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded,

Linux, Apple®Mac OS

Touch Screen for PT1975S

Surface Acoustic Wave (SAW) touch screen for finger and stylus input

Surface: Anti-glare treatment

Interface: Dual RS-232 Serial/USB controller

Durability: 50 million touches at a single point

Hardness of surface: Mohs’ Hardness rating of 7

Operating force: Typically less than 85 g

Transmittance: 92%±5%

Driver: Windows®7, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded,

Linux, Apple®Mac OS

Touch Screen for PT1985P

Project capacitive touch screen for finger input only

Surface: Glare treatment

Interface: USB controller

Transmittance: 90%±5%

Driver: Windows®7, VISTA 64/32 bits, XP, 2000, XP Embedded Express,

Linux, Apple®Mac OS

Package Overview

LCD Display Power Cord VGA Signal Cable

DVI Signal Cable Audio-in Cable RS-232 Cable

(PT1975R/PT1911MX/PT1975S only)

User’s Manual

USB Cable - Type A to B Touch Screen Driver

Installation CD-ROM

User’s Guide

Landing Strip DC Power Supply

(sold separately)

Cable Cover

Screw

Installation

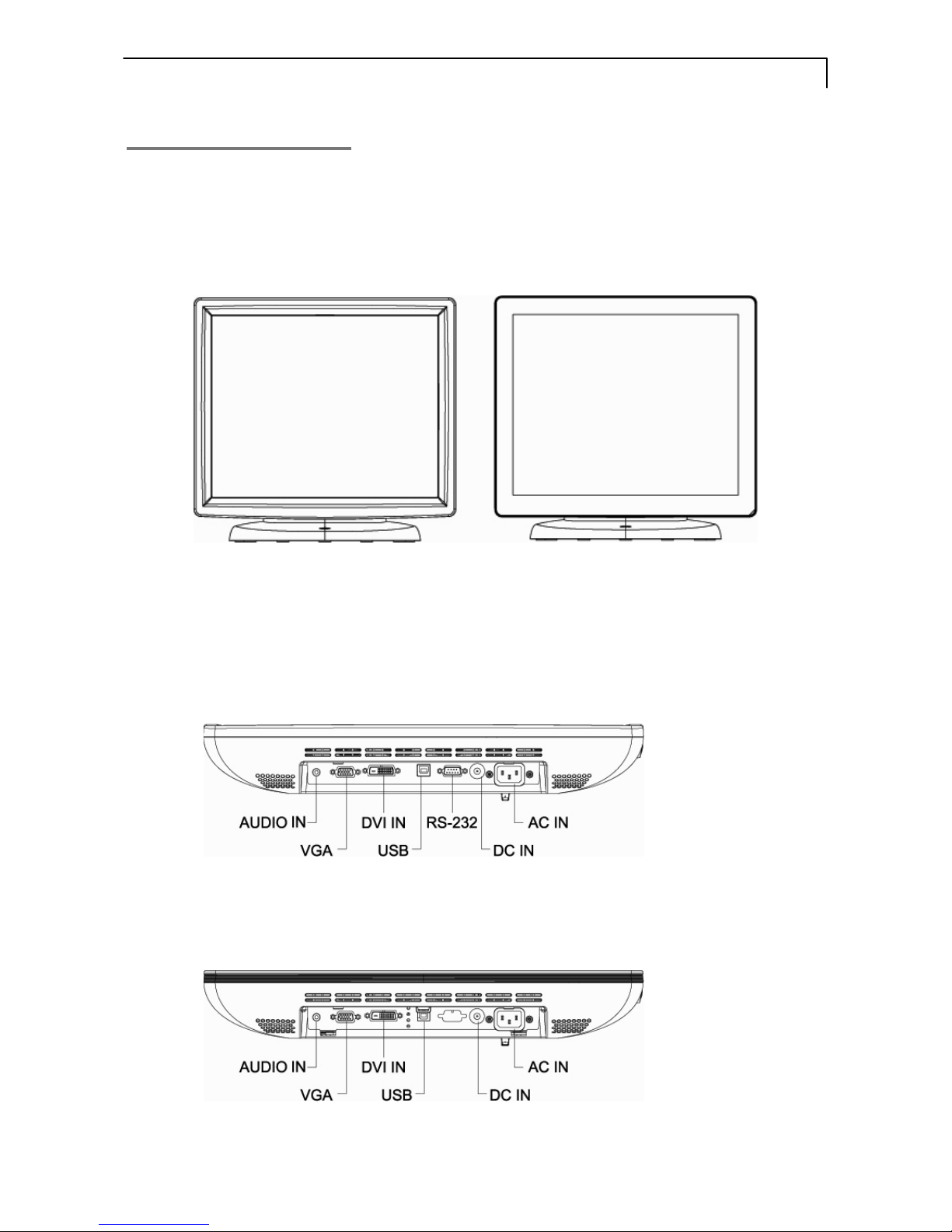

Product Overview

 Front View

PT1975R/PT1911MX/PT1975S PT1985P

 PT1975R/PT1911MX/PT1975S Bottom View (Without Stand)

 PT1985P Bottom View (Without Stand)
