User’s manual for PLANET Fast Ethernet Converter

Multi-mode: FT-701B, FT-702B, FT-703, FT-704

Single-mode: FT-702S15, FT-702S35, FT-702S50,

FT-703S, FT-706A15, FT-706B15

Rev 4.0 (July 2004)

Part No. 2010-000001-003

Table of Contents

Chapter 1 Overview 1

Chapter 2 Model List 1

Chapter 3 Checklist 2

Chapter 4 Product Outlook 2

Chapter 5 Installing the Converter 3

Chapter 6 Duplex Mode Setting 5

Chapter 7 The LED Indications 6

Chapter 8 Cable Connection Parameter 7

Chapter 9 Technical Specifications 8

Chapter 10 Power information 9

Chapter 1

Overview

Thank you for purchasing PLANET FT-70X family Fast Ethernet

Twisted pair to Fiber-optic Converter. This converter is used to

convert one type media signal to other type equivalent that allows

two type segments connect easily, efciently and inexpensively.

This converter can be used as a standalone unit or as a slide-in

module to the 10 /19 media chassis (up to 15 units) for a TP

and Fiber combined networks at a central wiring closet. Please

contact with your sales representative for more about the 19

media chassis.

Chapter 2

Model List

Your Fast Ethernet Converter comes with one of the following

models.

ð FT-701B on board ST fiber connector

ð FT-702B/S on board SC fiber connector

ð FT-703/S on board MT-RJ fiber connector

ð FT-704/S on board VF-45 fiber connector

ð FT-706A15 on board single SC fiber connector

ð FT-706B15 on board single SC fiber connector

Models with last two numbered characters indicates the ber-

port is with Single-Mode optic ber connector and the number

indicates the maximum distance in km. The rest will be Multi-

Mode optic ber models.

In the following sections, the term FT-70X indicates the product

family above.

Chapter 3

Checklist

Your FT-70X carton should contain the following items:

ð The Fast Ethernet Converter

ð AC-DC Power Adapter (Output: 5VDC, 2 A max.)

ð This user’s manual

If any item is missing or damaged, please consult the dealer from

whom you purchased your Fast Ethernet Converter.

Chapter 4

Product Outlook

Right View (FT-70X)

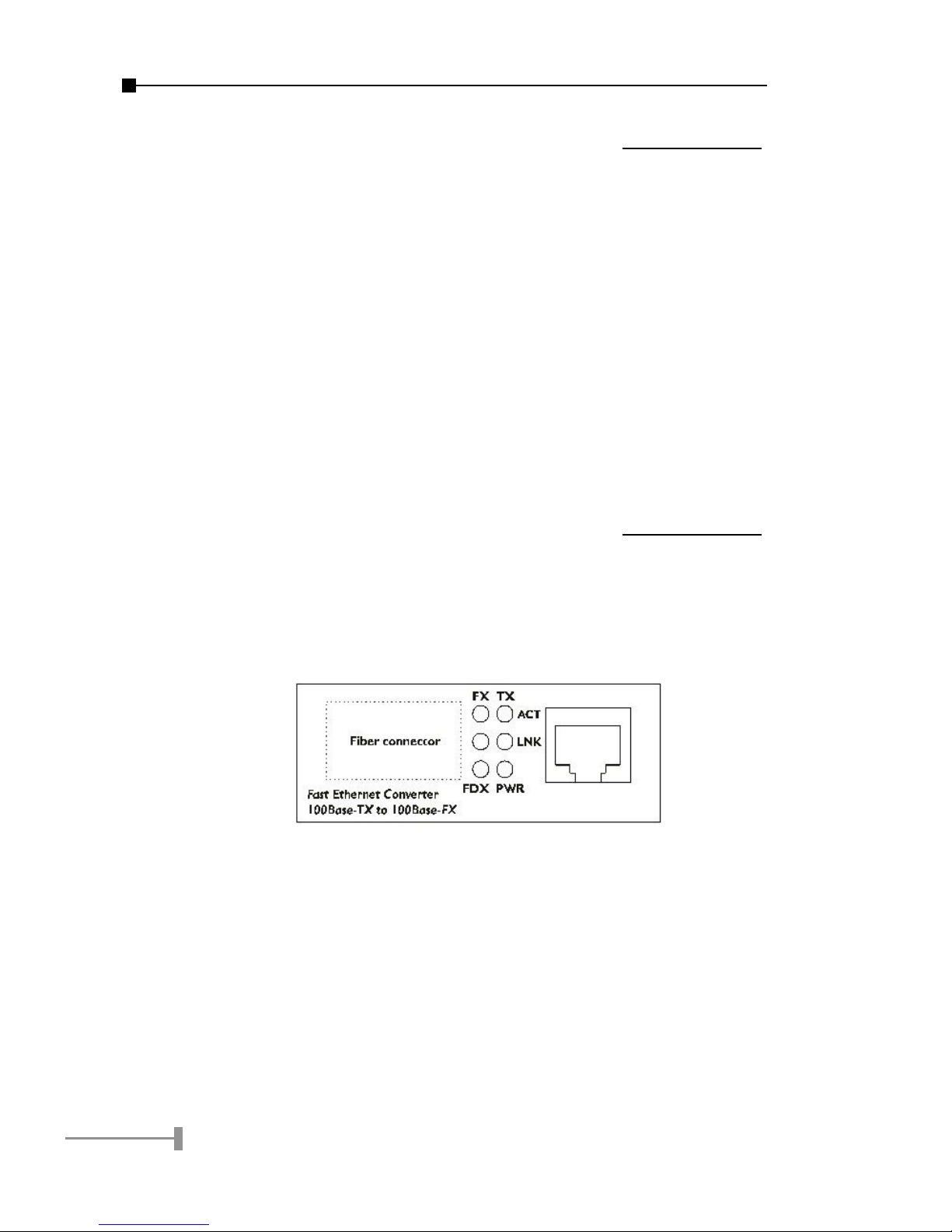

There are one RJ-45 Twisted-Pair jack, one ber-optic connector

and six LED indicators on this side.

The ber connector is different from model to model. Please refer

to the section 2 Model List and section 9 Technical Specication

for detail.

Left View (FT-70X)

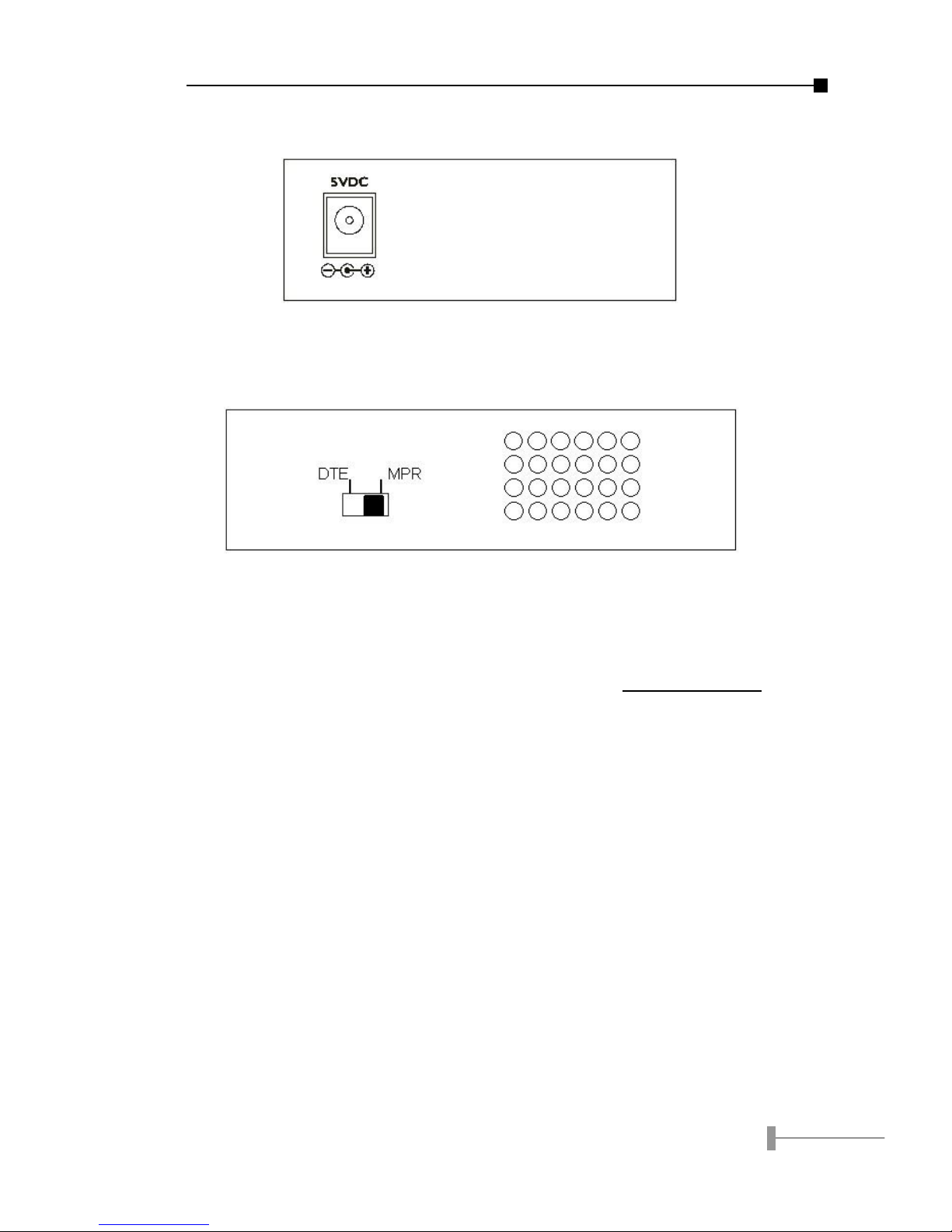

One DC jack for DC power input.

Side View (FT-70X)

One DIP Switch for TP Device selection.

Chapter 5

Installing the Converter

Please follow these steps to install the converter:

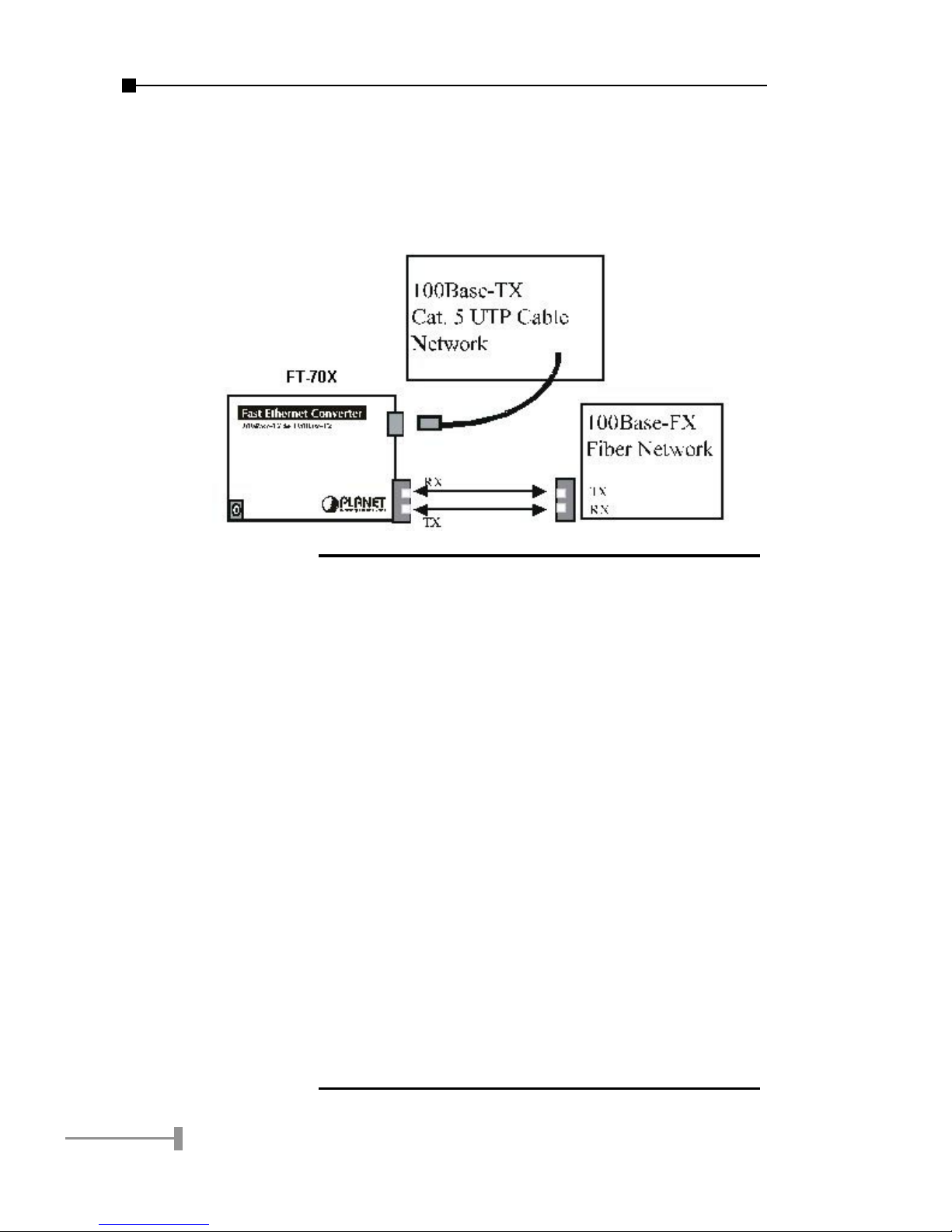

• Turn off the power of the device/station in a network to

which the FT-70X will be attached.

• Ensure that there is no activity in the network.

• Attach fiber cable from the FT-70X to the fiber network.

TX, RX must be paired at both ends for some two con-

nectors models.

• Attach a Cat. 5 UTP cable from the 100Base-TX network

to the RJ-45 port on the FT-70X.

• Connect the 5VDC power adapter to the FT-70X and

verify that the Power LED lights up.

• Turn on the power of the device/station, the TX Link and

FX Link LEDs should light when all cables are attached.

 NOTE:

• RJ-45/STP, UTP Cat 5, straight-through

cable is accepted.

• Cabling from FT-70X TP port to a TP de-

vice is as below:

• To Workstation: DIP switch on DTE

• To Hub/Switch: DIP switch on MPR

• Please refer to section 8 for more about

the wiring distance of your TP, Optic-fiber

networks.

• Please note FT-706A15/706B15 is de-

signed to work together. It means you

must connect FT-706A15 to FT-706B15

from them to work normally. If both ends

are FT-706A15 or FT-706B15, they can’t

work normally and may damage the fiber

connectors.

Chapter 6

Duplex Mode Setting

The twisted pair port of FT-70X support duplex mode selection

by Auto-Negotiation (A-N). The following is the duplex mode

parameters:

Fast Ethernet Device FT-70X Duplex Mode support

Fast Ethernet Hub Half-Duplex

Fast Ethernet Switch

(without A-N) Half-Duplex

Fast Ethernet Devices *

Support Auto-Negotiation Full-Duplex / Half-Duplex

 NOTE:

Normally, an A-N switch will be detected and

set to Full-duplex where a dual-speed hub

will be detected and set to Half-Duplex.

Chapter 7

The LED Indications

LED Color Status Description

TP ACT Green

Blinks

If fiber-optic is not present

for converter self-diagnose /

detecting

Blinks If both ports link with any TP

packets transmitting

OFF Fiber-optic link is present

OFF

With no TP/FX LINK on, i.e.

only turn on the power and

the ACT do not blink at all,

please consult your local

dealer

TP Link Green ON TP connection is good

FX ACT Green Blinks When any FX packets

transmitting

FX Link Green ON When Fiber connection is

good

FDX* Green ON When Full-duplex mode is

detected in TP port

PWR Green ON When +5VDC power

detected

 NOTE:

Fiber-optic partner should be set to the correct

mode according to this FDX indicator for optimal

network performance.

Chapter 8

Cable Connection Parameter

The cable distance limitations are as below:

Duplex Connection Limitation (max.)

Twisted Pair

Half / Full Node to Node

Node to Switch/Hub 100 meters

Multi-Mode Converters

MM Half* Node to Node

Node to Switch 412 meters

MM Full Node to Node

Node to Switch 2 kilometers

Single-Mode Converters (FT-70xS, FT-706A15/706B15)

SM Full Node to Node

Node to Switch

FT-70xS15: 15 km

FT-70xS35: 35 km

FT-70xS50: 50 km

FT-706A15: 15 km

FT-706B15: 15 km

 NOTE:

If the ber port works on half duplex, please

note that Fast Ethernet/100Base-TX network

allows 512 bit-time delay between any two

nodes/stations in a collision domain (when work

in half duplex). The overall bit time of TP/Fiber

wires and devices must below 512 bit-time in

one network segment. To extend the distance,

however, you may use switch to break up a

collision domain and extend the distance.
