Ethernet over VDSL2 Converter

VC-231 / VC-234

User’s Manual

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

The information in this manual is subject to change without

notice. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will

work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed,

with respect to the quality, performance, merchantability, or

tness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual

is accurate; PLANET disclaims liability for any inaccuracies or

omissions that may have occurred.

Information in this User’s Manual is subject to change without

notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies

that may be contained in this User’s Manual. PLANET makes no

commitment to update or keep current the information in this

User’s Manual, and reserves the right to make improvements

to this User’s Manual and/or to the products described in this

User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect,

misleading, or incomplete, we would appreciate your comments

and suggestions.

FCC Warning

This equipment has been tested and found to comply with the

regulations for a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment

is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with this user’s guide, may

cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct

the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode

operation.

For energy saving, please remove the power cable to disconnect

the device from the power circuit.

Without removing power cable, the device will still consuming

power from the power source. In the view of Saving the Energy

and reduce the unnecessary power consuming, it is strongly

suggested to remove the power connection for the device if this

device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and

human health as a result of the presence of

hazardous substances in electrical and electronic

equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out

wheeled bin symbol. Do not dispose of WEEE as unsorted

municipal waste and have to collect such WEEE separately.

Revision

Ethernet over VDSL2 Converter User’s Manual

For Models: VC-231 / VC-234

Rev 1.1 (January, 2010)

Part No.: 2350-AC0140-001

Table Of Contents

1. Introduction ..................................................................... 6

1.1 Checklist .................................................................... 6

1.2 Introduction to Ethernet over VDSL2 Bridge.................. 6

1.3 Key Features ............................................................ 10

1.4 Specications ........................................................... 11

2. Hardware Description ...................................................... 13

2.1 Front Panel............................................................... 13

2.1.1 LED Indicators for VC-231................................. 14

2.1.2 LED Indicators for VC-234................................. 15

2.2 The Rear Panel ......................................................... 17

2.2.1 Mode DIP Switch.............................................. 17

2.2.2 DC Power Jack................................................. 19

3. Installing and Using VDSL Converter ............................... 20

3.1 Install the Ethernet Over VDSL2 Converter ................. 20

3.1.1 VC-231 / VC-234 LAN to LAN Connection........... 21

3.1.2 VC-231 / VC-234 Connect to Multi-Port Master ... 22

3.2 Connecting VC-231 / VC-234 ..................................... 23

3.2.1 Connecting Standalone PC ................................ 23

3.2.2 Connecting Multiple PCs to an Ethernet LAN ....... 24

3.3 Chassis Installation and Rack Mounting (VC-231)......... 26

4. Power Information .......................................................... 27

5. Troubleshooting .............................................................. 28

6. FAQ............................................................................... 29

1. Introduction

1.1 Checklist

Check the contents of your package for following parts:

VC-231 / VC-234

Splitter (VC-231 only)

Power Adapter

RJ-11 Telephone Line

User’s Manual

If any of these pieces are missing or damaged, please contact

your dealer immediately, if possible, retain the carton including

the original packing material, and use them against to repack

the product in case there is a need to return it to us for repair.

1.2 Introduction to Ethernet over VDSL2 Bridge

PLANET’s state-of-the-art Ethernet-over-VDSL2 products are

based on two core networking technologies: Ethernet and

VDSL2 (Very-high-data-rate Digital Subscriber Line 2). This

technology offers the absolute fastest possible data transmission

speeds over existing copper telephone lines without the need for

rewiring.

The VC-231 / VC-234 Ethernet Over VDSL2 Converter / Bridge

has switching architecture with RJ-45 10/100Mbps Ethernet port

and one symmetric Ethernet over VDSL port (symmetry means

upstream and downstream rate are the same or similar) – the

VDSL port can be RJ-11 connectors. The VC-231 / VC-234 can

be set to CO mode or CPE mode via a DIP switch, when the

VC-231 / VC-234-CO is used to connect to the other VC-231 /

VC-234-CPE as a standalone pair, up to 100/100Mbps symmetric

data rate within 300m and up to 50/2Mbps asymmetric data

rate at 1.4km. This capability is ideal for use as an Ethernet

extender for your existing Ethernet network.

PLANET’s VDSL2 Converter solution provides a much cheaper

replacement and smooth migration for existing Long Reach

Ethernet (LRE) networks.

The cable specications of the connection are listed as following:

10Base-T, Category 3, 4 or 5 UTP

100Base-TX, Category 5 UTP

Ethernet over VDSL, Twisted-pair telephone wires

The two drawings listed below are typical application for the

Ethernet over VDSL2 Converter.

Note

Slave device (CPE) must connect to Master device

(CO) through the telephone wire. Slave cannot

connect to Slave and Master cannot connect to

Master. To define the VC-231 / VC-234 to CO or

CPE, please refer to section 2.2.1 for more detail.

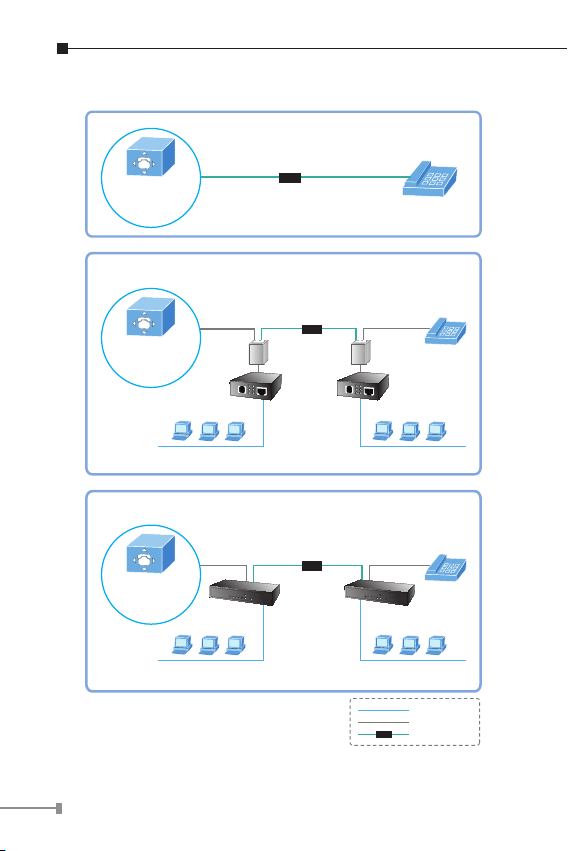

LAN to LAN Connection

Telephone wire

100Base-TX UTP

VDSL2

Ethernet Telephone Network

Main office/PBX,

Telco CO,

wire closet

VDSL2

Telephone wire

Up to 1.4km

VDSL2

Telephone wire

Ethernet over VDSL2 and Telephone Network

Main office/PBX,

Telco CO,

wire closet

LAN1 LAN2

VC-234/CO VC-234/CPE

Up to 1.4km

VDSL2

Telephone wire

Ethernet over VDSL2 and Telephone Network

Main office/PBX,

Telco CO,

wire closet

LAN1 LAN2

VC-231/CO VC-231/CPE

Splitter Splitter

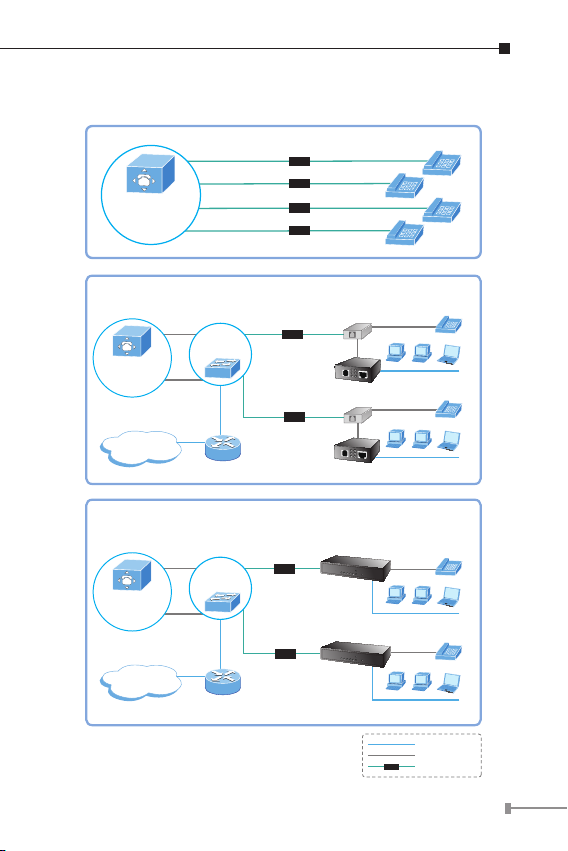

Multi-LAN Connection

Telephone wire

100Base-TX UTP

VDSL2

UP to 1.4km

VDSL2

LAN2

Router

LAN1

Ethernet over VDSL2 and Telephone Network

Main office/PBX,

Telco CO,

wire closet

VDSL2 Switch

(Multi-port CO)

Internet

Telephone wire

VC-234/CPE

UP to 1.4km

LAN2

Router

LAN1

Ethernet over VDSL2 and Telephone Network

Main office/PBX,

Telco CO,

wire closet

VDSL2 Switch

(Multi-port CO)

Internet

Telephone wire

VC-231/CPE

Splitter

Ethernet Telephone Network

Main office/PBX,

Telco CO,

wire closet

Telephone wire

VDSL2

1.3 Key Features

The Ethernet over VDSL2 Converter provides the following key

features:

Cost-effective VDSL2 CO/CPE bridge solution

One box design, CO/CPE selectable via DIP Switch

Denes prole 17a band plan for the long distance transmis-

sion of upstream and downstream signals

Denes prole 30a band plan for the short distance transmis-

sion of upstream and downstream signals

Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x

standards

DMT (Discrete Multi-Tone) line coding

Half duplex Back pressure and IEEE 802.3x Full Duplex Pause

frame ow control

Built-in POTS splitter to share voice and data (VC-234 only)

Voice and data communication can be shared on the existing

telephone wire simultaneously

Hardware IGMP Snooping for Multimedia service (VC-234)

Support up to 1536 bytes packet size, 802.1Q VLAN tag

transparent

VDSL2 stand-alone transceiver for simple bridge modem appli-

cation

Selectable target prole and target SNR margin

Support extensive LED indicators for network diagnostics
