PLANETFast EthernetSwitch User's Manual

FOR MODEL: FNSW-3200

Part No.: EM-FNSW32V1

- 4 -

TABLE OF CONTENTS

1. UNPACKING INFORMATION.............................................1

2. PRODUCT INTRODUCTION...............................................3

2.1 KEY FEATURES.................................................................3

2.2 FRONT PANEL...................................................................3

2.2.1 Ports Speed.............................................................4

2.2.2 Cabling.....................................................................4

2.2.3 Auto-MDI/MDI-X.......................................................4

2.2.4 StatusLEDs.............................................................5

2.3 THE REAR PANEL.............................................................5

2.3.1 PowerConnector.....................................................5

3. INSTALLATION...................................................................7

3.1 RACK-MOUNT INSTALLATION.............................................7

3.2 DESKTOP INSTALLATION ...................................................7

4. OPTIMIZING CONFIGURATION.........................................9

4.1 PRIOR TO INSTALLATION ...................................................9

4.2 HALF- AND FULL-DUPLEX..................................................9

4.3 FAST ETHERNET.............................................................10

4.4 AUTO-NEGOTIATION .......................................................11

4.5 MAC ADDRESS TABLE....................................................11

4.6 SAMPLE APPLICATION.....................................................12

5. TROUBLESHOOTING.......................................................13

6. PRODUCT SPECIFICATIONS..........................................15

7. RJ-45 PIN ASSIGNMENT..................................................17

- 1 -

1. UNPACKING INFORMATION

Thankyou forpurchasing PLANETEthernet Switches.Before

continuing, pleasecheckthe contents ofthe productpack-

age. This product package should containthe following items:

One Ethernet Switch

One Power Cord

Two Rack-Mounting Bracketswith attachment screws

ThisUser s manual

Please inform yourlocal dealer/supplier immediatelyifany

itemis found to be defective, damaged or missing. Retain the

original packaging (carton), including the packing materials,

and usethemto re-pack the product in the unlikelyevent

there is a need to return it to usforrepairing.

- 2 -

Thispage intentionallyleft blank!

- 3 -

2. PRODUCTINTRODUCTION

FNSW-3200 Ethernet Switchis multi-speed, versatile network

devicescombining both standard and "Big-Pipe" portsunderthe

same hood.

2.1Key Features

w Compliant with IEEE802.3 and 802.3u standards for

100Base-TX

w 32-port Fast Ethernet Switch, pure 10/100Base-TX

w Wire-speed "Store-and-Forward" filtering/forwarding

eliminatesbad data packetswith minimal delay

w 100Base-TX portsautomatically senseand set optimal

line speed from10/20, 100/200Mbps,All 100Base-TX

port support Auto-Negotiation function

w Shared buffermemoryand up to 4K FastEthernet

Switch-entryMAC sourceaddresstable makefor fast

handling of data packets

w Auto-MDI/MDI-Xdetection supports

w Flowcontrol to eliminate packets loss

w Internal, full-range power supplysuitable forworldwide

use

2.2Front Panel

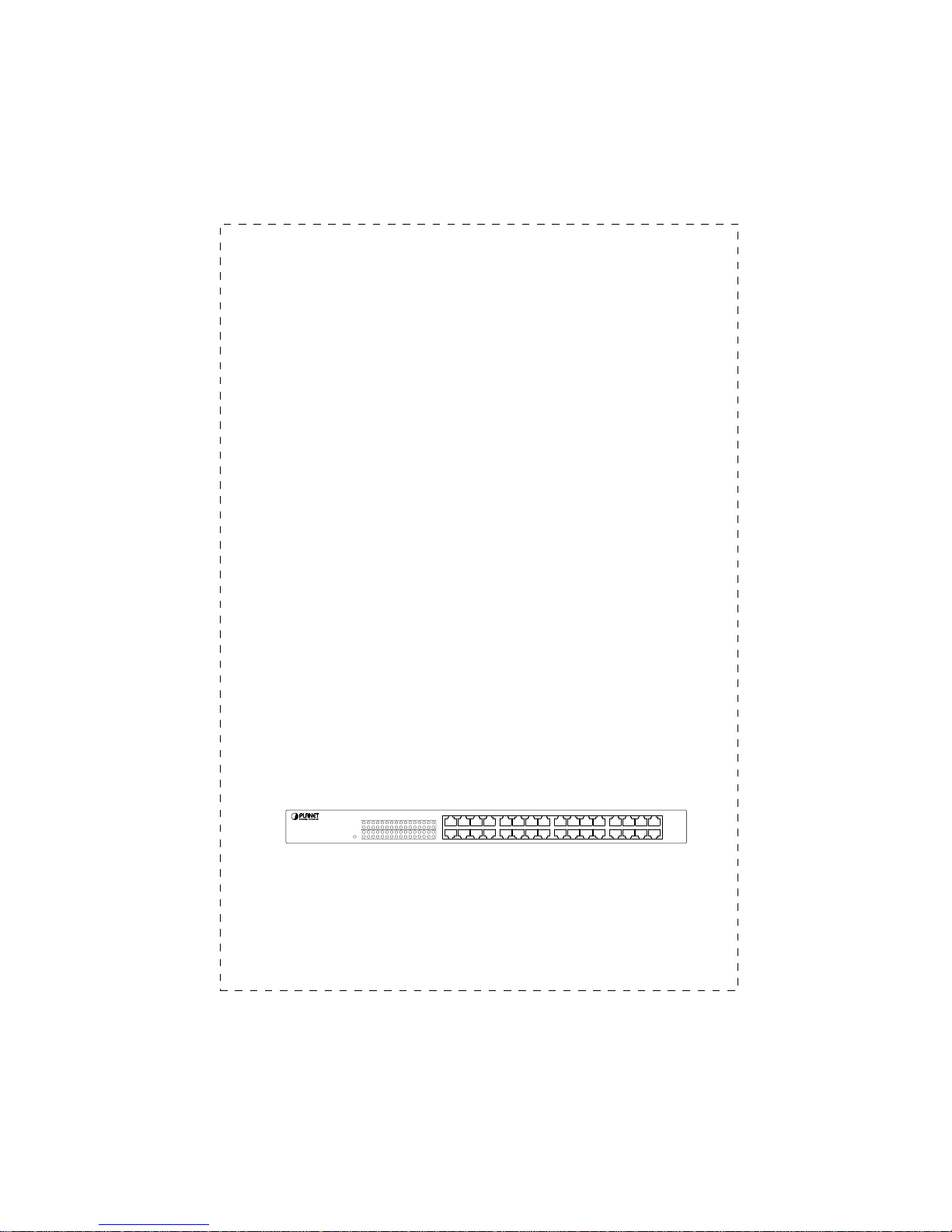

Figure 1: Front View of theFNSW-3200

PWR

FNSW-3200

LNK/

ACT

100M

LNK/

ACT

100M

10/100Mbps Ethernet Switch

123456789

171819202122232425

- 4 -

2.2.1 Ports Speed

n100Base-TX

All 100Base-TX ports comewith auto-negotiation capability.

Theyautomaticallysupport 100Base-TXand 10Base-T

networks.Usersonlyneed to plug aworking network device

into one of the 100Base-TX ports,then turn on the switch.

The portwill automaticallyrunsin 10Mbps, 20Mbps,

100Mbps or 200Mbps after the negotiation with the con-

nected device.

2.2.2 Cabling

100Base-TX ports use RJ-45 sockets--similar to phone

jacks--forconnection of unshielded twisted-paircable(UTP).

The IEEE 802.3u Fast Ethernet standard requires Category 5

UTPfor 100Mbps 100Base-TX.10Base-Tnetworks can use

Cat.3, 4, or 5 UTP (see table A)

Port Type CableType Connector

10Base-TCat 3, 4, 5RJ-45

100Base-TX Cat.5/5eUTP RJ-45

Table A:Supported port list

2.2.3 Auto-MDI/MDI-X

Each numbered port ofFNSW-3200 is MDI/MDI-Xport.

Which automaticallydetectsstraight-through/ crossoverca-

ble types. You can directusestraight cable for the connection

to your workstation orother end nodes. Either straight or

cross-over cable can be used to connect switch, hub orend

nodes without anyhassle.

- 5 -

2.2.4 Status LEDs

One POWER LED to showpower On/Offis on the front panel

and each port hastwo statusLEDindicators, asshown below.

LABEL

STATUS /

COLOR MEANING

DESCRIPTION

Steady

orange 100MLit toindicatethat avalid physical

UTP/STP connection exists on

that port runs in 100Mbps

UPPER

ROW

OFF 10M Remains off and Link ON toin-

dicate theport runs in10Mbps

Steady

Green LinkLit toindicatethat avalid physical

UTP/STP connection isdetected

LOWER

ROW Blink

Green Activity Blink to indicate theport is re-

ceiving data packets

Table B:TheSwitch's Port-LED Functions

2.3The Rear Panel

Figure 2:Rear View for FNSW-3200

2.3.1 Power Connector

The Power Connectorisdesigned to be use with the powercord

included in the product package. Attachthe female end of the

cordto the powerconnector and the male end ofthe cordto a

grounded power outlet. The accepted power range isfrom

100VAC to 240VAC, 50/60Hz.

50-60 Hz

100-240V AC

- 6 -

Note:

The Switchisapower-required device, itmeans,the

Switchwill not work until it is powered. If your networked

PCs willneed to transmit data all the time, please con-

sideruse an UPS (Uninterrupted Power Supply) for your

Switch. It will prevent you fromnetworkdata loss.

In some area, installing asurge suppression devicemay

also help to protect yourSwitch from being damaged by

unregulated surge or current to the Switchorthe power

adapter.

- 7 -

3. INSTALLATION

The Switchdo NOTrequire software configuration. Users can

immediately useanyof the features of this product simplyby

attaching the cables and turning on the power.

Toget the best use oftheseSwitchmodels, manythings need

to be considered first. See Section 4. OPTIMIZING

CONFIGURATION fordetails.

3.1Rack-Mount Installation

Most userspreferto attachthe power cord to the hub before

installation inanetwork rack.Do not plug the other end of the

cord into a poweroutlet until after the hub is installed.

For mounting the Switch in anetworkrack,firstattach the

rack-mount bracketsto the side of the hub with screws.(Both

bracketsand screwsare included in the product package.) Slide

the hub into the rack and align the holes in the bracket with the

corresponding holesin the networkrack.Attach the bracket to

the rackwith the enclosed screws.

3.2Desktop Installation

Tolocate the Switchon adesktop, first attach the four rubber

feet to the bottomof the hub, one in each corner. Place the hub

on aclean, flat desk or tabletop close to apower outlet. Make

sure there is no hindrance behind the fan ofthe hub

Plug in all networkconnections, and then turn the switch on via

plug in the power cord.
