10/100Mbps

Fast Ethernet Switch

FSD-805/FSD-805SC/FSD-805ST/FSD-805S15

User's Manual

Trademarks

Contents subjects to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will

work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed,

with respect to the quality, performance, merchantability, or

tness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual

is accurate; PLANET disclaims liability for any inaccuracies or

omissions that may have occurred.

Information in this User’s Manual is subject to change without

notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies

that may be contained in this User’s Manual. PLANET makes no

commitment to update or keep current the information in this

User’s Manual, and reserves the right to make improvements

to this User’s Manual and/or to the products described in this

User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect,

misleading, or incomplete, we would appreciate your comments

and suggestions.

FCC Warning

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause

harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct

the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and

human health as a result of the presence of

hazardous substances in electrical and electronic

equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out

wheeled bin symbol. Do not dispose of WEEE as unsorted

municipal waste and have to collect such WEEE separately.

Revision

PLANET 8-Port 10/100Mbps Fast Ethernet Switch User's Manual

For Models: FSD-805 / FSD-805SC / FSD-805ST / FSD-805S15

Revision: 1.1 (February, 2009)

Part No: EM_FSD805v1.1 (2350-A31150-001)

Table of Contents

1. INTRODUCTION................................................................ 5

1.1 Package Contents .......................................................5

1.2 How to Use This Manual ............................................ 5

1.3 Product Features ........................................................ 6

1.4 Product Specications ................................................. 7

2. INSTALLATION.................................................................. 8

2.1 Product Description..................................................... 8

2.1.1 Product Overview.............................................. 9

2.1.2 Switch Front Panel ............................................9

2.1.3 LED Indicators ................................................ 10

2.1.4 Switch Rear Panel ........................................... 10

2.2 Installing the Switch ................................................. 11

2.2.1 Desktop Installation ........................................ 11

3. SWITCH OPERATION ....................................................... 13

3.1 Address Table........................................................... 13

3.2 Learning .................................................................. 13

3.3 Forwarding & Filtering............................................... 13

3.4 Store-and-Forward.................................................... 14

3.5 Auto-Negotiation ...................................................... 15

4. TROUBLESHOOTING........................................................ 16

APPENDIX A: NETWORKING CONNECTION............................ 17

A.1 Switch's RJ-45 Pin Assignments ................................. 17

A.2 RJ-45 cable Pin Assignments ..................................... 17

A.3 Fiber Optical Cable Connection Parameter................... 18

1.INTRODUCTION

1.1 Package Contents

Check the contents of your package for following parts:

Fast Ethernet Switch x 1

User's manual x 1

Power cord x 1

Rubber feet x 4

If any of these are missing or damaged, please contact your

dealer immediately, if possible, retain the carton including the

original packing material, and use them against to repack the

product in case there is a need to return it to us for repair.

1.2 How to Use This Manual

This Fast Ethernet Switch User Manual is structured as follows:

Chapter 2 Installation

The chapter explains the feature, functionality and the physical

installation of the Switch.

Chapter 3 Switch operation

The chapter explains the Fast Ethernet Switch transmit

operation.

Chapter 4 Troubleshooting

The chapter explains the troubleshooting of the Fast Ethernet

Switch.

Appendix A

This chapter contains cable information of the Fast Ethernet

Switch.

1.3 Product Features

Complies with the IEEE 802.3 Ethernet and IEEE 802.3u Fast

Ethernet standard

Features Store-and-Forward mode with wire-speed ltering

and forwarding rates

Support 2K MAC address table

Support to handle up to 1522 bytes packet size

LED indicators for simple diagnostics and management

Hardware based 10/100Mbps auto-negotiation

Full / Half-Duplex capability on every TX ports, total band-

width is up to 200Mbps per port

IEEE 802.3x PAUSE frame ow control for full duplex opera-

tion

Backpressure ow control for half duplex operation

One shared 100Base-FX interface for up to 2km (multi-mode

ber 50/125µm) on FSD-805SC / FSD-805ST

One shared 100Base-FX interface for up to 15km (single-

mode ber 9/125µm) on FSD-805S15

Automatic source address learning and aging

Internal power adapter 100-240V AC, 50/60Hz, 0.2A

FCC, CE class A compliant

1.4 Product Specications

Product FSD-805 FSD-805SC FSD-805ST FSD-805S15

Hardware Specication

10/100Base-TX Ports 8 8 8 8

100Base-FX SC Port - 1 1

100Base-FX ST Port - - 1 -

Dimensions (W x D x H) 191 mm x 85 mm x 26 mm

Weight 325g

Power Requirement Internal power 100-240V AC, 50/60Hz, 0.2A

Power Consumption / Dissipation 4.3 watts / 14.6 BTU

Switch Specication

Switch Processing Scheme Store-and-Forward

Address Table 2K entries

Share data Buffer 1Mbit on-chip frame buffer

Flow Control Back pressure for half duplex, IEEE 802.3x Pause

Frame for full duplex

Switch fabric 1.6Gbps

Throughput (packet per second) 11.9Mpps

Network cables

10/100Base-TX:

2-Pair UTP Cat. 3, 4, 5 (100meters, max.)

EIA/TIA-568 100-ohm STP (100meters, max.)

100Base-FX:

Multi-mode optic ber 62.5/125μm, 50/125μm

(FSD-805SC / FSD-805ST. 2km, max.).

Single-mode optic ber 9/125μm

(FSD-805S15. 15km, max.)

Standards Conformance

Standards Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3x Full-duplex Flow control

Temperature Operating: 0~50 Degree C

Storage: -40~70 Degree C

Humidity Operating Operating: 5% to 90%, Storage: 5% to 90% (Non-

condensing)

Regulation Compliance FCC Part 15 Class A, CE

2.INSTALLATION

This section describes the functionalities of the Fast Ethernet

Switch’s components and guides how to install it on the desktop.

Basic knowledge of networking is assumed. Please read this

chapter completely before continuing.

In the following section, the term “Switch” means the Four

Switches, i.e. FSD-805, FSD-805SC / FSD-805ST and FSD-

805S15; term of “switch” can be any third part switches.

2.1 Product Description

The PLANET FSD-805 / FSD-805SC / FSD-805ST and FSD-

805S15 are 10/100Mbps Fast Ethernet Switches in a compact

housing for easily desktop placement. With 8 ports respectively

and it’s Auto-negotiation capability, all the RJ-45 ports can

be congured to speeds of 10/20Mbps or 100/200Mbps

automatically; With increasing bandwidth requirements for local

area networks, the Switch provide non-blocking wire-speed

performance and 1.6Gbps internal switching fabric, it is the ideal

option to alleviate bottlenecks in client/ server and peer-to-peer

environments in a cost-effective way.

The FSD-805SC / FSD-805ST and FDS-805S15 provide one

shared 100Base-FX port with port 1, TP / Fiber port Selection

through the DIP switch.

All RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation

for optimal speed detection through RJ-45 Category 6, 5 or 5e

cables. Support is standard for Auto-MDI/MDI-X that can detect

the type of connection to any Ethernet device without requiring

special straight or crossover cables.

The Flow Control function allows your Fast Ethernet Switch

supported routers and servers to directly connect to this Switch

for fast, reliable data transfer.

2.1.1 Product Overview

PLANET FSD-805 / FSD-805SC / FSD-805ST and FSD-805S15

are 10/100Mbps Fast Ethernet Switch, with 8 RJ-45 10/100Mbps

ports for cost effective high-performance network connectivity.

With its 1.6Gbps non-blocking switch fabric, the Switch can

also provide a local, high bandwidth. The Switch also supports

Store-and-Forward forwarding scheme to ensure low latency and

high data integrity, eliminates unnecessary trafc and relieves

congestion on critical network paths. With an intelligent address

recognition algorithm, the Switch could recognize up to 2K

different MAC address and enables ltering and forwarding at

full wire speed.

Choice of multi-mode / single mode 100Base-FX SC / ST

interface on FSD-805SC / FSD-805ST and FSD-805S15, the ber

transmit distance can be 2km and 15km.

2.1.2 Switch Front Panel

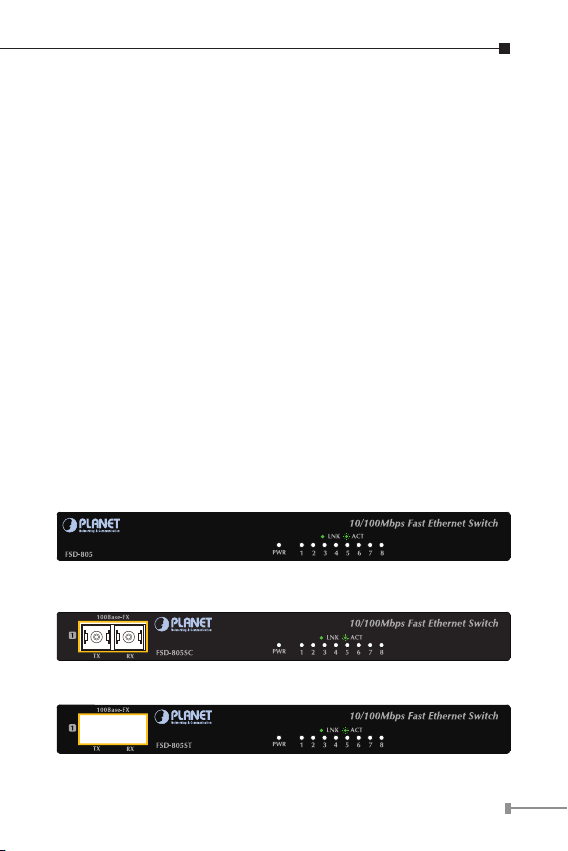

Figure 2-1 & 2-2 & 2-3 & 2-4 shows a front panel of FSD-805 /

FSD-805SC / FSD-805ST and FSD-805S15.

Figure 2-1 FSD-805 front panel

Figure 2-2 FSD-805SC front panel

Figure 2-3 FSD-805ST front panel

Figure 2-4 FSD-805S15 front panel

2.1.3 LED Indicators

FSD-805 / FSD-805SC / FSD-805ST / FSD-805S15

LED Color Function

PWR Green Lit: indicate the Switch has power.

LNK/ACT Green

Lit: indicate the link through that port is

successfully established.

Blink: indicate that the Switch is actively

sending or receiving data over that port.

2.1.4 Switch Rear Panel

Figure 2-5 shows a rear panel of FSD-805 / FSD-805SC / FSD-

805ST and FSD-805S15.

Figure 2-5 FSD-805 / FSD-805SC / FSD-805ST / FSD-805S15 rear panel

Power

Notice

1. The device is a power-required device, it means,

it will not work till it is powered. If your networks

should active all the time, please consider using

UPS (Uninterrupted Power Supply) for your

device. It will prevent you from network data

loss or network downtime.

2. In some area, installing a surge suppression

device may also help to protect your Switch from

being damaged by unregulated surge or current

to the Switch or the power adapter.

Andere Handbücher für FSD-805

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Planet Netzwerk-Router Handbücher

Planet

Planet ADE-3400 Bedienungsanleitung

Planet

Planet VR-300 Series Bedienungsanleitung

Planet

Planet ADSL 2/2+ VPN Firewall Router ADE-4300A/B Bedienungsanleitung

Planet

Planet ADN-4100 Bedienungsanleitung

Planet

Planet FSD-804PS Bedienungsanleitung

Planet

Planet ADW-4300B Bedienungsanleitung

Planet

Planet GSD-800S Bedienungsanleitung

Planet

Planet ADE-3100 Bedienungsanleitung

Planet

Planet ADN-4100 Bedienungsanleitung

Planet

Planet SG-4800 Bedienungsanleitung

Planet

Planet WNRT-617 Bedienungsanleitung

Planet

Planet ADE-3410 Bedienungsanleitung

Planet

Planet WNAP-7200 Bedienungsanleitung

Planet

Planet WDRT-1800AX Bedienungsanleitung

Planet

Planet MGSW-28240F Bedienungsanleitung

Planet

Planet EPN-102 Bedienungsanleitung

Planet

Planet FNSW-1600S Bedienungsanleitung

Planet

Planet VIP-280 Bedienungsanleitung

Planet

Planet WGS3-2840 Bedienungsanleitung

Planet

Planet ISW-621 Series Bedienungsanleitung

Planet

Planet ADSL 2/2+ VPN Firewall Router ADE-4300A/B Bedienungsanleitung

Planet

Planet FNSW-2400PS Bedienungsanleitung

Planet

Planet IGS-801M Bedienungsanleitung

Planet

Planet G.SHDSL.bis Bridge Router GRT-504 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
