Planet IVR-100 Series Bedienungsanleitung

Industrial VPN Security Router

IVR-100 & IVR-300 Series

Quick Installation Guide

Table of Contents

1. Package Contents....................................................................................3

2. Connecting The Power Input ....................................................................4

2.1 Upper Panel ......................................................................................4

2.2 Wiring the Power Inputs.....................................................................5

2.3 Grounding the Device ........................................................................7

2.4 Wiring the Fault Alarm Contact...........................................................7

2.5 Wi-Fi Antenna Installation (IVR-300W) ................................................8

3. Hardware Installation...............................................................................9

3.1 DIN-rail Mounting Installation .............................................................9

3.2 Wall-mount Plate Mounting.................................................................9

3.3 Side Wall-mount Plate Mounting ....................................................... 10

4. Setup of the VPN Gateway..................................................................... 11

4.1 Requirements.................................................................................. 11

4.2 Logging in to the VPN Gateway ........................................................ 11

5. RecoveringBacktoDefaultConguration ................................................ 14

5.1 IP Address has been changed or admin password has been forgotten –14

6. Appendix .............................................................................................. 15

7. Customer Support ................................................................................. 16

1. Package Contents

Thank you for purchasing PLANET Industrial Security Gateway, IVR-100 and

IVR-300 series. The descriptions of these models are as follows

IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway

IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with

Redundant Power

IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security

Gateway

IVR-300FP Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port

10/100/1000T + 1-Port 1000X SFP VPN Security Gateway

Open the box of the Security Gateway and carefully unpack it. The box should

contain the following items:

Model

Item IVR-100 IVR-300 IVR-300W IVR-300FP

VPN Gateway x 1 x 1 x 1 x 1

QR Code Sheet x 1 x 1 x 1 x 1

CloudViewer QIG x 1 x 1 x 1 x 1

Wall-mount Kit x 1 x 1 x 1 x 1

Dust Cap x 5 x 5 x 5 x 5

SFP Cap x 1

RS485 3-pin Terminal Block x 1 x 1 x 1

Dual band Wi-Fi Antenna x 2

Antenna Dust Cap x 2

If any of the above items are damaged or missing, please contact your dealer

immediately.

2.Connecting The Power Input

This section describes the functionalities of the VPN Gateway’s components.

2.1 Upper Panel

The upper panel of the IVR-100 consists of one terminal block connector within

two DC power inputs.

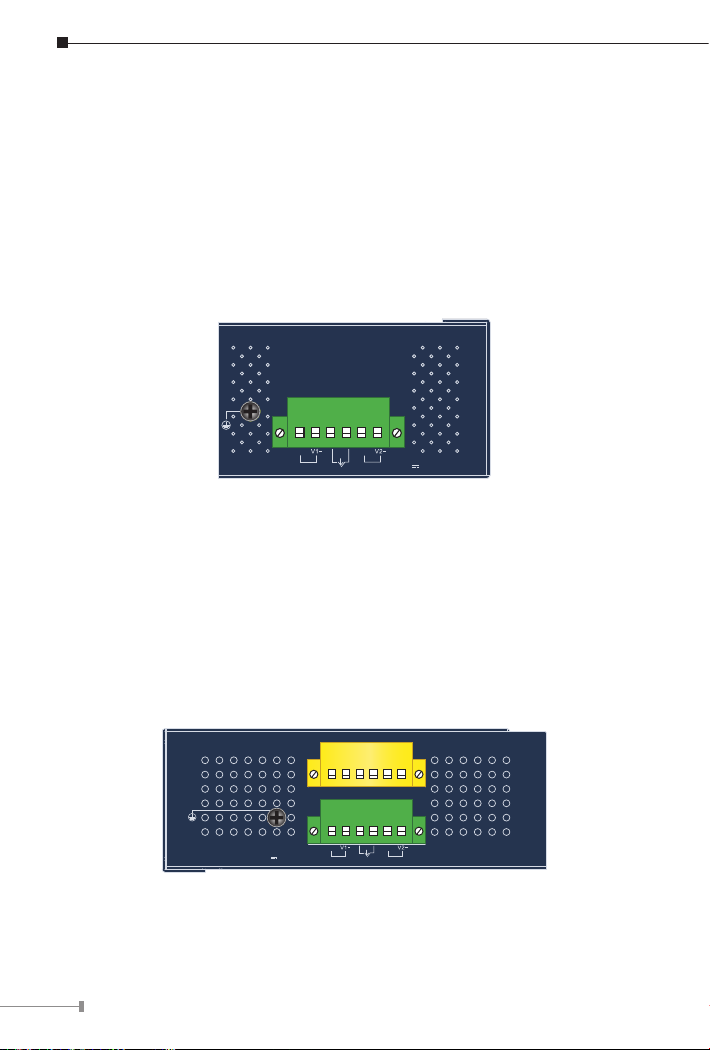

Figure 2-1 shows the upper panel of the IVR-100 VPN Gateway.

DC Input:

9~48V , 1A max.

Fault

V1+ V2+

PWR2PWR1

Max. fault loading: 24V, 1A

1 2 3 4 5 6

Figure 2-1: IVR-100 Upper Panel

The Upper Panel of the IVR-300 series consists of two terminal block

connectors.

- Green terminal block connector: Power 1, Power 2 input and relay alarm

output

- Yellow terminal block connector: 2 digital input and 2 digital output

Figure 2-2 shows the upper panel of the IVR-300 / IVR-300W VPN Gateway.

Max. Fault Alarm Loading: 24V, 1A

DI1 DO0 DO1DI0 GNDGND

V1+ V2+

PWR1 PWR2Alarm

DC Input:

9-54V

, 1.8A max.

1 2 3 4 5 6

Figure 2-2: IVR-300/IVR-300W Upper Panel

The Upper Panel of the IVR-300FP series consists of two terminal block

connectors.

- Green terminal block connector: Power 1, Power 2 input and relay alarm

output

- Yellow terminal block connector: 2 digital input and 2 digital output

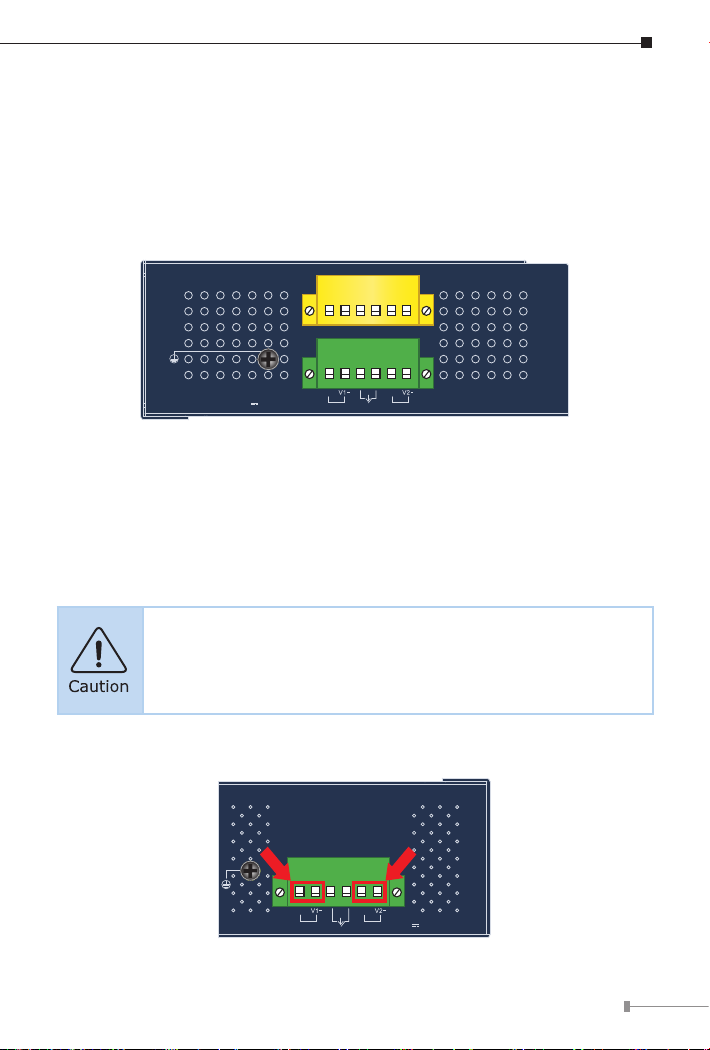

Figure 2-3 shows the upper panel of the IVR-300FP VPN Gateway.

Max. Fault Alarm Loading: 24V, 1A

DI1 DO0 DO1DI0 GNDGND

V1+ V2+

PWR1 PWR2Alarm

DC Input:

48-54V

, 3A max.

1 2 3 4 5 6

Figure 2-3: IVR-300FP Upper Panel

2.2 Wiring the Power Inputs

The 6-contact terminal block connector on the top panel of VPN Gateway is

used for two redundant power inputs. Please follow the steps below to insert

the power wire.

When performing any of the procedures like inserting the wires

or tightening the wire-clamp screws, make sure the power is

OFF to prevent from getting an electric shock.

1. Insert positive and negative DC power wires into contacts 1 and 2 for

POWER 1, or 5 and 6 for POWER 2.

DC Input:

9~48V , 1A max.

Fault

V1+ V2+

PWR2PWR1

Max. fault loading: 24V, 1A

1 2 3 4 5 6

Figure 2-4: Power 1 and Power 2

Please make sure the input voltage is under the specification of

the Security Gateway.

2. Tighten the wire-clamp screws for preventing the wires from loosening.

123456

Power 1 Fault/

Alarm

Power 2

+ - + -

The wire gauge for the terminal block should be in the range

between 12 and 24 AWG.

PWR1 and PWR2 must provide the same DC voltage while

operating with dual power input.

2.3 Grounding the Device

User MUST complete grounding wired with the device; otherwise, a sudden

lightning could cause fatal damage to the device.

Max. Fault Alarm Loading: 24V, 1A

DI1 DO0 DO1DI0 GNDGND

V1+ V2+

PWR1 PWR2Alarm

DC Input:

48-54V

, 3A max.

1 2 3 4 5 6

Earth Ground

EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY.

2.4 Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle of the terminal block connector as

the picture shows below. Inserting the wires, the Security Gateway will detect

the fault status of the power failure or port failure, and then will form an open

circuit. The following illustration shows an application example for wiring the

fault alarm contacts.

Fault Alarm Contacts

The Fault Alarm Contacts are

energized (CLOSE) for normal

operation and will OPEN when

failure occurs

Alarm

Insert the wires into the fault alarm contacts

1. The wire gauge for the terminal block should be in the range

between 12 and 24 AWG.

2. Alarm relay circuit accepts up to 24V, max. 1A currents.

2.5 Wi-Fi Antenna Installation (IVR-300W)

Step 1: Fasten the two dual-band antennas to the antenna connectors on the

front panel of the IVR-300W.

Step 2: Youcanbendtheantennastotyouractualneeds.

Reset

RS485

2.4G

Alarm

I/O

IVR-300W

WAN

WAN/LAN

LAN

1000

10/100

2.4G/5GHz

USB

GND

TxD+

RxD

Two Wi-Fi

RP-SMA Connectors

Figure 2-5: IVR-300W Front Panel

3. Hardware Installation

This section guides you to installing the VPN Gateway on the DIN-rail and

wall. Basic knowledge of networking is assumed. Please read this chapter

completely before continuing.

The installation procedures of the IVR-100 & IVR-300 series are

the same as the ones shown below.

3.1 DIN-rail Mounting Installation

3.2 Wall-mount Plate Mounting

3.3 Side Wall-mount Plate Mounting

You must use the screws supplied with the wall-mounting

brackets. Damage caused to the parts by using incorrect screws

would invalidate your warranty.
