Planet IGS-604HPT-M12 Bedienungsanleitung

Industrial IP67-rated 4-Port 10/100/1000T

802.3at PoE + 2-Port 10/100/1000T

M12 Managed Ethernet Switch

(-40~75 degrees C)

IGS-604HPT-M12

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Hardware Introduction ................................................................................ 4

2.1 Physical Dimensions............................................................................. 4

2.2 Switch Front Panel Layout .................................................................... 5

2.3 LED Indicators..................................................................................... 5

2.4 M12 10/100/1000T Connector Pin Assignment ....................................... 6

2.5 M12 (8-pin, Male) to RJ45 (8-pin) Straight-through UTP Cable Wiring...... 6

2.6 M12 DC Power Connector Pin Assignment ............................................... 8

2.7 M12 DC Power Cable Wiring .................................................................. 8

3. Connecting M12 Cable to the IGS-604HPT-M12 ............................................. 9

4. Switch Management...................................................................................11

4.1 Requirements.....................................................................................11

4.2 Starting Web Management ..................................................................11

4.3 Logging in the Industrial Managed Switch.............................................12

4.4 SavingCongurationviaWeb ..............................................................13

5. RecoveringBacktoDefaultConguration.....................................................15

6. Customer Support .....................................................................................16

1. Package Contents

Thank you for purchasing PLANET Industrial M12 Managed Ethernet Switch.

“Industrial Managed Switch” is used as an alternative name in this Quick

Installation Guide. Open the box of the Industrial Managed Switch and carefully

unpack it. The box should contain the following items:

1 x The Industrial Managed Switch 1 x Quick Installation Guide

1 x 2m 8-pin A-code M12-to-RJ45 UTP Cable 1 x DIN Rail Kit

1 x 1.2m 5-pin A-code M12 Power Cable

1 x Wall-mount Kit

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Hardware Introduction

2.1 Physical Dimensions

2.2 Switch Front Panel Layout

Figure 2-1 shows the front panel of the Industrial Managed Switch.

LNK/ACT

PoE

LNK/ACT

PoE

FAULT

PWR

R.O.

Ring

INPUT

DC 48-56V

Pin Con

1DA+

2DA

5DC

8DD

3DB+

6DB

7DD+

4DC+

IGS-604HPT-M12

IP67PoE Mgt.

M12 Gigabit

Ethernet Port

M12 Power

Input Connector Power, Fault,

Ring LEDs

M12 Gigabit

Ethernet

PoE+ Port

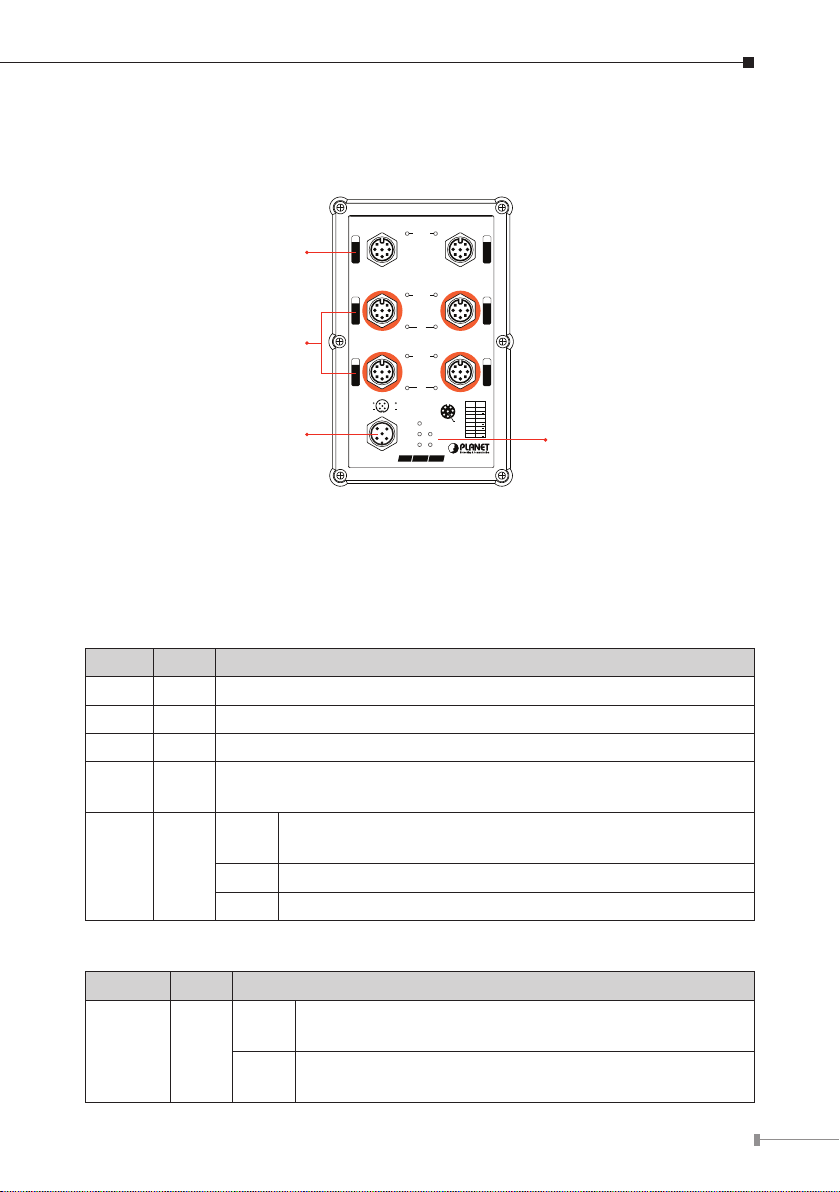

Figure 2-2: IGS-604HPT-M12 Front Panel

2.3 LED Indicators

System

LED Color Function

PWR 1 Green Lights to indicate DC power input 1 has power.

PWR 2 Green Lights to indicate DC power input 2 has power.

Fault Red Lights to indicate that the Industrial Switch has failed

Ring Green Lights to indicate that the ERPS Ring has been created

successfully.

R.O. Green

Lights To indicate the Ring Owner has been enabled and the

state is in idle mode.

Blinks To indicate the Ring state is in protect mode.

Off To indicate that the Ring Owner hasn’t been enabled.

Per 10/100/1000BASE-T Port (Port 1~2)

LED Color Function

LNK/ACT Green

Lights To indicate the port is running in 10/10/1000Mbps

speed and successfully established.

Blinks To indicate the switch is actively sending or receiving

data over that port.

Per 10/100/1000BASE-T PoE+ Port (Port 3~6)

LED Color Function

LNK/ACT Green

Lights To indicate the port is running in 10/10/1000Mbps

speed and successfully established.

Blinks To indicate the switch is actively sending or

receiving data over that port.

PoE-in-Use Orange

Lights To indicate the port is providing 45~55 V DC

in-line power.

Off To indicate the connected device is not a PoE

powered device (PD).

2.4 M12 10/100/1000T Connector Pin Assignment

The Industrial Managed Switch front panel provides six 10/100/1000BASE-T

Ethernet ports in the form of M12 8-pin A-coded female connector. These ports are

designed for Ethernet equipment connection through Cat5/5e UTP cables. The M12

input interface pinout is shown below:

Pin Con

1DA+

2DA

5DC

8DD

3DB+

6DB

7DD+

4DC+

8-pin M12 Female 10/100/1000T Connector Pin Assignment

2.5 M12 (8-pin, Male) to RJ45 (8-pin) Straight-through UTP Cable

Wiring

M12 A-code

Male Connector

Pin No.

MDI

1000BASE-T Signal ID T568B Color RJ45 connector

Pin No.

1BI_DA+ white/orange 1

2BI_DA- orange 2

3BI_DB+ white/green 3

4BI_DC+ blue 4

5BI_DC- white/blue 5

6BI_DB- green 6

7BI_DD+ white/brown 7

8BI_DD- brown 8

Note

As each Ethernet port of the Industrial Managed Switch is running

in auto negotiation mode, make sure the Ethernet ports of the

corresponding Ethernet devices are also running in auto negotiation

mode, otherwise, the Ethernet performance will be poor.

Note

The standard RJ45 receptacle/connector

There are 8 wires on a standard UTP/STP cable and each wire is

color-coded. The following shows the pin allocation and colors of

straight-through cable connection:

Straight Cable

SIDE 1

SIDE 2

1 = White/Orange

2 = Orange

3 = White/Green

4 = Blue

5 = White/Blue

6 = Green

7 = White/Brown

8 = Brown

1 = White/Orange

2 = Orange

3 = White/Green

4 = Blue

5 = White/Blue

6 = Green

7 = White/Brown

8 = Brown

Please make sure your waterproof RJ45 cables are with same pin

assignment and colors as the above picture before deploying the

cables into your network.

2.6 M12 DC Power Connector Pin Assignment

The front panel of the Industrial Managed Switch provides one M12 A-coded 5-pin

male connector for dual DC power input.

INPUT

DC 48-56V

2.7 M12 DC Power Cable Wiring

Please use the power cable with the M12 A-coded 5-pin female connector from the

Industrial Managed Switch package for DC power input. The M12 DC power cable

pin assignment is shown below:

M12 DC power cable pin assignment & wire code

V1 positive (+) pin = black cable

V1 negative (-) pin = brown cable

V2 positive (+) pin = blue cable

V2 negative (-) pin = white cable

Note

1. Make sure you connect the correct power pin to your DC power

source.

2. The wire gauge for the power cable should be in the range of 12

~ 24 AWG.

3. The DC power input range is 48 ~ 56V DC.

3. Connecting M12 Cable to the IGS-604HPT-M12

Step 1: Turn counterclockwise to remove the waterproof screw nuts of an M12

connector and power input.

Step 2: Insert the M12 UTP male connector into the M12 female Gigabit Ethernet

port of the Industrial Managed Switch.

Step 3: Turn clockwise to tighten the screw nut of the M12 connector and make

sure the connection is tight.

Step 4: Insert the M12 power female connector into the M12 male port of the

power input.

Step 5: Turn clockwise to tighten the screw nut of the M12 power connector.

Note

Before connecting the DC power cord, please check whether your

local DC power source is stable.

Note

Make sure to tightly close all interfaces to have waterproof effect.
