Planet GS-6320-46S2C4XR Bedienungsanleitung

L3 46-Port 100/1000BASE-X SFP + 2-Port Gigabit

TP/SFP + 4-Port 10G SFP+ Managed Switch

GS-6320-46S2C4XR

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Requirements ............................................................................................. 4

3. Wiring the Power Inputs.............................................................................. 5

4. Terminal Setup ........................................................................................... 6

4.1 Logging on to Console ......................................................................... 7

 4.2 ConguringIPAddress......................................................................... 8

 4.3 StoringCurrentSwitchConguration....................................................10

5. Starting Web Management .........................................................................11

 5.1 LoggingintotheL3ManagedSwitch...................................................11

 5.2 SavingConguration...........................................................................14

6. RecoveringBacktoDefaultConguration.....................................................15

7. Customer Support .....................................................................................16

1. Package Contents

Thank you for purchasing PLANET L3 46-Port 100/1000BASE-X SFP + 2-Port

GigabitTP/SFP+4-Port10GSFP+ManagedSwitch,theGS-6320-46S2C4XR.

“L3 Managed Switch”mentionedin thisquickinstallation guiderefers to theGS-

6320-46S2C4XR.

Open the box of the L3 Managed Switch and carefully unpack it. The box should

contain the following items:

ModelName

Package Item GS-6320-46S2C4XR

TheL3ManagedSwitch 1

QuickInstallationGuide 1

RJ45 to RS232 Console Cable 1

RubberFeet 4

PowerCord 1

SFP Dust Caps 52

TwoRack-mountingBrackets

withAttachmentScrews 

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

zWorkstations running Windows XP/2003/2008/Vista/7/8/10, MAC OS X or later,

Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.

zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard).

zSerial Port Connection (Terminal)

The above workstations come with COM port (DB9) or USB-to-RS232

converter.

 Theaboveworkstations havebeen installedwith terminal emulator,suchas

TeraTerm,PuTTYorHyperTerminalincludedinWindowsXP/2003.

Serial cable -- one end is attached to the RS232 serial port, while the other

endtotheconsoleportoftheL3ManagedSwitch.

zEthernet Port Connection

 Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.

 TheabovePCisinstalledwithWebbrowser.

Note

It is recommended to use Internet Explorer 8.0 or above to access

the L3 Managed Switch. If the Web interface of the L3 Managed

Switch is not accessible, please turn off the anti-virus software or

firewallandthentryitagain.

3. Wiring the Power Inputs

The rear panel of the L3 Managed Switch has an AC power socket, one DC power

on/oswitchandoneDCinletterminalblockwithin2screws.

10G/1G

ACT10G

ACT1G V+

DC Input Range

36-60V

, 2A max.

OFF

DC POWER

50/60Hz

Ensure the power switch

in the “OFF” position

before connect the DC wire.

CAUTION 100-240V , 1.2A max.

Figure 3-1: L3 Managed Switch Rear Panel

DC Inlet Terminal Block

The DC inlet terminal block accepts DC power input voltage from 36V to 60V DC.

Connectthepowercabletothe L3ManagedSwitchattheDCinputterminal block;

the size of the two screws in the terminal block is M3.5.

Please follow the steps below to insert the DC power wire.

1.Insert the negative wire (Black) into the “V-” connector and tighten the wire-

clamp to prevent the DC wire from loosening.

2.Insert the positive wire (Red) into the “V+” connector and tighten the wire-

clamp to prevent the DC wire from loosening.

3.PowerontheL3ManagedSwitchbyswitchingittothe“ON” position.

V+

DC Input Range

36-60V

, 2A max.

OFF

DC POWER

Ensure the power switch

in the “OFF” position

before connect the DC wire.

CAUTION

Figure 3-2: L3 Managed Switch DC Inlet Terminal Block

Warning

Before connecting the DC power cable to the input terminal block

of the L3 Managed Switch, make sure that the power switch is in

the “OFF”positionandtheDCpowerisOFF.

Note

The wire gauge for the terminal block should be in the range from

12 to 24AWG.

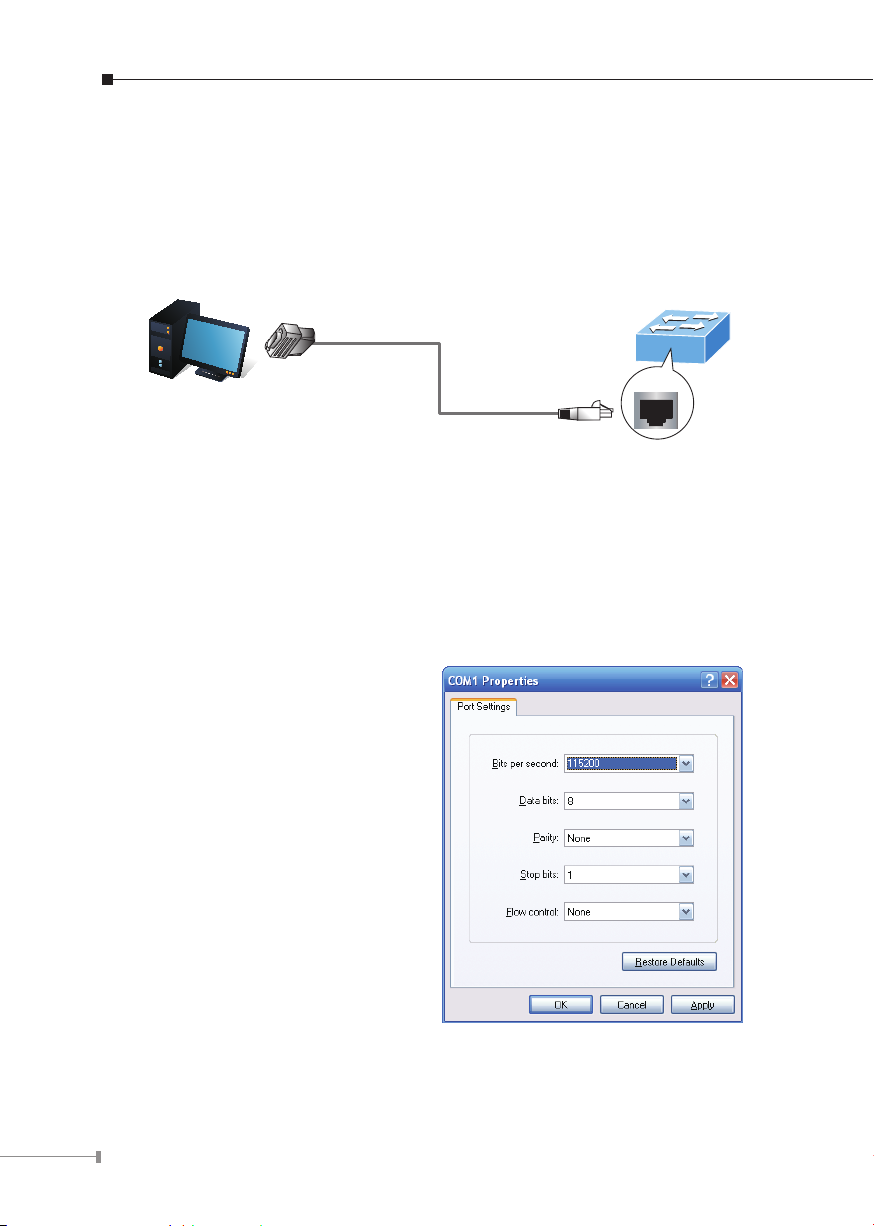

4. Terminal Setup

To congure the system, connect aserial cable to aCOM port ona PC ornotebook

computerandtotheDB9typeofRJ45serialportoftheL3ManagedSwitch.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS232 to RJ45 Cable

Console Port

RJ45

Figure 4-1: L3 Managed Switch Console Connectivity

A terminal program, such as Tera Term or PuTTY, is required to make the software

connectiontotheL3ManagedSwitch.

1. Run terminal program on the OS.

2.When the following screen appears, make sure that the COM port should be

conguredas:

Baud:115200

Data bits: 8

Parity:None

Stop bits: 1

Flowcontrol:None

Figure 4-2: COM Port Conguration

4.1 Logging on to Console

Once the terminal is connected to the device, power on the L3 Managed Switch,

and the terminal will display “running testing procedures”. Then, the following

message asks to log in user name and password. The factory default user name

andpasswordareshownasfollowsandtheloginscreeninFigure4-3appears.

Username:admin

Password:admin

Figure 4-3: L3 Managed Switch Console Login Screen

The user can now enter commands to manage the L3 Managed Switch. For a

detaileddescriptionofthecommands,pleaserefertothefollowingchapters.

Note

1.For security reason, please change and memorize the new pass-

wordafterthisfirstsetup.

2.Onlyacceptcommandinlowercaseletterunderconsoleinterface.

4.2 ConguringIPAddress

TheL3ManagedSwitchisshippedwithdefaultIPaddressshownbelow.

IPAddress:192.168.0.100

Subnet Mask: 255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please

usetheproceduresasfollows:

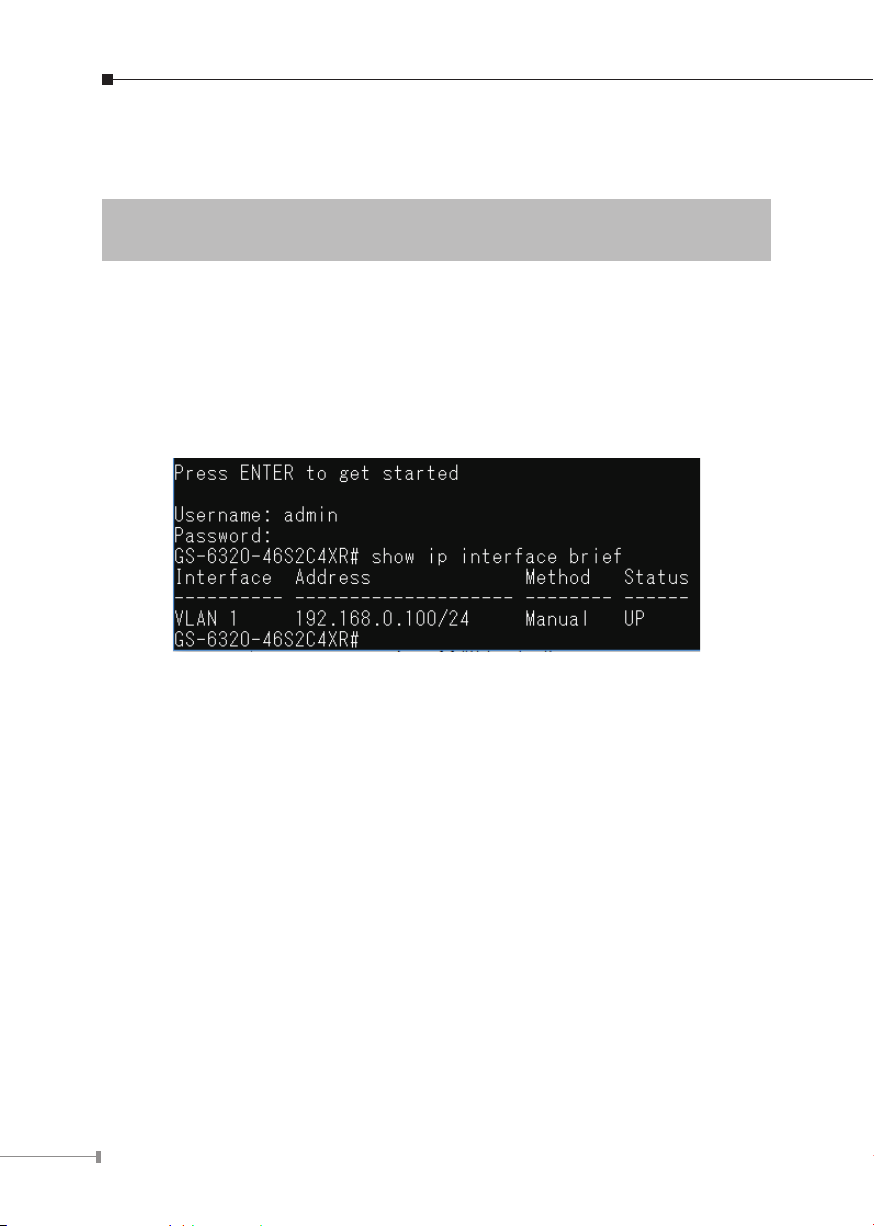

Showing the Current IP Address

1.Atthe“#”prompt,enter“show ip interface brief”.

2.ThescreendisplaysthecurrentIPaddressasshowninFigure4-4.

Figure 4-4: IP Information Screen

ConguringIPAddress

3.At the “#” prompt, enter the following command and press <Enter> as shown

inFigure4-5.

GS-6320-46S2C4XR#congureterminal

GS-6320-46S2C4XR(cong)#interfacevlan1

GS-6320-46S2C4XR(cong-if-vlan)#ipaddress192.168.1.100255.255.255.0

Figure 4-5: Conguring IP Address Screen

The previous command would apply the following settings for the L3 Managed

Switch.

IPAddress:192.168.1.100

Subnet Mask: 255.255.255.0

4.Repeatstep1tocheckiftheIPaddressischanged.

If the IP is successfully congured, the L3 Managed Switch will apply the new IP

address setting immediately. You can access the Web interface of the L3 Managed

SwitchthroughthenewIPaddress.

4.3 StoringCurrentSwitchConguration

In the L3 Managed Switch, the running conguration sequence running-cong

can be saved from the RAM to FLASH by “copy” command, so that the running

conguration sequence becomes the start-up conguration le, which is called

congurationsave.

Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.

# copy running-cong startup-cong

Figure 4-6: Saving Current Conguration Command Screen

Note

If you are not familiar with the console command or the related

parameter, enter “help” anytime in console to get the help

description.
