Planet IGS-5225-4T2S Bedienungsanleitung
Industrial L2+ Multi-Port Full Gigabit
Managed Ethernet Switch
IGS-5225-4T2S/IGS-5225-4UP1T2S
IGS-5225-8P2S/IGS-5225-8P4S/IGS-5225-8P2T2S
Quick Installation Guide
Table of Contents
1. Package Contents...................................................................... 3
2. Requirements............................................................................ 5
3. Wiring the Power Inputs ............................................................ 6
4. Terminal Setup.......................................................................... 8
5. Logging on to the Console ......................................................... 9
6. ConguringIPaddress..............................................................11
7. Starting Web Management ........................................................14
8. SavingCongurationvia Web ....................................................17
9. Resetting the Switch to Default .................................................18
10. Customer Support....................................................................20
3
1. Package Contents
Thank you for purchasing PLANET L2+ Industrial Managed Switch,
IGS-5225Series.Thedescriptionsofthesemodelsareasfollows:
IGS-5225-4T2S: IndustrialL2+4-Port10/100/1000T+2-Port
100/1000XSFPManagedSwitch
IGS-5225-4UP1T2S:
IndustrialL2+4-Port10/100/1000TUltraPoE+
1-Port10/100/1000T+2-Port100/1000XSFP
ManagedSwitch
IGS-5225-8P2S:
IndustrialL2+8-Port10/100/1000T802.3at
PoE+2-Port100/1000XSFPManagedEthernet
Switch
IGS-5225-8P4S:
IndustrialL2+8-Port10/100/1000T802.3at
PoE+4-Port100/1000XSFPManagedEthernet
Switch
IGS-5225-8P2T2S:
IndustrialL2+8-Port10/100/1000T802.3at
PoE+2-Port10/100/1000T+2-Port
100/1000XSFPManagedEthernetSwitch
“Industrial Managed Switch” mentioned in this Quick Installation
Guidereferstotheabovevemodels.
4
Open the box of the Industrial Managed Switch and carefully
unpackit.Theboxshouldcontainthefollowingitems:
zTheIndustrialManagedSwitchx1
zQuickInstallationGuidex1
zDIN-rail Kit x 1
zWall Mounting Kit x 1
zDB9 to RJ45 Interface RS232 Console Cable x 1
zDust Cap (Please refer to the table below.)
RJ45 Dust Cap SFPDustCap
IGS-5225-4T2S 5 2
IGS-5225-8P2S 9 2
IGS-5225-8P4S 9 4
IGS-5225-8P2T2S 11 2
IGS-5225-4UP1T2S 6 2
If any of these are missing or damaged, please contact your dealer
immediately. If possible, retain the carton includingtheoriginalpacking
materials to enable you to repack the product in case there is a need
to return it to us for repair.
5
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for
furthermanagement:
zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC
OS X or later, Linux, UNIX, or other platforms are compatible with
TCP/IPProtocols.
zWorkstations are installed with Ethernet NIC (Network Interface
Card)
zSerial Port Connection (Terminal)
The above Workstations come with COM Port (DB9) or USB-to-
RS232 converter.
The above Workstations have been installed with terminal
emulator, such as Hyper Terminal included in Windows XP/2003,
putty or tera term.
Serial cable -- one end is attached to the RS232 serial port,
while the other end to the console port of the Industrial Managed
Switch.
zEthernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45
connectors.
The above PC is installed with Web browser and JAVA runtime
environment plug-in.
Note
Itis recommended to use InternetExplorer8.0or above
toaccesstheIndustrialManagedSwitch.
6

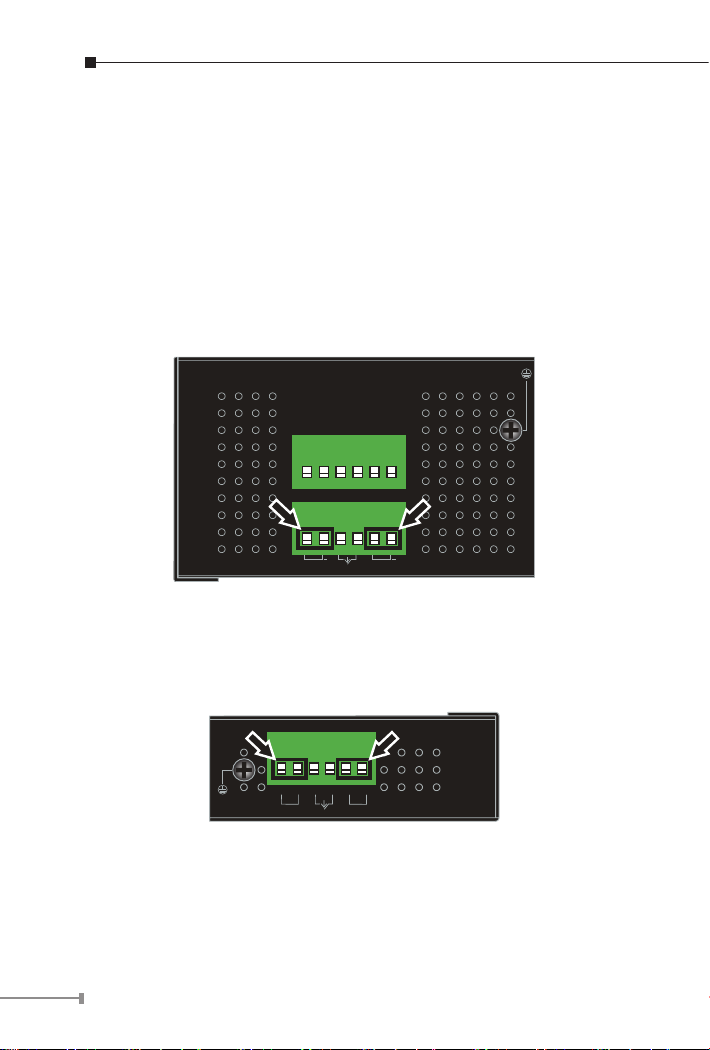

3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch comes with a DC
inlet power socket and one 6-contact terminal block. Please follow the
steps below to insert the power wire.
1.Insert positive/negative DC power wires into Contacts 1 and 2 for
Power1,orContacts5and6forPower2.
IGS-5225-8P2S/IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-
5225-4UP1T2S: 48~56VDC
Input DC 48-56V
DI0 DI1 DO0 DO1 GND GND
DC1
+
DC2Fault
+
1A@24V
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: IGS-5225-8P2S/IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-5225-
4UP1T2S Upper Panel
IGS-5225-4T2S:12~48VDC,24VAC
Input
DC12~48V
AC 24V
DC1 DC2
Fault
V1-V1+ V2+ V2-1A@24V
1 2 3 4 5 6
Figure 3-2: IGS-5225-4T2S Upper Panel
7

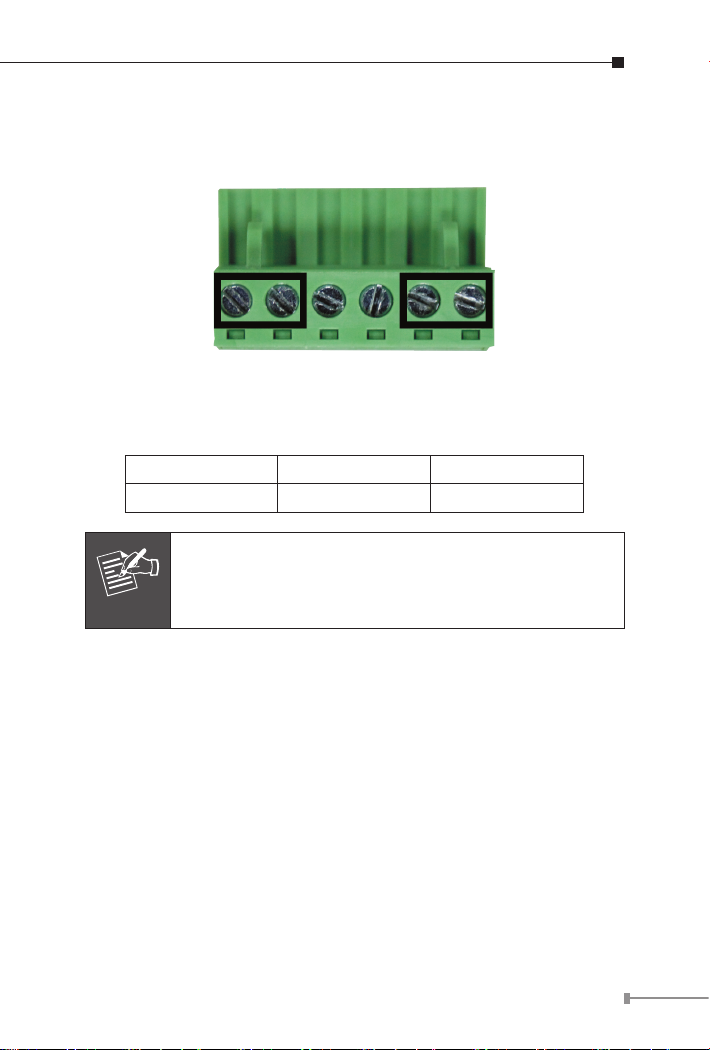

2. Tighten the wire-clamp screws for preventing the wires from loos-
ening.
123456
V+ V- V+ V-
Power 1 Power 2
Positive (+) Pin Negative (-) Pin
IGS-5225 Series Pin1/5 Pin2/6
Note
The wire gauge for the terminal block should be in the
range from 12 to 24 AWG.
8

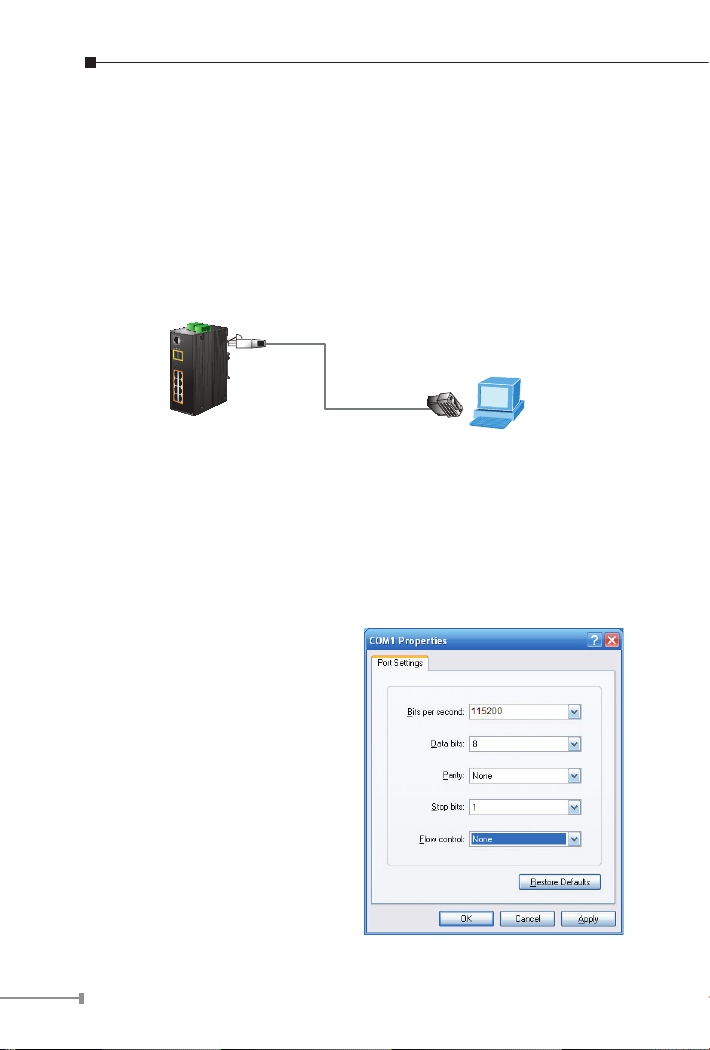

4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a
PC or notebook computer and to RJ45 type serial (console) port of the
Industrial Managed Switch. The console port of the Industrial Managed
Switch is DCE already, so that you can connect the console port
directlythroughPCwithouttheneedofnullmodem.
PC/Workstation
with
Terminal emulation software
RJ45 to DB9 RS232 Cable
Serial Port
IP Address:
192.168.0.100
IGS Industrial Managed Switch
A terminal program is required to make the software connected to the
IGS-5225seriesIndustrialManagedSwitch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port
shouldbeconguredas:
zBaud:115200
zParity:None
zDatabits:8
zStopbits:1
zFlowcontrol:None
9
5. Logging on to the Console
Once the terminal has been connected to the device, power on the
IndustrialManagedSwitchandtheterminalwilldisplay“running testing
procedures”.
Note
The following terminal configuration of IGS-5225-8P4S is
taken for an example.
Then, the following message asks to log in user name and password.
The default user name and password are shown as follows and the
loginscreeninFigure5-1appears
Username:admin
Password: admin
Figure 5-1: Console Login Screen
10
The user can now enter commands to manage the Industrial Managed
Switch. For a detailed description of the commands, please refer to the
following chapters.
Note
1. For security reason, please change and memorize
the new password after this first setup.
2. Only accept command in lowercase letter under
console interface.
