Planet WAP-1965 Bedienungsanleitung

22Mbps WirelessAccess Point/ Bridge

WAP-1965

User sManual

be reproduced, transmitted, transcribed, stored in aretrieval system, or translated into any language

or computer language,in any form or by any means,electronic, mechanical,magnetic, optical,

chemical, manual or otherwise, without the prior written permission of PLANET.

PLANETmakes no representations orwarranties, either expressed orimplied, with respectto the

contentshereof and specifically disclaims any warranties, merchantability or fitness for any particular

purpose.Any software described in this manual is sold or licensed "as is".Should the programs

prove defective following their purchase, the buyer (and not this company,itsdistributor,or itsdealer)

assumes the entire cost of all necessary servicing, repair,and any incidental or consequential

damages resulting from any defect in the software. Further, this company reserves the right to revise

this publication and to make changes from time totime in the contentshereof withoutobligation to

notify any person ofsuch revision orchanges..

All brand and product names mentioned in this manual are trademarks and/or registered trademarks

of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limitsfor aClass Bdigital device,

pursuant toPart 15 of FCC Rules.These limitsaredesigned toprovide reasonable protection

against harmful interference in aresidential installation. This equipment generates, uses, and can

radiateradio frequency energyand, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However,there is no guarantee that

interference will not occur in aparticularinstallation.If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment offand

on, the user is encouraged to try to correct the interference by one or more of the following measures:

1.Reorientor relocate the receiving antenna.

2. Increase the separation between the equipmentand receiver.

3. Connect the equipmentinto an outlet on acircuitdifferent from thatto which the receiver is

connected.

4. Consult the dealer or an experienced radio technician forhelp.

FCC Caution:

Toassurecontinued compliance.(example-use only shielded interface cables when connecting to

computeror peripheral devices). Any changes or modifications not expressly approved by the party

responsible for compliance could void the user s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject tothe Following two

conditions:(1) This device may not cause harmful interference, and (2) this Device must accept any

interference received, including interference thatmay cause undesired operation.

Federal Communication Commission(FCC) Radiation Exposure

Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In

orderto avoid the possibility of exceeding the FCC radio frequency exposure limits,human proximity

to the antenna shall not be less than 20 cm(8 inches) during normal operation.

R&TTE Compliance Statement

This equipmentcomplies with all the requirementsof DIRECTIVE 1999/5/CE OF THE EUROPEAN

PARLIAMENTAND THE COUNCILOF 9March 1999 on radio equipment and telecommunication

terminal Equipment and the mutual recognition of theirconformity (R&TTE)

The R&TTE Directive repeals and replaces in the directive 98/13/EEC(Telecommunications Terminal

Equipmentand Satellite EarthStation Equipment) As of April 8,2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it.However,

special attention must be paid to the dangers of electric shock and static electricity when working with

electrical equipment.All guidelines of this and of the computer manufacture must thereforebe allowed

at all times to ensure the safe use of the equipment.

Revision

User s Manual for PLANET22Mbps Wireless Access Point / Bridge

Model: WAP-1965

Rev: 3.0 (May, 2003)

Part No. EM-WAP1965v3

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION..................................................................................................1

1.1 PACKAGE CONTENTS..........................................................................................................1

1.2 SYSTEM REQUIREMENTS....................................................................................................1

1.3 FEATURES .........................................................................................................................1

1.4 SPECIFICATION...................................................................................................................2

CHAPTER 2 HARDWAREINSTALLATION..............................................................................3

CHAPTER 3 CONFIGURING THE WIRELESS ACCESS POINT............................................4

3.1 CONFIGURE THROUGHWEB BROWSER ...............................................................................4

3.1.1Wizard......................................................................................................................5

3.1.2Status:.......................................................................................................................7

3.1.3Basic Settings:..........................................................................................................8

3.1.4IPSettings:...............................................................................................................8

3.1.5 Advanced Settings:...................................................................................................9

3.1.6Security:..................................................................................................................11

3.1.7802.1x.....................................................................................................................12

3.1.8 Tools:......................................................................................................................13

3.2 CONFIGURE THROUGH 22M APUTILITY............................................................................13

3.2.1Install 22MAPUtility...............................................................................................13

3.2.222MAPUtility configuration...................................................................................15

CHAPTER 4 802.1XAUTHENTICATION SETUP...................................................................21

4.1 802.1X INFRASTRUCTURE................................................................................................21

4.2 RADIUSSERVER SETUP.................................................................................................22

4.2.1Required Services..................................................................................................22

4.2.2Setup Procedure....................................................................................................22

4.3 AUTHENTICATOR SETUP ...................................................................................................36

4.4 WIRELESS CLIENT SETUP.................................................................................................37

4.4.1EAP-MD5 Authentication........................................................................................37

4.4.2EAP-TLSAuthentication.........................................................................................40

CHAPTER 5 APPLICATION....................................................................................................48

5.1 ACCESS POINTMODE .......................................................................................................48

5.2 WIRELESS APCLIENTMODE.............................................................................................48

5.3 WIRELESS BRIDGE MODE .................................................................................................49

5.4 MULTIPLE BRIDGE MODE...................................................................................................49

CHAPTER 6 TROUBLESHOOTING.......................................................................................50

- 1 -

Chapter 1 Introduction

Thank you for purchasing WAP-1965. This device features the latest innovation wireless technology

making the wireless networking world happened.This manual guides you on howto install and properly

use the WAP-1965 in order totake full advantage of itsfeatures.

1.1 Package Contents

Make sure that you have the following items:

• One WAP-1965

• One AC Power Adapter

• One User s Manual and Utility CD

• One Quick Installation Guide

Note:

If any of the above items are missing, contact your supplier as soon as

possible.

1.2 System Requirements

Before installation, please check the following requirementswith your equipment.

• Pentium Based (And Above) IBM-Compatible PC System

• CD-ROMdrive

• Windows 98/ME/2000/XP Operating System with TCP/IP protocol

1.3 Features

Four operation modes selectable: AP / AP Client / Point to Point /Point to Multipoint

Utilize Direct Sequence Spread Spectrum (DSSS) technology and supportthe modulation of

Packet Binary Convolutional Code (PBCC) mode to provide robust, interference-resistantsolution

in a multi-user environment

Wireless LAN IEEE802.11b compliant

Auto Fall-Back Data Rate forLong-Distance Communication and Noisy Environments

High-speed data transfer rate up to 22 Mbps

4Xmode can raise wireless performance to 44Mbps equivalent

Features Roaming, BestAccess Point Selection, Load Balancing, and Network Traffic Filtering

Support 802.1Xauthentication

64bit, 128bit and 256bit WEP(Wired Equivalent Privacy)

Support63 clients to connectthe network. (Forbest performance, the suggested maximum clients

number of one WAP-1965 in AP mode is 25.)

Provide Windows-base configuration utility and Web Configuration

Support DHCPServer and Client

Support MAC Filter

- 2 -

1.4 Specification

Standard IEEE 802.11b Compliant

Signal Type DSSS (Direct Sequence Spread Spectrum)

Modulation QPSK / BPSK / CCK / PBCC

Port One 10/100BASE-TX

Antenna Dual Dipole Antenna

Data Encryption 64 bit / 128 bit / 256bit WEPencryption

Frequency 2.4GHz - 2.4835GHz

Channel 11 Channels (US, Canada)

13 Channels (Europe)

14 Channels (Japan)

Data Rate 1/2/5.5/11/22Mbps, 22Mbps+4X

LED Indicators Power,TX/RX(wireless), Link (wired)

Power Requirement 5V DC, 2A

Temperature Operating :0 ~ 55 degree C

Storage: -20 ~ 70 degree C

Humidity Operating: 0 ~ 70%

Storage: 0 ~ 90% Non-Condensing

Dimensions 140 x90 x40mm

Output Power 17dBm±1dBm

Antenna Gain 2dBi

Antenna Connector Reversed Polarity SMAMale

- 3 -

Chapter 2 Hardware Installation

Before you proceed with the installation, it is necessary that you have enough information about the

WAP-1965.

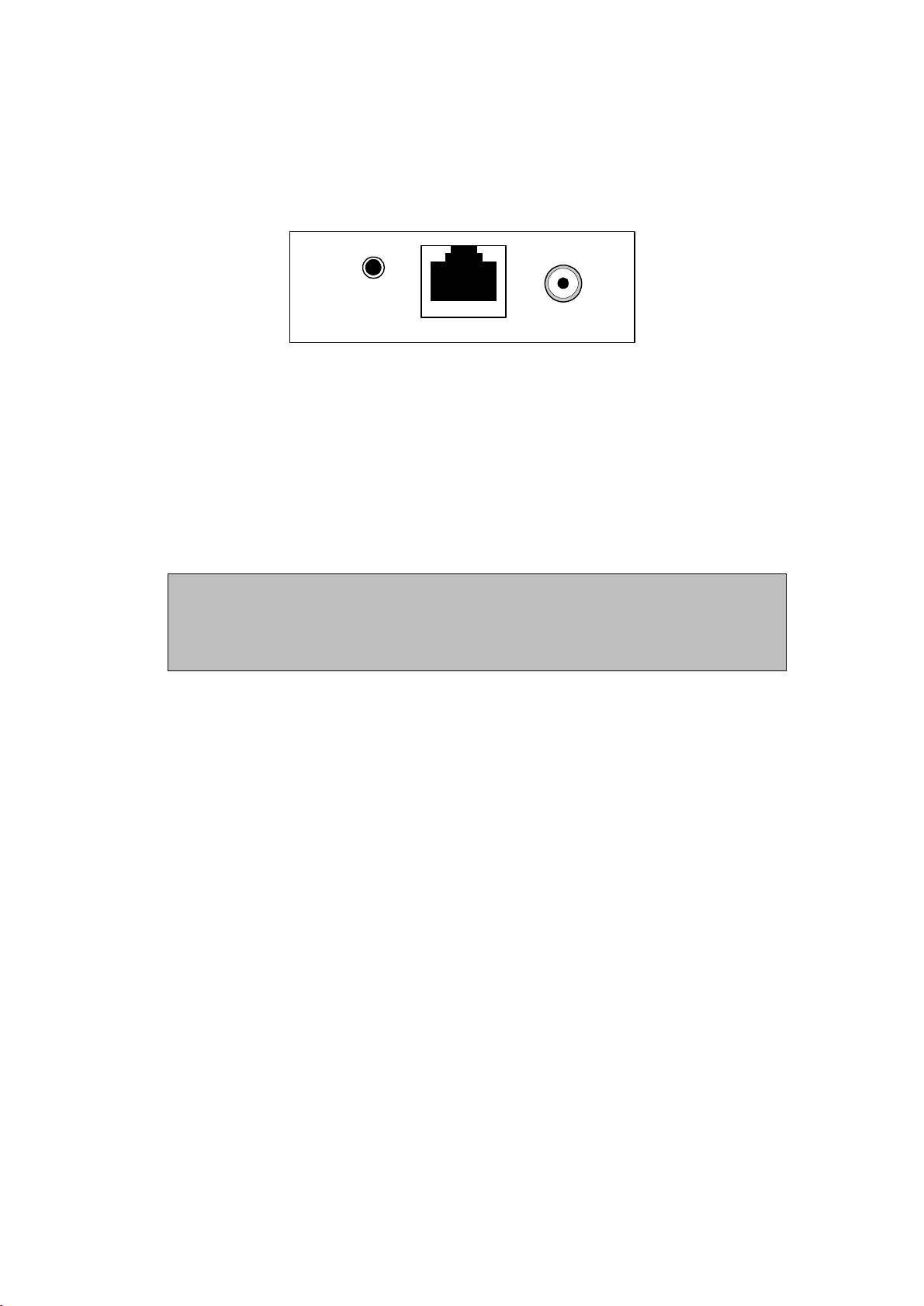

POWER

ETHERNET

RESET

1. Locate an optimum location for the WAP-1965. Thebestplace for your WAP-1965 is usually

at the center of your wireless network, with line of sight to all of your mobile stations.

2. Assemble the antennas to WAP-1965. Try to place them to aposition that can best cover your

wireless network. The antenna sposition will enhance the receiving sensitivity.

3. Connect RJ-45 cableto WAP-1965. Connect this WAP-1965 to your LAN switch/hub or a single

PC.

4. Plug in power adapter and connect topower source.After power on, WAP-1965 will start to

operate.

Note: ONLYuse the power adapter supplied with the WAP-1965. Otherwise, the product may be

damaged.

If you want to reset your WAP-

1965 to default settings, press the Reset button 5 second.And

then wait for10 seconds for WAP-1965 to reboot.

- 4 -

Chapter 3 Configuring the Wireless Access Point

3.1 Configurethrough Web Browser

Web configuration provides auser-friendly graphical user interface (web pages)to manage your

WAP-1965.An AP with an assigned IPaddress (e.g. http://192.168.1.1)will allowyou to monitorand

configure via web browser (e.g., MS Internet Explorer or Netscape).

1. Open your web browser.

2. Enter the IPaddress ofyour WAP-1965 in the address field (defaultIP address is http://192.168.1.1).

Please note that your PC sIP address should be on the same IPsubnet of the WAP-1965.For

example, you can configure your PC s IP address to 192.168.1.2 ifWAP-1965 is with IP 192.168.1.1.

3. AUser Name and Password dialog boxwill appear.Please enter your User Name and Password here.

DefaultUser Name and Password are both “admin”.Click Ok.

4. Then you will see the WAP-1965 web configuration page.

- 5 -

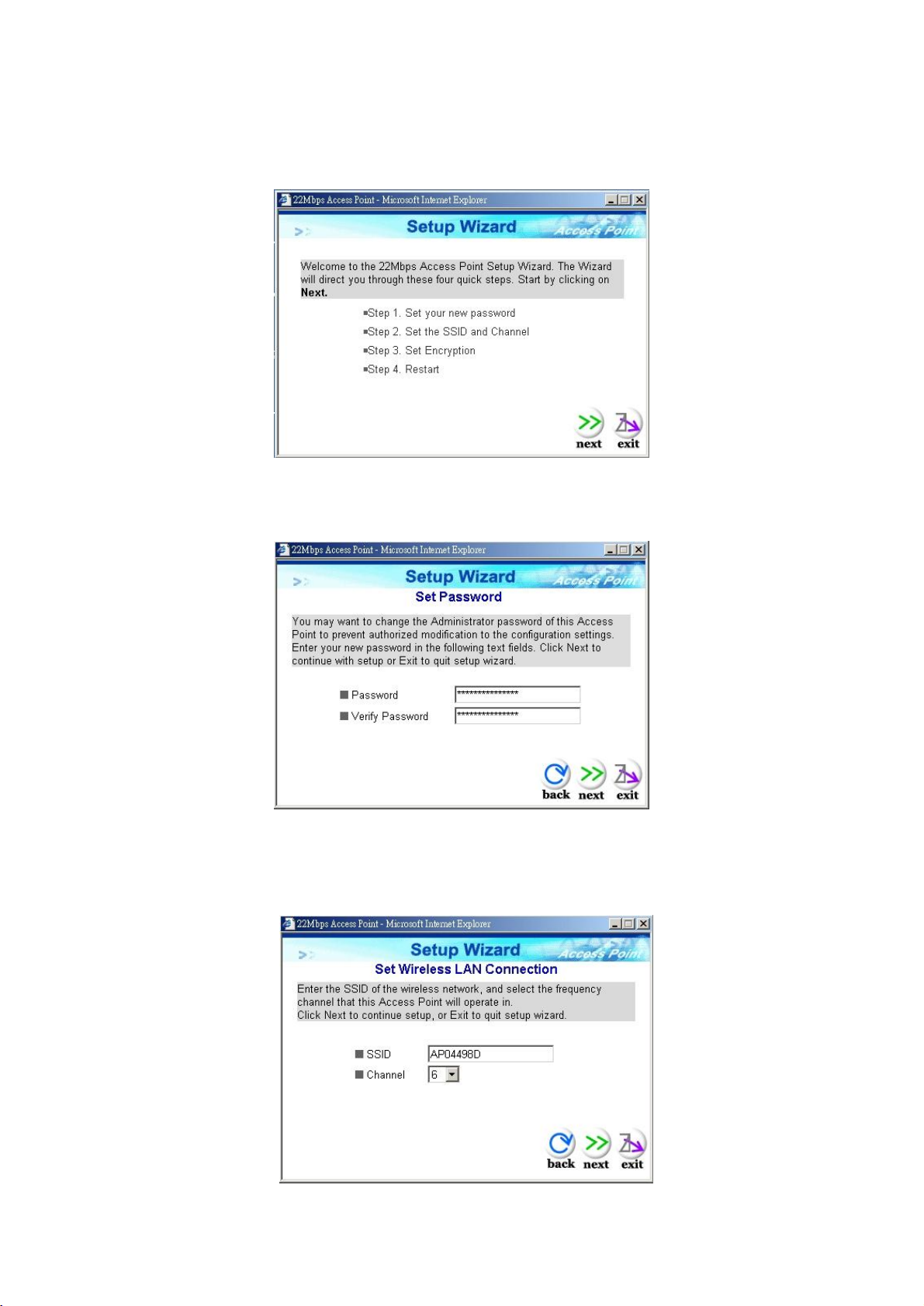

3.1.1Wizard

Setup wizard provides asimple way to configureyourWAP-1965.Clicking “Wizard”button on top panel

of WRT-1965s web page, Setup Wizard will pop up as below..

To quick configure WAP-1965, please followthe steps belowto complete the configuration. Click

“Next>”to continue.

Step 1. Set your new password

The default password for administrator (login name is “admin”)is “admin”.You can change the

Password in this step.Click “Next>”.

Step 2. Set the SSID and Channel

Inhaltsverzeichnis

Andere Planet Drahtloser Zugangspunkt Handbücher

Planet

Planet Network Device WAP-4033PE Bedienungsanleitung

Planet

Planet WAP-8000 Bedienungsanleitung

Planet

Planet WAP-1966 Bedienungsanleitung

Planet

Planet MAP-3120 Bedienungsanleitung

Planet

Planet WNAP-6305 Bedienungsanleitung

Planet

Planet EPN-402NV Bedienungsanleitung

Planet

Planet WDAP-1750AC Bedienungsanleitung

Planet

Planet Network Device WAP5 Bedienungsanleitung

Planet

Planet WDAP-C1750 Bedienungsanleitung

Planet

Planet WAP-252N Bedienungsanleitung

Planet

Planet WDAP-C1800AX Bedienungsanleitung

Planet

Planet WDAP-C1800AX Bedienungsanleitung

Planet

Planet WNAP-1110 Bedienungsanleitung

Planet

Planet WNAP-6350 Bedienungsanleitung

Planet

Planet WAP-4036 Bedienungsanleitung

Planet

Planet WAP-900 Bedienungsanleitung

Planet

Planet WAP-4030A Bedienungsanleitung

Planet

Planet WDAP-C7200E Bedienungsanleitung

Planet

Planet WNAP-6350 Bedienungsanleitung

Planet

Planet WAP-4030 Bedienungsanleitung

Planet

Planet WAPC-1232HP Bedienungsanleitung

Planet

Planet 802.11g Wireless Access Point / Bridge... Bedienungsanleitung

Planet

Planet WNAP-3000PE Bedienungsanleitung

Planet

Planet WNAP-7325 Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
