BLSL840

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 1

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 2

TECHNICAL SUPPORT: (909) 259-6001

BLSL840 1

Insta ation Instructions & Safety Information Manua

BLSL840 Vehicular Gate Operator

Class I, Class II, Class III, and Class IV

Gate Operator Class Categories & Example

Protection Against Entrapment

Use & Application

Important Safety Instructions

Maintenance Instructions

Intended Use

Types of Installations

Mounting Instructions

Entrapment Protection

Inductive Loops

Alarm Reset Switch

Warning Placards

Electrical

Limit Switches

Primary/Secondary Connections

Loop Rack

Accessory Connections

Selecta le Features

Solar Installation

....................................................2

....................................................3

.................................................4-5

....................................................6

....................................................7

....................................................8

...............................................9-10

.............................................11-13

..................................................14

.............................................15-16

..................................................17

.............................................17-19

.............................................20-21

..................................................22

..................................................23

.............................................24-27

.............................................28-29

..................................................30

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 3

2TECHNICAL SUPPORT: (909) 259-6001 BLSL840

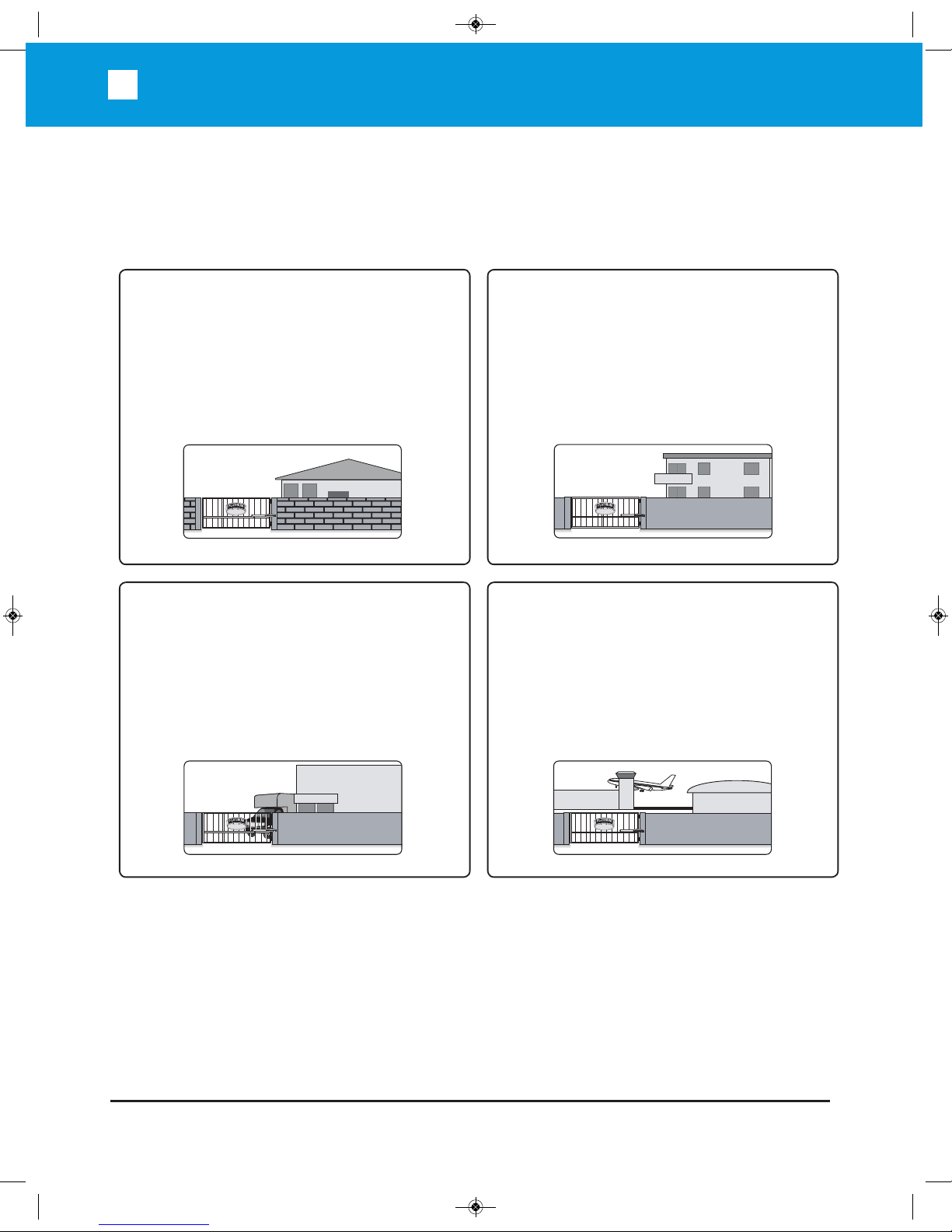

gate operator c ass categories and examp es

HOTEL

FACTORY

DOCK HANGAR 00

READ AND FOLLOW ALL INSTRUCTIONS MANUAL BEFORE ATTEMPTING

ANY INSTALLATION

Residential Vehicular Gate Operator

Class I

A vehicular gate operator (or system) intended

for use in a home of one-to four single family

dwelling, or a garage or parking area associated

therewith.

Commercial/General Access

Vehicular Gate Operator Class II

A vehicular gate operator (or system) intended

for use in a commercial location or building such

DVDPXOWLIDPLO\KRXVLQJXQLW¿YHRUPRUHVLQJOHfamily units), hotel, garages, retail store, or other

building servicing the general public.

Industrial/Limited Access Vehicular

Gate Operator Class III

A vehicular gate operator (or system) intended for

use in an industrial location or building such as

a factory or loading dock area or other locations

not intended to service the general public.

Restricted Access Vehicular Gate

Operator Class IV

A vehicular gate operator (or system) intended

for use in a guarded industrial location or building

such as an airport security area or other restricted

access locations not servicing the general public,

in which unauthorized access is prevented via

supervision by security personnel.

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 4

TECHNICAL SUPPORT: (909) 259-6001

BLSL840 3

PROTECTION AGAINST ENTRAPMENT

Usage Class Gate Operator Category

Horizontal Slide, Vertical lift, and Vertical Pivot Swing and Vertical Barrier (arm)

Primary Type* Secondary Type* Primary Type* Secondary Type*

Vehicular I and II

Vehicular III

Vehicular IV

A, B1, or B2

A, B1, B2, or D

B1, B2, C, or D

A, B1, B2, C, D, or E

B1, B2, or D

A, B1, B2, D, or E

A, or C

A, B1, B2, or C

A, B1, B2, C, or D

Note - The same type of device shall not be utilized for both the primary and the secondary entrapment

protection means. Use of a single device to cover both the opening and closing directions is in accordance with

the requirement; however, a single device is not required to cover both directions. A combination of one Type

B1 for one direction and one Type B2 for the other direction is the equivalent of one device for the purpose of

complying with the requirements of either the primary or secondary entrapment protection areas.

aEntrapment protection Types:

Type A: Inherent entrapment protection system.

Type B1: Provision for connection of, supplied with, a non-contact sensor (photoelectric sensor

or the equivalent).

Type B2: Provision for connection of, or supplied with, a contact sensor (edge device or the equivalent)

Type C: Inherent adjustable clutch or pressure relief device.

Type D: Provision for connection of, or supplied with, an actuating device requiring continuous pressure to

maintain opening or closing motion of the gate.

Type E: An audio alarm.

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 5

4TECHNICAL SUPPORT: (909) 259-6001 BLSL840

Use and App ication

The model BLSL840 is intended for Class I, II, III and IV usage on a vehicular slide gate

application.

a) Install the gate operator only when:

1) The operator is appropriate for the construction of the gate and the usage Class of the gate,

2) All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum

of 4 feet (1.22 m) above the ground to prevent a 2-1/4 inch (57.2 mm) diameter sphere from passing

through the openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers

in the open position,

3) All exposed pinch points are eliminated or guarded, and

4) Guarding is supplied for exposed rollers.

b) The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with

a separate access opening. The pedestrian access opening shall be designed to promote pedestrian usage.

Locate the gate such that persons will not come in contact with the vehicular gate during the entire path of

travel of the vehicular gate.

c) The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent

structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open into

public access areas.

d) The gate must be properly installed and work freely in both directions prior to the installation of the gate opera-

tor. Do not over-tighten the operator clutch or pressure relief valve to compensate for a damaged gate.

e) For gate operators utilizing Type D protection:

1) The gate operator controls must be placed so that the user has full view of the gate area when the gate is

moving,

2 The placard equivalent to the following: “To reduce the risk of electric shock the operator power is to be

provided from a weatherproof outlet in the case of attachment plug connection or weatherproof junction

box in the case of permanent wiring according to the National Electrical Code, NFPA 70.” shall be placed

adjacent to the controls,

3) An automatic closing device (such as a timer, loop sensor, or similar device) shall not be employed, and

4) No other activation device shall be connected.

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 6

TECHNICAL SUPPORT: (909) 259-6001

BLSL840 5

Use and App ication

f) Controls intended for user activation must be located at least six feet (6’) away from any moving part of the

gate and where the user is prevented from reaching over, under, around or through the gate to operate the

controls. Outdoor or easily accessible controls shall have a security feature to prevent unauthorized use.

g) The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control

shall not cause the operator to start.

h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.

i) For gate operators utilizing a non-contact sensor:

1) See instructions on the placement of non-contact sensors for each Type of application,

2) Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor

while the gate is still moving, and

3) One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists,

such as the perimeter reachable by a moving gate or barrier.

j) For a gate operator utilizing a contact sensor:

1) One or more contact sensors shall be located where the risk of entrapment or obstruction exists, such as

at the leading edge, trailing edge, and post mounted both inside and outside of a vehicular horizontal slide

gate.

2) One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.

3) One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.

4) A hardwired contact sensor shall be located and its wiring arranged so that the communication between

the sensor and the gate operator is not subjected to mechanical damage.

5) A wireless device such as one that transmits radio frequency (RF) signals to the gate operator for

entrapment protection functions shall be located where the transmission of the signals are not obstructed

or impeded by building structures, natural landscaping or similar obstruction. A wireless device shall

function under the intended end-use conditions.

6) One or more contact sensors shall be located on the inside and outside leading edge of a swing gate.

Additionally, if the bottom edge of a swing gate is greater than 6 inches (152 mm) above the ground at any

point in its arc of travel, one or more contact sensors shall be located on the bottom edge.

7) One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).

tion:

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 7

6TECHNICAL SUPPORT: (909) 259-6001 BLSL840

Important Safety Instructions

WARNING – To reduce the risk of injury or death:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Never let children operate or play with gate controls. Keep the remote control away from children.

3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE

MOVING GATE.

4. Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an object

activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator.

Failure to adjust and retest the gate operator properly can increase the risk of injury or death.

5. Use the emergency release only when the gate is not moving.

repairs to gate hardware.

7. The entrance is for vehicles only. Pedestrians must use separate entrance.

8. SAVE THESE INSTRUCTIONS

Maximum Gate Weight: 800 lbs.

Maximum Gate Length: 40 feet

Opening Time: 12" per second

Power Requirements: 120 VAC Single Phase at 2 Amps or 220 VAC Single Phase at 1 Amp

Main Power: Power Input: 100-240 VAC

Select 115 /230 VAC Single Phase

Built-in 24VDC battery backup (7AmpHr 12VDC x 2)

Operating Temperature: -20°C (-4°F) to 70°C (158°F)

Operator Weight: 132 lbs.

Operator Dimensions:

SPECIFICATIONS

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 8

TECHNICAL SUPPORT: (909) 259-6001

BLSL840 7

Maintenance Instructions

The following services need to be periodically performed:

• Check and adjust the gate operator for force, speed, and sensitivity.

• Make sure all power (AC/DC ) connections are corrosion free.

• Check all batteries for proper voltage of the intended use. A fully charged battery must be 26

VDCminimum.

• Verify battery backup functionally by turning off the power source (115 VAC and 230 VAC).

Don’t forget to restore power after testing.

• Check the wheels, guide rollers, chain, and lubricate where needed with a heavy-duty, highperformance

lubricant and avoid spillage.

• Inspect the track for any signs of cracking or separation.

• Test (use caution) all contact and non-contact sensors, all vehicle detectors, keypad, telephone

entry system or other control devices applicable.

• Test the manual release feature on the operator.

Maintenance instructions of BLSL840 performed by the end user/home owner

Maintenance instructions of BLSL840 performed by a qualified gate operator technician

Although all Platinum Access Systems’ gate operators are virtually maintenance free to an end user/home owner,

minimal maintenance is recommended to ensure a smooth operation of this unit.

End users/home owners:

• Perform maintenance every six months, or when strenuous noise from wheels and/or guide rollers is

detected. Lubricate them with heavy-duty, high-performance lubricant and avoid spillage.

• DO NOT take the cover off the operator and/or the electrical control box to perform maintenance.

• Make sure there are no cars in the path of the gate while performing maintenance.

• Make sure the person performing maintenance is the only person in control of all control devices

in order to avoid possible involuntary activation of the gate operator.

• Keep spraying water hoses and sprinkler systems away from the gate, gate operator and the

electrical control box at all times. Keep that general area as clean as humanly possible.

• Test (use caution) all non-contact sensors, all vehicle detectors, keypad, telephone entry system or

other control devices applicable.

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 9

8TECHNICAL SUPPORT: (909) 259-6001 BLSL840

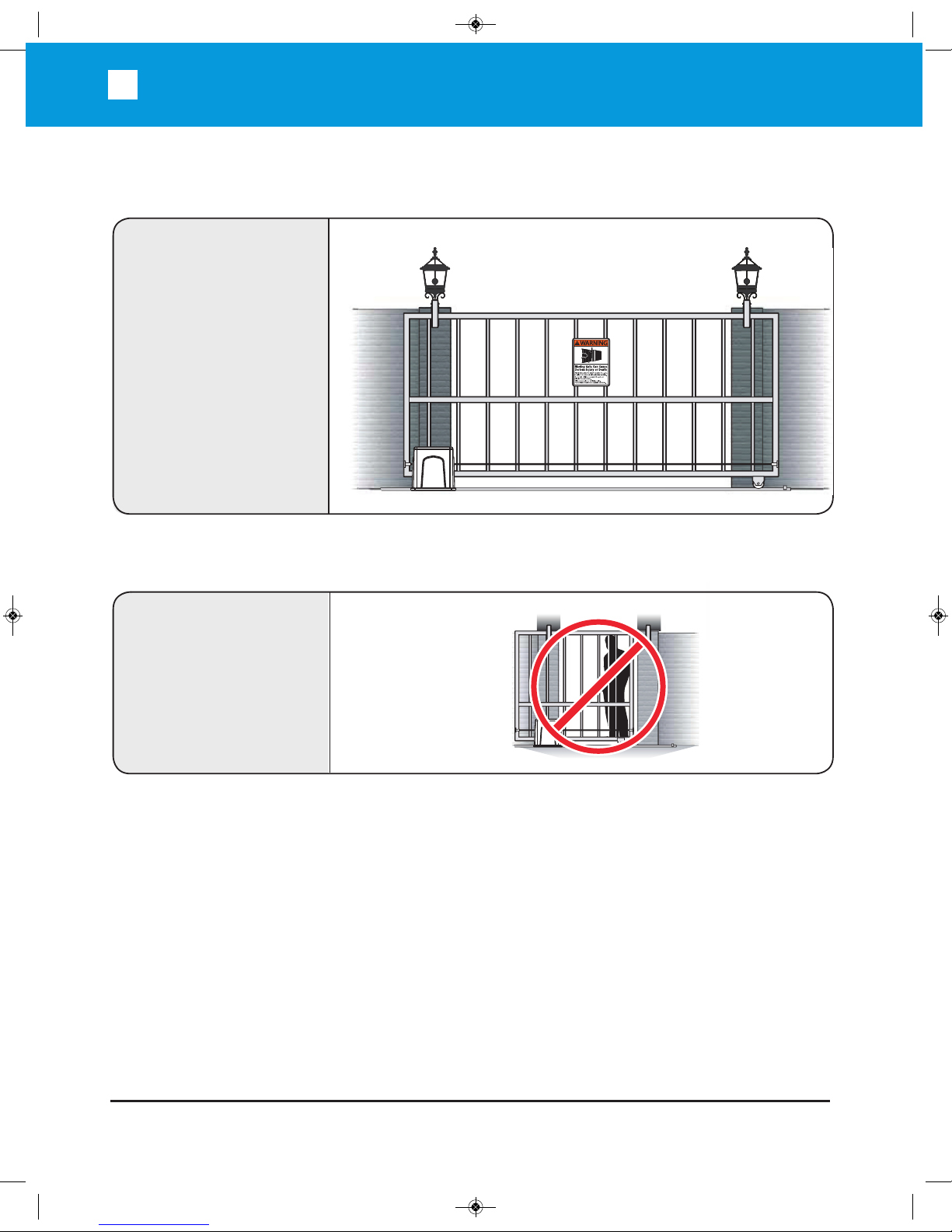

Intended Use

The operator

is intended for

installation on a

vehicular slide

gate only.

The operator IS

NOT intended to

be used for any

pedestrian gate.

BLSL840 Manual_Layout 1 3/6/2014 5:01 PM Page 10

Inhaltsverzeichnis

Andere Platinum Toröffner Handbücher

Platinum

Platinum BLSL2250 Service-Handbuch

Beliebte Toröffner Handbücher anderer Marken

Elite

Elite CSW200UL Bedienungsanleitung

CAME

CAME FROG-PM4 Bedienungsanleitung

SOMFY

SOMFY FX230 Bedienungsanleitung

Aprimatic

Aprimatic ONDA 500 Bedienungsanleitung

Turnstiles

Turnstiles FSW 900 Bedienungsanleitung

Erreka

Erreka BUL BL33 Betriebsanleitung

Erreka

Erreka VULCAN S Bedienungsanleitung

Beninca

Beninca R1-2 WBV Bedienungsanleitung

Erreka

Erreka VULCAN D Bedienungsanleitung

Motorline professional

Motorline professional FORT Bedienungsanleitung

Beninca

Beninca BOB5024 Bedienungsanleitung

AGA

AGA GATEMASTER 900 HD Bedienungsanleitung

Chamberlain

Chamberlain MotorLift HC280ML Bedienungsanleitung

SOMFY

SOMFY Dexxo RTS Pro Bedienungsanleitung

Cardin

Cardin BL Series Bedienungsanleitung

Westfalia

Westfalia 85 27 06 Bedienungsanleitung

CAME

CAME F500 Bedienungsanleitung

Extel

Extel VERA Bedienungsanleitung
